Precision PG-1500 Tub Grinder

CAPABILITIES

ProGrind Tub Grinders offer industry-leading, user-friendly controls, clutch protection and a variety of hammer options for grinding versatility. The tub on each model tilts up to 90 degrees for easy access to the hammermill, screens and lower auger area. Precision Husky offers six rugged models, each built with ease of operation, cost and – always – your productivity in mind.

PERFORMANCE

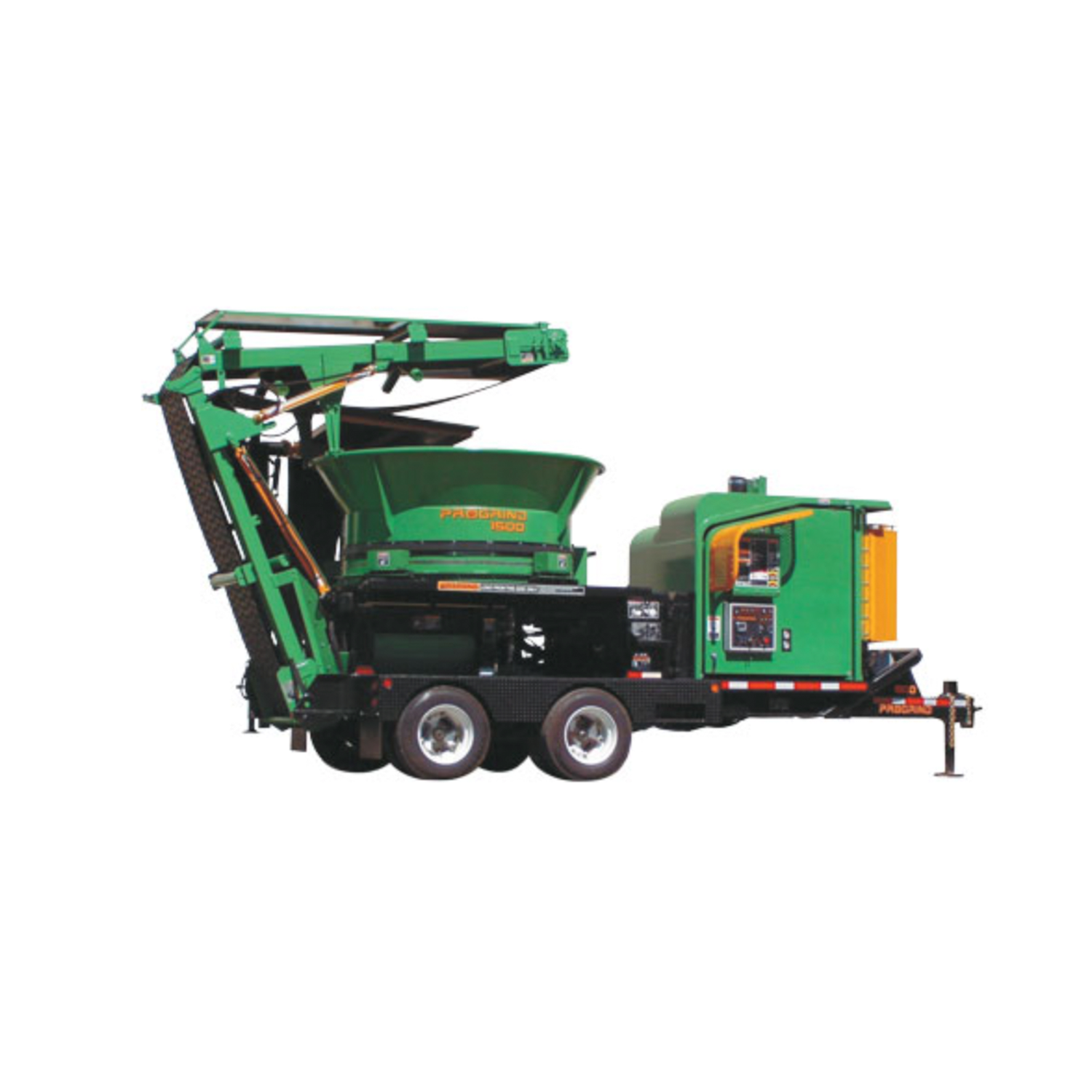

Our PG-1500 Tub Grinder is compact and rugged 1500 is an industry standard. It comes loaded with a fixed hammer design and 420HP CAT diesel engine for long hours of performance on the jobsite. The 1500 also comes with a remote controlled tub cover, tub start/stop, tub forward/reverse, auger start/stop, conveyor raise/lower, emergency stop and remote power off.

The insulated engine cover and critical muffler reduce noise by as much as half over older equipment. Available in trailer or track mount.

VIEW BROCHURE

SPECIFICATIONS

• GENERAL

• ENGINE

• DRIVE TRAIN

• HAMMERMILL

• TUB

• DISCHARGE

• MORE

• GENERAL DIMENSIONS	SPECS
  Transport Length	26’-6” [8.01m]
  Transport Height	12’-10” [3.9m]
  Loading Height	8’-5” [2.6 m]
  Gross Weight	27,000 lbs. [12,273kg]
  Tongue Weight	25,000 lbs. [11,364kg]
  Axle Weight	2,000 lbs. [909kg]
  Width	8’-5” [2.6m]

• ENGINE	SPECS
  Horsepower	420
  Air Cleaner	Donaldson Dry Type
  Fuel Capacity	80 gal. [302 l]
  Noise Suppression	Sound reduced on is obtained by using an oversized fan and radiator. This allows the engine to operate at 1880 rpm with enclosed side panels greatly reducing total sound pressure energy.

• DRIVE TRAIN	SPECS
  Clutch	Twin Disc SP214
  Fluid Coupler	Transfluid 19KRU
  Drive Shaft	Spicer 1810
  Final Drive	1:1, 1880 RPM

• HAMMERMILL	SPECS
  Opening	25 7/16” x 35” [64.2 cm x 89 cm]
  Length	33 1/2” [84 cm]
  Deflector	1/2” [12.7 mm] Thick Weldox 100 Thrown Object Deflector
  Diameter	16 7/8” [43 cm] OD with 9” [23 cm] Diameter Cent
  Shaft	5” [12.7 cm] Hardened Alloy Steel
  Bearings	3 7/16” Double Row Spherical
  Hammers	18 Two Bolt Fixed Hammers

• TUB	SPECS
  Inside Width	6’-5” [2 m]
  Flare Width	8’-5” [2.6 m]
  Depth	42” [1066 mm]
  Walls	3/8” [9.52 mm] Steel Plate with (4) 1/2” [12.7 mm] Stiffeners Welded Vertically to Support Tub and Flares
  Agitators	(4) 3/8” x 3” [9.53 mm x 76.2 mm]
  Speed	Variable, Up to 8 RPM Forward and Reverse
  Drive	10,500 in. lbs [1,186 nm] Torque; Overload Protected Hydraulic Motor, Triple-50 Chain
  Thrown Object Cover	Cover raises 48” for Operation. Adjustable to Allow for Different Materials and Methods of Loading

• DISCHARGE SYSTEM	SPECS
  Augers	Dual 12” [30.48cm] Hydraulically driven.
  Stacking Conveyor	20’-0” [6.1m] Long x 30” [76.2cm] Wide
  Stacking Height	12’-10” [3.9m]
  Trailer / Tracking System	Dual 15,000 lbs. [6,800kg] axles with dual 235- 75R17.5 radial load range “H” tires and electric brakes. Also available mounted on Caterpillar 312 (or equivalent) tracks.

• MORE	SPECS
  Control Panel	Panel Shock Mounted with Tach, Hour Meter, Amp, Oil/Hydraulic Pressure, Thro􀆩 le, Key Switch and Kill Switch.Emergency Shutdown Switch for Low Oil Pressure andHigh Temperature. Hinged to Swing Out for BetterServiceability.
  Radio Remote	Radio Remote Controls Tub Start/Stop, Tub Forward and Reverse, Conveyor and Auger Start/Stop, Thrown Object Cover Raise/Lower, Conveyor Raise/Lower, Emergency Stop, Remote Power On/Off .
