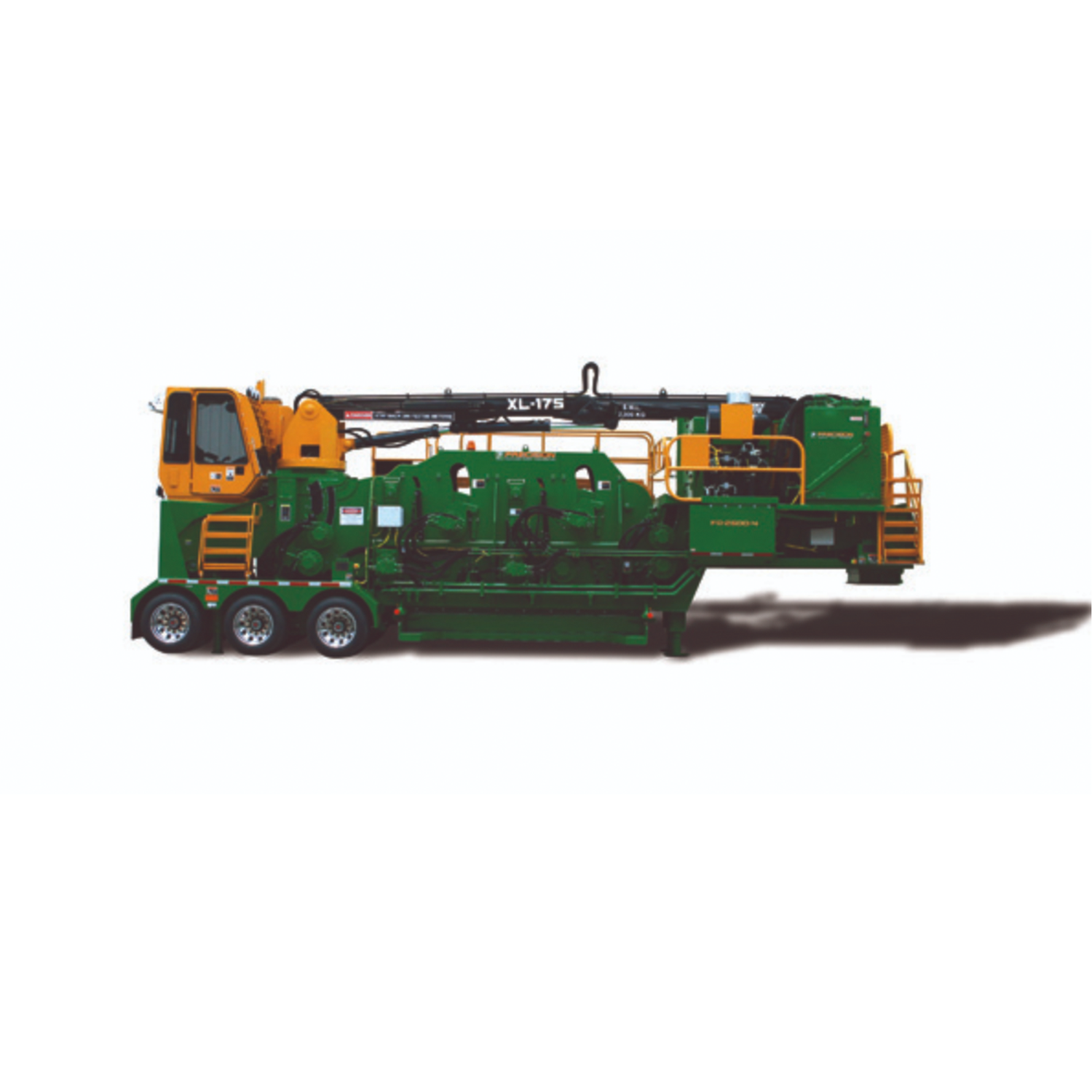

Precision Flail Debarker

CAPABILITIES

The Precision FD-2300, 2 Flail capable of processing multiple logs from 3” to 23” [76mm to 584mm] and FD-2600-4 flail, capable of processing multiple logs from 3” to 26” [76mm to 660mm] increase productivity while reducing bark content to as low as 3/10 of 1% on average. The fully adjustable hydraulic system provides the operator limitless control of the feed rate,flail speeds and rotations. This flexibility offers many solutions to the customer’s individual needs and maintains the highest efficiency rates possible.

The Precision line of Flail Delimber Debarkers are better engineered, built heavier, stronger and offer more logging production and less down time.

Both models include state of the art hydraulics that allow all the infeed rolls, flail drums and outfeed rolls to be infinitely variable. Bark and limbs are removed in the enclosed housing, protecting the system from damage. The FD-2300, 2 Flail discharges the bark and waste with a 22’-6’ [6.86m] chain conveyor while the 2600-4 flail model removes the waste by an oversized hydraulic pusher, keeping the debarker chamber clean.

VIEW BROCHURE

SPECIFICATIONS

• FD-2300-2 FLAIL DEBARKER"

• FD-2600-4 FLAIL DEBARKER"

• FD-2300-2 FLAIL DEBARKER	SPECS
  Weight	52,000 lbs [23,636 kg] Approximate
  Length (on highway)	36’ 4” [11 m]
  Width	8’ 10” [2.7 m]
  Maximum Height (on Highway)	13 5 1/2” [4.1 m]
  Height (operating)	15’ 4” [4.7 m]
  5th Wheel Above Ground Level	48” [1.22 m]
  Chain Sections	Short link 5/8” [16mm] x 8 links
  Ground Clearance	8” [203mm]
  Tire Size	Eight (8) 255/70R22.5 Load rating H
  Log Size	3” to 23” [76mm to 584mm]
  Debarking Chamber	53” w x 23” h [1346mm x 584mm]
  Hydraulic Oil Tank	230 gallons [ 870 L]
  Fuel Capacity	170 gallons [644 L]
  Engine	400 - 430 HP [298 - 320 kw]
  Upper Flail Drums	One (1) Pivoted w/ Gravity Counterbalance
  Lower Flail Drums	One (1) Fixed
  Upper Feed Rolls	One (1) Floating
  Lower Feed Rolls	One (1) Fixed
  Outfeed System	Folding Chain Conveyor

• FD-2300-2 FLAIL DEBARKER	SPECS
  Weight	90,000 lbs [40,820kg] Approximate
  Length (on highway)	39’ 2” [11.94m]
  Width	10’ 6” [3.2m]
  Maximum Height (on Highway)	13’ 5 1/2” [4.1m]
  Height (operating)	16’ 7” [5.05m]
  5th Wheel Above Ground Level	48” [1.22 m]
  Chain Sections	Short link 5/8” [16mm] x 8 links
  Ground Clearance	10” [203mm]
  Tire Size	Six (6) 445/50R22.5 Load rating J
  Log Size	3” to 26” [76mm – 660mm] diameter
  Debarking Chamber	53” w x 26” h [1346mm x 660mm]
  Hydraulic Oil Tank	300 gallons [1,136 L]
  Fuel Capacity	300 gallons [1,136 L]
  Engine	580 - 600 HP [432 - 447 KW]
  Upper Flail Drums	Two (2) Bi Directional, Variable Speed Hydrostatic Drive
  Lower Flail Drums	Two (2) Bi Directional, Variable Speed Hydrostatic Drive
  Upper Feed Rolls	Two (2) Floating
  Lower Feed Rolls	Three (3) Fixed
  Outfeed System	Dual Hydraulic Cylinder Pusher
