Precision Chip Screens

Shipping calculated at checkout.

Delivery and Shipping

Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours. Weekend orders are processed the next business day. Products that are backlog or custom orders will be processed as soon as possible. Equipment deliveries vary based on current backlog and will be confirmed at time of order.  Please call 800-598-6344 for an estimate for equipment and shipping questions.

Description

Standard Chip Screen - Highest possible production, lowest cost per ton in the industry. For PCS and PCS-1010 in high-volume models consult Smith Sawmill Services for more information.

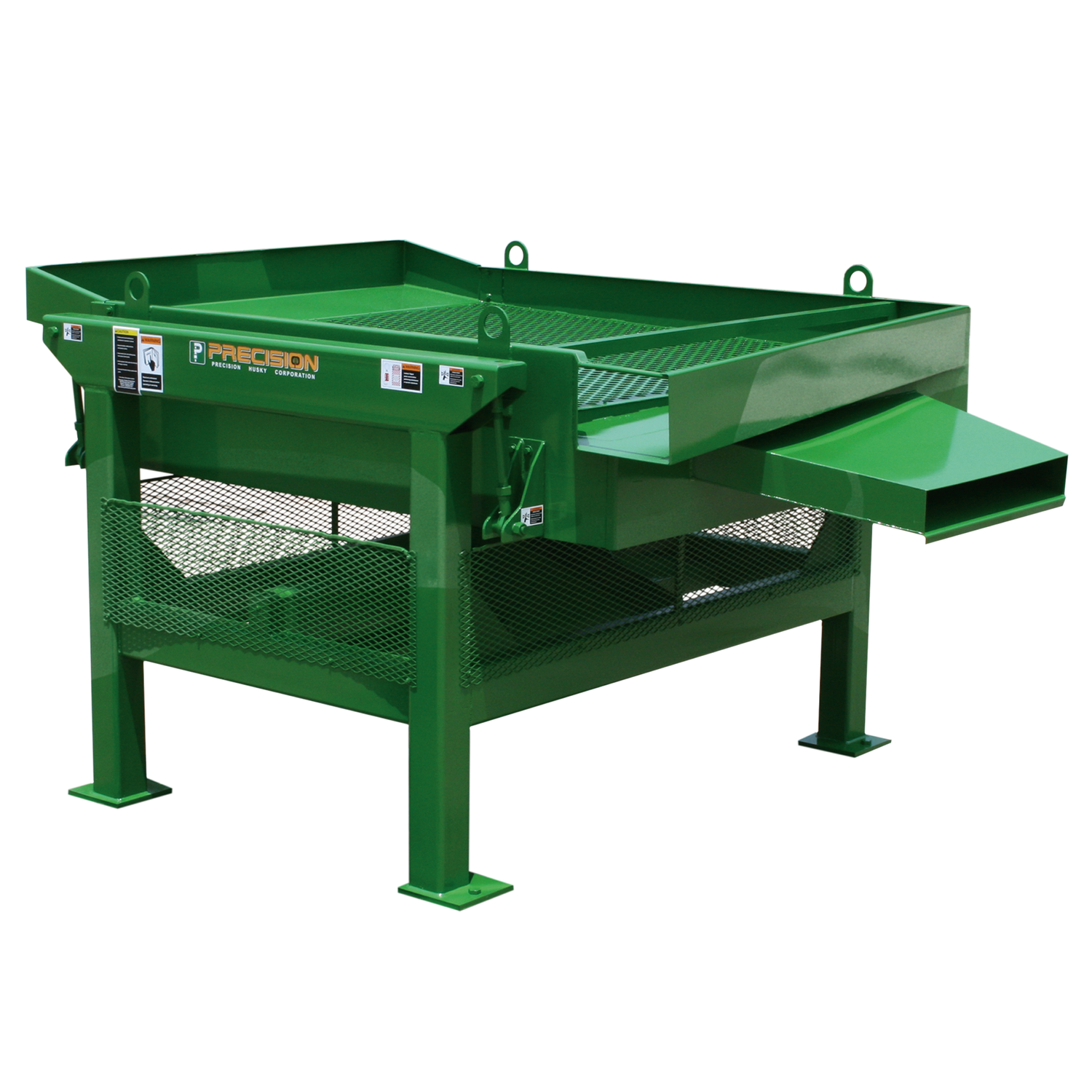

Precision ‘‘Fixed-Rotary’’ Chip Screens incorporate proven engineering features to assure long-life performance with consistent high-quality production. The smooth glide of the fixed rotary counter weight from the balanced center axis of the drive unit, provides year after year of high performance with minimum maintenance. The low profile receiving pan is additional assurance that your Precision ‘‘Fixed-Rotary’’ Chip Screens will meet the most demanding requirements of any chip specifications.

SPECIFICATIONS

CHIP SCREENS SPECIFICATIONS SIZES
PCS-1010 CHIP SCREEN

Weight
8,437 lbs. [3,827 kg]
Screen Surface
120” X 120” [305 cm x 305 cm]
Capacity
65 tons / Hr.
Hp
10 HP [7.5 kw]


PSC-88 CHIP SCREEN
Weight
7,583 lbs. [3,440 kg]
Screen Surface
96” X 96” [244 cm x 244 cm]
Capacity
40 tons / Hr.
Hp
7.5 HP [5.56 kw]


PCS-77 CHIP SCREEN

Weight
3,960 lbs. [1,796 kg]
Screen Surface
84” X 84” [213 cm x 213 cm]
Capacity
25 tons / Hr.
Hp
5 HP [3.7 kw]


PCS-66 CHIP SCREEN
Weight
3,258 lbs. [1,478 kg]
Screen Surface
72” X 72” [183 cm x 183 cm]
Capacity
18 tons / Hr.
Hp
3 HP [2.2 kw]


PCS-55 CHIP SCREEN
Weight
2,736 lbs. [1,241 kg]
Screen Surface
60” X 60” [152 cm x 152 cm]
Capacity
13 tons / Hr.
Hp
2 HP [1.5 kw]

CAPABILITIES
  • Rear Discharger
  • Inverted Drive
  • Heavy-Duty Universal Joints
  • UHMW Lining
  • Stainless Lining

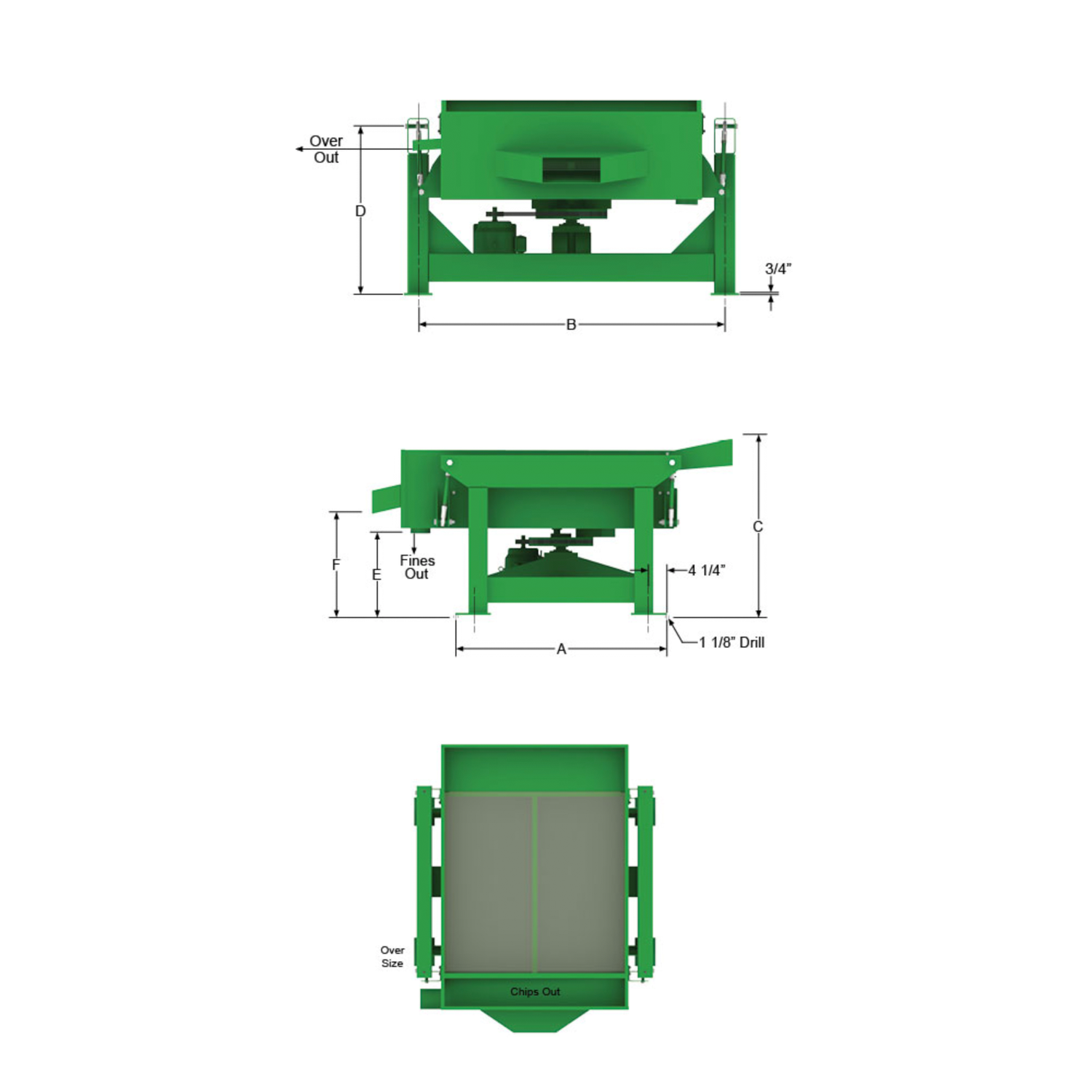

See Chip Screen Views to the left

CHIP SCREENS SPECIFICATIONS SIZES
PCS-1010 CHIP SCREEN

A
109 ½” [2.78m]
B
133” [3.38m]
C
70” [1.78m]
D
47 ¼” [1.20m]
E
31 ⅜” [797mm]
F
38 ⅜” [975mm]
PSC-88 CHIP SCREEN
A
84 ½” [2.07m]
B
109” [2.77m]
C
70” [1.78m]
D
49 ⅝” [1.26m]
E
30 ⅛” [765mm]
F
37 ⅜” [949mm]
PCS-77 CHIP SCREEN

A
73 ½” [1.87m]
B
95” [2.41m]
C
57 ⅝” [1.46m]
D
41 ⅝” [1.06m]
E
28” [711m]
F
36 ⅜” [924mm]
PCS-66 CHIP SCREEN
A
61 ½” [1.56m]
B
83” [2.10m]
C
54” [1.37m]
D
38” [965mm]
E
24 ½” [622mm]
F
32 ¾” [832mm]
PCS-55 CHIP SCREEN
A
49 ½” [1.25m]
B
71” [1.80m]
C
54” [1.37m]
D
38” [965mm]
E
24 ½” [622mm]
F
32 ¾” [832mm]



Specifications are listed at the time of publishing, may vary with equipment options and are subject to change without notice.
