NorthTech Double Surface Planer NT 820HC-505032, Smith Sawmill Service

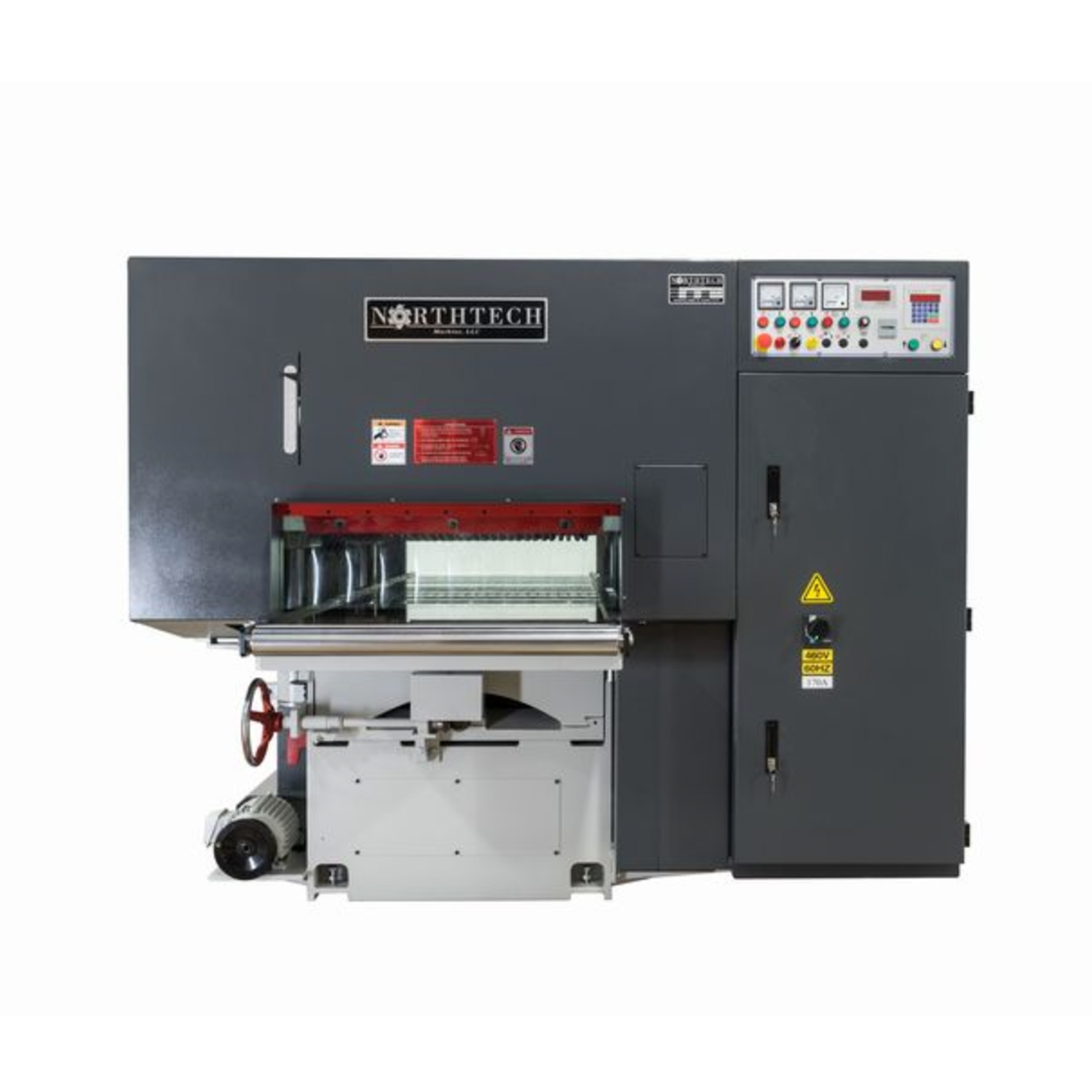

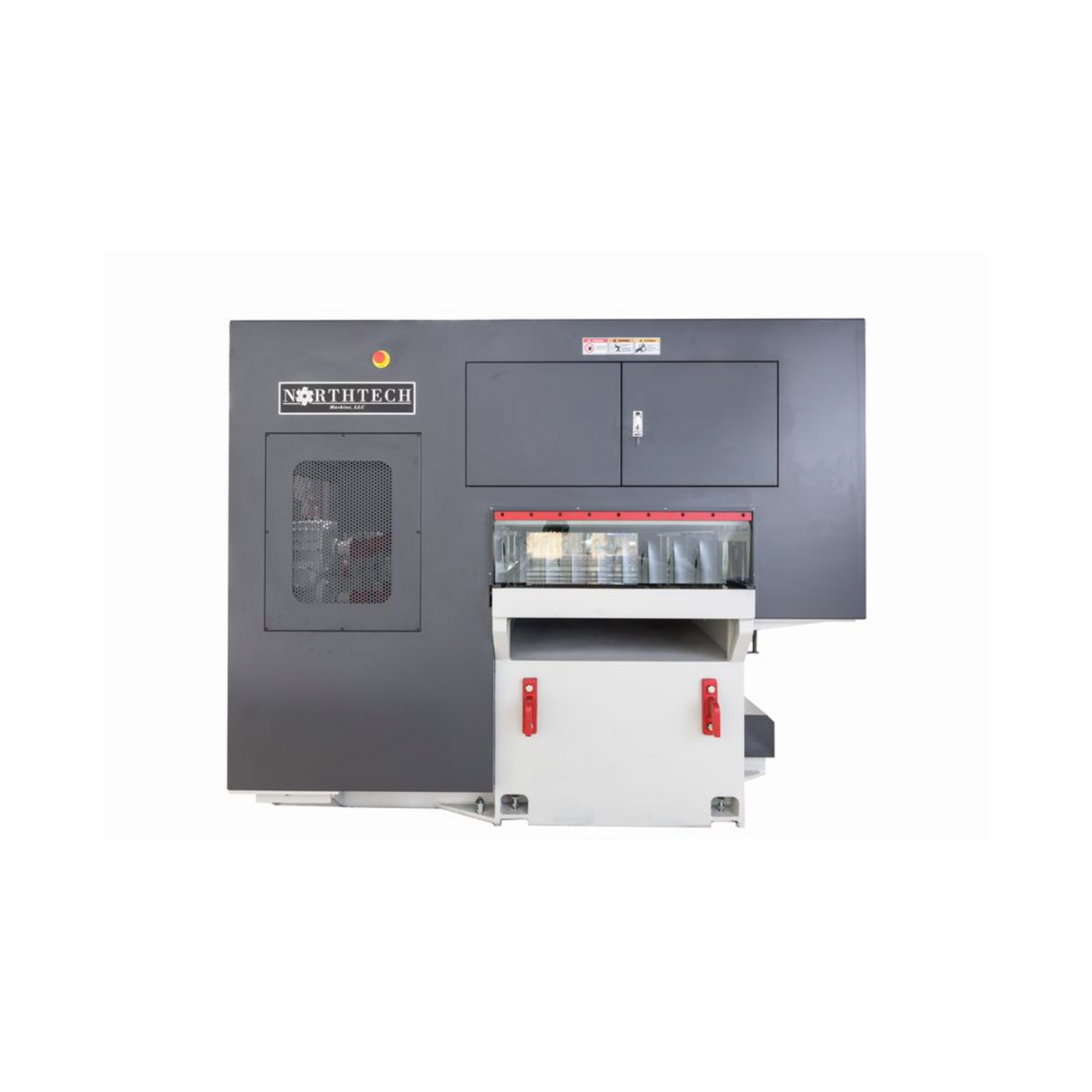

NorthTech Double Surface Planer NT 820HC-505032

by NorthTech
SKU NORTHTECH-2-SURFACE PLANER-NT-820HC-505032

MODEL Double Surface Planer NT 820HC-505032

  • CUTTERHEADS

    • 50 HP Top, 50 HP Bottom

    • 5000 RPM solid steel cutterheads with Class 7 NSK bearings

  • PRODUCTION DIMENSION

    • Working width 820mm (32”)

    • 13” min working length

    • Thickness range  (3/8” - 8”)

  • FEED SYSTEM

    • 10HP + 15HP inverter feed motor

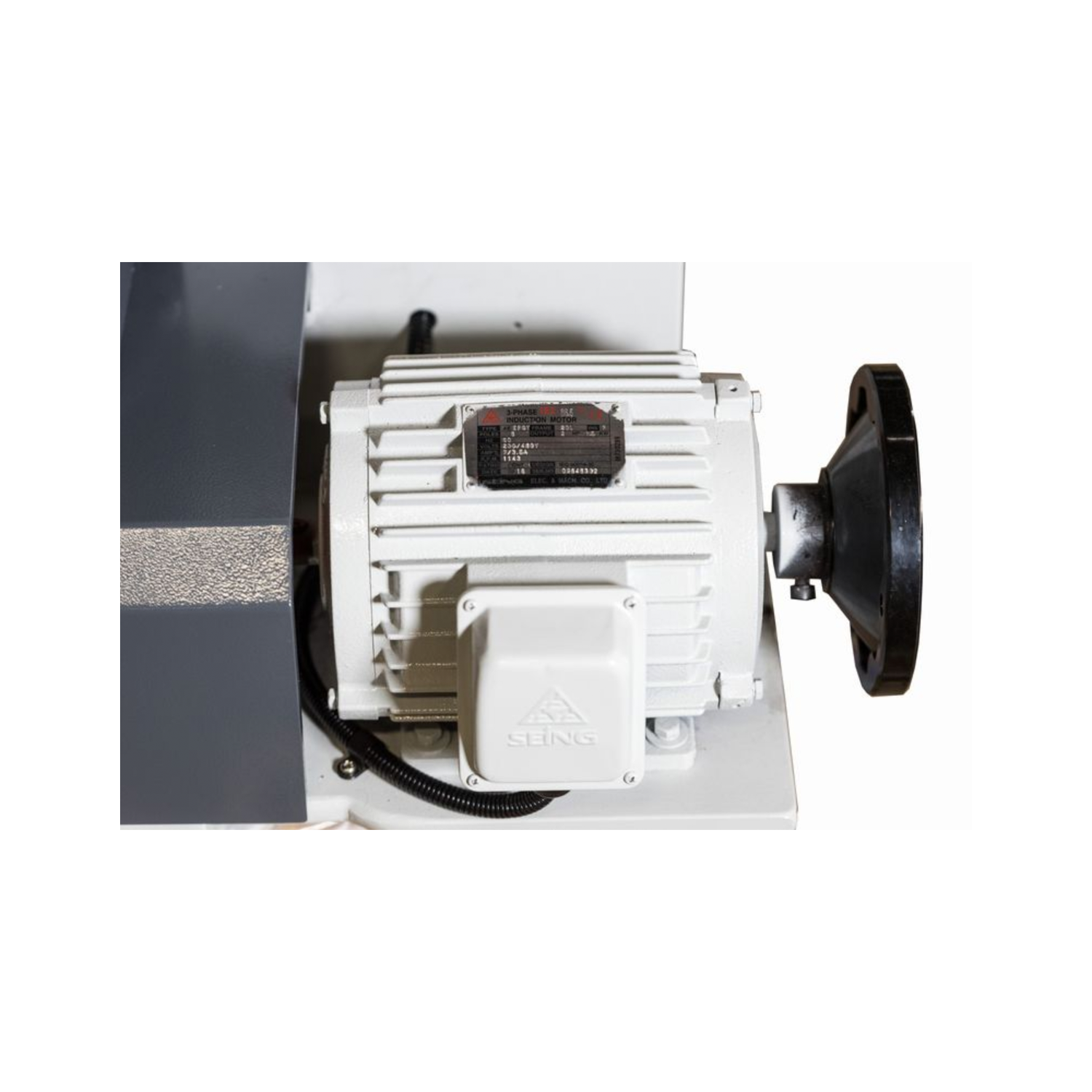

    • Elevation motor: 2HP

    • Carpet feeding spike system with 1500 spikes

    • Feed speed 30-80 FPM

  • FEATURES

    • Digital control panel with 3 oversized inverter feed control amp meters

    • Chrome bed plate

    • Patented 4 column lifting system

    • Carpet feeding spike system

    • Cardan shaft drive system

    • 80 FPM maximum feed speed

    • Amperage requirement at 161 @ 460V; 322 @ 230V

    • (4) 6” dust ports requiring 981 CFM @ each point of extraction

    • UL/CE Certified electrical components

    • Lubricating system

    • Includes operator’s manual and parts book

    • Machine dimensions: 115” L x 88” W x 70” H

    • Packing dimensions: 122”L x 90”W x 77”H

    • Machine gross / net weight: 15,433 lbs. / 16,535 lbs

    • One year parts warranty

    • All machines are tested stateside prior to shipment providing trouble-free start up.

  • SPECS

    • Top Head Hp. = 50 Hp.

    • Bottom Head Hp. = 50 Hp.

    • Voltage/ Freq. = 230 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 322 Amps

    • Feed Hp. = 10 Hp.

    • Feed System = Carpet Feed / Powered Rollers

    • Drive System = Cardan Shaft Drive System

    • Feed Speed = 27 - 82 FPM

    • Variable Speed = Inverter Controlled

    • Elevation Hp. = 2 Hp.

    • Elevation Style = DP-626S Elevation Control

    • Elevation Sys. = (4) Post Jack Screw

    • Total Hp. = 112 HP.

    • Electronics = UL Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 110 Volt

    • Programmable = Elevation

    • Operator Panel = Fixed

    • Pass-Line = 34''

    • Min. Length = 12'' 1st Hold Down to Kickback

    • Min. Width = 2"

    • Max. Width = 32-3/8''

    • Min. Thickness = .42''

    • Max. Thickness = 8''

    • Cutter Head RPM = 4500 Rpm

    • Tooling = 30 x 12 x 2.5 mm

    • Head Type = Dynamically Balanced Helical Head

    • Cutter Head Dim = 6'' x 32-3/4''

    • Cut Head Matl. = Alloy Steel

    • Rows of Cutters = 8 Rows

    • No. of Inserts = 188 Inserts

    • Insert Size = 30 x 12 x 2.5 mm

    • No. of Heads = 2

    • Dust Collection = (4) 6'' @ 981 CFM Each

    • Digital Display = Elevation and Feed Speed

    • Powered Rollers = 3 Bottom 3 Top Powered Rollers

    • Idle Rollers = (4) Bed Rolls (1) Top

    • Hold Down Style = Chip Breakers/ Pressure Plate

    • No. of Spikes = 1500 Spikes

    • FLR Included = Filter, Lubricator, Regulater

    • Recommended CFM = 3/8'' Supply Line @ 90 Psi

    • Rear E Stop = Push Button

    • Guarding = Full Cabinet Enclosure

    • Oiler = (1) Auto (1) Manual Oiler

    • Low Oil Warning = Low Oil Shut-off

    • Frame Const. = Cast/Steel Construction

    • Chrome Bed = .004'' Chrome Plated Bed

    • Slip Clutch = Clutch on Drive

    • Decible Rating = 75 dB

    • Net Weight = 15,433 Lbs.

    • Gross Weight = 16,535 Lbs.

    • Machine Dims. = 121'' x 77'' x 69''

    • Packaging Dims = 124'' x 81'' x 77''
