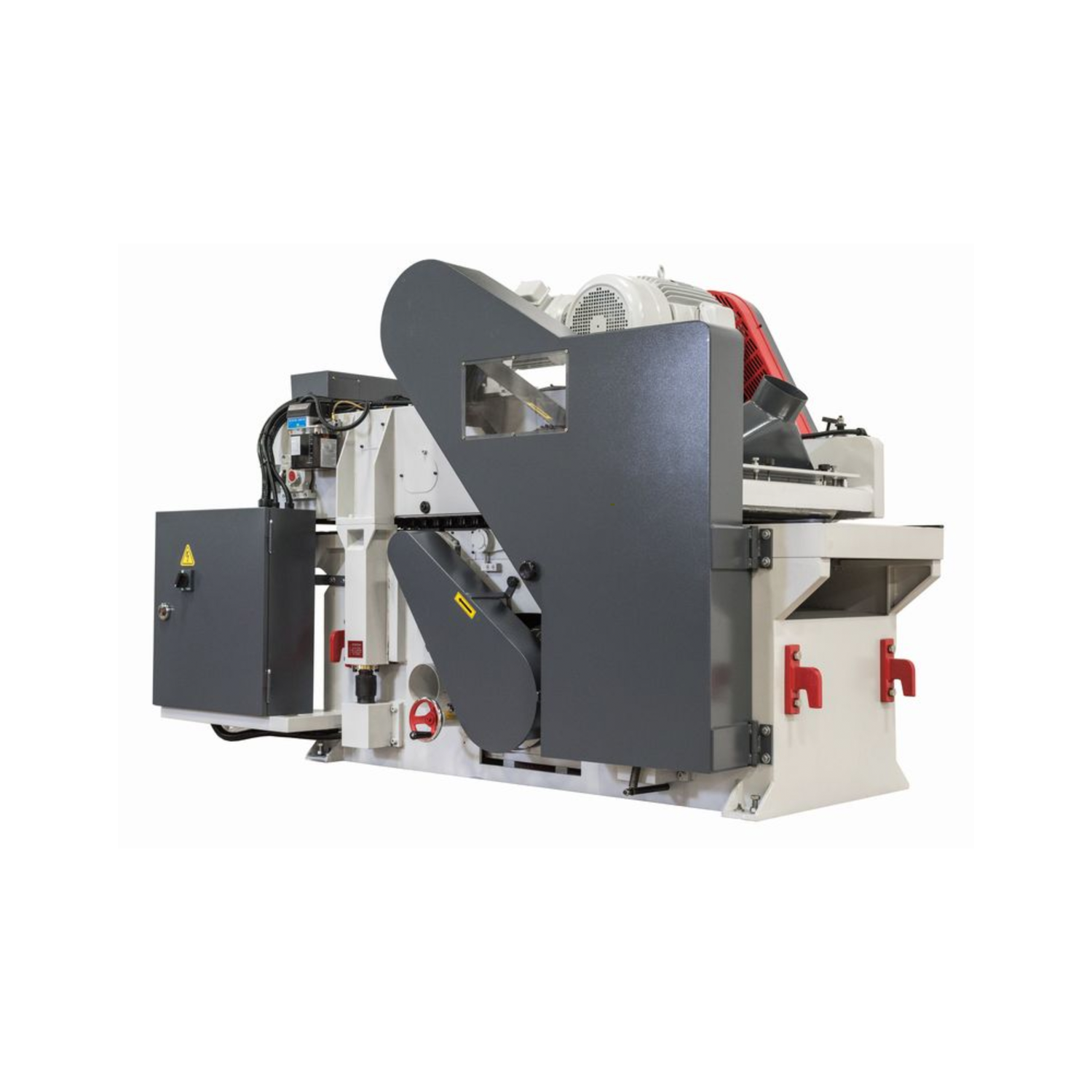

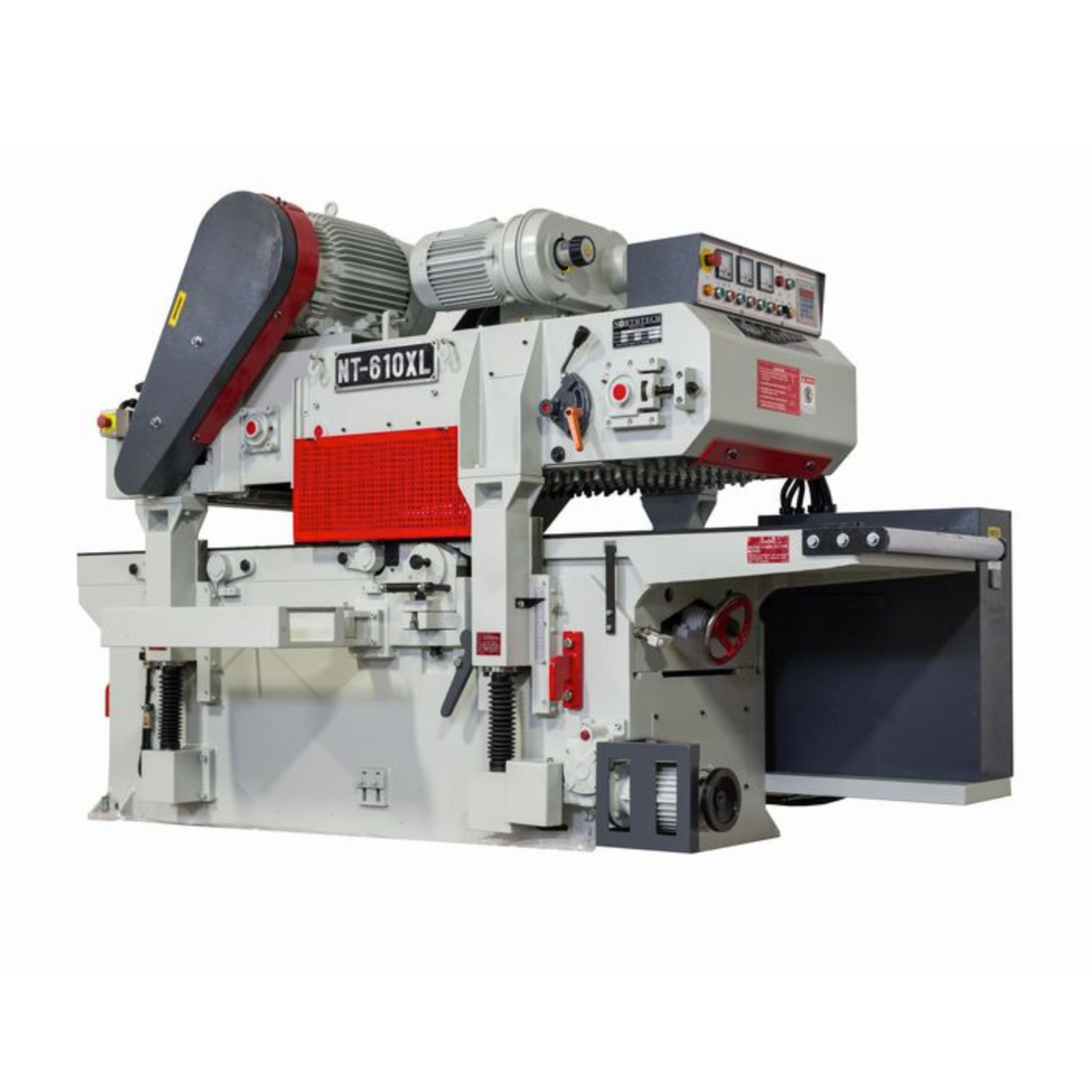

NorthTech Double Surface Planer NT 610XL Heavy Duty

SKU NORTHTECH-2-SURFACE PLANER-NT-610XL-HEAVY-DUTY

MODEL Double Surface Planer NT 610XL Heavy Duty

  • CUTTERHEADS

    • 0HP Top, 25HP Bottom

    • Dual (6) Row Helical Cutterhead with double sided 30 x 12 x 2.5mm inserts

    • 5000 RPM solid steel cutterheads with Class 7 NSK bearings

    • Cutterhead decibel rating of 75 dB or less

  • PRODUCTION DIMENSION

    • Working thickness 10 - 155mm (3/8” - 6-1/2”)

    • 15” min working length

    • 24” maximum width

  • FEED SYSTEM

    • 5HP feed motor

    • Carpet feeding spike system with 1100 spikes

    • Feed speed 25 - 95 ft/min

  • FEATURES

    • Mechanical variable speed

    • Digital control panel with 3 amp meters

    • Chrome bed plate .01mm (.004”) thick

    • Amperage requirement: 230V @ 200AMP, 460V @ 100AMP

    • (2) 6” dust ports requiring 1000 CFM @ each point of extraction

    • Automatic lubricating system with low level shut off

    • UL/CE Certified electrical components

    • Includes operator’s manual and parts book

    • Machine dimensions: 112” L x 46” W x 74” H

    • Packing dimensions: 117”L x 52”W x 78”H

    • Machine gross / net weight: 7,680 lbs. / 8,300 lbs

    • One year parts warranty

    • All machines are tested stateside prior to shipment providing trouble-free start up

  • SPECS

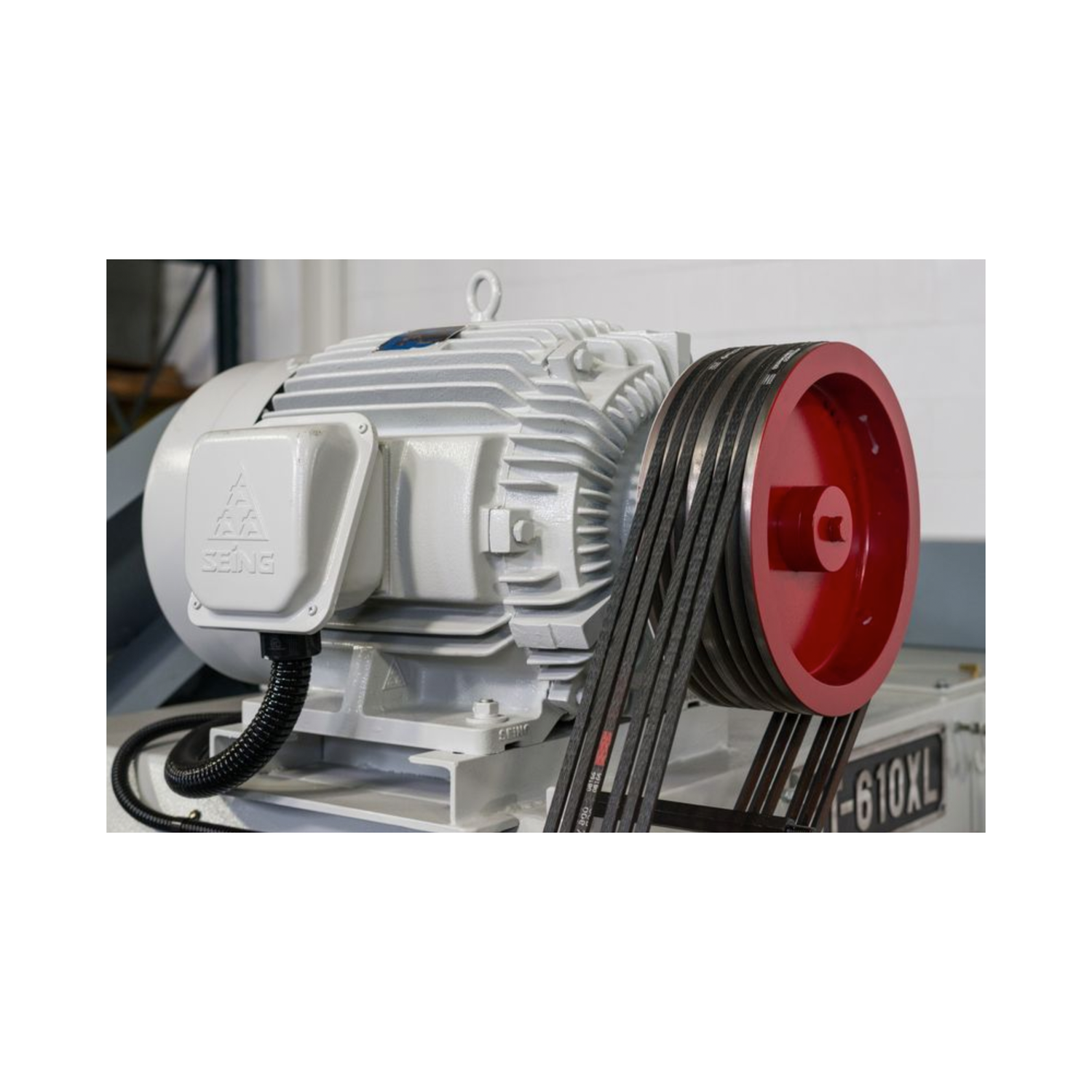

    • Top Head Hp. = 30 Hp.

    • Bottom Head Hp. = 25 Hp.

    • Voltage/ Freq. = 230 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 175 Amps

    • Feed Hp. = 5 Hp.

    • Feed System = Carpet Feed / Powered Rollers

    • Drive System = Chain with Slip Clutch

    • Feed Speed = 25 - 95 FPM

    • Variable Speed = CVT Adjustable Drive

    • Elevation Hp. = 1 Hp.

    • Elevation Style = DP-626S Elevation Control

    • Elevation Sys. = (4) Gibbed Dovetail Slideways

    • Total Hp. = 61 Hp.

    • Electronics = CE Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 110 Volt

    • Min. Length = 15''

    • Min. Width = 1.5''

    • Max. Width = 24''

    • Min. Thickness = 3/8''

    • Max. Thickness = 6-1/2''

    • Cutter Head RPM = 5100 Rpm

    • Tooling = 30 x 12 x 2.5 mm

    • Head Type = Dynamically Balanced Helical Head

    • Cutter Head Dim = 5-1/4'' x 25''

    • Cut Head Matl. = Alloy Steel

    • Rows of Cutters = 6 Rows

    • No. of Inserts = 105 Inserts

    • Insert Size = 30 x 12 x 2.5 mm

    • No. of Heads = 2

    • Dust Collection = (2) 6'' @ 1962 CFM

    • Dust Port Out = (2) 6'' Ports

    • Digital Display = Elevation

    • Powered Rollers = (4) Powered Rollers

    • Idle Rollers = (1) Idle Roller

    • Hold Down Style = Chip Breakers/ Pressure Plate

    • No. of Spikes = 1100 Spikes

    • Rear E Stop = Push Button

    • Guarding = High Visibility Guarding

    • Oiler = Auto Oiler<

    • Low Oil Warning = Low Oil Shut Off / Warning

    • Frame Const. = 1/2'' Steel/Cast Iron Construction

    • Chrome Bed = .004'' Chrome Plated Bed

    • Decible Rating = 80 dB<

    • Machine Dims. = 112'' x 46'' x 74''

    • Packaging Dims = 116'' x 51'' x 78''

Item ID: 1164
