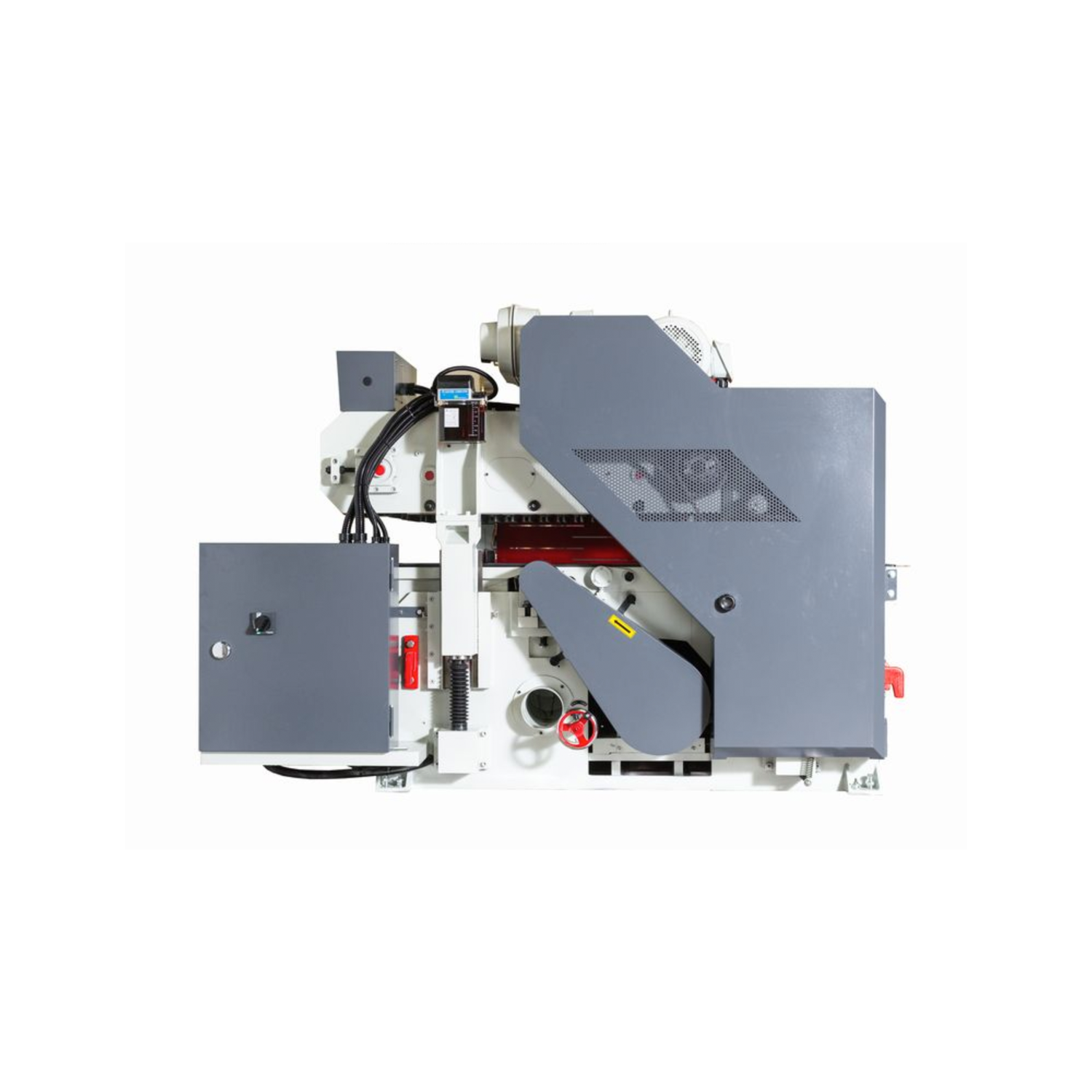

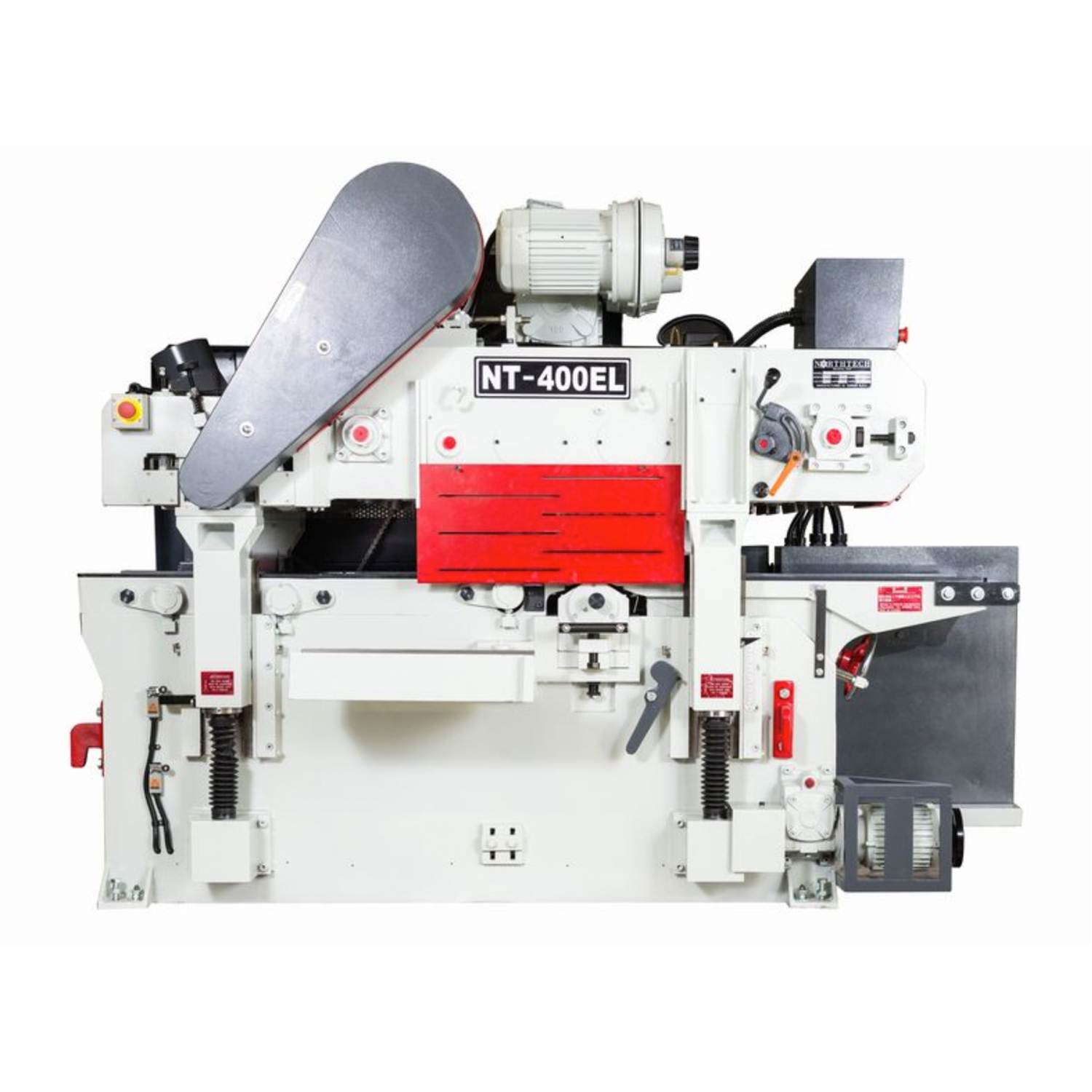

NorthTech Double Surface Planer NT 400EL-151532, Smith Sawmill Service

NorthTech Double Surface Planer NT 400EL-151532

by NorthTech
SKU NORTHTECH-2-SURFACE PLANER-NT-400EL-151532

MODEL Double Surface Planer NT 400EL-151532

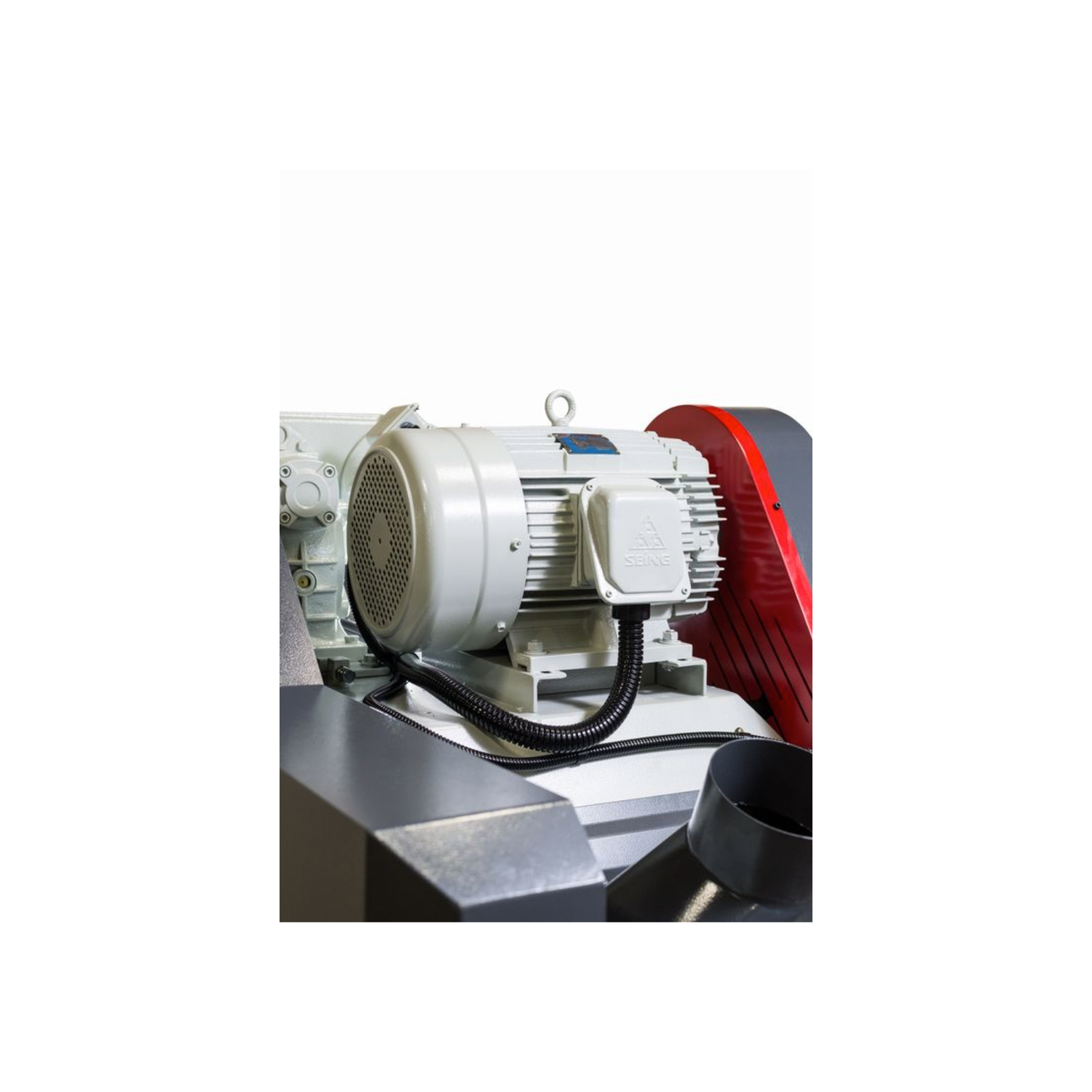

  • CUTTER HEADS

    • 15HP Top, 15HP Bottom

    • Dual (6) Row Helical Cutter heads with four sided 15 x 15 x 2.5mm inserts

    • 5175 RPM solid steel cutter heads with Class 7 NSK bearings

    • Operating decibel rating of 79 dB

  • PRODUCT DIMENSIONS

    • Working thickness (3/8” - 6-1/2”)

    • 13” min working length

    • 16” maximum width

  • FEED SYSTEM

    • 3HP feed motor

    • Carpet feeding spike system with 644 spikes

    • Feed speed 25-85 ft/min

  • FEATURES

    • 1HP elevation motor

    • Mechanical variable speed

    • Digital control panel with 3 amp meters

    • Chrome bed plate .01mm (.004”) thick

    • Amperage requirement: 230V / 115 AMPS

    • (2) 6” dust ports requiring 981 CFM @ each point of extraction

    • Automatic lubricating system with low level shut off

    • UL/CE Certified electrical components

    • Includes operator’s manual and parts book

    • Machine dimensions: L98” x W50” x H70”

    • Machine net weight: 5,990lbs

    • One year parts warranty

    • All machines are tested stateside prior to shipment providing trouble-free start up.

  • SPECS

    • Top Head Hp. = 15 Hp.

    • Bottom Head Hp. = 15 Hp.

    • Voltage/ Freq. = 230 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 115 Amps

    • Feed Hp. = 3 Hp.

    • Feed System = Carpet Feed / Powered Rollers

    • Drive System = Chain Drive

    • Feed Speed = 25 - 85 FPM

    • Variable Speed = CVT Adjustable Drive

    • Elevation Hp. = 1 Hp.

    • Elevation Style = DP-626S Elevation Control

    • Elevation Sys. = (4) Post Jack Screw

    • Total Hp. = 34 Hp.

    • Electronics = CE Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 110 Volt

    • Operator Panel = Fixed

    • Pass-Line = 32''

    • Min. Length = 13''

    • Min. Width = 1-1/2''

    • Max. Width = 16''

    • Min. Thickness = 3/8''

    • Max. Thickness = 6-1/2''

    • Cutter Head RPM = 5175 RPM

    • Head Type = Dynamically Balanced Helical Head

    • Cutter Head Dim = 5'' x 16''

    • Cut Head Matl. = Alloy Steel

    • Rows of Cutters = 6 Rows

    • No. of Inserts = 110 Inserts

    • Insert Size = 15 x 15 x 2.5 mm

    • No. of Heads = 2

    • Dust Collection = (2) 6'' @ 1962 CFM

    • Digital Display = Elevation

    • Powered Rollers = (2) Top (2) Bottom

    • Idle Rollers = (1) Top (1) Bottom

    • Hold Down Style = Chip Breakers/ Pressure Plate

    • No. of Spikes = 700 Spikes

    • Rear E Stop = Push Button

    • Guarding = High Visibility Guarding

    • Oiler = Auto Oiler

    • Low Oil Warning = Low Oil Shut-off

    • Frame Const. = Cast/Steel Construction

    • Chrome Bed = .004'' Chrome Plated Bed

    • Slip Clutch = Clutch on Chain Drive

    • Decible Rating = 79 dB

    • Net Weight = 5990 Lbs.

    • Gross Weight = 6195 Lbs.

    • Machine Dims. = 98'' x 50'' x 70''

    • Packaging Dims = 101'' x 46'' x 80''

Item ID: 1959

×





×
