NorthTech | SKU:
NORTHTECH-V-BANDSAW-NT-600A
NorthTech Vertical Bandsaw 600A
Shipping calculated at checkout.
NorthTech Vertical Bandsaw 600A is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours. Weekend orders are processed the next business day. Products that are backlog or custom orders will be processed as soon as possible. Equipment deliveries vary based on current backlog and will be confirmed at time of order. Please call 800-598-6344 for an estimate for equipment and shipping questions.
NorthTech Vertical Bandsaw 600A
$0.00
Unit price
/
Unavailable
Description
Description

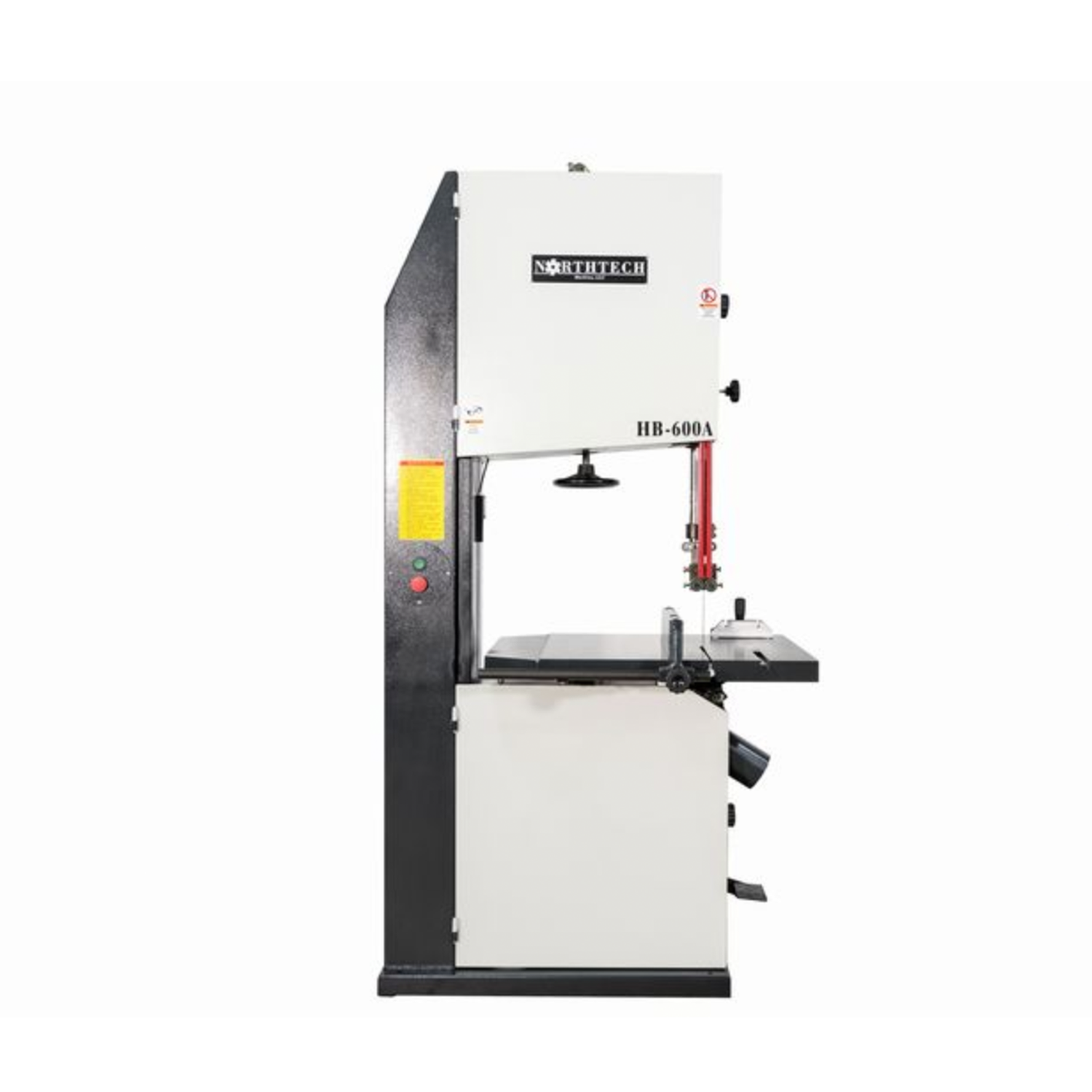

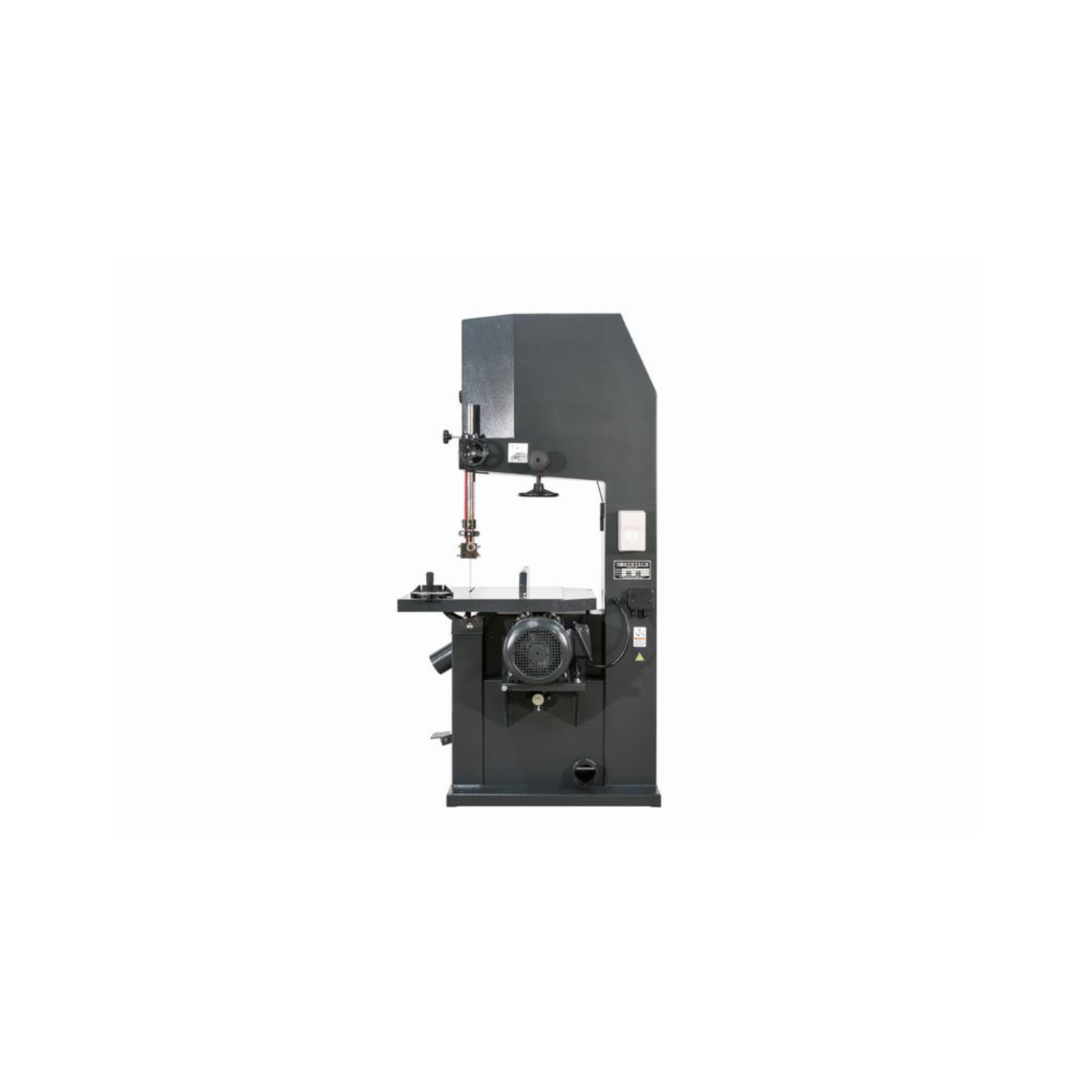

NorthTech Industrial Vertical Bandsaw NT 600A
NT 600A Vertical Bandsaw Specs

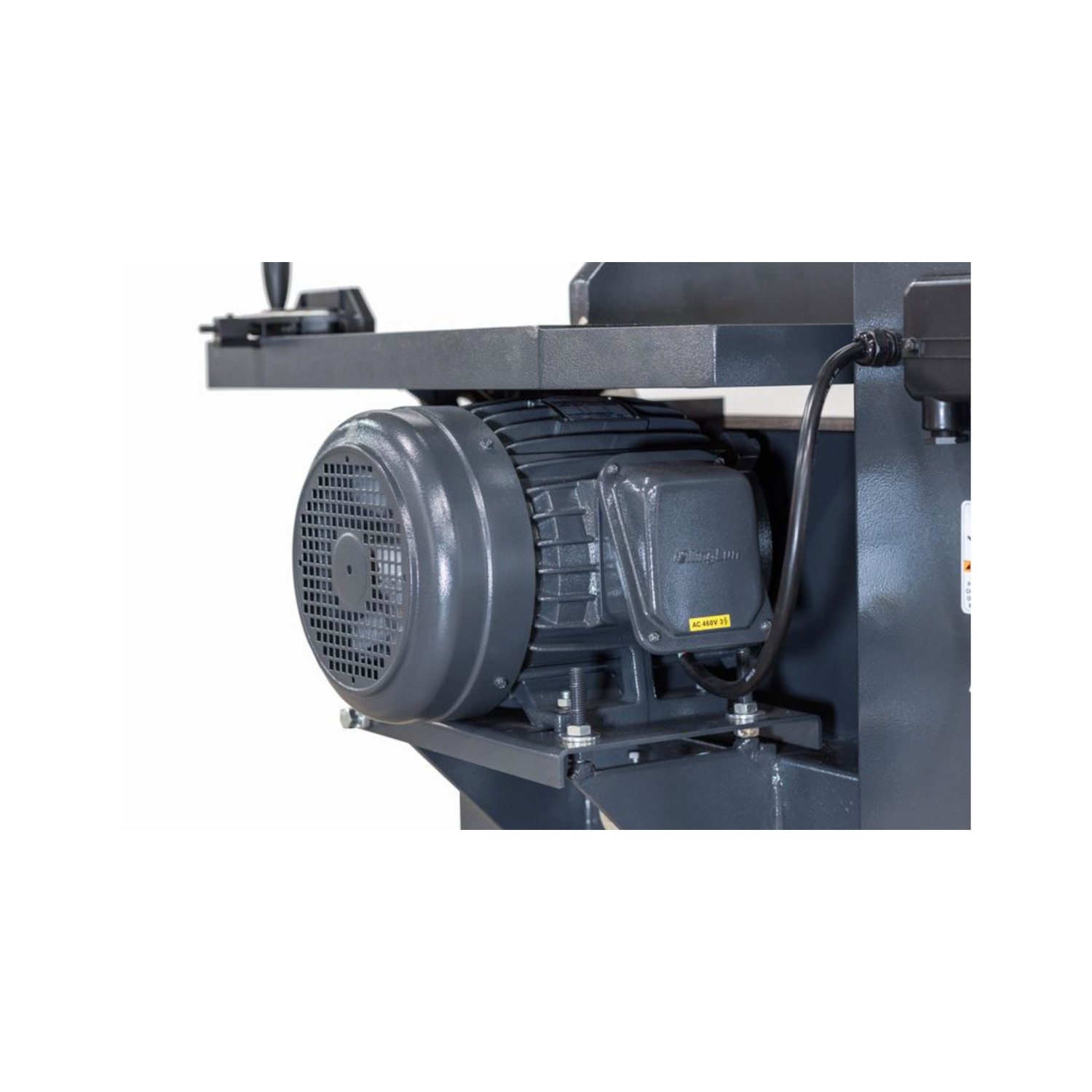

- Main Motor Hp. = 7.5 hp.
- Voltage/ Freq. = 230 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 18.4 Amps
- Total Hp. = 7.5 Hp.
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 230 Volt
- Pass-Line = 34''
- Max. Width = 22-7/8'' W/O Fence
- Max. Thickness = 13-1/2''
- Able Cut Angle = 60 Degree Table Tilt
- Blade Size = 2'' x 208''
- No. of Teeth = 236
- Tooth Spacing = 3/4''
- Blade Kerf = .032''
- Blade Speed = 5150 FPM
- Cleaning System = Brush on Wheel
- Tracking Style = Manual Adjustment
- Tension Style = Manual Adjustment
- Dust Collection = (2) 4'' @ 900 CFM
- Arbor Diameter = 30mm
- Fence Type = Adjustable Fence
- Fence Dims. = 3-3/4'' x 18''
- Tiltable = 45 Degrees
- Blade Guide = Bearing Blade Guide
- Wheel Dims. = 2'' x 24''
- Wheel Construction = Steel Construction
- Brake System = Foot Pedal Brake
- Frame Construction = Steel Construction
- Worktable Dims. = 23-3/4'' x 26''
- Table Construction = Cast Iron
- Decible Rating = 75 dB
- Net Weight = 825 lbs.
- Gross Weight = 950 lbs.
- Machine Dims. = 42'' x 34'' x 81''
- Packaging Dims = 29'' x 85'' x 44''
ITEM ID: 4558
