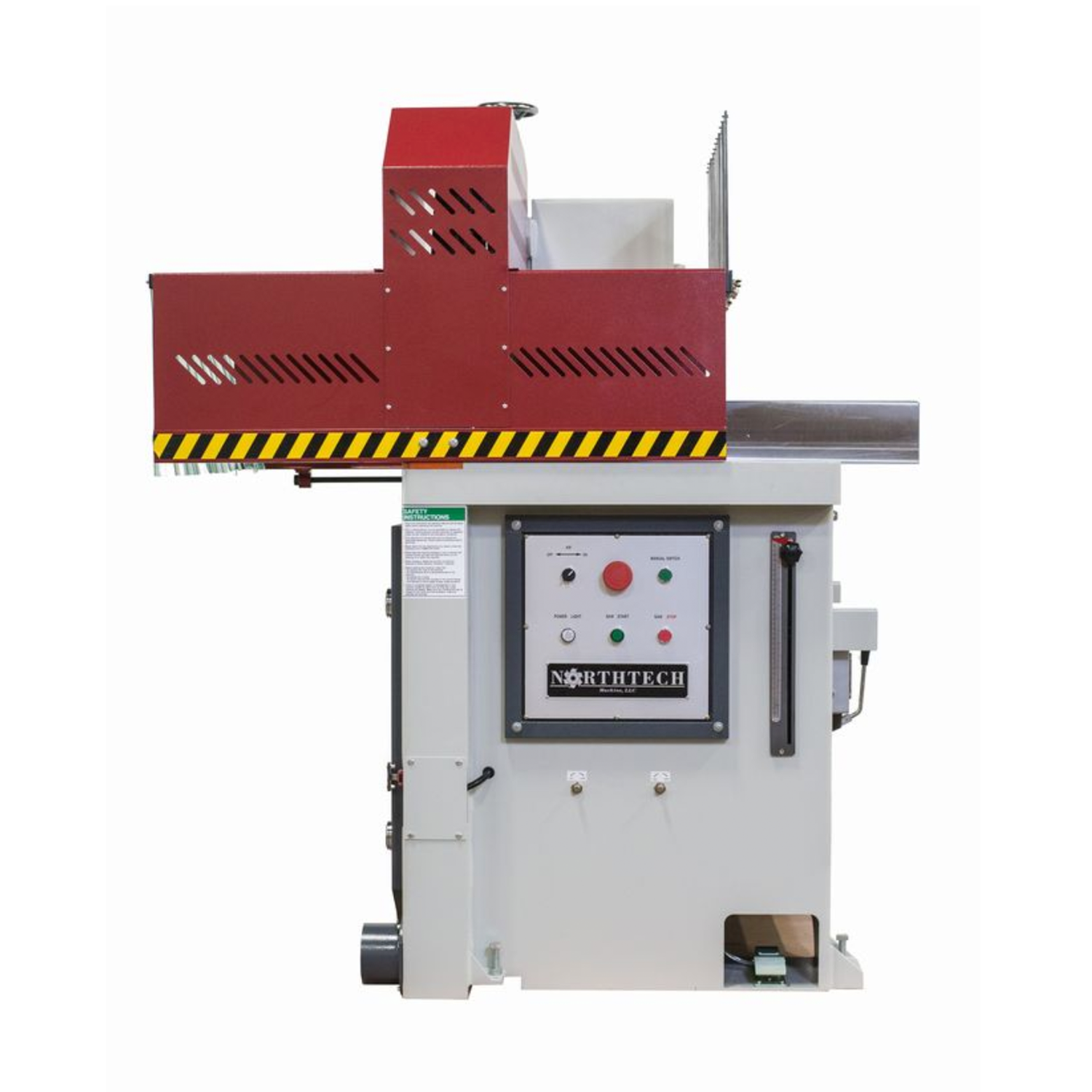

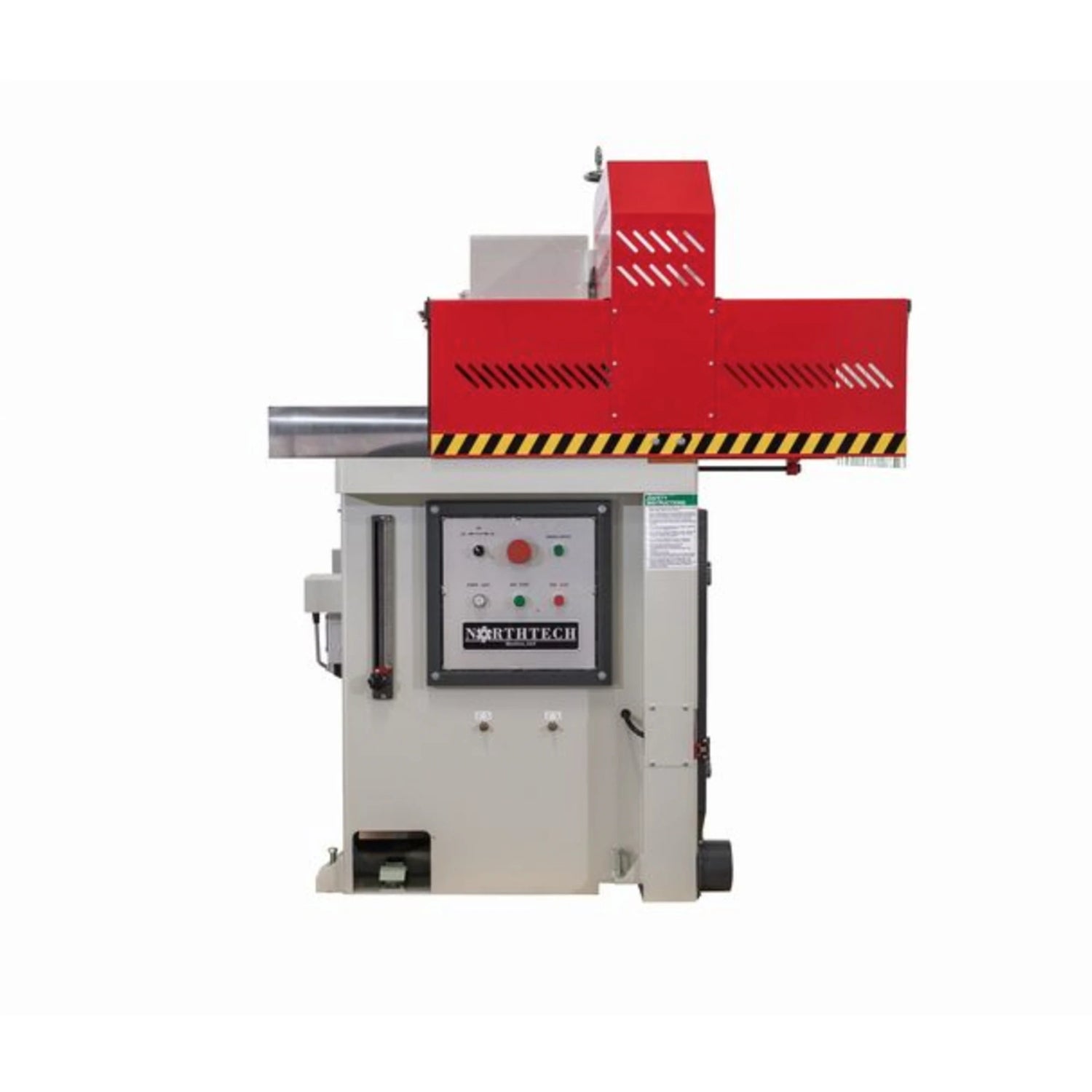

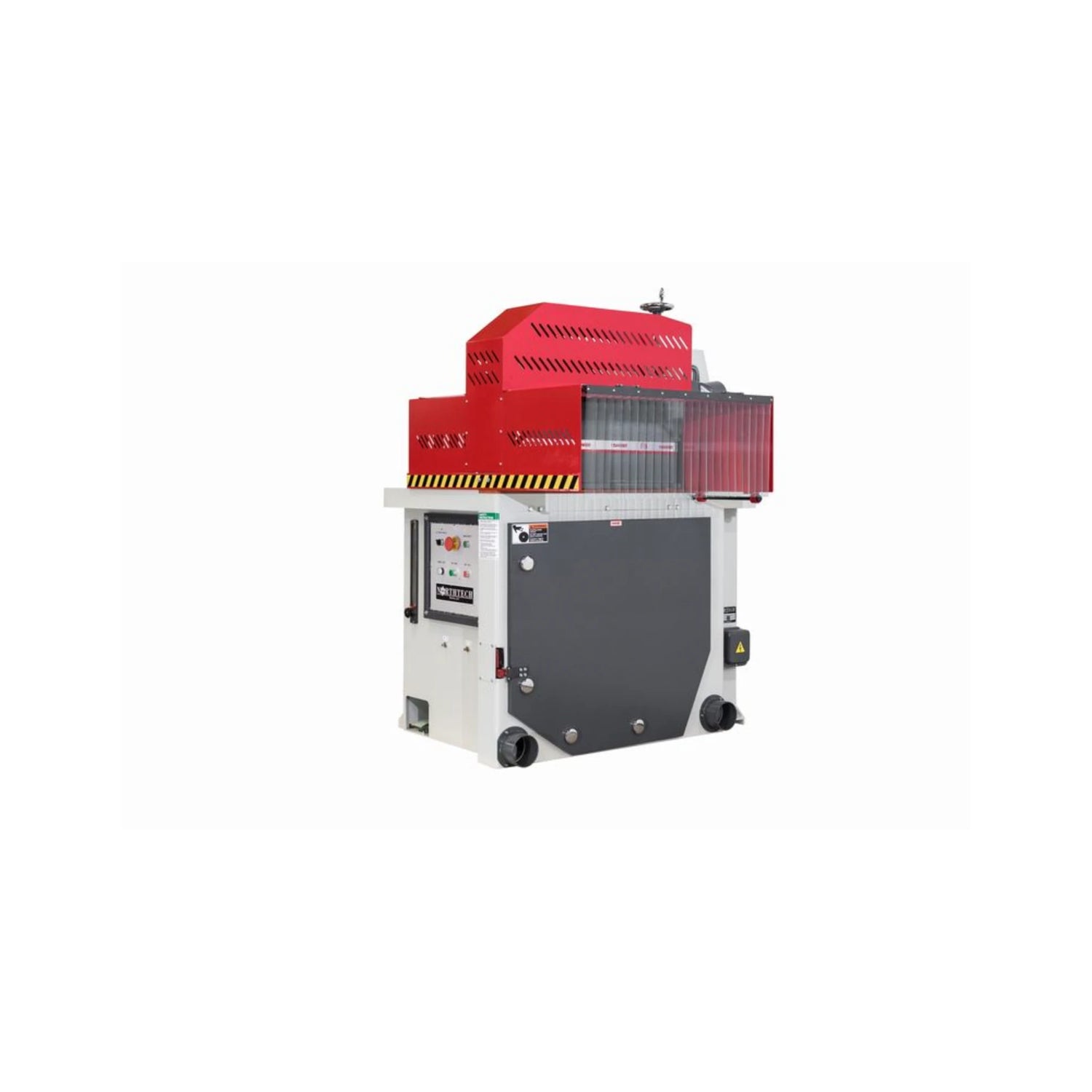

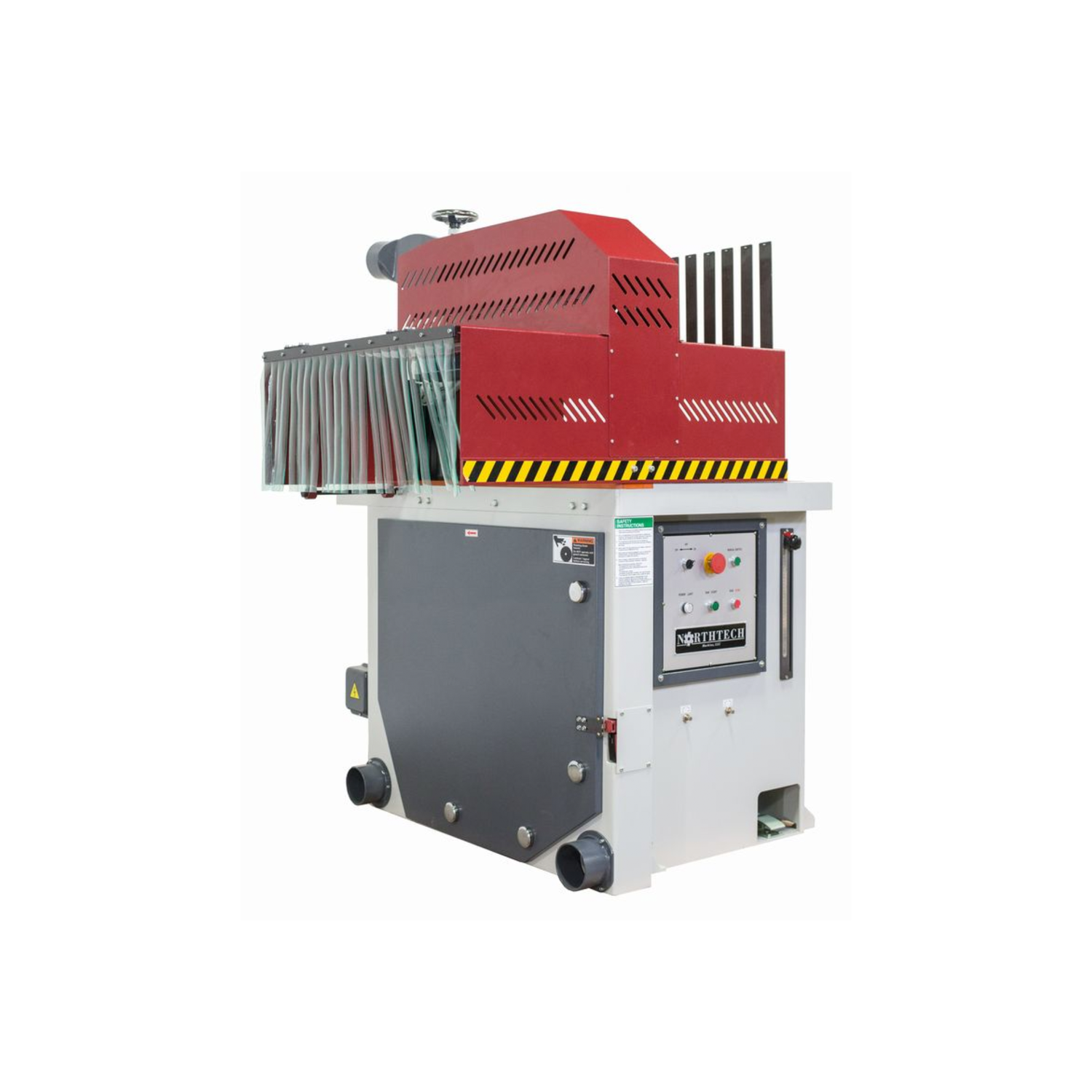

NorthTech Up Cut Saw CS36L-2532 + CS36R-2532

NorthTech Up Cut Saw NT CS30L-1534

• DIMENSIONS
• FEATURES
• OPTIONS
• SPECS

• PRODUCT DIMENSIONS

  • Max cutting capacity: 2" x 33" 4" x 31" 6" x 29" 8" x 25" 10" x 20'' 12" x 12"

• FEATURES

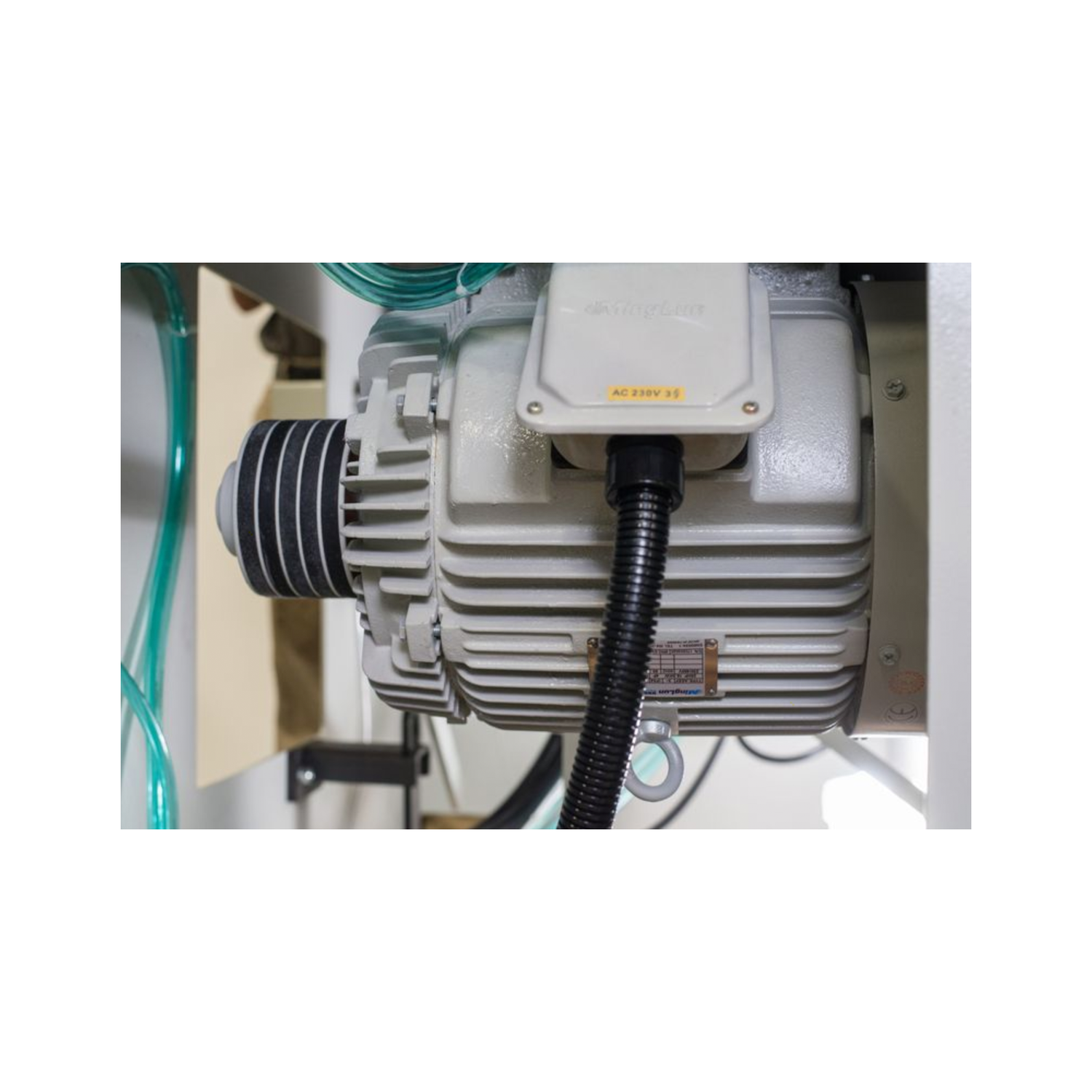

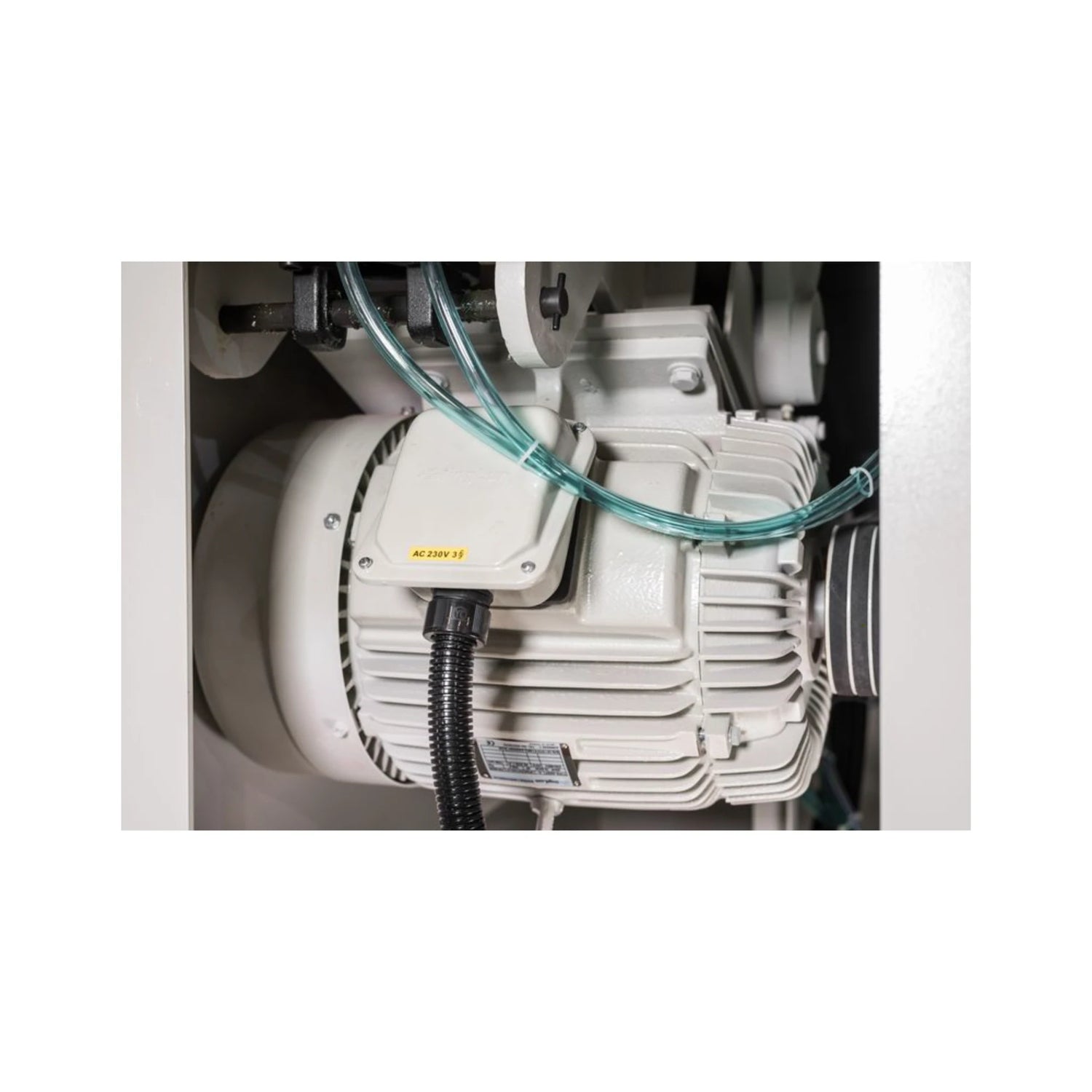

  • Motor: 25HP 3PH 230V; (1500 RPM).

  • 36” Carbide tipped blade with 120T included

  • 2” Saw arbor diameter

  • Cycle operation: Pneumatic

  • Table size: 57-3/4" x 34-3/4"

  • Safety interlock on blade door.

  • Quick access on front of the machine to adjust stroke.

  • Net weight: 2,605 lbs. • Gross weight: 2,900 lbs.

  • Packing dimensions: (L) 63" x (W) 45" x (H) 79"

  • (1) Tool box and manual

  • Warranty is one year parts

  • All machines are tested at factory prior to shipment providing trouble free start up.

• OPTIONS

  • 8’ infeed / 8’ outfeed roller system with (2) gravity flip stops

  • 16' infeed / 16' outfeed roller system with (2) gravity flip stops

  • 36” x 120T carbide tipped blade (standard with saw)

  • 36” x 160T carbide tipped blade

  • (1) Gravity flip stop

  • 460V electrics

  • Double palm button actuation in lieu of foot pedal

• SPECS

  • Factory

  • Main Motor Hp. = 25 hp.

  • Voltage/ Freq. = 230 Volt 60Hz

  • Phase = 3 Phase

  • Amp Requirement = 60.2 Amps

  • Electronics = CE Approved Components

  • Dual Voltage = 230/460 Volt

  • Control Voltage = 24 Volt Control Voltage

  • Assisted Start = Wye Delta

  • Cut Envelope = 2'' x 33'' 12'' x 12''

  • Min. Length = 23'' from Blade to Guard Edge

  • Max. Width = 2'' x 33''

  • Max. Thickness = 12''

  • Arbor Rpm = 1500 Rpm

  • Blade Size = 36'' Tungsten Carbide Tipped

  • No. of Teeth = 120 Tooth

  • Tooth Spacing = 1''

  • Blade Kerf = .305 In.

  • Dust Collection = 681 CFM @ Extraction Point

  • Dust Port Out = 2- 5'' Top 2- 5'' Bottom

  • Arbor Diameter = 2" Arbor

  • Cycles/Minute = 14 Cuts Per Minute

  • Hold Down Style = T Clamp

  • FLR Included = Filter, Lubricator, Regulator

  • Recommended CFM = 3/8'' Supply Line @ 90 Psi

  • Emergency Stop = Push Button

  • Safety Feature = Safety Interlock Switch

  • Guarding = High Visibility Guarding

  • Operation Style = Pneumatic Foot Pedal

  • Fence Type = Adjustable Fence

  • Fence Dims. = 3'' x 39-3/4''

  • Frame Const. = 1/4'' Steel Construction

  • Worktable Dims. = 57-3/4'' x 34-3/4''

  • Table Const. = Cast Iron

  • Decible Rating = 79 dB

  • Net Weight = 2605 Lbs.

  • Gross Weight = 2900 Lbs.

  • Machine Dims. = 58'' x 66'' x 78''

  • Packaging Dims = 62'' x 45'' x 79''

ITEM ID: 1086
