NorthTech Up Cut Saw CS24L-AS-1532
NorthTech Up Cut Saw CS24L-AS-1532 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours. Weekend orders are processed the next business day. Products that are backlog or custom orders will be processed as soon as possible. Equipment deliveries vary based on current backlog and will be confirmed at time of order. Please call 800-598-6344 for an estimate for equipment and shipping questions.
NorthTech Up Cut Saw CS24L-AS-1532
Description
Description

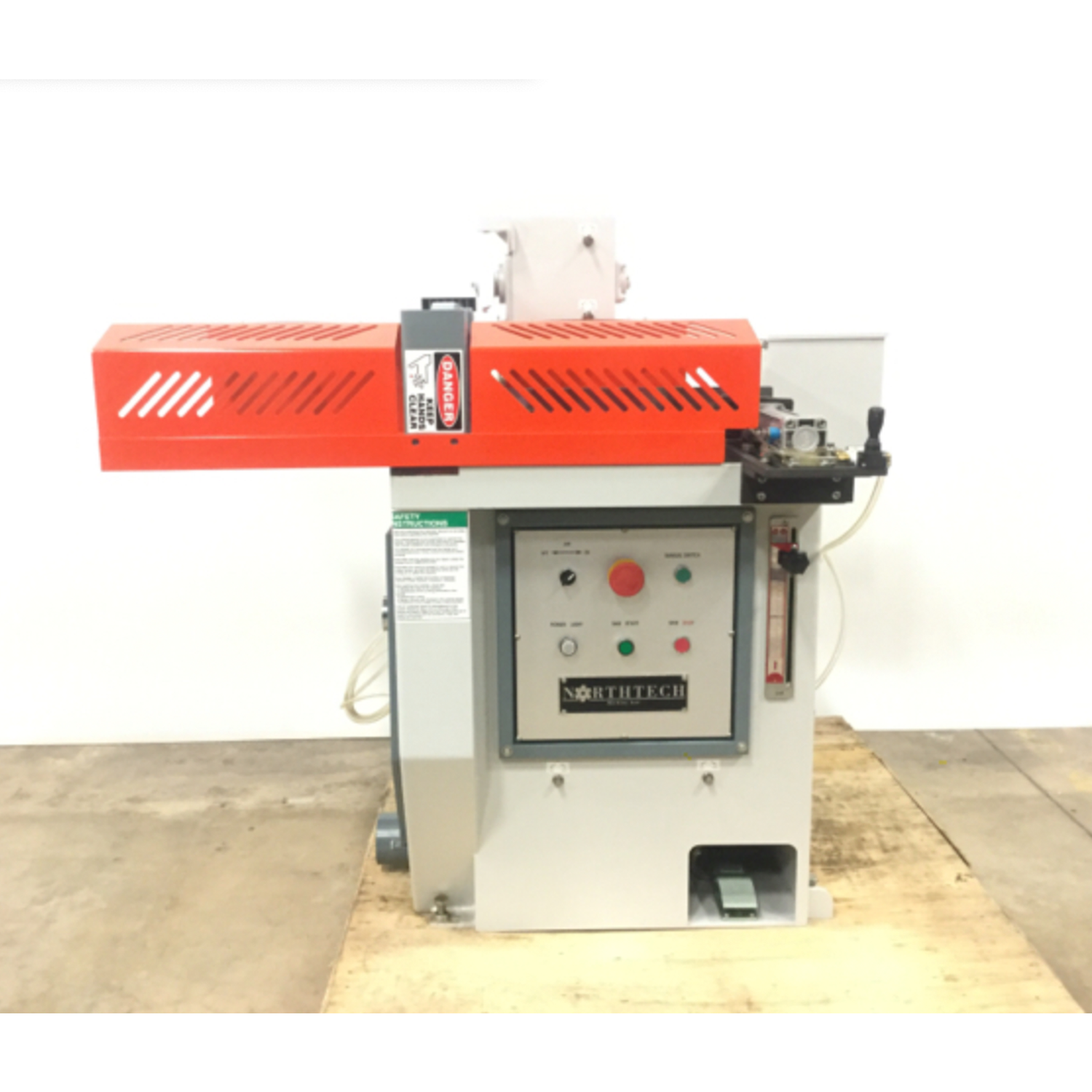

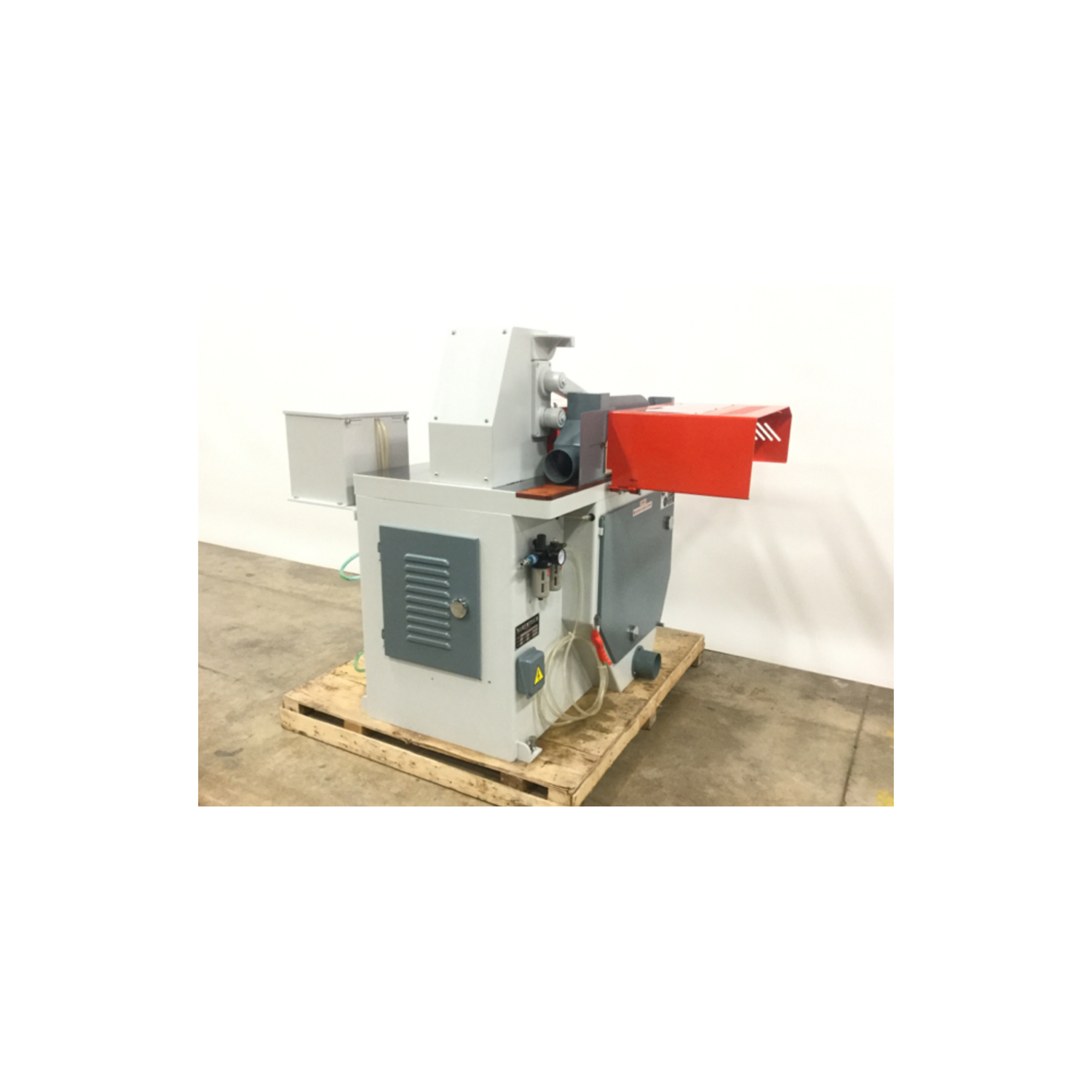

NorthTech Up Cut Saw NT CS24L-AS-1532
-
DIMENSIONS
• Shipping Dimensions 8' In feed 8' Out Feed: 100'' x 28'' x 19'' 235 Lbs.
-
SPECS
• = Factory

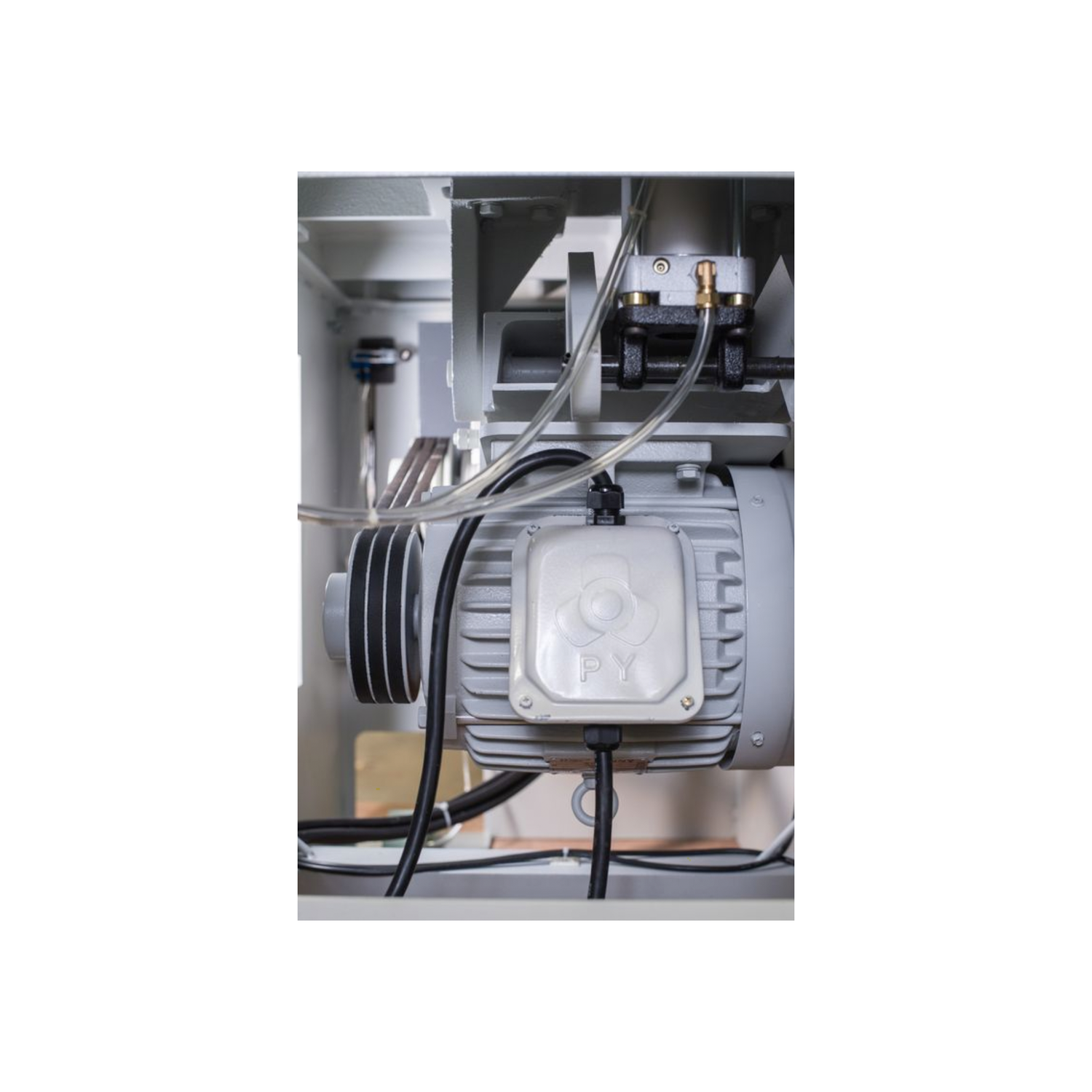

• Main Motor Hp. = 15 hp.
• Voltage/ Freq. = 230 Volt 60Hz
• Phase = 3 Phase
• Amp Requirement = 36.2 Amps
• Electronics = CE Approved Components
• Dual Voltage = 230/460 Volt
• Control Voltage = 24 Volt Control Voltage
• Assisted Start = Wye Delta
• Pass-Line = 34''
• Cut Envelope = 2'' x 21'' 8'' x 8''
• Min. Length = 14'' from Blade to Guard Edge
• Max. Width = 2'' x 21''
• Max. Thickness = 8''
• Arbor Rpm = 2100 Rpm
• Blade Size = 24'' Tungsten Carbide Tipped
• No. of Teeth = 100 Tooth
• Tooth Spacing = 5/8 In.
• Blade Kerf = 4 mm
• Dust Collection = (2) 4'' @ 900 CFM
• Dust Port Out = 4'' Top 4'' Bottom
• Arbor Diameter = 1''
• Cycles/Minute = 26 Cuts Per Minute
• Hold Down Style = T Clamp
• FLR Included = Filter, Lubricator, Regulator
• Recommended CFM = 480 nl/min
• Emergency Stop = Push Button
• Safety Feature = Safety Interlock Switch
• Guarding = Full Guard with Clear View
• Operation Style = Pneumatic Foot Pedal
• Fence Type = Adjustable Fence
• Fence Dims. = 2" x 25''
• Adjust. Stroke = 7-3/4'' Adj. on Arbor Stroke
• Frame Const. = 1/4'' Steel Construction
• Worktable Dims. = 28-3/4'' x 45''
• Table Const. = Machined Steel
• Decible Rating = 68 dB
• Net Weight = 1385 Lbs.
• Gross Weight = 1555 Lbs.
• Machine Dims. = 31-3/4'' x 45'' x 56''
• Packaging Dims = 36'' x 51'' x 61''
ITEM ID: 1180
