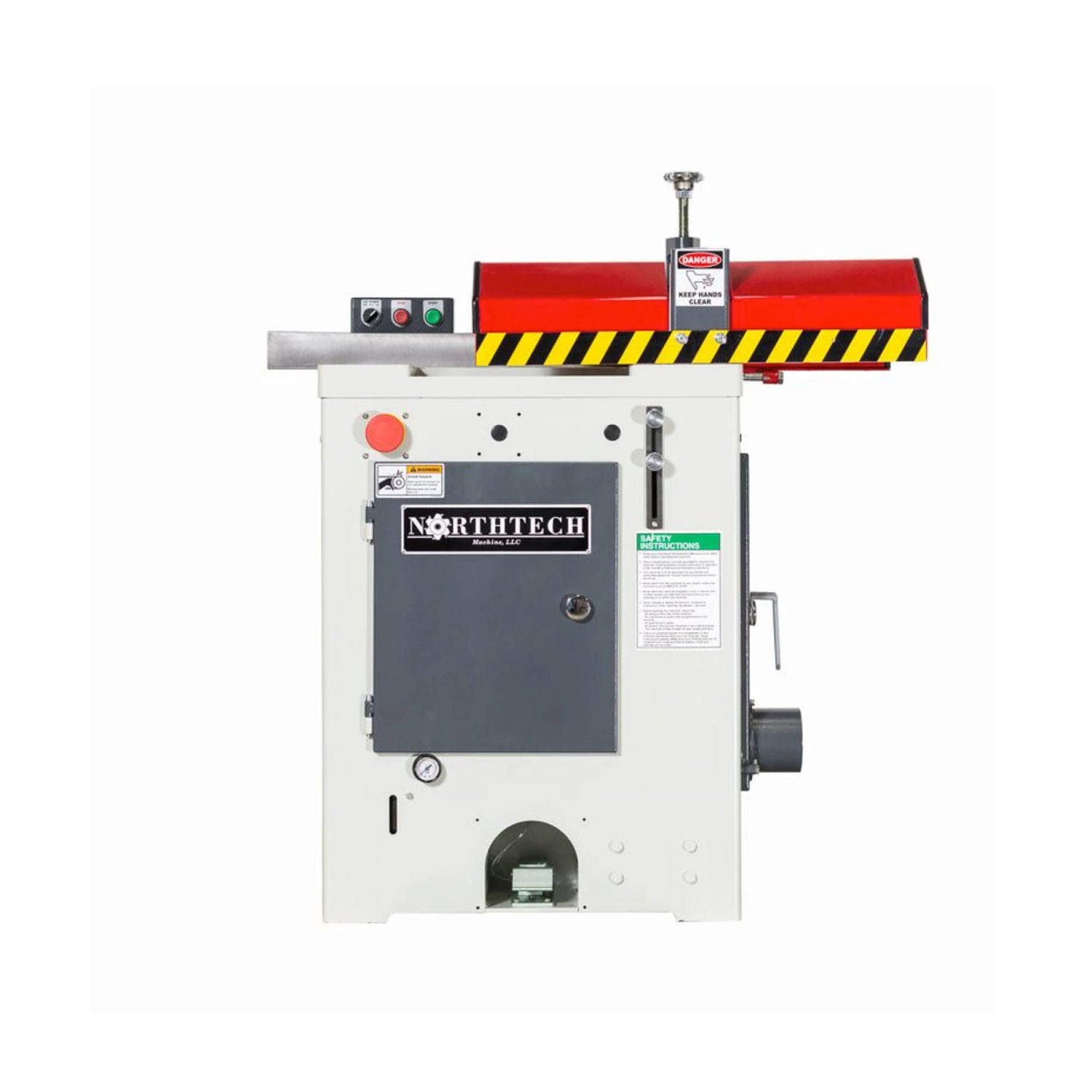

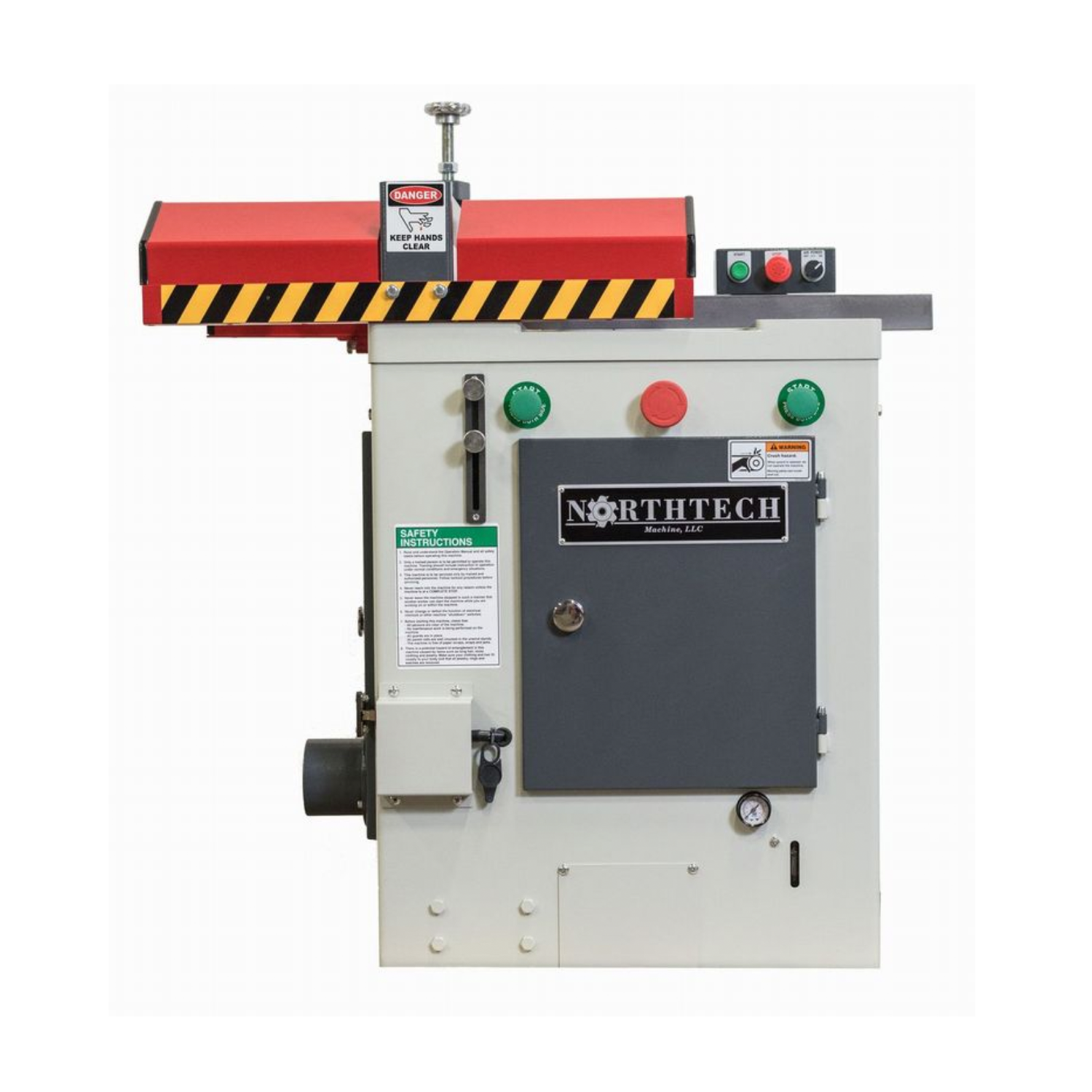

NorthTech Up Cut Saw CS18L-1034 + CS18R-1034
Description
Description
NorthTech Up Cut Saw NT CS18L-1032
-
PRODUCT DIMENSIONS
• Max cutting capacity: 1" x 13-1/2", 2" x 12", 3" x 11", 4" x 10"
-
FEATURES

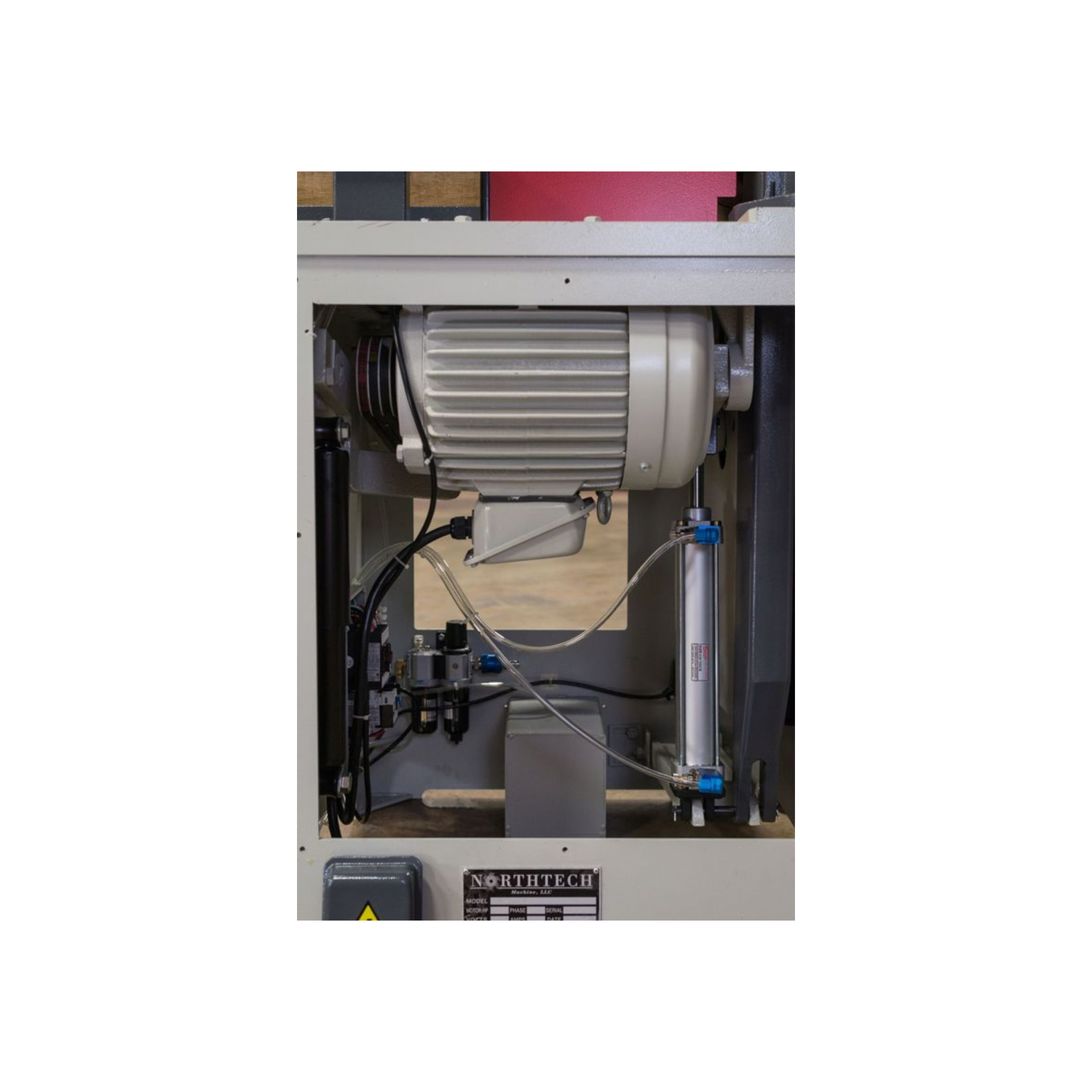

• 10HP motor, 3PH 460V with 24V magnetic controls

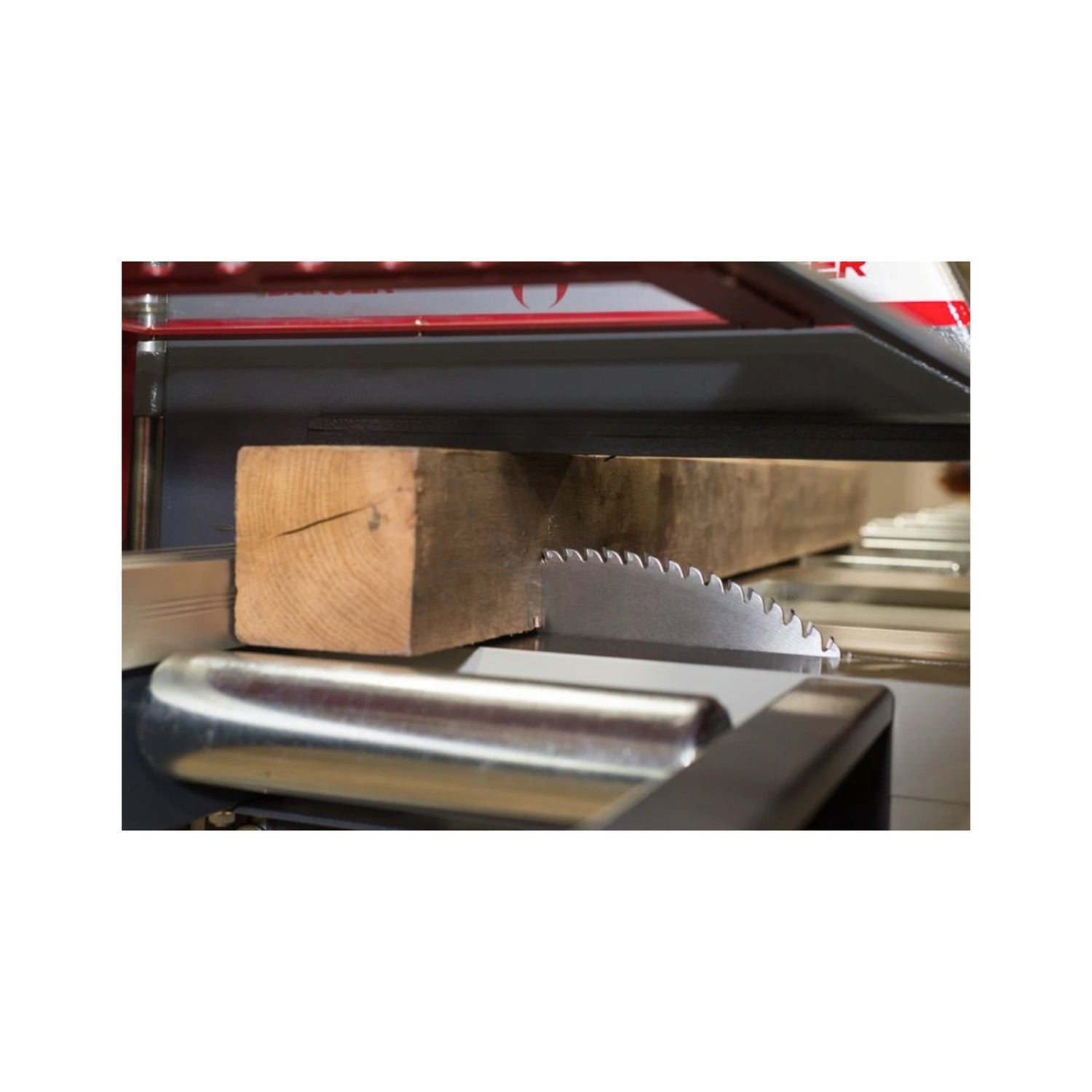

• 18” 120T Carbide tipped blade included
• 1” Saw arbor diameter
• Cycle operation: Pneumatic
• Table size: 26” x 27.25”
• Quick access on front of the machine to adjust blade stroke.

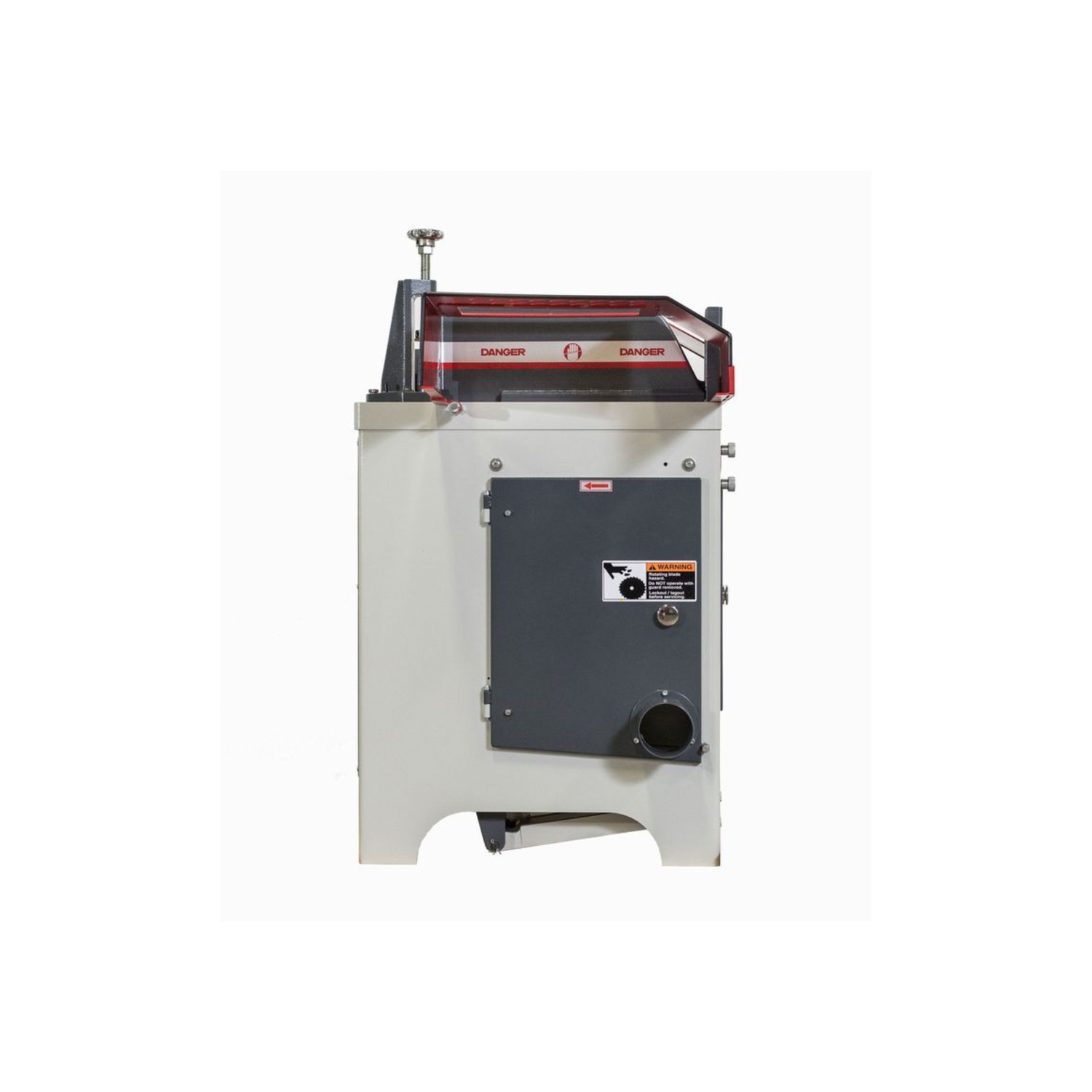

• Dust requirements: (1) 4" dust port requiring 450 CFM at point of extraction
• Net weight: 730 lbs.
• Gross weight: 890 lbs.
• Packing dimensions: (L) 33" x (W) 33" x (H) 46"
• (1) Tool box and manual
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.
-
OPTIONS

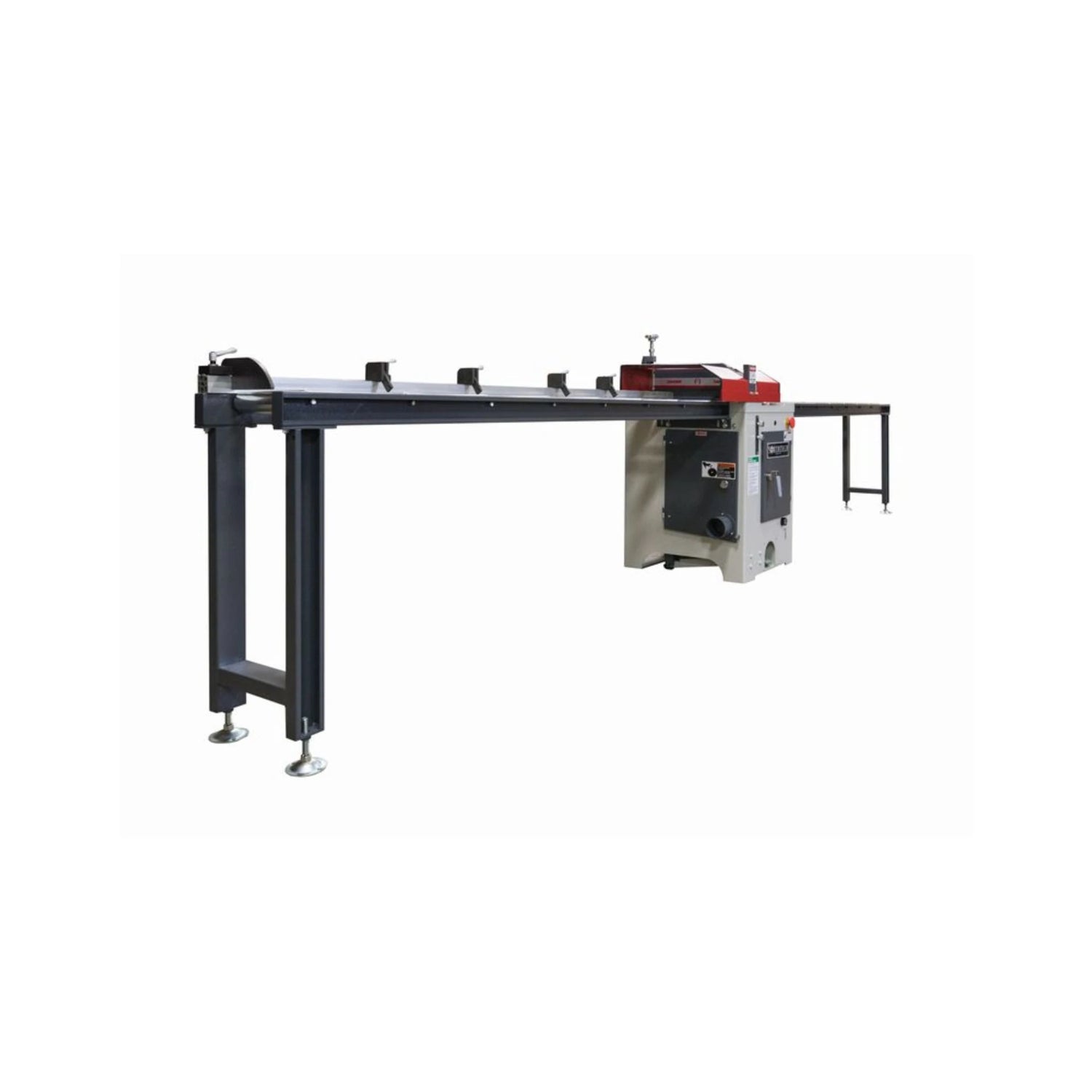

• 8’ infeed and 8’ outfeed with fence, legs, (2)gravity flip stops
• 16’ infeed and 16’ outfeed with fence, legs (4) sets, (2) gravity flip stops
• Custom infeed/outfeed rollers up to 40’
• 18" x 80T carbide tipped blade
• 18” x 100T carbide tipped blade
• 18” x 120T carbide tipped blade
• (1) Gravity flip stop
• 460V 3Ø electrics
• Safety interlock for blade access
• Double palm button actuation in place of foot pedal
• Rigid stop
-
SPECS
• = Factory
• Main Motor Hp. = 10 hp.
• Voltage/ Freq. = 460 Volt 60Hz
• Phase = 3 Phase
• Amp Requirement = 12 Amps
• Electronics = CE Approved Components
• Dual Voltage = 230/460 Volt
• Control Voltage = 24 Volt Control Voltage
• Cut Envelope = 1'' x 13'' 2'' x 12'' 4'' x
• Min. Length = 14'' from Blade to Guard Edge
• Max. Width = 1'' x 13''
• Max. Thickness = 5''
• Arbor Rpm = 3600 Rpm
• Blade Size = 18'' Tungsten Carbide Tipped
• No. of Teeth = 120 Tooth
• Tooth Spacing = 15/32 In.
• Blade Kerf = .135 In.
• Dust Collection = 4'' 450 CFM
• Dust Port Out = 4'' Bottom
• Arbor Diameter = 1''
• Cycles/Minute = 45 Cuts Per Minute
• Hold Down Style = T Clamp
• FLR Included = Filter, Lubricator, Regulator
• Recommended CFM = 480 nl/min
• Emergency Stop = Push Button
• Safety Feature = Safety Interlock Switch
• Guarding = High Visibility Guarding
• Operation Style = Pneumatic Foot Pedal
• Fence Type = Adjustable Fence
• Fence Dims. = 2" x 25''
• Adjust. Stroke = 2-3/4'' Adj. on Arbor Stroke
• Frame Const. = 1/4'' Steel Construction
• Worktable Dims. = 26'' x 27-1/4''
• Table Const. = Machined Steel
• Decible Rating = 78 dB
• Net Weight = 730 Lbs.
• Gross Weight = 890 Lbs.
• Machine Dims. = 26'' x 27-1/4'' x 49-1/2''
• Packaging Dims = 40'' x 48'' x 55''
ITEM ID: 1079
