NorthTech Up Cut Saw CS14L-734 + CS14R-734
Description
Description

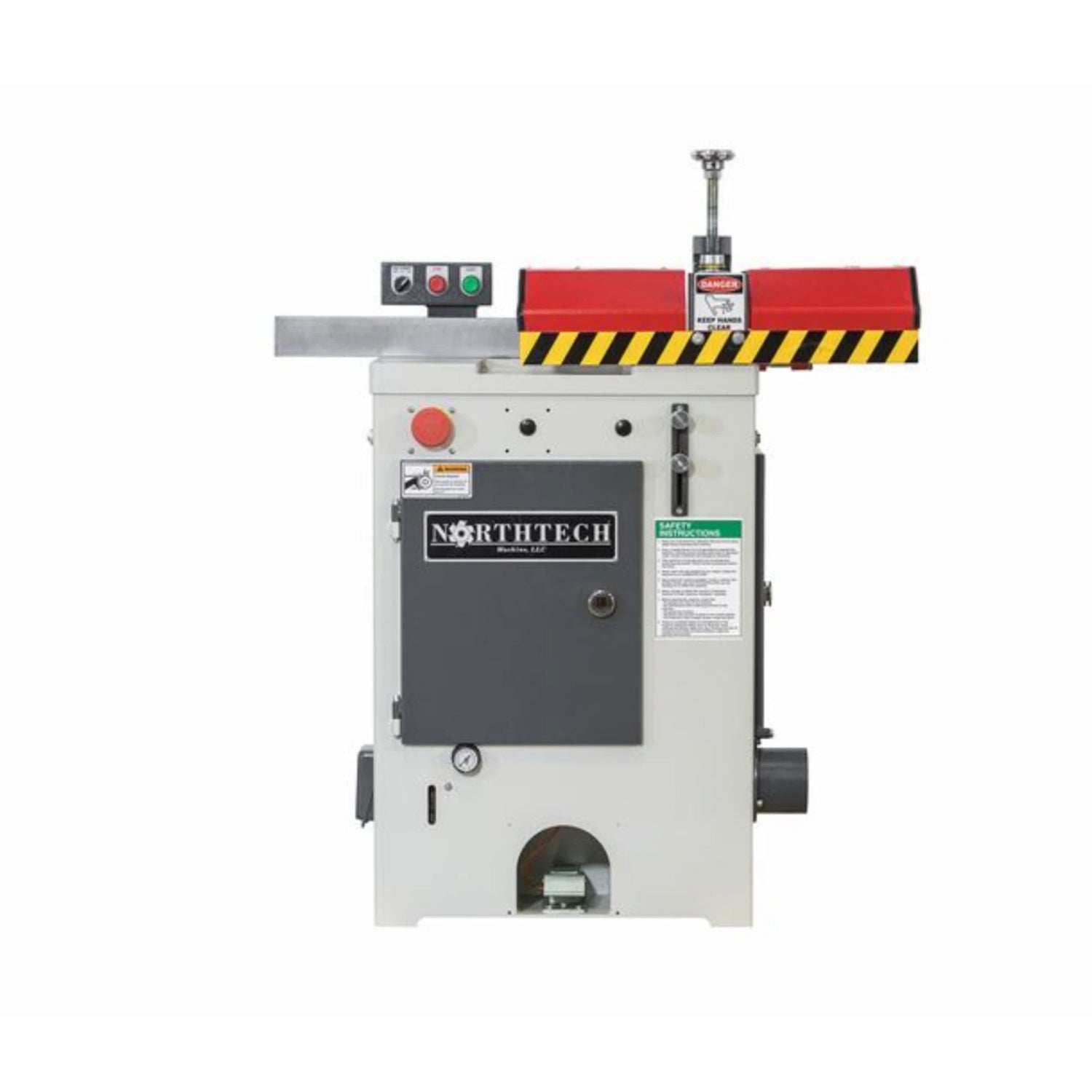

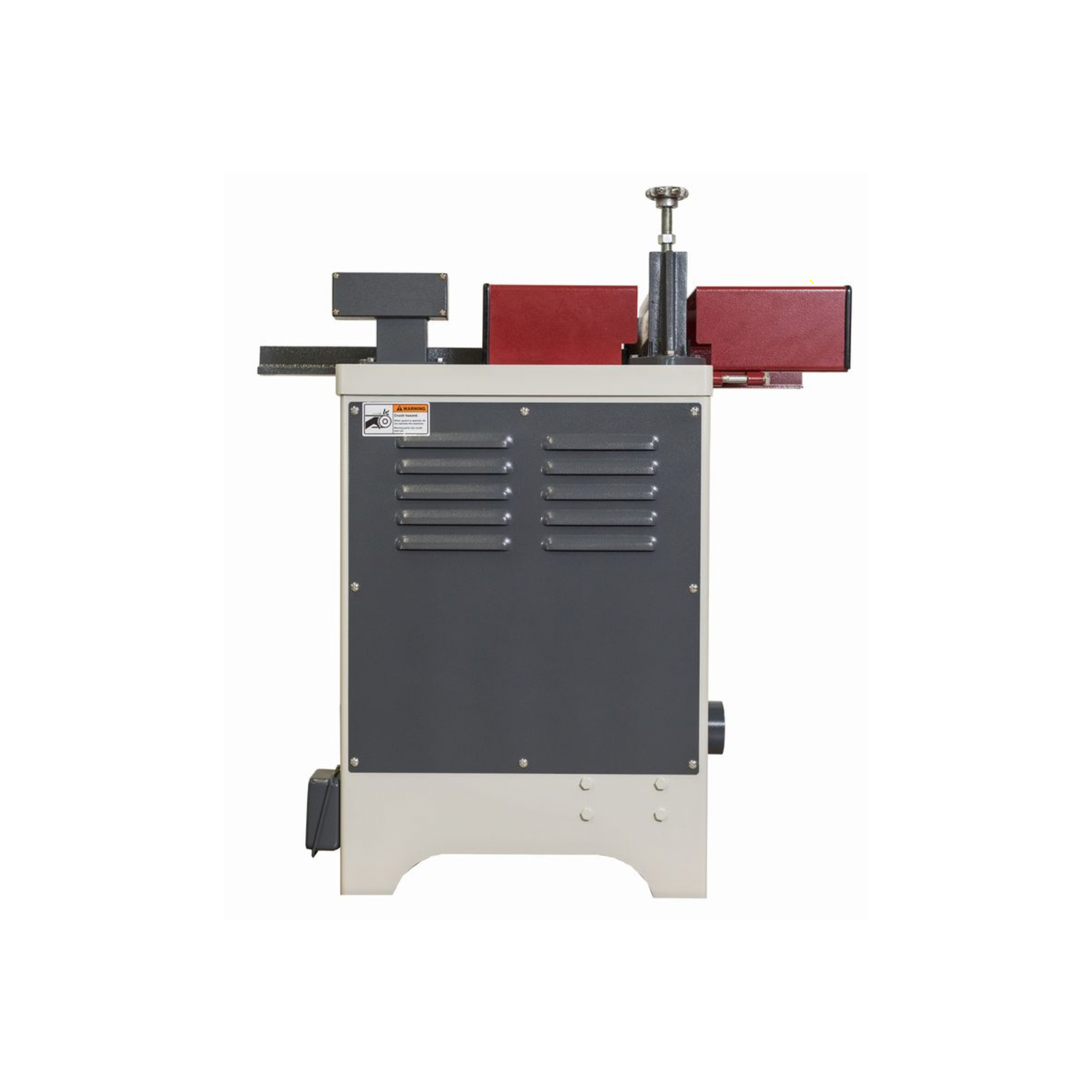

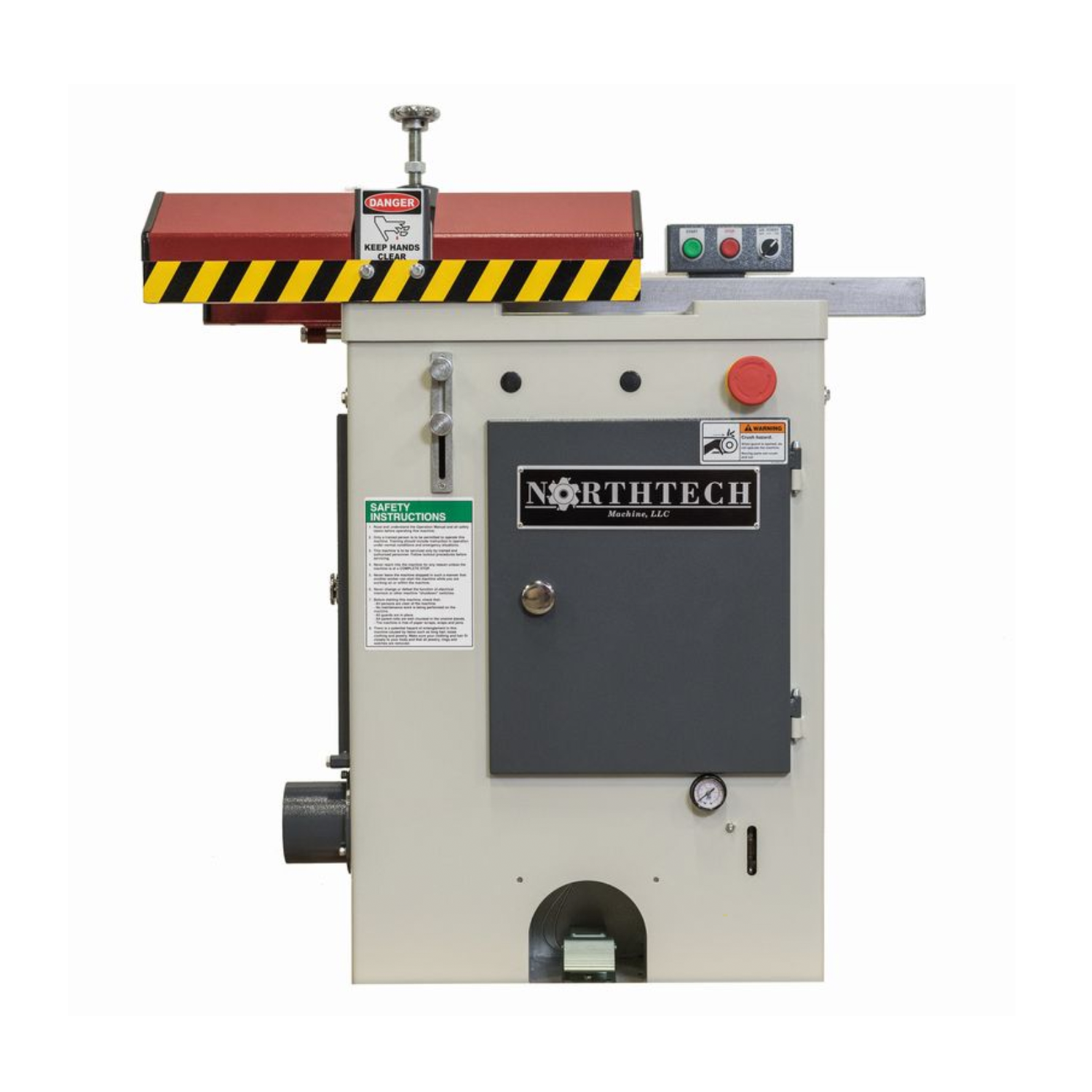

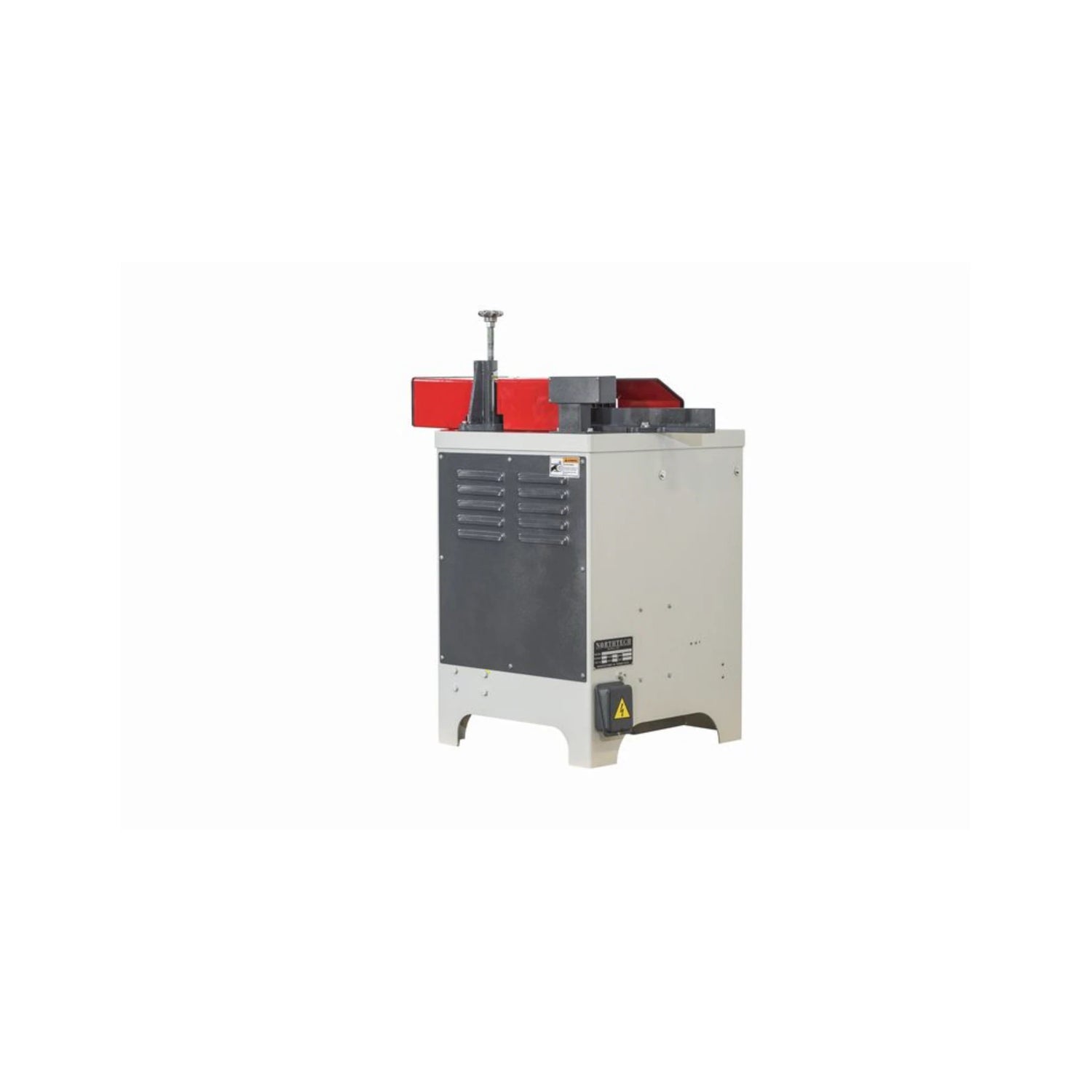

NorthTech Up Cut Saw NT CS14L-734
-
PRODUCT DIMENSIONS
• Max cutting capacity: 1" x 11", 2" x 10", 3" x 7-1/2"
-
FEATURES

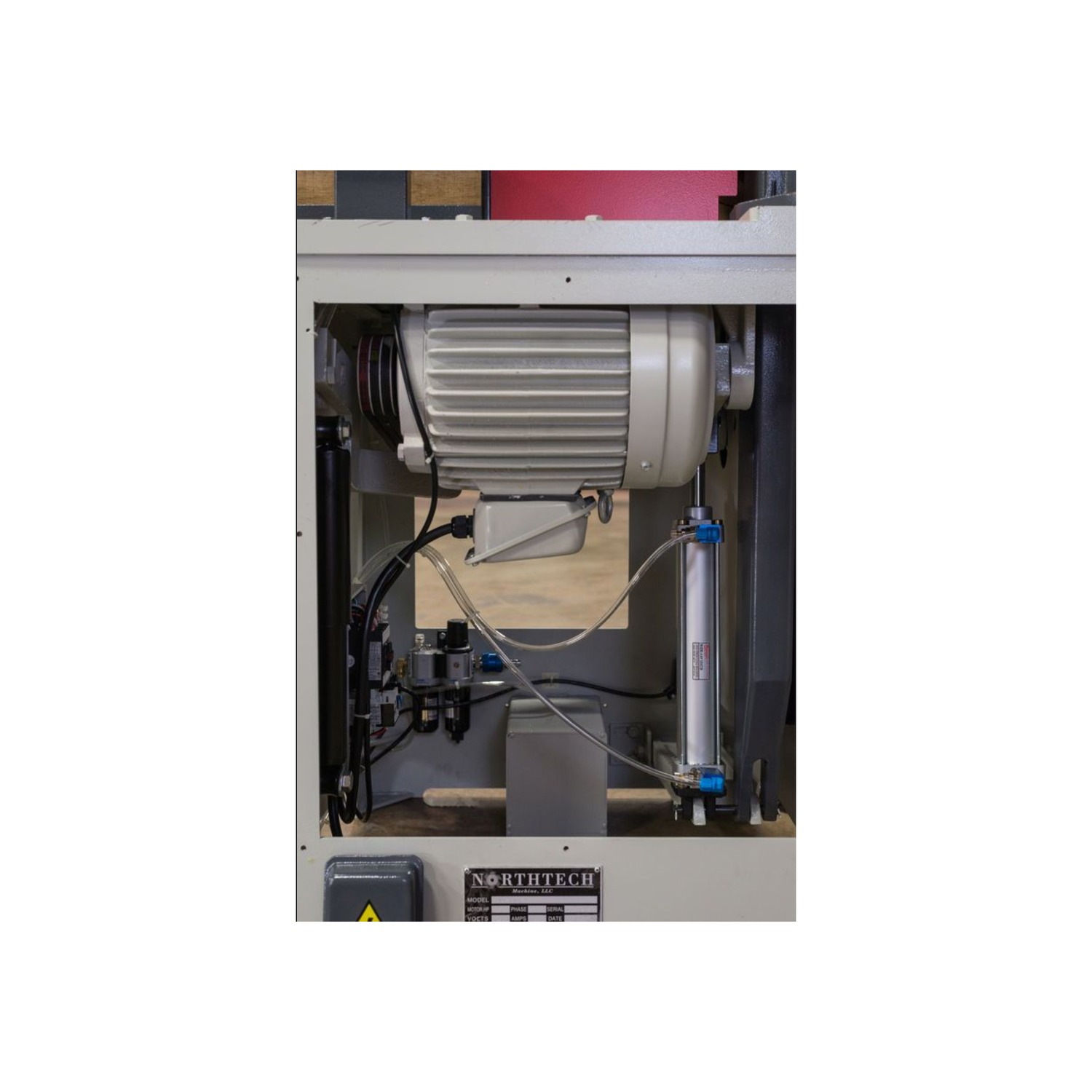

• 7.5 HP motor, 3PH 460V with 24V magnetic controls
• 14” 100T Carbide tipped blade included
• 1” Saw arbor diameter
• Cycle operation: Pneumatic
• Table size: 25” x 23-1/4”
• Quick access on front of the machine to adjust blade stroke.
• Dust requirements: (1) 4" dust port requiring 450 CFM at point of extraction
• Net weight: 548 lbs.
• Gross weight: 685 lbs.
• Packing dimensions: (L) 30" x (W) 30" x (H) 51"
• (1) Tool box and manual
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.
-
OPTIONS

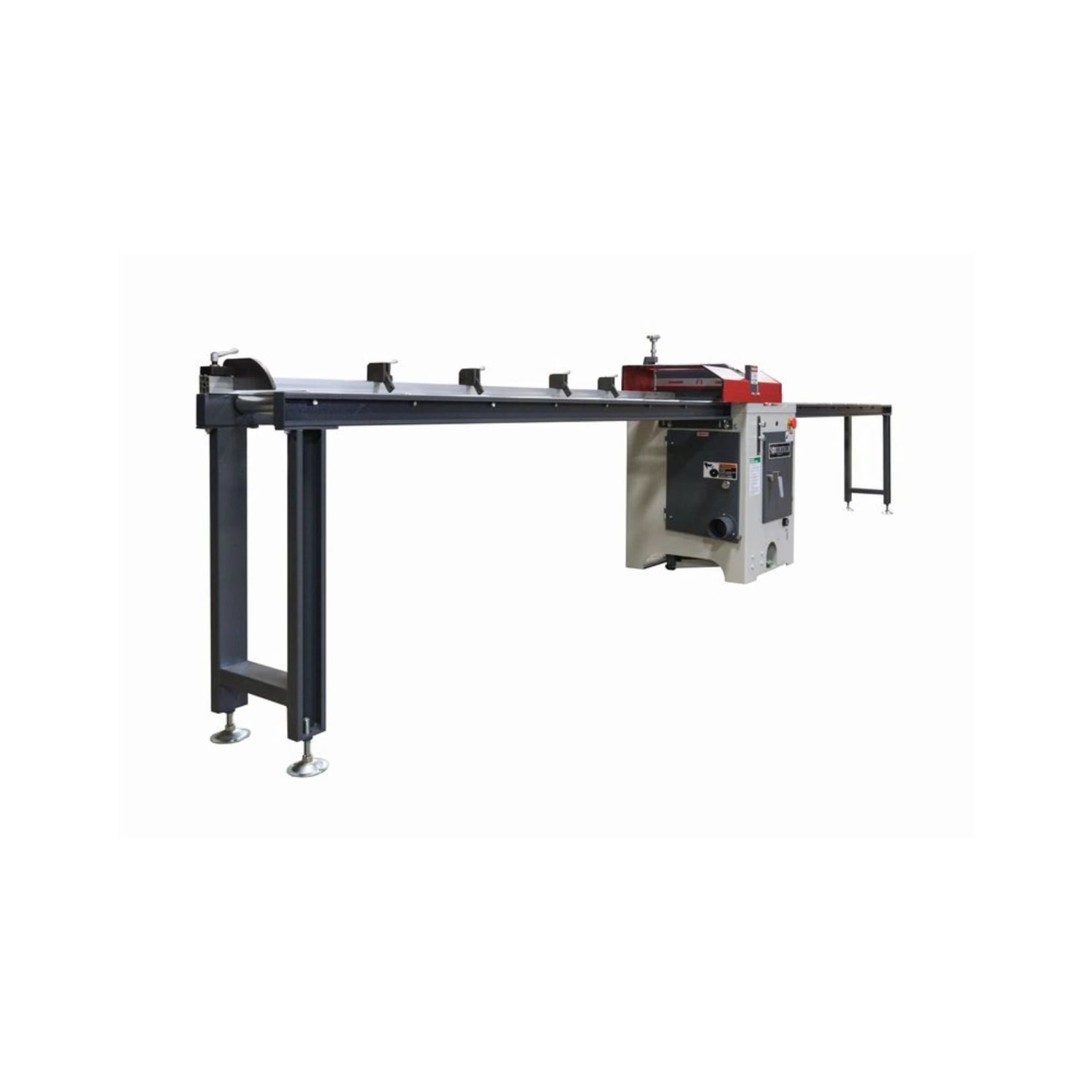

• 8’ infeed and 8’ outfeed with fence, legs, (2)gravity flip stops
• 16’ infeed and 16’ outfeed with fence, legs (4) sets, (2) gravity flip stops
• Custom infeed/outfeed up to 20’ long
• 14" x 72T carbide tipped blade (standard with saw)
• 14” x 80T carbide tipped blade
• 14" x 100T carbide tipped blade
• Gravity flip stops
• Double palm button actuation in lieu of foot pedal
• Safety interlock for blade access
• 460V 3 phase electrics
-
SPECS
• = N16
• Main Motor Hp. = 7.5 hp.
• Voltage/ Freq. = 460 Volt 60Hz
• Phase = 3 Phase
• Amp Requirement = 9.2 Amps
• Dual Voltage = 230/460 Volt
• Control Voltage = 24 Volt Control Voltage
• Pass-Line = 33-3/4''
• Cut Envelope = 1'' x 11'' 2'' x 10'' 3'' x
• Min. Length = 12'' from Blade to Guard Edge
• Max. Width = 1'' x 11''
• Max. Thickness = 3-3/8"
• Arbor Rpm = 4260 Rpm
• Blade Size = 14'' Tungsten Carbide Tipped
• No. of Teeth = 100 Tooth
• Tooth Spacing = 15/32 In.
• Blade Kerf = .125 In.
• Dust Collection = 4'' 450 CFM
• Dust Port Out = 4'' Bottom
• Arbor Diameter = 1'' Arbor
• Cycles/Minute = 78 Cuts Per Minute
• Hold Down Style = T Clamp
• FLR Included = Filter, Lubricator, Regulator
• Recommended CFM = 480 nl/min
• Emergency Stop = Push Button
• Safety Feature = Safety Interlock Switch
• Guarding = Full Guard with Clear View
• Operation Style = Pneumatic Foot Pedal
• Fence Type = Adjustable Fence
• Fence Dims. = 2" x 25''
• Adjust. Stroke = 2-1/16'' Adj. on Arbor Stroke
• Frame Const. = 3/16'' Steel Construction
• Worktable Dims. = 23-1/4'' x 24-7/8''
• Table Const. = Machined Steel
• Decible Rating = 75 dB
• Net Weight = 548 Lbs.
• Gross Weight = 685 Lbs.
• Machine Dims. = 23-1/4'' x 24-7/8'' x 47''
• Packaging Dims = 40'' x 48'' x 50''
ITEM ID: 4358
