• FEATURES


  • Available machine width of 12" or 16".

  • Bed way length is standard at 84" on 12" model / 96" on 16" model.

  • Helical cutter head is configured with 6 rows of 30 x 12 x 1.5 carbide 2 sided insert knives.

  • Dynamically balanced cutter heads are precision fitted with class 5 NSK sealed bearings.

  • Parallelogram designed bed ways provides quick and accurate adjustment of infeed/outfeed beds vs. older style jack screw and handwheel system via cam and lever action. * Parallelogram design also facilitates the infeed table being in close proximity to the cutter head, ensuring vibration-free cutting and excellent chip removal characteristics via the cam and lever handle.

  • Machine bed ways are heat-treated, precision ground, and highly polished for incredible end-to-end and side to fence tolerances.

  • Center mount fence system employs a rack and pinion movement for quick and accurate positioning.

  • Noise abatement fingers are precision ground on table edges surrounding cutter heads improving sound decibel levels by over 25%.

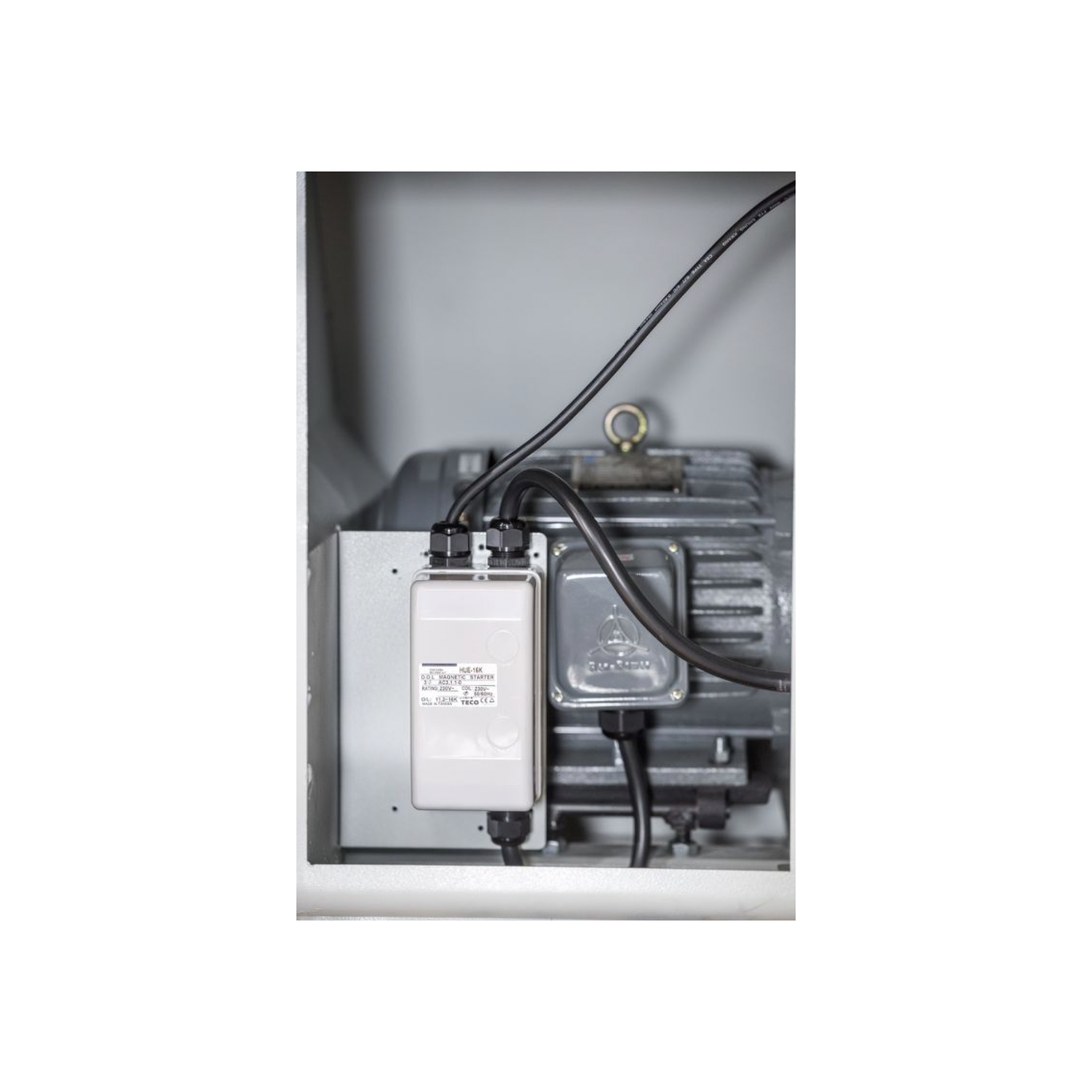

  • Motors are started and protected via magnetic controls with overloads / on-off control is remote and located above the infeed table.

  • Oversized guard is standard providing optimum operator protection (spring-loaded and adjustable tensioning).

  • Weight on 12" model . . . 706 lbs.

  • Weight on 16" model . . . 956 lbs.

  • Warranty is one-year parts All machines are tested stateside prior to shipment providing trouble-free start-up.

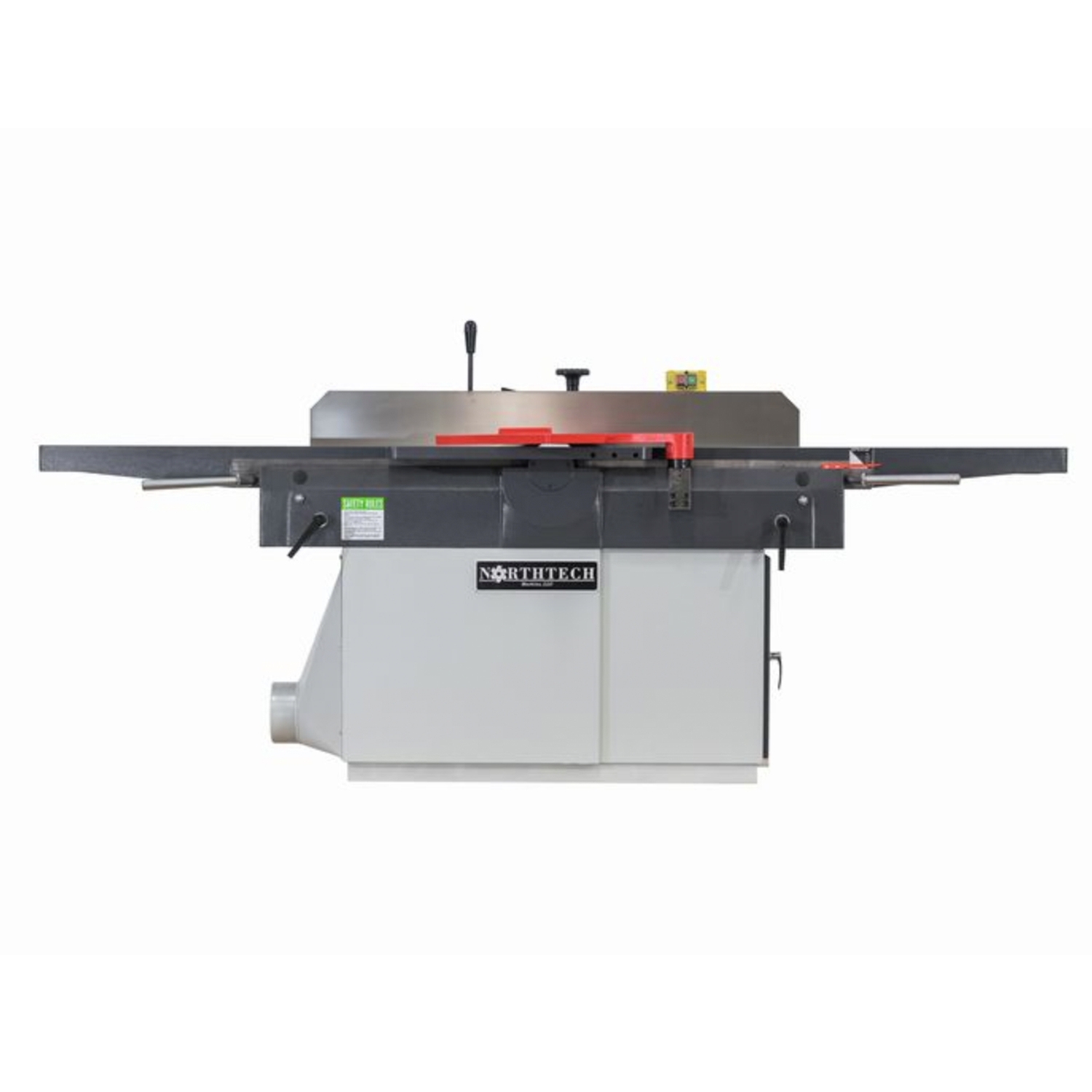

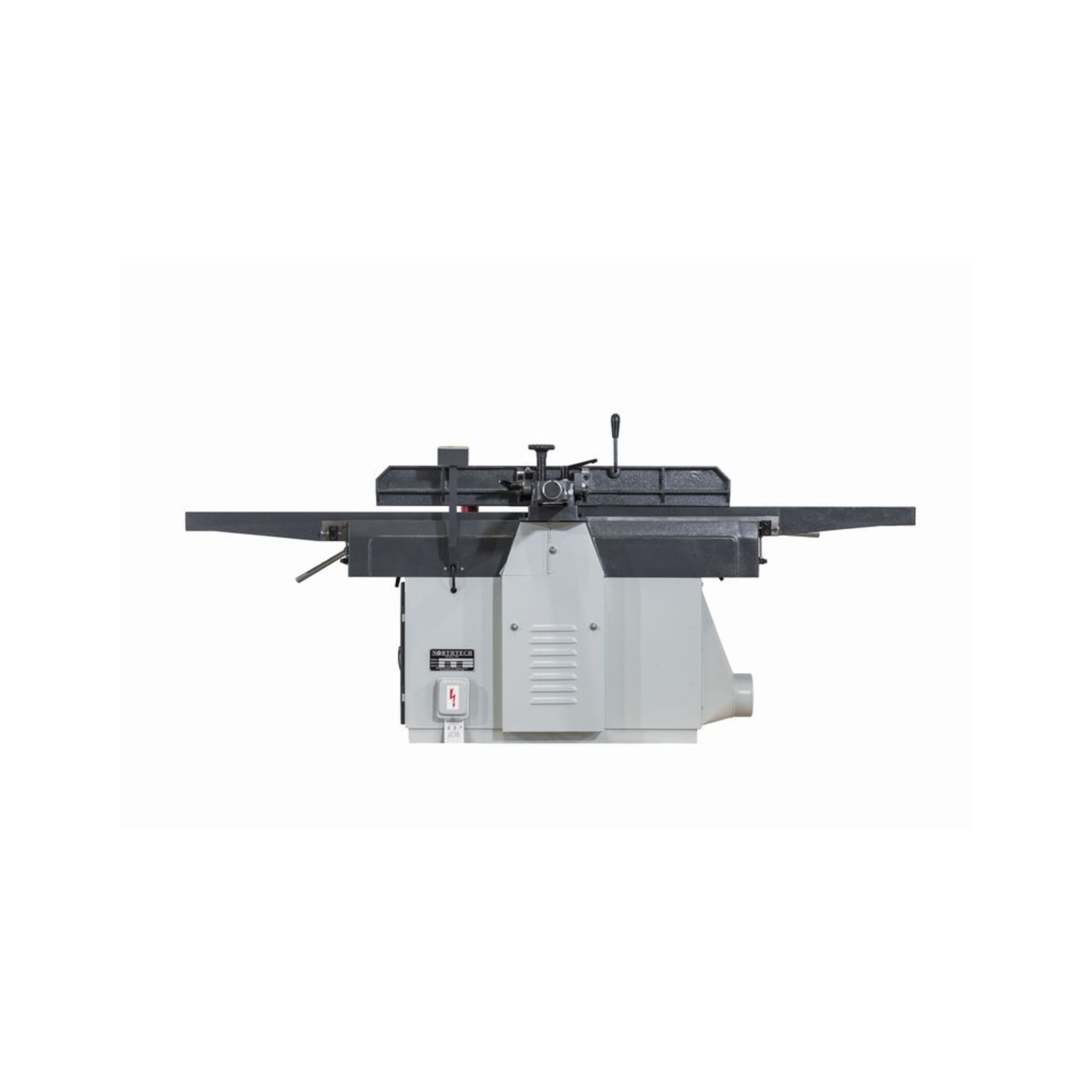

• NT1696HC-734 SPECS


  • Voltage/ Freq. = 460 Volt 60Hz

  • Phase = 3 Phase

  • Amp Requirement = 9.5 Amps

  • Total Hp. = 7.5 Hp.

  • Electronics = UL Approved Components

  • Dual Voltage = 230/460 Volt

  • Control Voltage = 460 Volt

  • Pass-Line = 31-1/2''

  • Min. Width = 3'' Without Push Block

  • Max. Width = 16''

  • Min. Thickness = 3'' Without Push Block

  • Cutter Head RPM = 5000 RPM

  • Head Type = Dynamically Balanced Helical Head

  • Cutter Head Dim = 4'' x 16''

  • Cut Head Matl. = Alloy Steel

  • Rows of Cutters = 6 Rows

  • No. of Inserts = 57 Inserts

  • Insert Size = 30 x 12 x 1.5 mm

  • Dust Collection = (1) 6'' @ 981 CFM

  • Guarding = Swivel Guard

  • Fence Dims. = 5-3/8'' x 47''

  • Frame Const. = Cast Construction

  • Infeed Table = 47-1/2''

  • Outfeed Table = 47-1/2''

  • Decibel Rating = 73 Db

  • Net Weight = 956 Lbs.

  • Gross Weight = 1160 Lbs.

  • Machine Dims. = 97'' x 46'' x 44''

  • Packaging Dims = 100'' x 30'' x 40''

  • Item ID: 3501

• NT1696HC-732 SPECS


  • Voltage/ Freq. = 230 Volt 60Hz

  • Phase = 3 Phase

  • Amp Requirement = 19 Amps

  • Total Hp. = 7.5 Hp.

  • Electronics = UL Approved Components

  • Dual Voltage = 230/460 Volt<

  • Control Voltage = 220V Control Voltage

  • Pass-Line = 31-1/2''

  • Min. Width = 3'' With Push Block

  • Max. Width = 16''

  • Cutter Head RPM = 5000 RPM

  • Head Type = Dynamically Balanced Helical Head

  • Cutter Head Dim = 4'' x 16''<

  • Cut Head Matl. = Alloy Steel

  • Rows of Cutters = 6 Rows

  • No. of Inserts = 57 Inserts<

  • Insert Size = 30 x 12 x 1.5 mm

  • Dust Collection = (1) 6'' @ 981 CFM

  • Guarding = Swivel Guard

  • Fence Dims. = 5-3/8'' x 47''

  • Frame Const. = Cast Construction

  • Infeed Table = 47-1/2''

  • Outfeed Table = 47-1/2''

  • Decibel Rating = 73 Db

  • Net Weight = 956 Lbs.

  • Gross Weight = 1160 Lbs.

  • Machine Dims. = 97'' x 46'' x 44''

  • Packaging Dims = 100'' x 30'' x 40''

  • Item ID: 3500

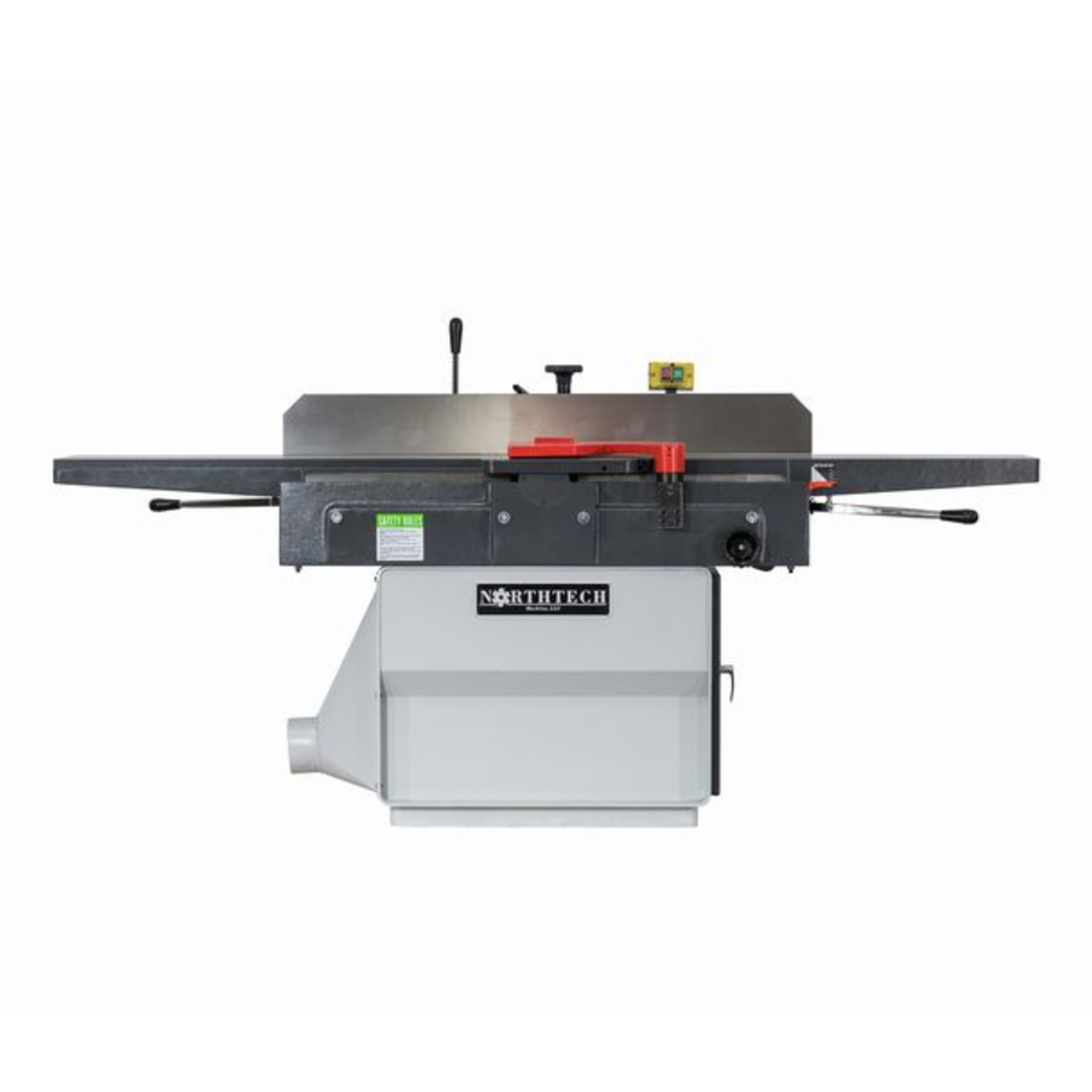

• NT1284HC-534 SPECS

  • Voltage/ Freq. = 460 Volt 60Hz

  • Phase = 3 Phase

  • Amp Requirement = 7 Amps

  • Total Hp. = 5 Hp.

  • Electronics = UL Approved Components

  • Dual Voltage = 230/460 Volt

  • Control Voltage = 460 Volt

  • Pass-Line = 32''

  • Min. Length = 12'' Without Push Block

  • Min. Width = 3'' Without Push Block

  • Max. Width = 12''

  • Min. Thickness = 3'' Without Push

  • Block Cutter Head RPM = 5000 RPM

  • Head Type = Dynamically Balanced Helical Head

  • Cutter Head Dim = 4'' x 12''

  • Cut Head Matl. = Alloy Steel

  • Rows of Cutters = 6 Rows

  • No. of Inserts = 42 Inserts

  • Insert Size = 30 x 12 x 1.5 mm

  • Dust Collection = (1) 5'' @ 681 CFM

  • Guarding = Swivel Guard

  • Fence Dims. = 5-3/8'' x 47''

  • Frame Const. = Cast Construction

  • Infeed Table = 41-1/4''

  • Outfeed Table = 41-1/4''

  • Decibel Rating = 69 dB

  • Net Weight = 706 Lbs.

  • Gross Weight = 888 Lbs.

  • Machine Dims. = 85'' x 38'' x 44''

  • Packaging Dims = 90'' x 27'' x 41''

  • Item ID: 3499

• NT1284HC-532 SPECS

  • Voltage/ Freq. = 230 Volt 60Hz

  • Phase = 3 Phase

  • Amp Requirement = 14 Amps

  • Total Hp. = 5 Hp.

  • Electronics = UL Approved Components

  • Dual Voltage = 230/460 Volt

  • Control Voltage = 220V Control Voltage

  • Pass-Line = 32''

  • Min. Length = 12'' With Push Block

  • Min. Width = 3'' With Push Block

  • Max. Width = 12''

  • Min. Thickness =

  • Cutter Head RPM = 5000 RPM

  • Head Type = Dynamically Balanced Helical Head

  • Cutter Head Dim = 4'' x 12''

  • Cut Head Matl. = Alloy Steel

  • Rows of Cutters = 6 Rows

  • No. of Inserts = 42 Inserts

  • Insert Size = 30 x 12 x 1.5 mm

  • Dust Collection = (1) 5'' @ 681 CFM

  • Guarding = Swivel Guard Fence

  • Dims. = 5-3/8'' x 47''<

  • Frame Const. = Cast Construction

  • Infeed Table = 41-1/4''

  • Outfeed Table = 41-1/4''

  • Decibel Rating = 69 dB

  • Net Weight = 706 Lbs.

  • Gross Weight = 888 Lbs.

  • Machine Dims. = 85'' x 38'' x 44''

  • Packaging Dims = 90'' x 27'' x 41''

  • Item ID: 3498
