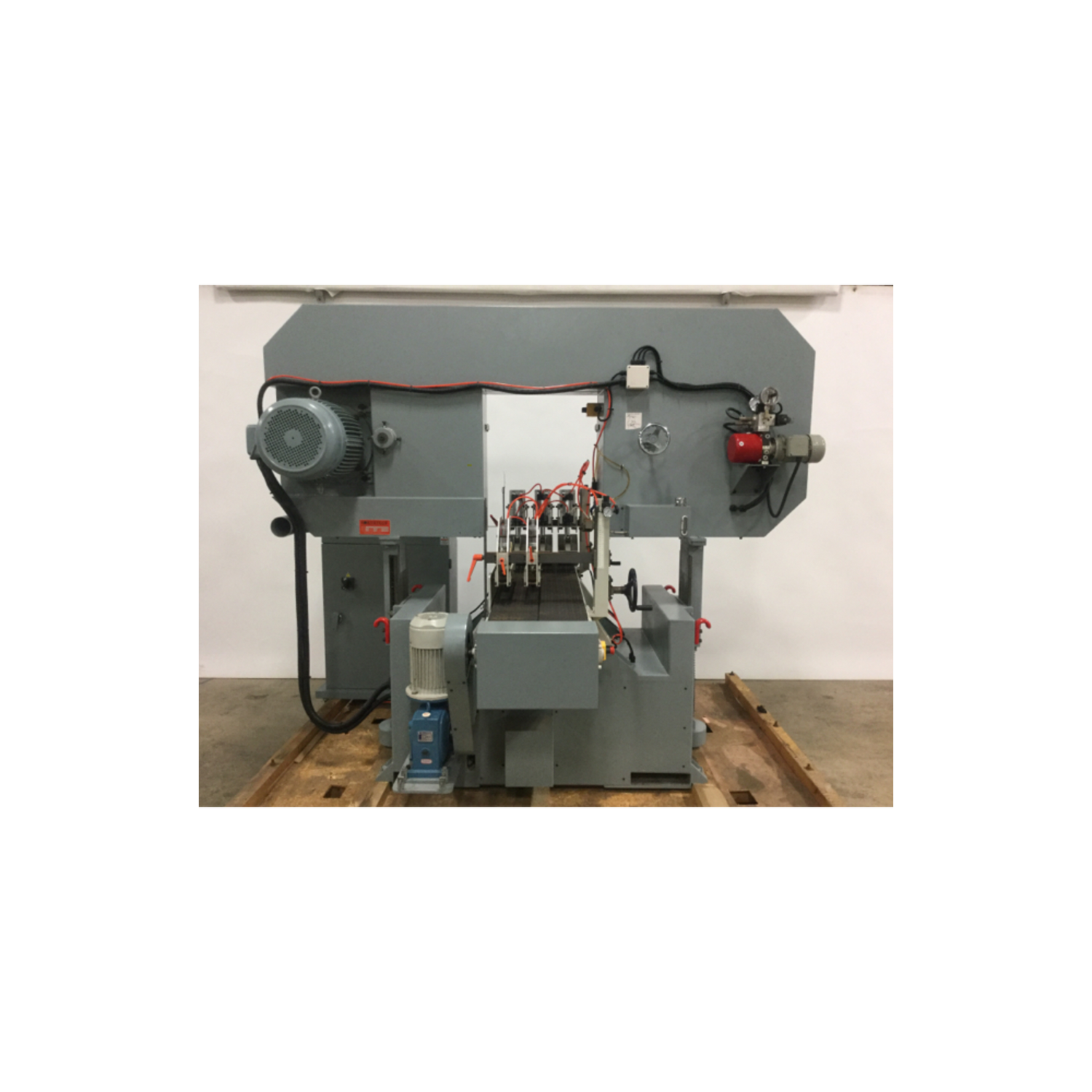

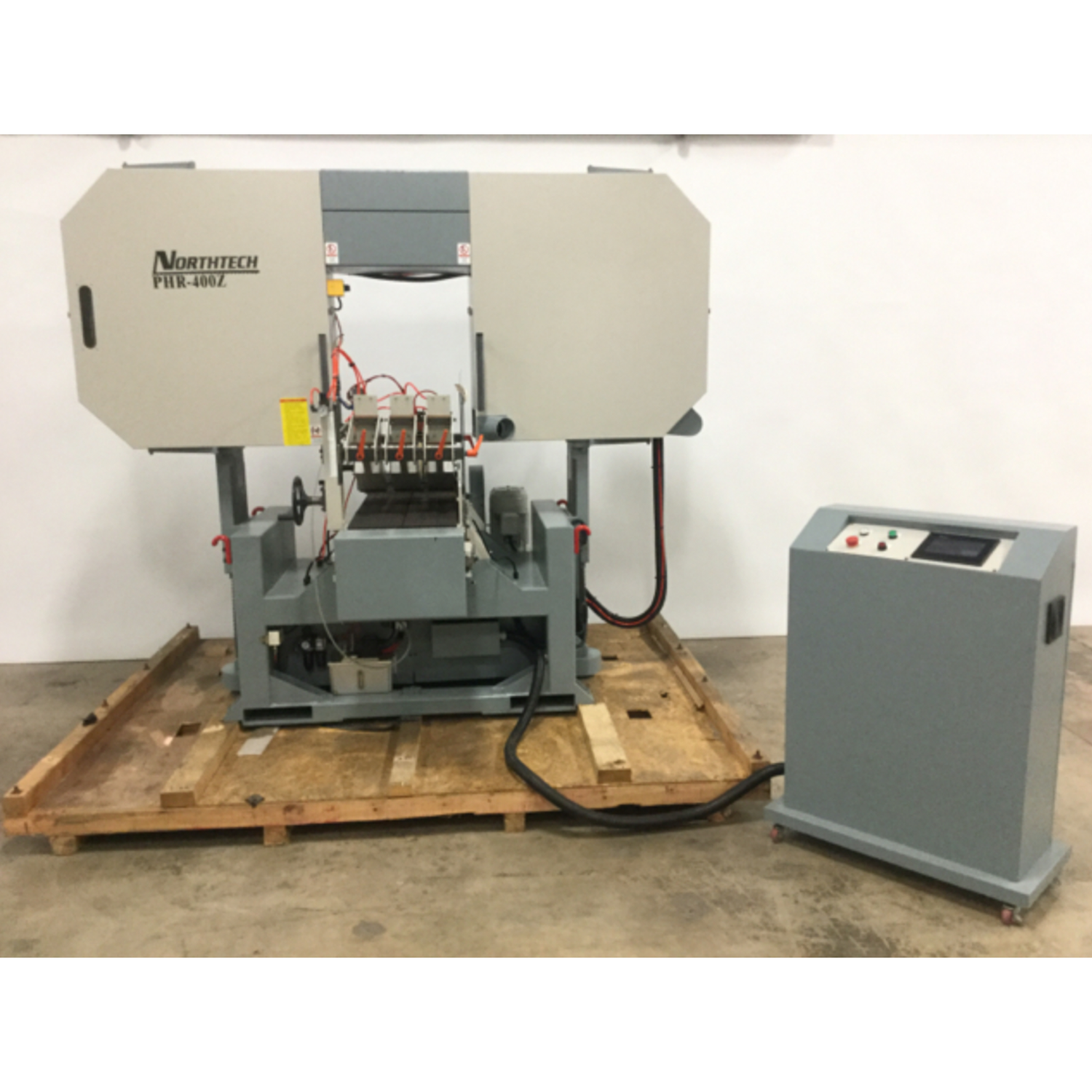

NorthTech Horizontal Band Re-Saw PHR-400Z-4434
by NorthTech
SKU NORTHTECH-H-BANDSAW-NT-PHR-400Z-4434
NorthTech Industrial Horizontal Band Re-Saw NT PHR-400Z-4434
NT PHR-400Z-4434 16" Horizontal band Re-Saw Precision Chain Feed Features
- Maximum cutting capacity: W 16" x H 10.75"
- Minimum thickness: 2mm (.07")
- Saw wheel diameter: W 2" x H 36"
- Saw blade length: 6060mm (238 ½")
- Saw blade width: 75mm (3"), (2" is optional)
- Steel chain conveyor belt: 400mm (16")
- Conveyor height (from floor): 926mm (36 ½")
- Feed speed: 5-55 FPM
- Feed inverter motor: 3HP with 5HP variable frequency drive

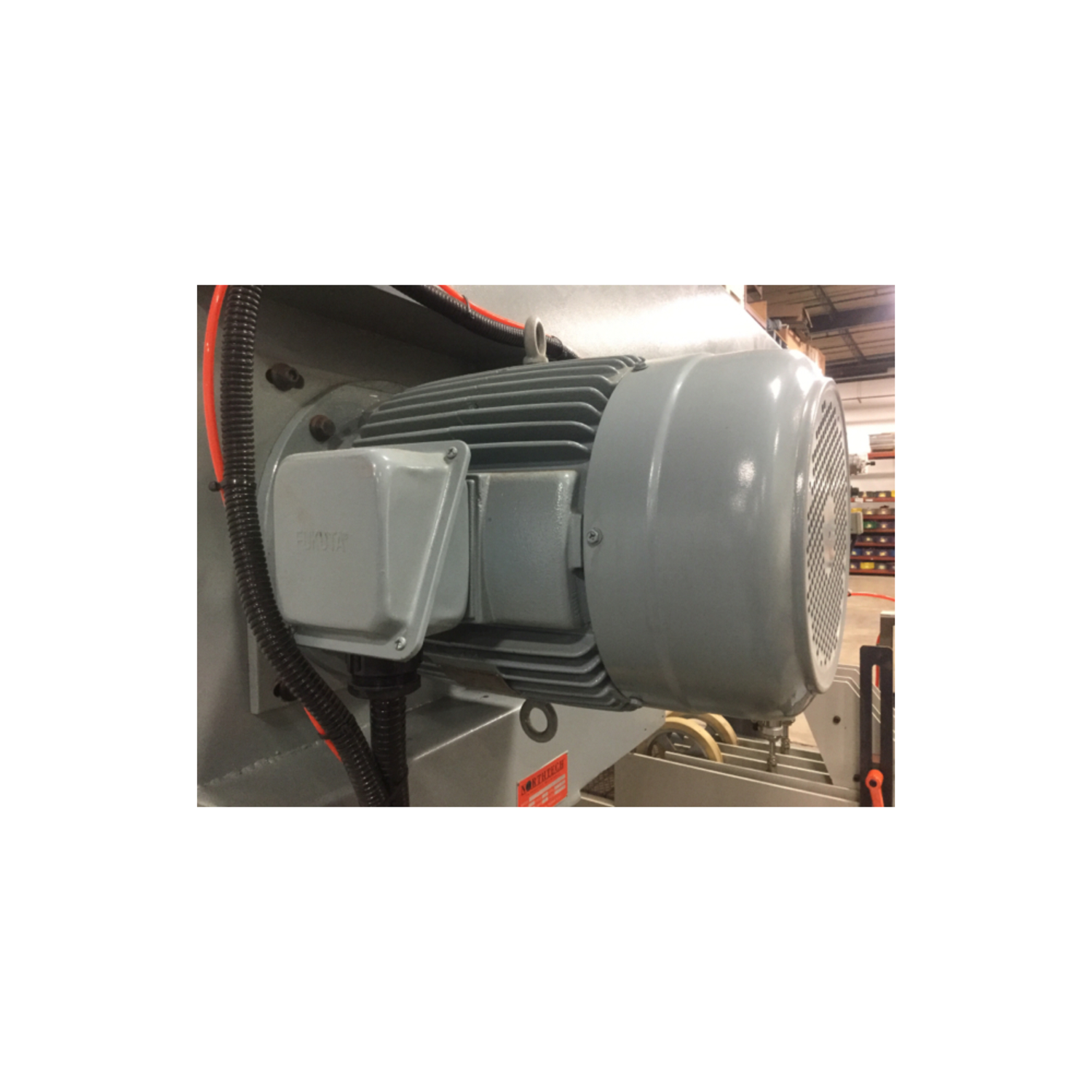

- Saw wheel motor: 40HP with 50HP variable frequency drive
- Blade lift motor: ¾ HP on precision ball screw lifting system
- 1HP pump for hydraulic blade tensioning system
- Dust ports: (2) 4"
- Dust collection requirements: 450 CFM @ points of extraction
- Touch screen control panel
- Precision blade guides from tungsten carbide
- Power return conveyor (Optional)
- All machines are tested stateside prior to shipment providing trouble free start up.
SPECS
- Main Motor Hp. = 40 hp.
- Voltage/ Freq. = 460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 56.67 Amps
- Feed Hp. = 3 Hp.
- Feed System = 16'' Chain Feed
- Drive System = Chain Drive
- Feed Speed = 5 - 55 FPM
- Variable Speed = Inverter Controlled
- Elevation Hp. = 3/4 Hp.
- Elevation Style = Auto Touch Screen Control
- Elevation Sys. = (2) Post Jack Screw
- Total Hp. = 44.5 Hp.
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 230 Volt
- Programmable = Feed Speed / Blade Speed
- Touch Screen = 7'' Digital Touch Screen
- Operator Panel = Mobile Cabinet
- Min. Length = 14''
- Min. Width = 2"
- Max. Width = 16''
- Min. Thickness = .07''
- Max. Thickness = 10-3/4''
- Blade Size = 238-1/2''
- Tooth Spacing = 1''
- Blade Kerf = .086 In.
- Blade Speed = 3850 - 7150 FPM
- Tracking Style = Manual Adjustment
- Tension Style = Hydraulic Tension
- Vertical Travel = .07'' - 10-3/4''
- Dust Collection = (2) 4'' @ 900 CFM
- Dust Port Out = 2 4'' Top
- Conveyor = 16'' Chain Conveyor
- Chain Adj. = Manual
- Hold Down Style = 3 Front 2 Rear Pneumatic
- FLR Included = Filter, Lubricator, Regulator
- Recommended CFM = 872 Total CFM
- Emergency Stop = Push Button
- Rear E Stop = Push Button
- Guarding = Full Cabinet Enclosure
- Oiler = Auto Oiler
- Blade Guide = Precision Tungsten Carbide
- Wheel Dims. = 2'' x 36''
- Wheel Construction = Steel Construction
- Frame Construction = 1/4'' Steel Construction
- Worktable Dims. = 16'' x 85-1/2''
- Decible Rating = 76 dB
- Net Weight = 4321 Lbs.
- Gross Weight = 4762 Lbs.
- Machine Dims. = 107'' x 87'' x 91''
- Packaging Dims = 109'' x 90'' x 100''
ITEM ID: 1179
