ADVANCED FEATURES IN PRECISION RE-SAWING
• Increased HP to 40 to meet higher production needs.
• 32" diameter x 1-7/8" wide saw wheel (approximately 450lbs) for high centrifugal cutting force and vibration-free performance (6150 FPM).
• 16 ¾’’ maximum part capacity.
• Production feed speed of up to 130' / minute. Note: with VFD, re-saw can run as slow as 4 - 5' / minute if required.
• Inverter feed allows fast feed setting to accommodate material type and width (with LED readout).
• Digital set works (PLC) for fast and precise settings (accurate to .002" automatic position).
• Precision German spring tensioning of the blade for constant tension to band at 22,000 PSI.
• Auto oil misting system improves blade life by up to 40 - 50% on many materials. (Only activated when material is present by sensor.)

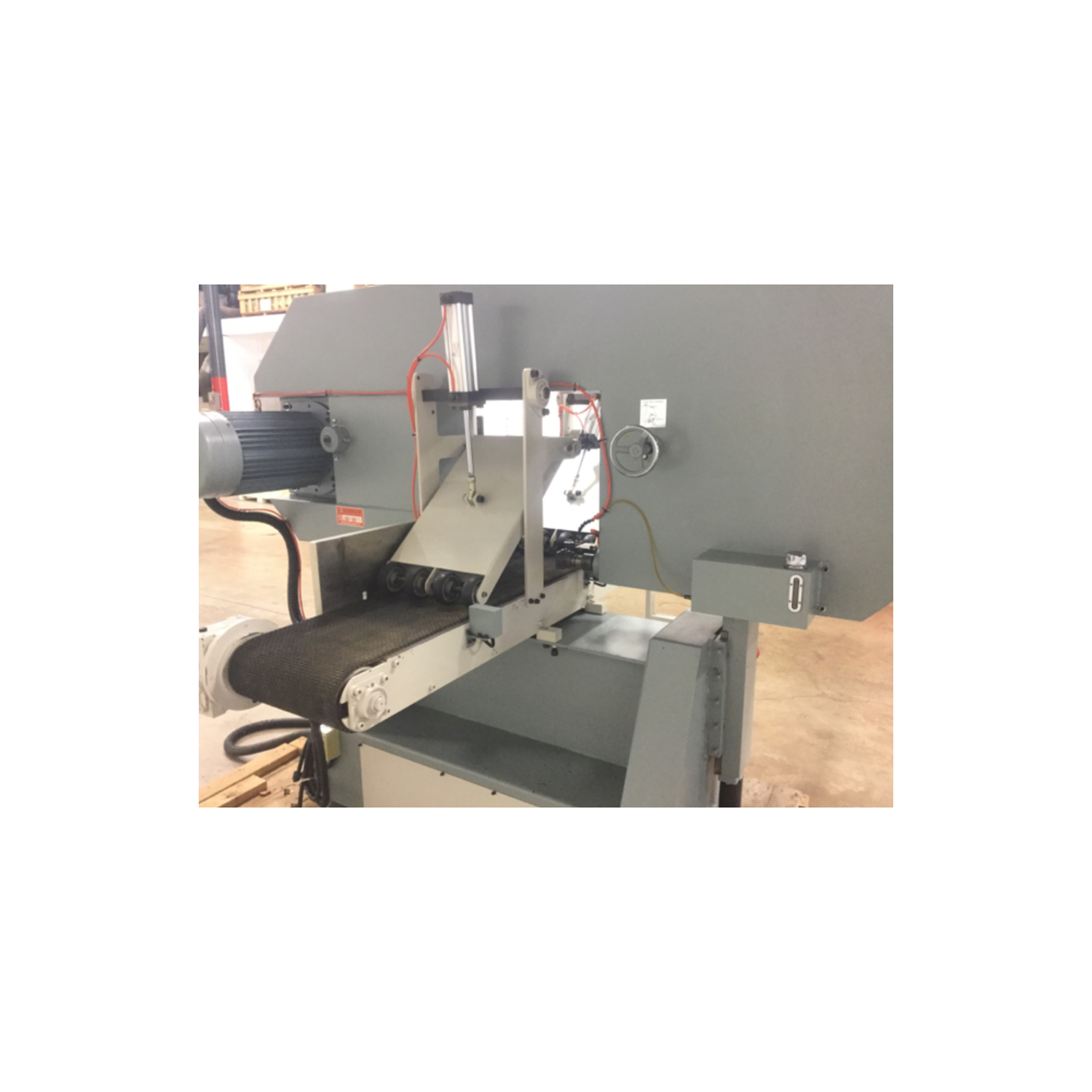

• Pneumatic raise & lower of top feed rollers is automatic. When material is presented, a sensor lifts and lowers onto the material on both sides of the blade. * Prevents material from slamming into the rollers and requires no adjustment within a 4" ± thickness range. * i.e. random thickness material requires no adjustment.
• Remote and dust proof controls panel allows random placement, conveniently making the material placement and operator position a flexible option.
-
SPECS

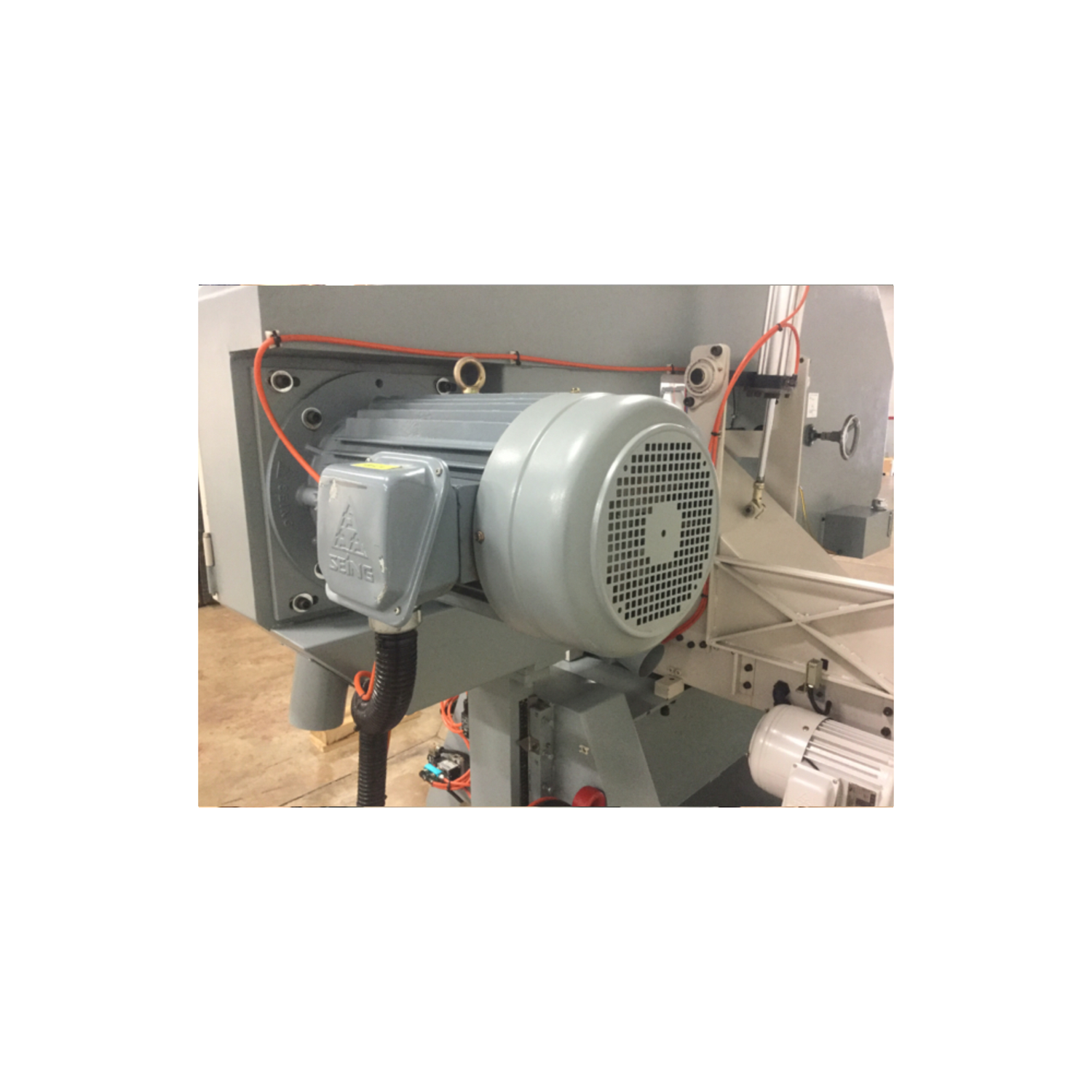

• Main Motor Hp. = 40 hp.
• Voltage/ Freq. = 460 Volt 60Hz
• Phase = 3 Phase
• Amp Requirement = 52.2 Amps
• Feed Hp. = 1.5 Hp.
• Feed System = 15-3/4'' Feed Belt
• Drive System = Motor Mated to Gear Box
• Variable Speed = Inverter Controlled
• Elevation Hp. = 1.5 Hp.
• Elevation Style = CH-525 Elevation Control
• Elevation Sys. = (2) Post Jack Screw
• Total Hp. = 43.5 Hp.
• Electronics = CE Approved Components
• Control Voltage = 220V Control Voltage
• Assisted Start = Wye Delta
• Programmable = Elevation
• Operator Panel = Mobile Cabinet
• Pass-Line = 40-3/8''
• Throat Capacity = 11-3/4'' x 8''
• Min. Length = 30'' Between Hold Downs
• Min. Width = 1-1/2''
• Max. Width = 16-3/4''
• Min. Thickness = 1/4''
• Max. Thickness = 17''
• Blade Speed = 6150 FPM
• Tracking Style = Manual Adjustment
• Tension Style = Manual Adjustment
• Vertical Travel = 10-3/8''
• Dust Collection = (2) 4'' @ 900 CFM
• Digital Display = Elevation
• Hold Down Style = (1) Infeed (1) Outfeed Pneumat
• FLR Included = Filter, Lubricator, Regulator
• Recommended CFM = 3/8'' Supply Line @ 90 Psi
• Emergency Stop = Push Button
• Oiler = Blade Oil Mister
• Fence Type = Fixed Fence
• Fence Dims. = 8-1/2'' x 18''
• Blade Guide = Steel Blade Guides
• Wheel Dims. = 1-7/8'' x 31-1/2''
• Wheel Construction = Steel Construction
• Frame Construction = 1/2'' Steel Construction
• Infeed Table = 17'' x 42-1/2''
• Net Weight = 4321 lbs.
• Gross Weight = 4761 lbs.
• Machine Dims. = 104'' x 125'' x 90''
• Packaging Dims = 89'' x 68'' x 84''
ITEM ID: 1960
