NorthTech Horizontal Bandsaw HBR-300S

NorthTech Horizontal Bandsaw NT HBR-300S

SPECS

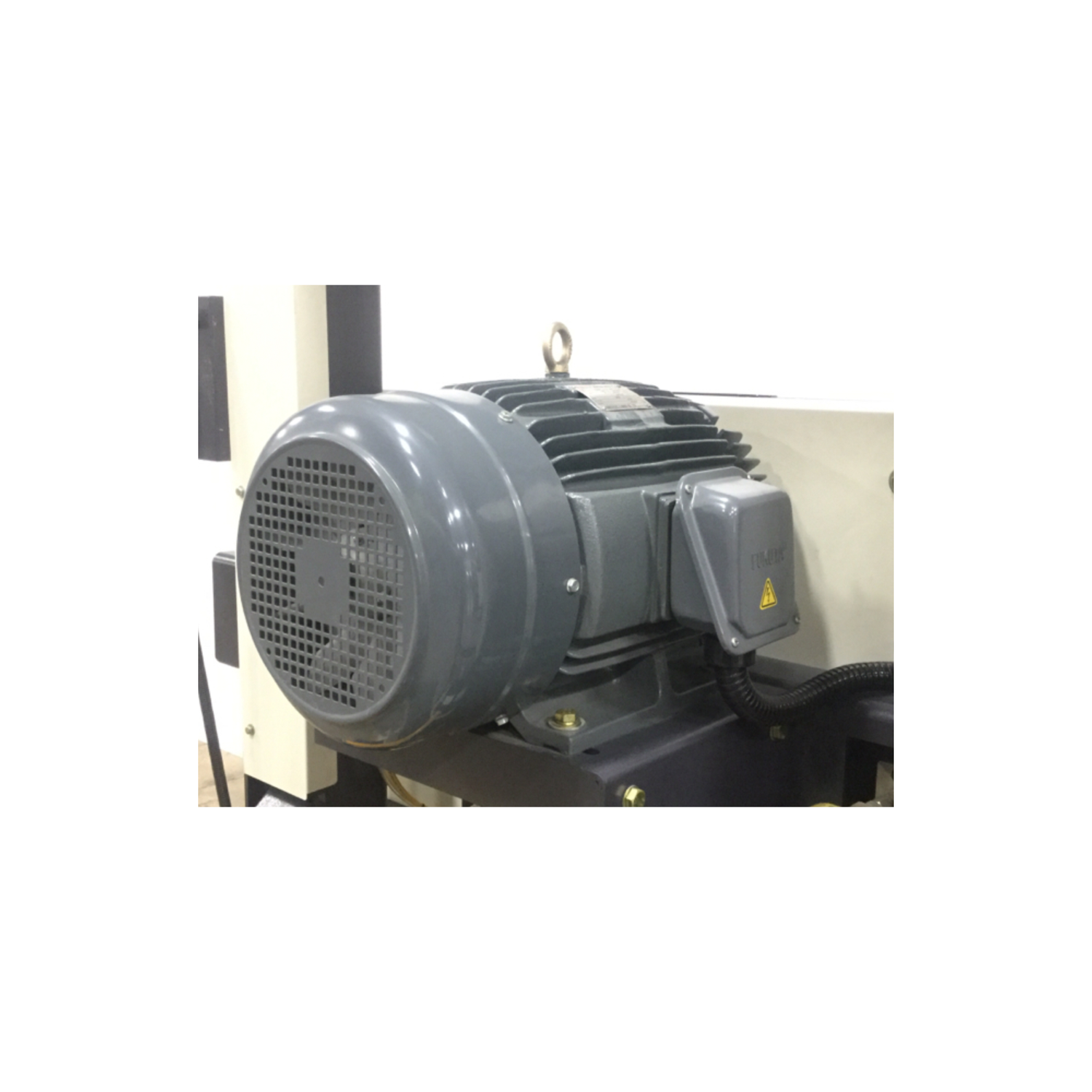

• Main Motor Hp. = 20 hp.
• Voltage/ Freq. = 460 Volt 60Hz
• Phase = 3 Phase
• Amp Requirement = 45 Amps
• Feed Hp. = 5 Hp.
• Feed System = 11'' x 218'' Hydraulic Drive Belt
• Drive System = 5 Hp. Hydraulic Pump
• Feed Speed = 0 - 95 FPM
• Variable Speed = Hydraulic Adjustment Knob
• Reverse Feed = Yes
• Elevation Hp. = 1/4 Hp.
• Elevation Style = Auto Touch Screen Control
• Elevation Sys. = (2) Post Jack Screw
• Total Hp. = 30-1/4 Hp.
• Electronics = CE Approved Components
• Control Voltage = 230 Volt / 24 Volt
• Assisted Start = Wye Delta
• Programmable = Elevation
• Touch Screen = 6'' Digital Touch Screen
• Operator Panel = Fixed
• Cut Envelope = 6-3/4'' x 11-3/4''
• Min. Length = 16''
• Max. Length = Infinite
• Min. Width = 1.5''
• Max. Width = 11-3/4''
• Min. Thickness = 1/4''
• Max. Thickness = 11-1/2''
• Blade Size = 1'' x 170'' Bandsaw Blade
• No. of Teeth = 4 TPI
• Tooth Spacing = 5/16''
• Blade Kerf = .063 In.
• Blade Speed = 6200 FPM
• Cleaning System = Weighted Wheel Scrapers
• Tracking Style = Manual Adjustment
• Tension Style = Hydraulic Tension
• Vertical Travel = 1/4'' - 6-3/4''
• Dust Collection = (1) 6'' @ 981 CFM
• Dust Port Out = 6'' Bottom
• Arbor Diameter = 2''
• Digital Display = 6'' Digital Display
• Conveyor = Rubber Belt
• Hold Down Style = (1) Infeed (1) Outfeed Pneumat
• FLR Included = Filter, Lubricator, Regulator
• Recommended CFM = 981 CFM
• Emergency Stop = Push Button
• Rear E Stop = Push Button
• Guarding = Full Cabinet Enclosure
• Oiler = Blade Oil Mister
• Fence Type = Steel
• Fence Dims. = 6-1/2'' Tall
• Tiltable = 30 Degree Tilt
• Blade Guide = Steel Blade Guides
• Wheel Dims. = 1'' x 28''
• Wheel Construction = Steel Construction
• Frame Const. = 3/16'' Steel Construction
• Infeed Table = 11-1/4'' x 109''
• Return Conveyor = 7-1/4'' x 109''
• Measure Meth. = Precision Encoder
• Decible Rating = 72 dB
• Machine Dims. = 109'' x 85-1/2'' x 80''
• Packaging Dims = 111'' x 89'' x 85''
