NorthTech  |  SKU: NORTHTECH-CNC-BANDSAW-2500

NorthTech CNC Bandsaw 2500

Shipping calculated at checkout.

Delivery and Shipping

Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours. Weekend orders are processed the next business day. Products that are backlog or custom orders will be processed as soon as possible. Equipment deliveries vary based on current backlog and will be confirmed at time of order.  Please call 800-598-6344 for an estimate for equipment and shipping questions.

Description

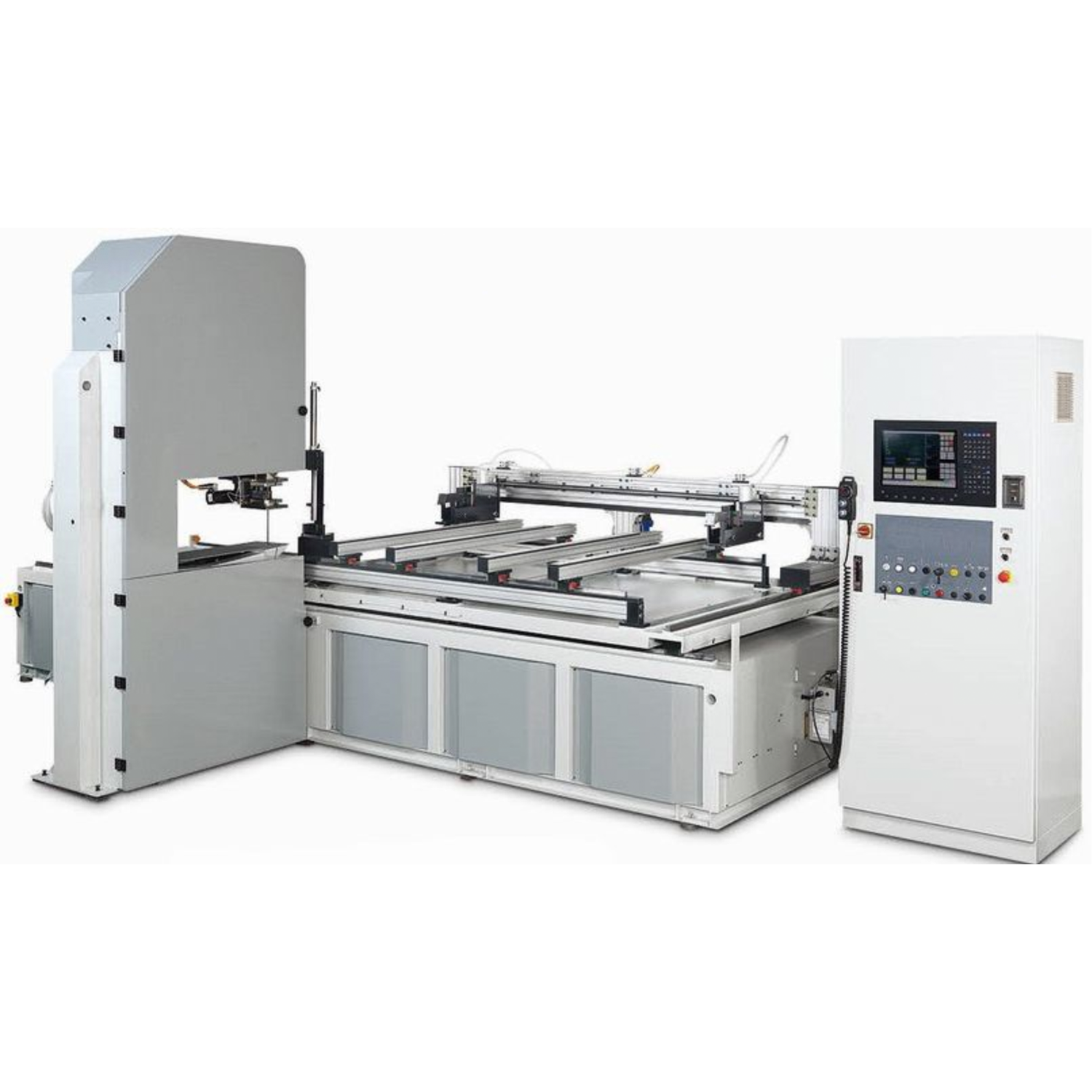

NorthTech CNC Bandsaw 2500

  • FEATURES

    • Advanced CNC control features powerful function and easy operation.

    • High efficiency curve cutting without need of copy template.

    • Band blade swiveling angle: +- 90 Degrees.

    • Automatic wood infeed and outfeed.

    • Fully automatic cutting operation<

    • All travels are driven by servo motors combined with the use of linear guide ways.

    • Aluminum alloy automatic feeding mechanism features light weight, maximum durability and elegance.

    • Rugged machine construction exhibits outstanding stability.

  • ADVANCED CNC CONTROLS

    • 15'' Colorful LED monitor and controller.

    AXIS CARD: 4 servo axes +1 set of analog voltage output +1 MPG hand wheel axis.

    • 4 axes control.

    • Available to connect to various interfacing ports including Ethernet.

    • 32 Bit CPU

    • Built-in open type PLC and Macro.

  • Pneumatically Operated Grippers

    • The automatic feeding mechanism is equipped with 4 grippers that grip the panels and feed it to the cutting position.

    • The grippers are operated by air cylinder with extremely secure gripping effect.

    • Maximum gripping thickness is 150 mm.

    Finished Product Outfeed Plate

    • The outfeed plate, actuated by air cylinder, automatically tilts downward to outfeed the finished products after cutting.

    Programable Band Blade Swiveling +-90 Degrees

    • The band blade can swivel to various angular positions through the computer control. Swiveling angles include +-90 Degrees.

    • This combines with X and Y axis travels on the automatic feeding mechanism allows for cutting any complicated curve.

  • SPECS

    • Main Motor Hp. = 15 hp.

    • Voltage/ Freq. = 230 Volt 60Hz

    • Phase = 3 Phase

    • Total Hp. = 21.4 Hp.

    • Electronics = CE Approved Components<

    • Touch Screen = 15'' LED Monitor<

    • Operator Panel = Mobile Cabinet<

    • Max. Length = 98.42''

    • Max. Width = 47.24''

    • Max. Thickness = 5.90''

    • Able Cut Angle = +90 / -90 Degrees

    • Arbor Rpm = 750 RPM

    • Blade Size = 5900 x 12.7 x 0.8mm

    • Blade Speed = 6550 FPM

    • Dust Collection = (2) 4'' @ 900 CFM<

    • Emergency Stop = Push Button<

    • Blade Wheel Dim = 35''<

    • Net Weight = 6614 lbs.

    • Gross Weight = 7717 lbs.

    • Machine Dims. = 166 x 130 x 103 In.
