NorthTech Straight Line Rip Saw SLR-18SC-2032

SKU NORTHTECH-STRAIGHT-LINE-SLR-18SC-2032

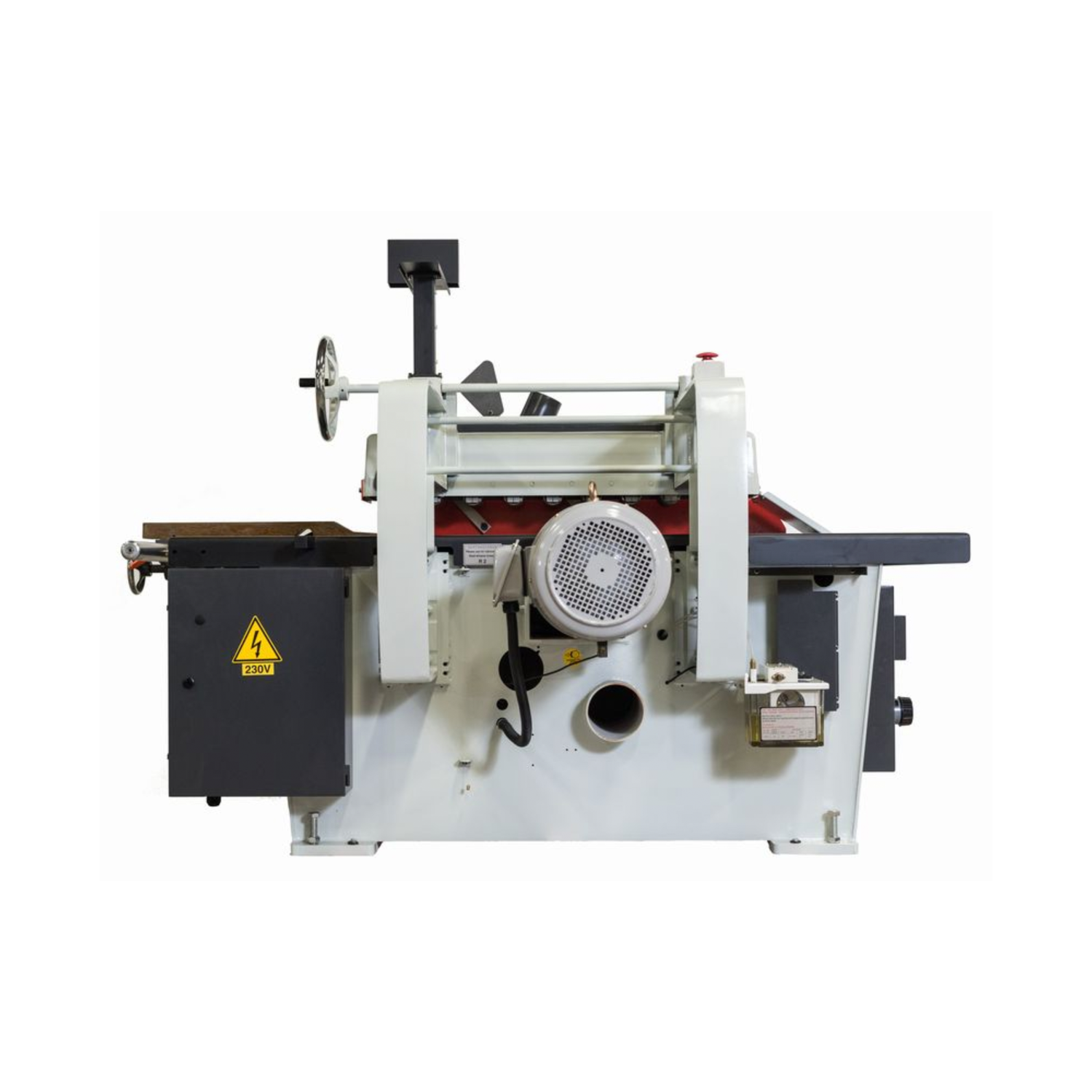

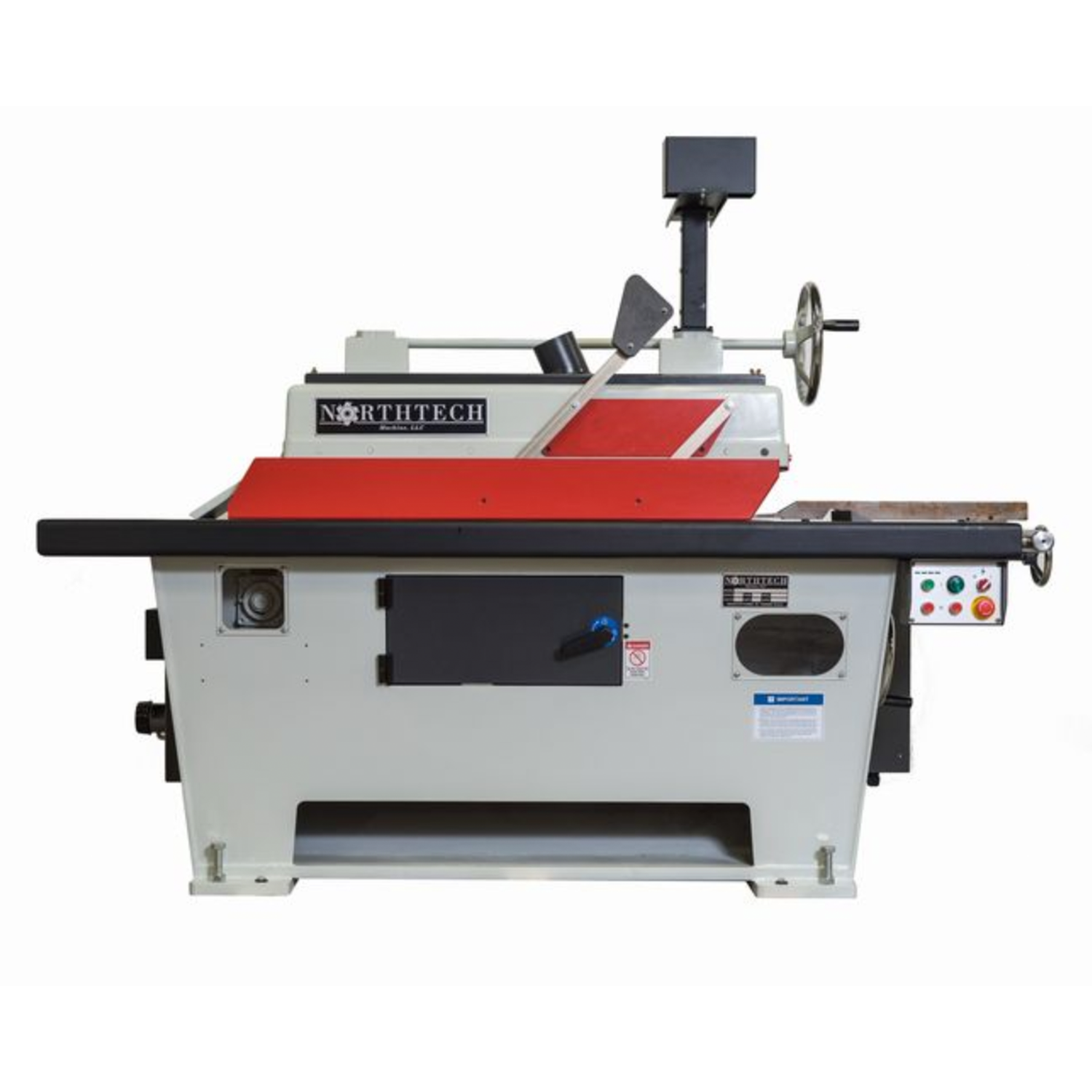

NorthTech Precision Straight Line Rip Saw SLR-18SC-2032

  • FEED SYSTEM

    • Saw motor: 20HP, 3PH 230V

    • Feed: 1.5HP variable from 50' - 190' / minute

  • PRODUCT DIMENSIONS

    • Min. thickness: 3/16"

    • Max depth of cut: 5" with 18'' Blade

    • Max depth of cut: 4" with 16'' Blade

    • Max depth of cut: 3" with 14'' Blade

    • Max. width of stock: (Blade to column arms) 26-1/4"

  • FEATURES

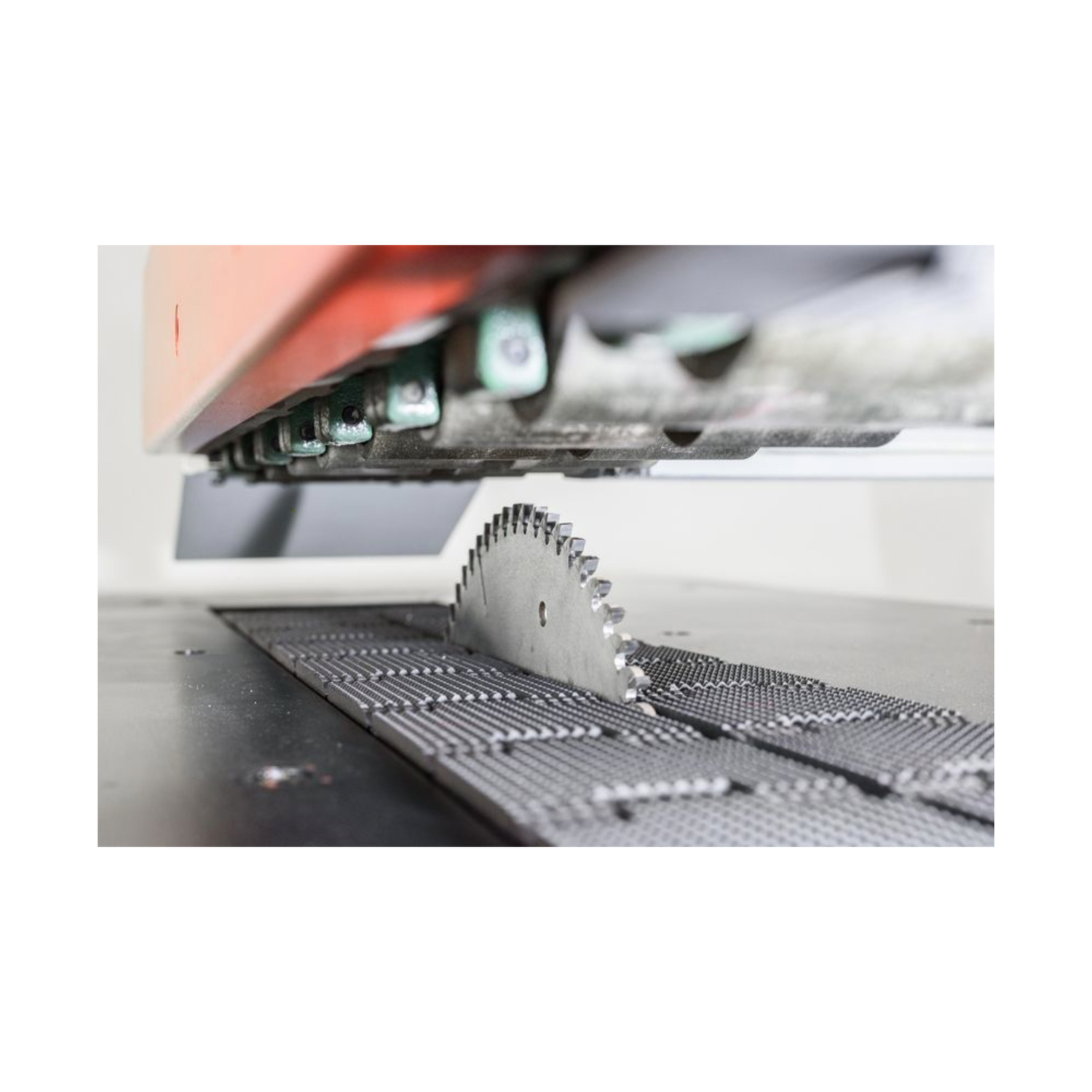

    • “True Track" Chain and Race

    • Table size 83” x 40”

    • Machine frame is constructed of a 1" thick base plate

    • Solid steel frame with 1" thick column arms.

    • Safety door switch with pneumatic motor brake.

    • 2" arbor and large support bearings.

    • Glue line guarantee on 4/4 stock is 14' - 16' at 50 FPM.

    • All motors and electricals are UL rated.

    • Industrial fence with cam lock quick release on rack and pinion glide.

    • Two rows of heavy duty kickback fingers.

    • (8) large pressure rollers for optimum glue line ripping.

    • An automatic mechanical oiling system with low oil level feed shutoff.

    • A 100mw laser light and mounting bracket are included.

    • (1) Tool box

    • Amperage requirements: 20HP + 1.5HP 230V / 460V: 54.3A / 27A.

    • Dust requirements: (1) 4" dust port requiring 450 CFM (1) 6" dust port requiring 1,000 CFM

    • Weight: 3455 lbs.

    • Machine dimensions: (L) 90" x (W) 67" x (H) 68"

    • Warranty is one year parts

    • All machines are tested stateside prior to shipment providing trouble free start up. F.O.B. Borden, IN

  • SPECS

    • Main Motor Hp. = 20 hp.

    • Voltage/ Freq. = 230 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 54.3 Amps

    • Feed Hp. = 3 Hp.

    • Feed System = 4'' Split Chain with True Trac

    • Drive System = Belt

    • Feed Speed = 50 - 190 FPM

    • Variable Speed = Mechanical

    • Elevation Style = Manual Wheel Adjustment

    • Elevation Sys. = Jack Screw / Linear Guides

    • Total Hp. = 23 Hp.

    • Electronics = CE Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 110 Volt

    • Pass-Line = 32-5/8''

    • Throat Capacity = 26-1/4''

    • Min. Length = 16" Kickback to First Roller

    • Min. Width = 1"

    • Min. Thickness = 3/16"

    • Max. Thickness = 5''

    • Glue Line Rip = 14' - 16' 4/4 stock @ 50 FPM

    • Arbor Rpm = 3550 Rpm

    • Blade Size = 14'' Tungsten Carbide Tipped

    • No. of Teeth = 70 Tooth

    • Tooth Spacing = 5/8 In.

    • Blade Kerf = .197 In.

    • Tracking Style = "True Track" System

    • Dust Collection = 1417 Total CFM

    • Dust Port Out = 4'' Top 6'' Bottom

    • Chain Adj. = True Track Adjustable Chain

    • Hold Down Style = 8 Spring Loaded Hold Downs

    • Kickback Finger = (85) Bottom (40) Top

    • Emergency Stop = Push Button

    • Rear E Stop = Push Button

    • Safety Feature = Door Switch / Motor Brake

    • Guarding = High Visibility Guarding

    • Oiler = Automatic Mechanical Oiler

    • Low Oil Warning = Low Oil Shut-off

    • Fence Type = Industrial Cam Lock Quick Rel

    • Fence Dims. = 1-3/4'' x 27-3/4''

    • Brake System = Air Brake on Motor

    • Frame Const. = 1" Base 1/2" Cabinet 3/4" Arms

    • Worktable Dims. = 83" x 40" x 3.5" Table

    • Table Const. = Steel

    • Laser = 100mw Laser Light & Mount Bracket

    • Decible Rating = 84 dB

    • Net Weight = 3455 Lbs.

    • Gross Weight = 3675 Lbs.

    • Machine Dims. = 90" x 67" x 68"

    • Packaging Dims = 91'' x 72'' x 78''

ITEM ID: 1073
