NorthTech Straight Line Rip Saw SLR-16SC-1534

SKU NORTHTECH-STRAIGHT-LINE-SLR-16SC-1534

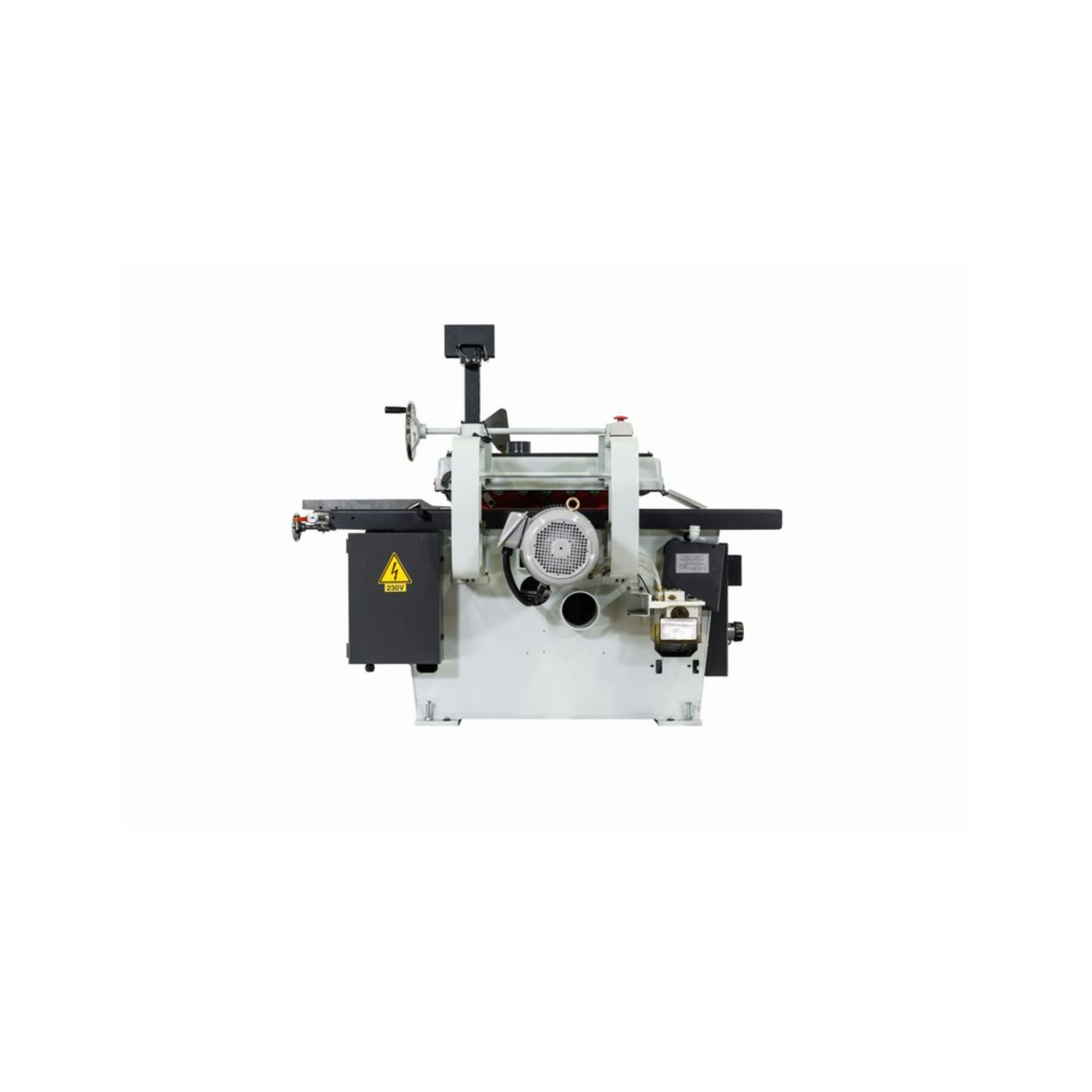

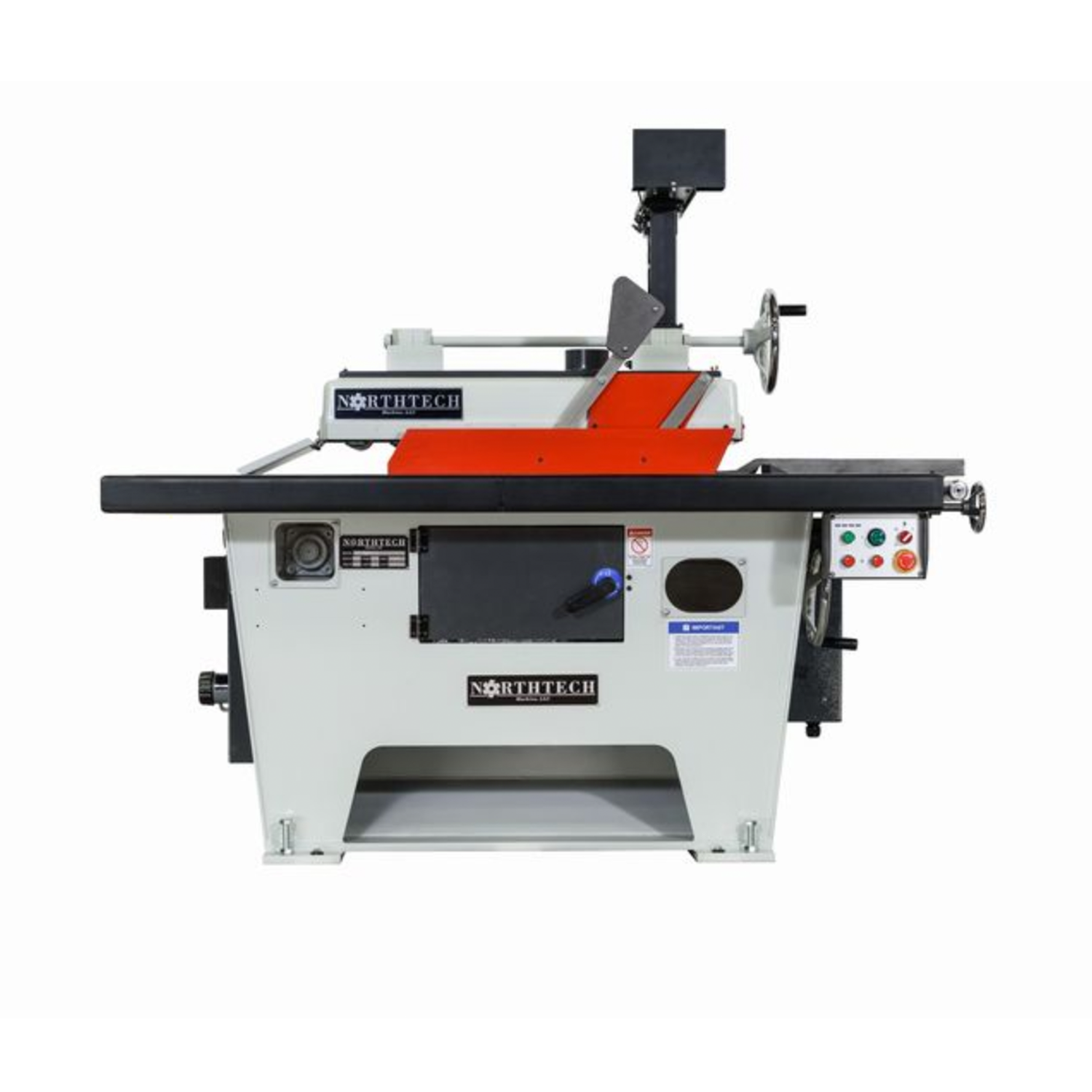

NorthTech Precision Straight Line Rip Saw NT SLR-16SC-1534

  • FEED SYSTEM

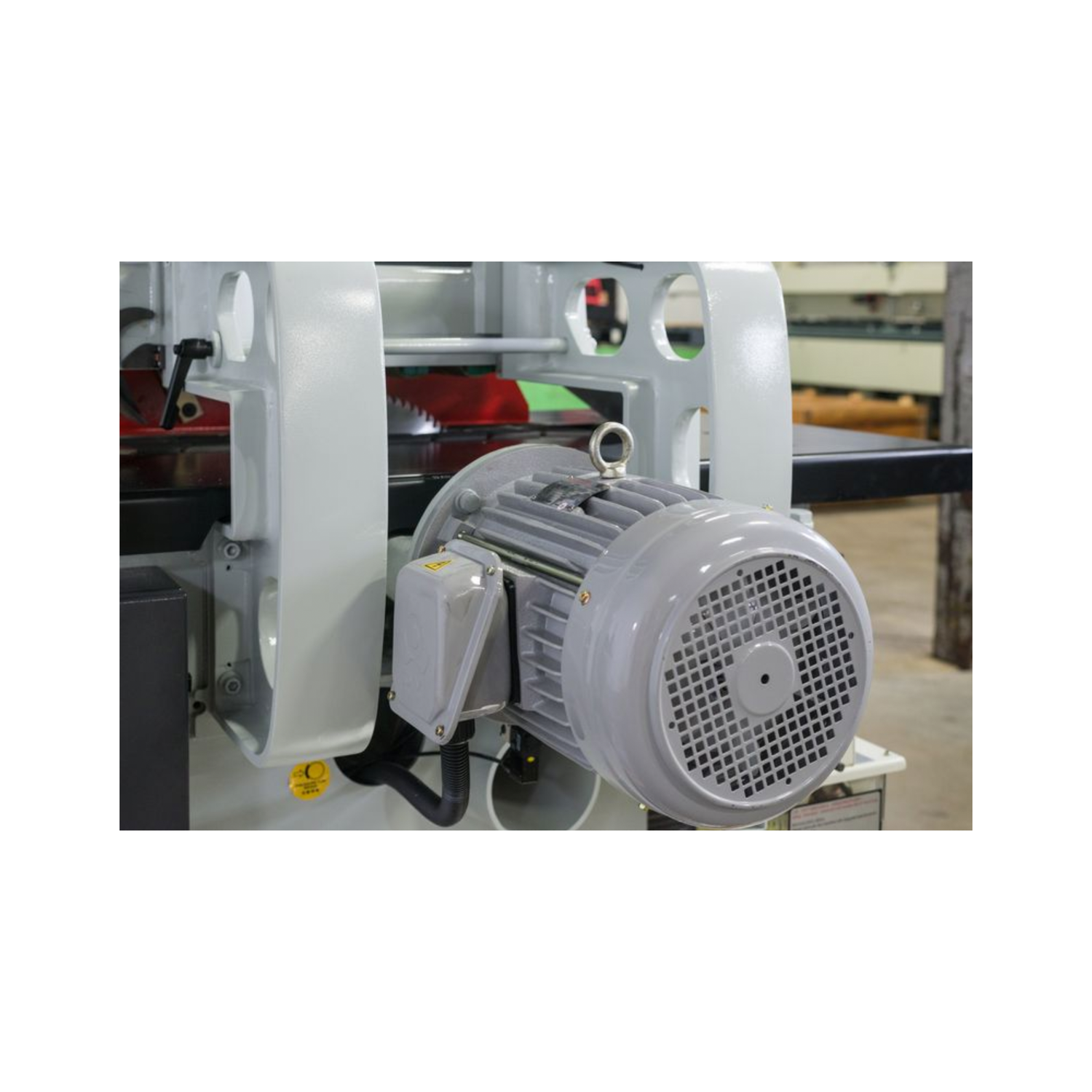

    • Saw motor: 15HP, 3PH 460V

    • Feed: 1.5HP variable from 40' - 120' FPM

  • PRODUCT DIMENSIONS

    • Min. thickness: 3/16"

    • Max depth of cut: 4-1/16" with 16'' Blade

    • Max depth of cut: 3-1/16'' with 14'' Blade

    • Max. width of stock: (Blade to column arms) 18-1/4"

  • FEATURES

    • “True Track" Chain and Race

    • Table size 69” x 35''

    • Machine frame is constructed of a 1" thick base plate

    • Solid steel frame with 1/2" thick column arms.

    • Safety door switch with pneumatic motor brake.

    • 2" arbor and large support bearings.

    • Glue line guarantee 12' 4/4 stock @ 50 FPM

    • All motors and electrical are UL rated.

    • Industrial fence with cam lock quick release on rack and pinion glide.

    • Two rows of heavy duty kickback fingers.

    • (8) large pressure rollers for optimum glue line ripping.

    • An automatic mechanical oiling system with low oil level feed shutoff.

    • A 100mw laser light and mounting bracket are included.

    • (1) Tool box

    • Amperage requirements: 15HP + 1.5HP 230V / 460V: 39.7A / 19.85A.

    • Dust requirements: (1) 4" dust port requiring 450 CFM

    • (1) 6" dust port requiring 981 CFM

    • Weight: 2,285 lbs.

    • Machine dimensions: (L) 77" x (W) 57" x (H) 66"

    • Warranty is one year parts

    • All machines are tested stateside at factory prior to shipment providing trouble free start up.

  • SPECS

    • Main Motor Hp. = 15 hp.

    • Direct Drive = Direct Drive

    • Voltage/ Freq. = 460 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 20 Amps

    • Feed Hp. = 1.5 Hp.

    • Feed System = 4'' Split Chain with True Trac

    • Drive System = Belt

    • Feed Speed = 40-120 FPM

    • Variable Speed = Mechanical

    • Elevation Style = Manual Wheel Adjustment

    • Elevation Sys. = Linear Gauge with Hand Wheel

    • Total Hp. = 16.5 Hp.

    • Electronics = CE Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 110 Volt

    • Assisted Start = Wye Delta

    • Throat Capacity = 18-1/4''

    • >Min. Length = 12'' 2nd Roller to Kickback

    • Max. Length = Infinite

    • Min. Width = 1"

    • Min. Thickness = 3/16"

    • Max. Thickness = 4-1/16'' W/ 16'' Blade

    • Glue Line Rip = Guaranteed 12' 4/4 stock @ 50 FPM

    • Arbor Rpm = 3520 RPM

    • Blade Size = 14'' Tungsten Carbide Tipped

    • No. of Teeth = 70 Tooth

    • Tooth Spacing = 5/8 In.

    • Blade Kerf = .197 In.

    • Vertical Travel = 3/16'' - 3-3/8''

    • Dust Collection = 1417 Total CFM

    • Dust Port Out = 4'' Top 6'' Bottom

    • Arbor Diameter = 2" Arbor

    • Idle Rollers = (8) Idle Rollers

    • Hold Down Style = 8 Spring Loaded Hold Downs

    • Kickback Finger = (59) Lower (32) Top

    • Emergency Stop = Push Button

    • Rear E Stop = Push Button

    • Safety Feature = Door Switch / Motor Brake

    • Guarding = High Visibility Guarding

    • Oiler = Automatic Mechanical Oiler

    • Low Oil Warning = Low Oil Shut-off

    • Fence Type = Industrial Cam Lock Quick Rel

    • Fence Dims. = 1-3/4'' x 23-3/4''

    • Brake System = Air Brake on Motor

    • Frame Const. = 1'' Base 1/4'' Frame 3/4'' Arms

    • Worktable Dims. = 69'' x 35''

    • Table Const. = Steel

    • Laser = 100mw Laser Light & Mount Bracket

    • Decible Rating = 84 dB

    • Net Weight = 2170 lbs.

    • Gross Weight = 2285 lbs.

    • Machine Dims. = 77'' x 57'' x 66''

    • Packaging Dims = 81'' x 58'' x 74''

ITEM ID: 3506
