NorthTech Heavy Duty Gang Rip Saw MRS300-5032

SKU NORTHTECH-GANG-MRS300-5032

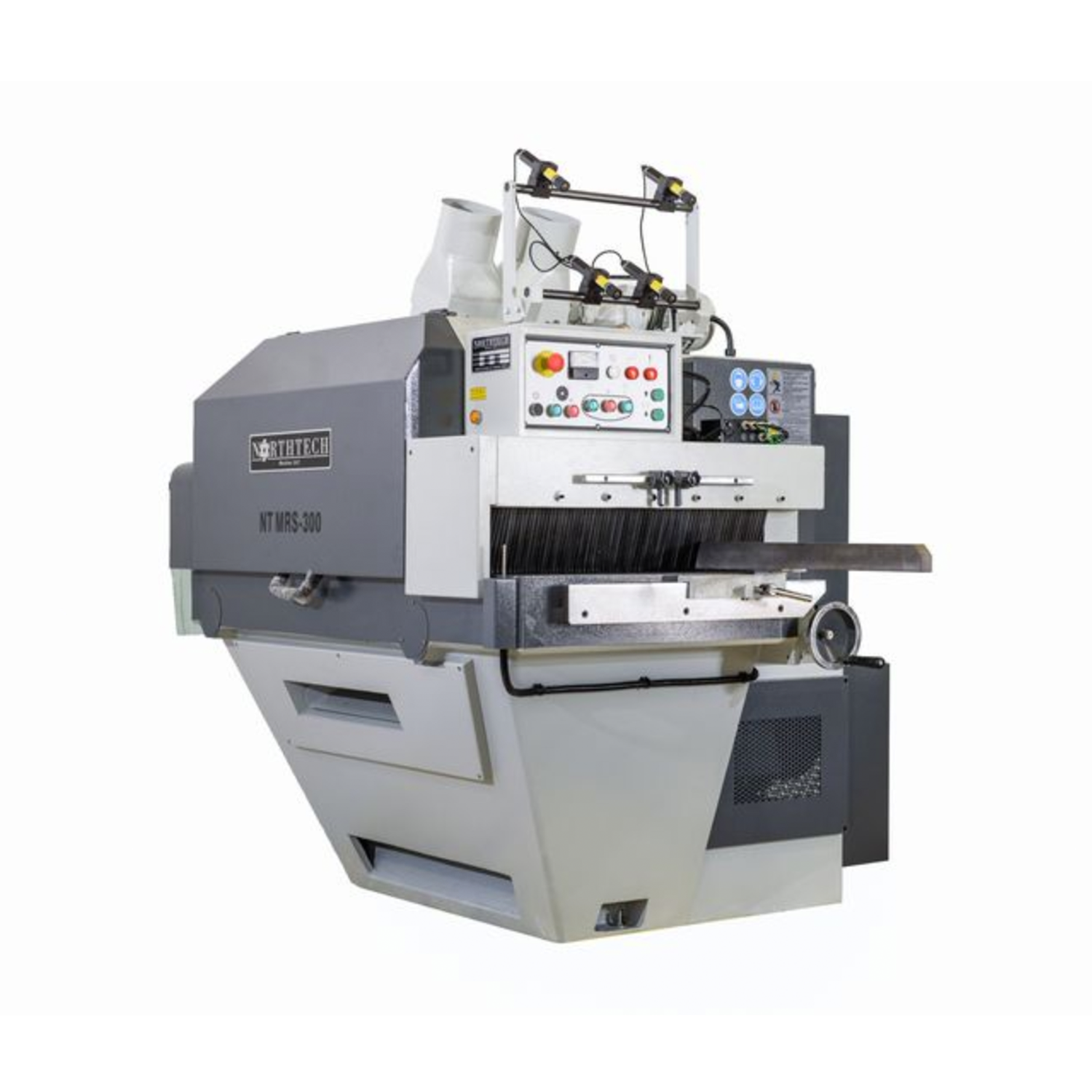

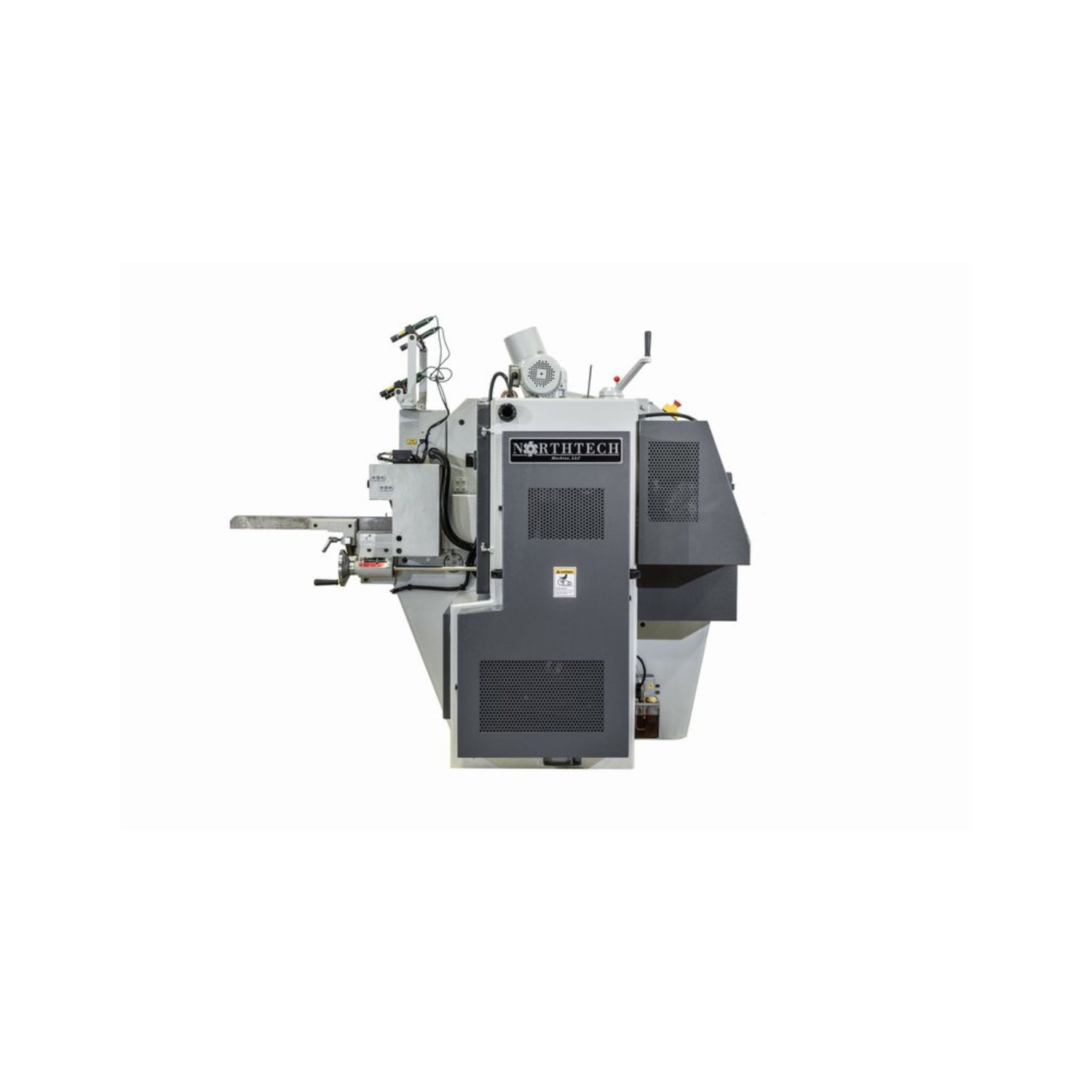

NorthTech Heavy Duty Gang Rip Saw NT MRS300-5032

  • FEATURES

    • Saw arbor motor: 50 HP

    • Feed motor: 2 HP (3HP on request

    • (1) 100 mw Laser Light Included

    • Max. cutting thickness: 4.7'' (120MM)

    • Max. cutting thickness (w/short stock device): 95 mm (3.74") (optional)

    • Max. cutting width: 300 mm (12")

    • Distance from column to link chain center: 29-1/2''

    • Min. working length: 500 mm (19.685")

    • Min. working length (w/short stock device): 300 mm (11.81") (optional)

    • Max. saw blade diameter: 15''

    • Min. saw blade diameter" 10''

    • Saw blade bore: 70 mm

    • Saw arbor diameter: 50 mm

    • Saw arbor speed: 3775 RPM

    • Variable feed speed: 25-100 FPM

    • Hold down roller elevating motor: 0.5 HP

    • Table area (LxW): 60"x30"

    • Machine dimensions (LxWxH): 81'' x 61'' x 70''

    • Packing dimensions (LxWxH): 65'' x 68'' x 65''

    • Net weight: 4,525 lbs.

    • Gross Weight: 4725 Lbs.

    • Warranty is one year parts

    • All machines are tested stateside prior to shipment providing trouble free start up.

  • SPECS

    • Main Motor Hp. = 50 Hp.

    • Voltage/ Freq. = 230 Volt 60Hz

    • Phase = 3 Phase

    • Amp Requirement = 68.4 Amps

    • Feed Hp. = 2/1 Hp. 2 Speed

    • Feed System = 12'' Dip Chain

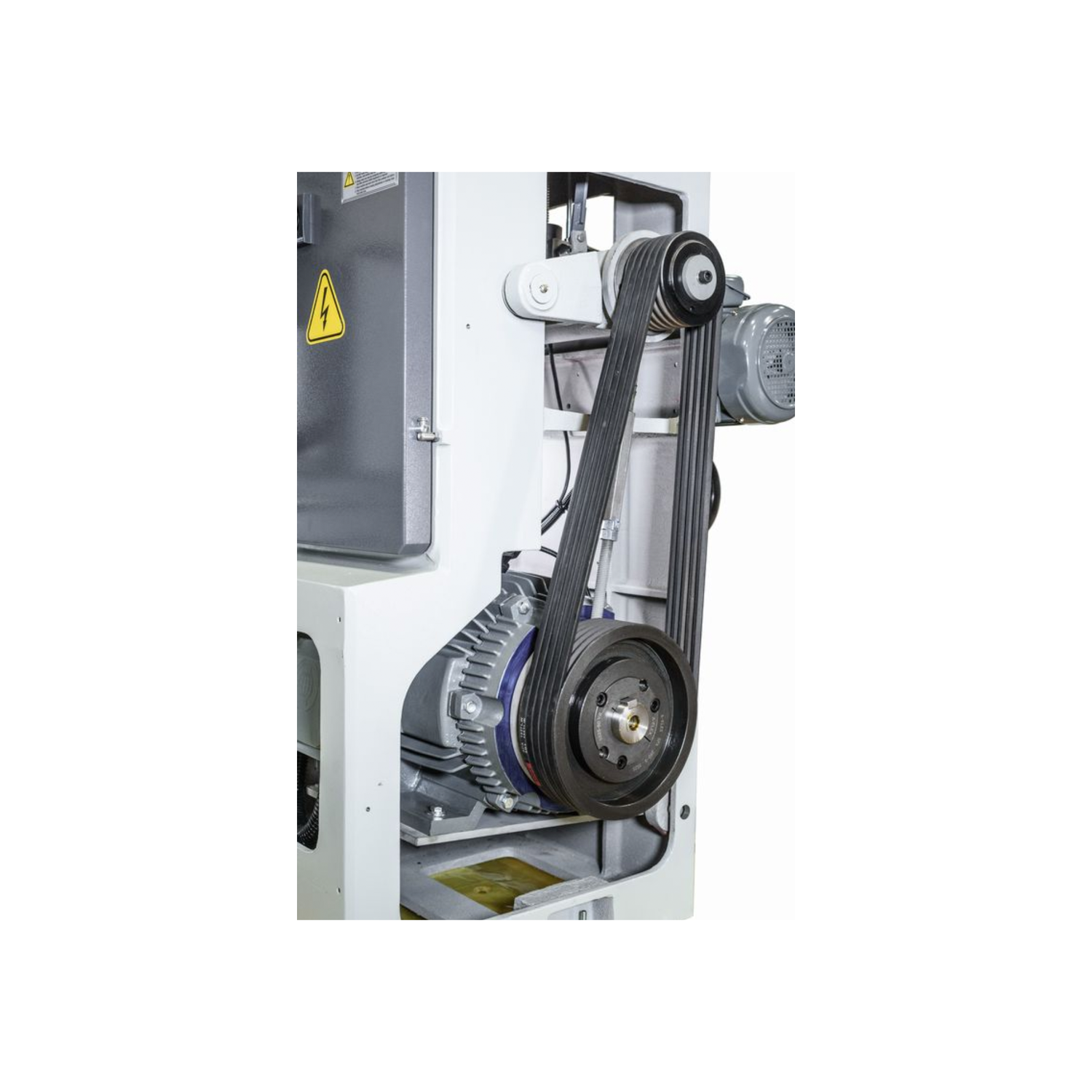

    • Drive System = Variable Speed Pulley

    • Feed Speed = 25 - 100 FPM

    • Variable Speed = 229 Variable Speed Pulley

    • Elevation Hp. = 1/2 Hp.

    • Elevation Style = Push Button

    • Elevation Sys. = Jack Screw / Linear Guides

    • Total Hp. = 52.5 Hp.

    • Electronics = CE Approved Components

    • Dual Voltage = 230/460 Volt

    • Control Voltage = 110 Volt

    • Assisted Start = Wye Delta

    • Throat Capacity = 29-1/2''

    • Min. Length = 13'' 1st Roller to Kickback

    • Min. Thickness = 1/16''

    • Max. Thickness = 4.7''

    • Arbor Rpm = 3775 Rpm.

    • Blade Size = 12'' Tungsten Carbide Tipped

    • No. of Teeth = 36 Tooth

    • Tooth Spacing = 1-1/8''

    • Blade Kerf = .160 In.

    • Tension Style = Gravity

    • Dust Collection = (2) 6'' @ 1962 CFM

    • Dust Port Out = (2) 6'' Ports

    • Arbor Diameter = 50 mm

    • Idle Rollers = (4) Top Idle Rollers

    • Hold Down Style = (4) Spring Loaded Rollers

    • Kickback Finger = (2) Top Sets (1) Bottom Set

    • Rear E Stop = Push Button

    • Safety Feature = Safety Interlock Switch

    • Guarding = Full Cabinet Enclosure

    • Oiler = Auto Oiler

    • Low Oil Warning = Low Oil Shut Off / Warning

    • Fence Type = Adjustable

    • Fence Dims. = 2-1/4'' x 27-1/2''

    • Frame Const. = 3/4'' Steel Construction

    • Worktable Dims. = 30'' x 60''

    • Table Const. = Cast Iron

    • Laser = 100mw Laser Light & Mount Bracket

    • Decible Rating = 75 dB

    • Net Weight = 4525 Lbs.

    • Gross Weight = 4725 Lbs.

    • Machine Dims. = 81'' x 61'' x 70''

    • Packaging Dims = 66'' x 30'' x 53''
