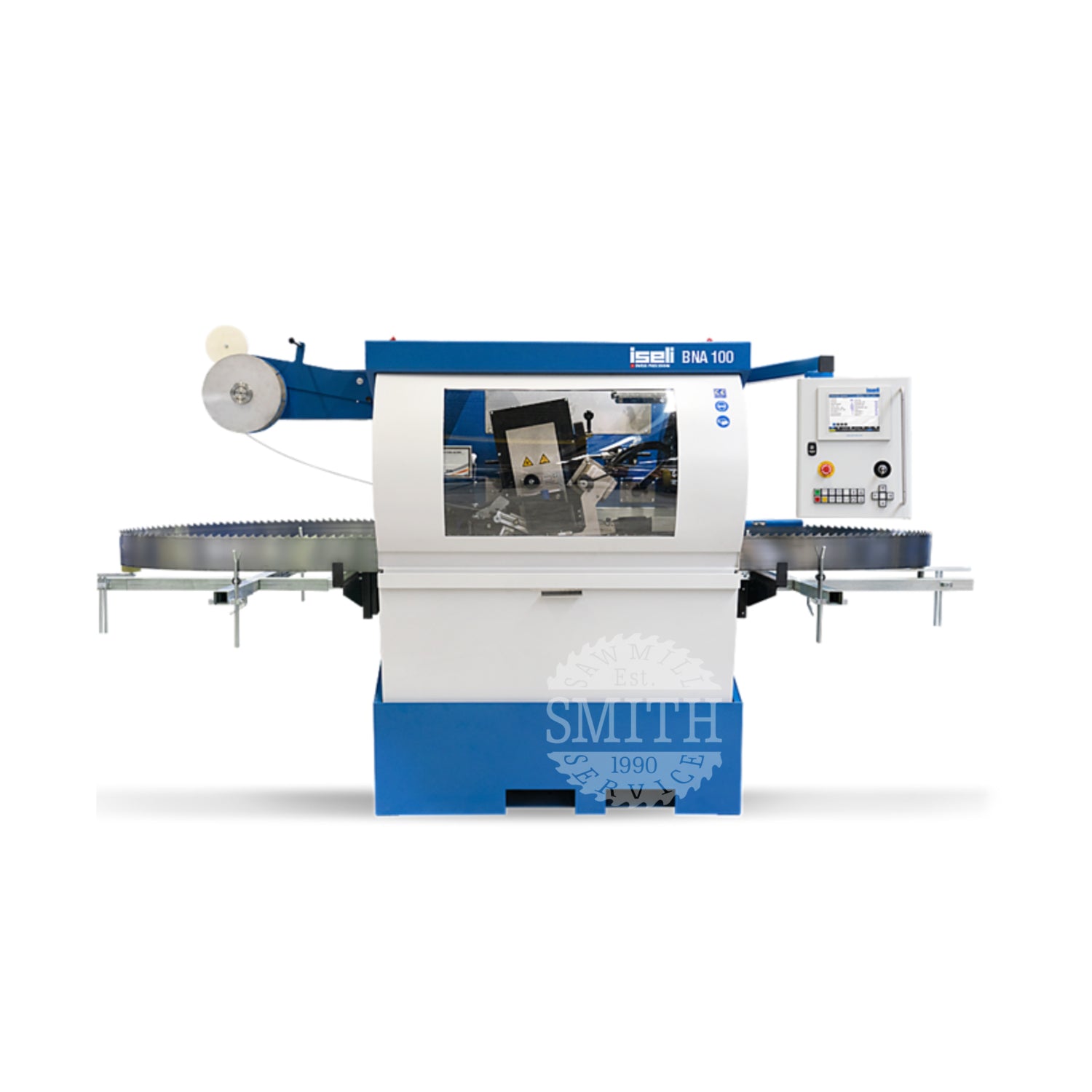

ISELI BNA 100 Fully Automatic Stellite Tipping Machine for Equipping Saw Teeth by Plasma Welding Process

ISELI BNA 100 FULLY AUTOMATIC STELLITE TIPPING MACHINE FOR EQUIPPING SAW TEETH BY PLASMA WELDING PROCESS

• HIGHLIGHTS
• HANDLING
• TECHNICAL
• DESCRIPTION
• VIDEO

• HIGHLIGHTS BNA 100

  • High quality, robust and state-of-the-art stelite tipping machine in plasma welding process.

  • Processing of band, circular, frame and mini frame saws possible.

  • Stable and centred machine construction. Robust, precise and low-vibration.

  • Welding unit, cooling and optional annealing station are integrated in the machine.

  • Encapsulated machine - welding fumes can be extracted by suction.

  • Simple operation and handling.

  • Easy repair of broken teeths.

  • Burner adaptation to the operating conditions (two burner types for optimum adaptation to the saw dimensions).

  • Annealing of the welding connection with the torch, or optionally with a high-frequency annealing device.

  • Operation with monogas and bigas possible.

  • CNC controlled axis for stellite feeding and positioning.

  • High process reliability.

  • Central motorized saw blade height adjustment.

  • Automatic stelliting machine in plasma welding process:

  - Homogeneous connection with the raw material.

  - Shorter grinding times / lower grinding wheel consumption.

  - Use of low-cost stellite.

  - Higher stelliting speed.

  - Highest economic efficiency.

  - Designed for rod and wire Stellite.

  • Precise shaping of the incisors by means of mould jaws.

• OPERATION AND HANDLING BNA 100



• TECHNICAL

  • Grinding dust extraction

  • High frequency annealing station

  • Monitoring of the annealing temperature (pyrometer)

  • Equipment for bandsaws, circular saws, gang saws & mini gang saws

  • Equipment for double toothed band saw blades

  • Auxiliary backfeeder, loading system on lateral blade support

  • Program for Vario toothing

  • Electrodes grinding device

  • Remote Access

• DESCRIPTION

  The BNA 100 is tipping your band, gang and circular saw blades in plasma welding process. The plasma welding process with an inert gas guarantees a very strong connection between the stellite and the body.

  In addition to sophisticated technology, the BNA 100 is characterized by its robust design, ease of operation and price-performance ratio. The high availability and operational reliability of the machine makes it the best possible stellite tipping machine for all applications, be it in the sawmill, sharpening service or saw production.
