ISELI SAA FULLY AUTOMATIC HYDRAULIC CONTROLLED SWAGING MACHINE FOR BAND AND FRAME SAW BLADES
-
DESCRIPTION
Swaging saw teeth is another possibility, along with setting, for ensuring that the bandsaw can cut freely during machining. For the swaging process, a swaging bolt is placed in front of the saw tooth. The saw tooth is held in place with an anvil.
The sawing material is pushed towards the tooth tip by turning the eccentric swaging bolt. When the swaging process ends, the swaging bolt returns to its starting position.
Leveling takes place after swaging, i.e., the material pushed towards the tooth flanks is pressed together with the appropriate equalizing jaws so that the tooth tip is conically tapered downwards and backward. As the swaged saw tooth works on the entire kerf width, it does the same work that two teeth would do on a set saw. The cutting power is increased thanks to the greater number of main and minor cutting edges. In addition, the hardness grade of the base material is increased thanks to the swaging process.
-
HIGHLIGHTS
• Automatic swaging and shaping process in one operation
• Short setting time
• High precision
• Great economic viability
• Operation by touch screen
• Easy to operate
• Hydraulic control
• Central height adjustment of the saw blades
• 1 set of Tools
-

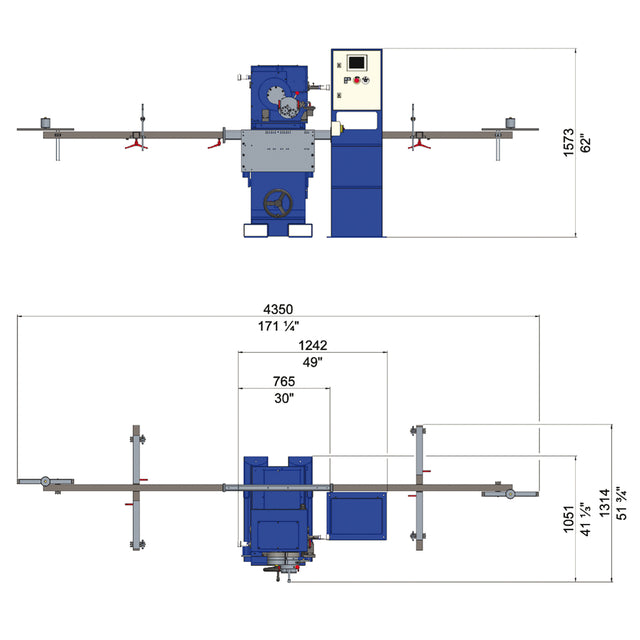

TECHNICAL DATA
• Tooth pitch: 18 - 76 mm
• Tooth height: from 10 mm
• Clearance angle: 5° - 28°
• Front rake angle: 5° - 35°
• Shaping fences clearance angle: 5° - 8°
BAND SAW BLADES
• Blade width: 80 - 360 mm (standard)
• Blade width: from 50 mm (option)
• Blade length: 5300 mm (option)
GANG / FRAME SAW BLADES
• Tooth length: up to 1500 mm
• Blade Width: 75 - 180 mm
• Working speed: up to 6 t/min.
• Power requirements: 400V 3Ph N, 50Hz, 3,0kVA
• Air connection: 6 bar (only for automatic lubrication
-
