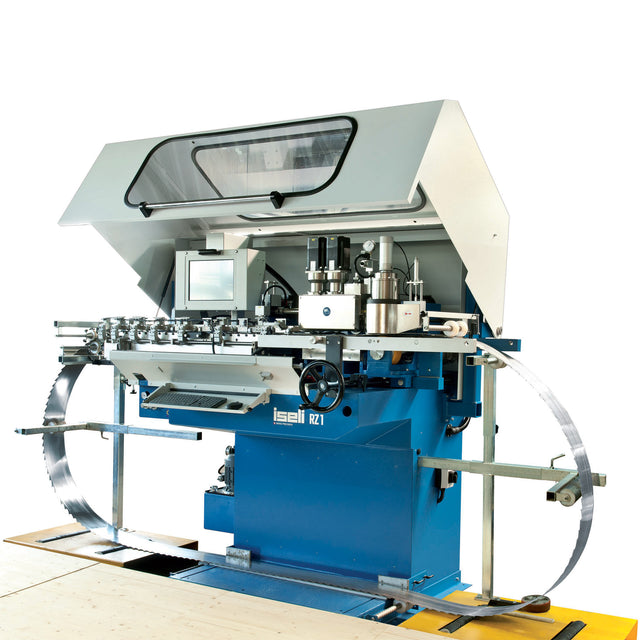

ISELI RZ 1 Fully Automatic CNC Controlled Leveling and Tension Center for Band Saw Blades

ISELI RZ 1 FULLY AUTOMATIC CNC CONTROLLED LEVELING AND TENSION CENTER FOR BAND SAW BLADES

• HIGHLIGHTS
• FUNCTIONS
• TECHNICAL DATA
• OPTIONS
• BROCHURE
• VIDEO

• HIGHLIGHTS RZ 1

  • Fully automatic leveling, tensioning, and back measuring-adjusting of the saw blades in one operational setup.

  • The machine is equipped with a modern, selectively programmable user-friendly control unit.

  • The user-friendly touch-screen provides a clear display of all program elements.

  • The order of leveling, tensioning, and back measuring-adjusting can be selectively chosen and programmed. The programmed values can be downloaded, and the program recalled with the same values for duplication of saw blades of the same specification later.

  • Two CNC-controlled pairs of rollers, concave and convex, level the deformities with proportional pressure, depending on the unevenness.

  • The saw blade is tensioned and back measured-adjusted in several passages as required.

  • The tension curve of the saw blade and the measured curve of the blade back can be selectively programmed and saved.

  • The two working cycles are executed utilizing two separate pairs of rolls.

  • Blade length: Deviation roller path for band saw blades 8'000 to 10'000 mm, raise-up plate form included.

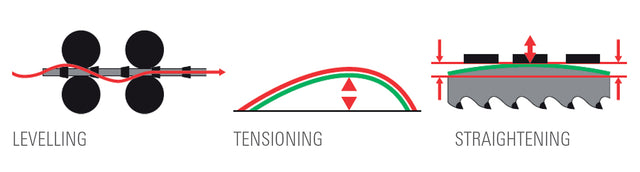

  LEVELING, TENSIONING & STRAIGHTENING A SINGLE CLAMP OPERATION



• FUNCTIONS

  TENSIONING & BACK MEASURING / ADJUSTMENT

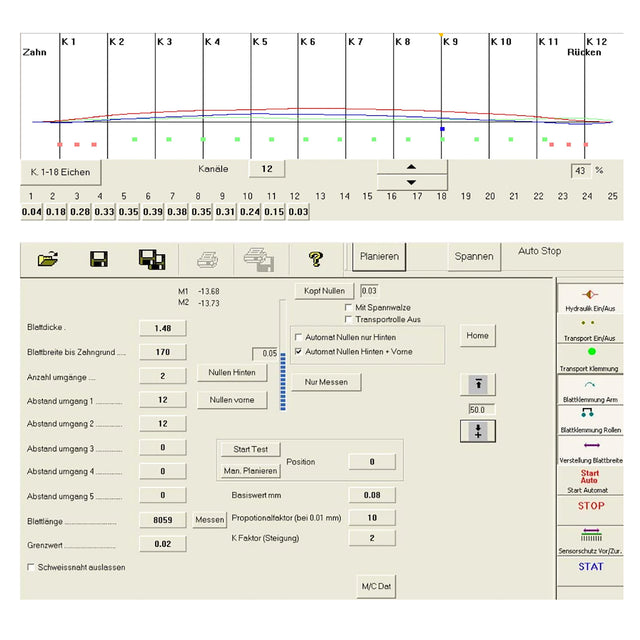

  The two working cycles are executed utilizing two separate pairs of rolls. The hydraulic tensioning pressure is proportionally controlled by an electronic valve. The tension of the saw blade is measured at the same time on the complete width of the blade using individual electronic sensors. The saw blade is tensioned, and the back measured adjusted in several passages as required. The tension curve of the saw blade and the measured curve of the blade back can be selectively programmed and saved. The red line on the photo indicates the saved tension curve and back measure desired; the green line is the actual condition of the saw blade as measured. The tensioning and back measuring-adjusting sequence can be selectively programmed, saved, and recalled in case of repetition of the same type of saw blade.

  LEVELING

  The specifications of the band saw blade, as well as the method of treatment, can be programmed at the display using the touchscreen. An electronic sensor measures the deformity; two CNC-controlled rollers, concave and convex, level the deformities with proportional pressure, depending on the unevenness measured. This type of working system, the ISELI RZ-1 operates very quietly, with extremely accurate and consistent working results on the leveling of the blade to meet optimal cutting requirements in the mill.



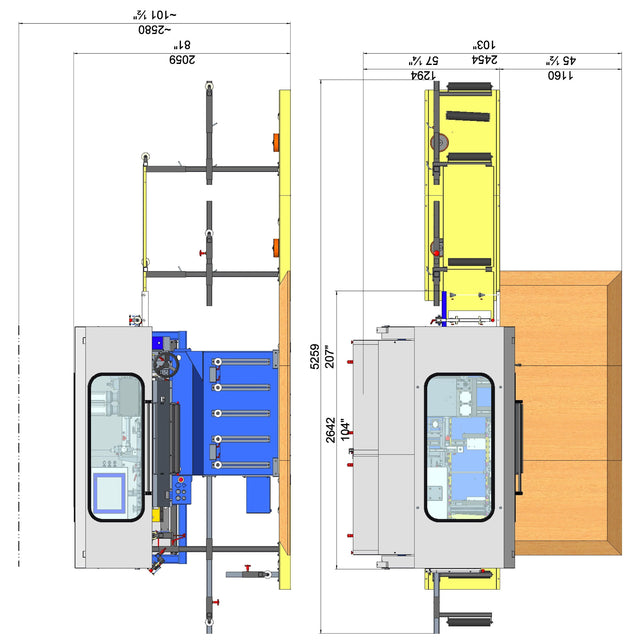

• TECHNICAL DATA

  • Blade width: 70 - 210 mm (standard)

  • Blade width: 70 - 360 mm (option)

  • Blade thickness: 0,8 - 2,0 mm (standard)

  • Blade length: from 8'000 mm (standard)

  • Blade length: from 8'000 mm (standard)

  • Working speed: 15 m / min.

  • Connected load: 400V 3Ph N, 50Hz, 4.2 kW, 6 Amp.

  • Compressor air supply: 6 bar



• OPTIONS

  • Equipment for double-toothed band saw blades

  • Equipment for short band saw blades from 5'000 mm

  • Sensor girder with increased definition

  • Signal lamp

  • Printout of operating results

• DOWNLOAD BROCHURE

  Download Iseli RZ 1 brochure
