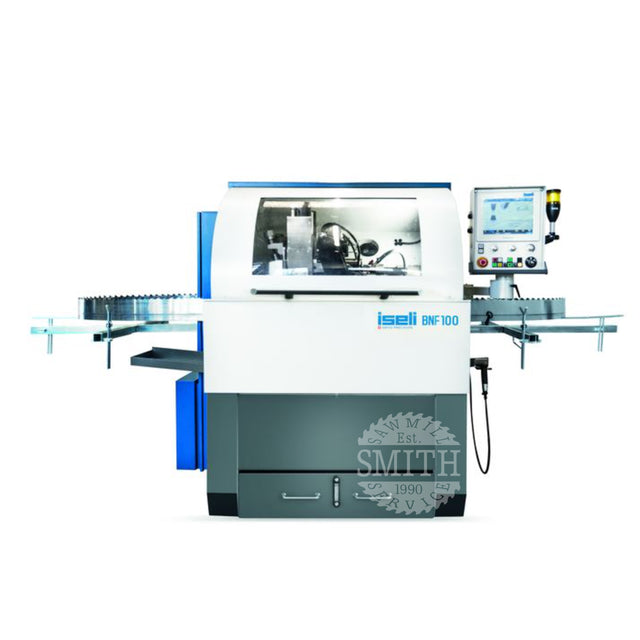

ISELI BNF 100 Automatic Side Grinding Bandsaw Blades - 4 CNC Axes

ISELI BNF 100 AUTOMATIC SIDE GRINDING MACHINE FOR BAND SAW BLADES CONTROLLED WITH 4 CNC AXES IN WET GRINDING

• HIGHLIGHTS
• TECHNICAL
• OPTIONS

• HIGHLIGHTS BNF 100

  • Powerful water cooling system with fully enclosed protection hood

  • Equipped with 4 axes CNC-control

  • Powerful water cooling system with fully enclosed protection hood

  • Each action can be controlled individually by step motors which reduces idle running of the machine to a minimum

  • The user friendly touch-screen provides a clear display of the program elements

  • The advanced saw tooth can be finish ground several times in the same position

  • Auxiliary pneumatic clamping for stabilizing of thin saw teeth resulting in higher measuring accuracy

  • A special program (option) allows side-grinding of variable tooth widths, tooth pitches and tooth heights

  GRINDING PROGRAMS



• TECHNICAL DATA

  • Flank angle: 0 - 7°

  • Tooth Pitch: 13 - 100 mm

  • Blade With: 75 - 360 mm (standard) | 25 - 360 mm (option)

  • Blade length: from 5'300 mm (standard) | from 4'300 mm (option)

  • Grinding wheel: Ø 100 - 125 mm (variant 1) | Ø 75 - 100 mm (variant 2)

  • Grinding wheel bore: Ø 20 mm

  • Grinding wheel motor: 1,5 kW

  • Power requirement: 400V 3Ph N, 50Hz, 2,1kVA

  • Air connection: 6 bar

  • Coolant tank: 170 l



• OPTIONS

  • Precision measuring device for angle regulation

  • Dust mist exhaust

  • Oil cooling with fire protection and air purifier

  • Equipment for double toothed band saw blades

  • Equipment for mini-frame saws

  • Loading unit

  • Several grinding programs (Vario toothing, grinding wheel compensation)

  • Signal lamp
