CORD KING M24-30 Firewood Processor

SKU CORDKING-M24-30

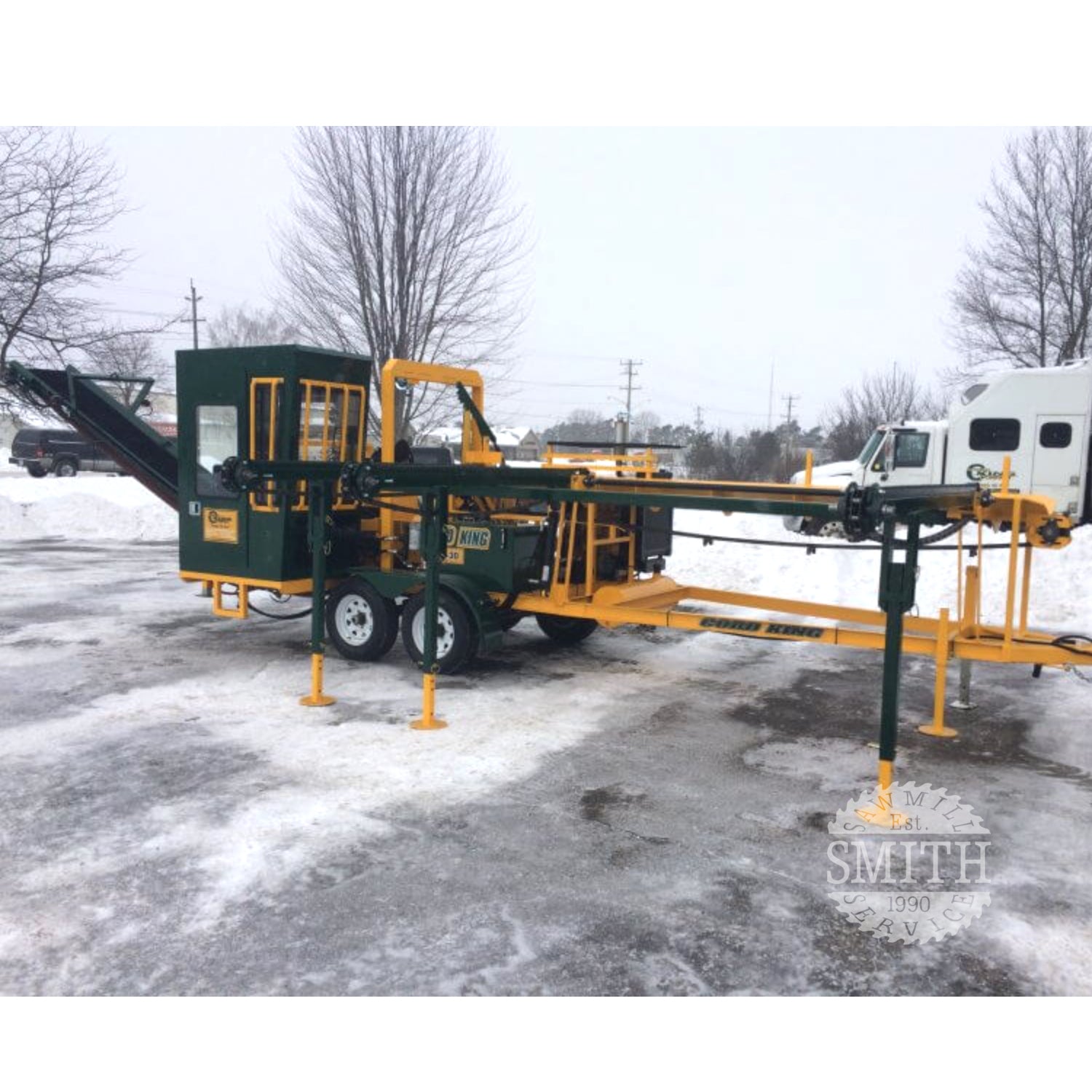

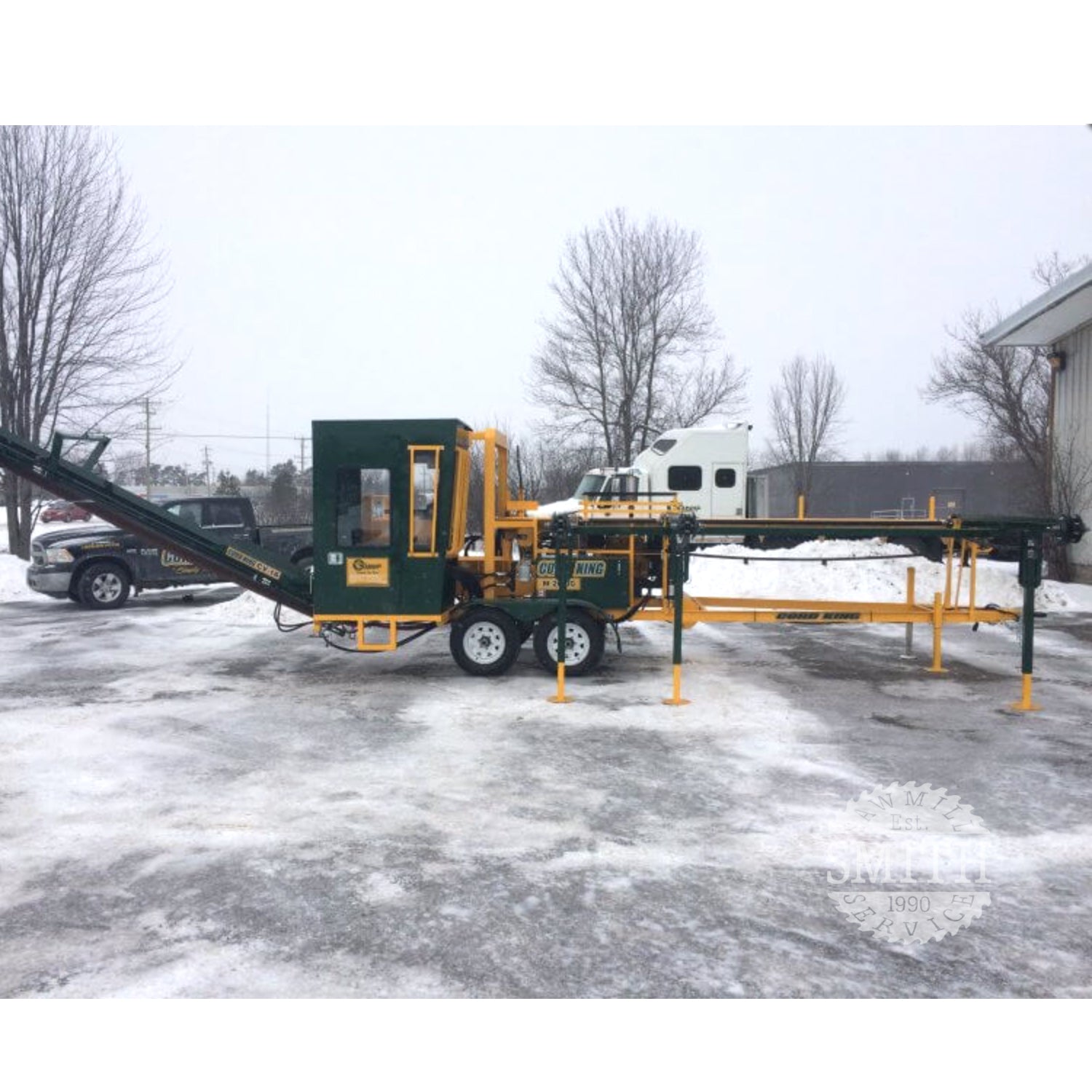

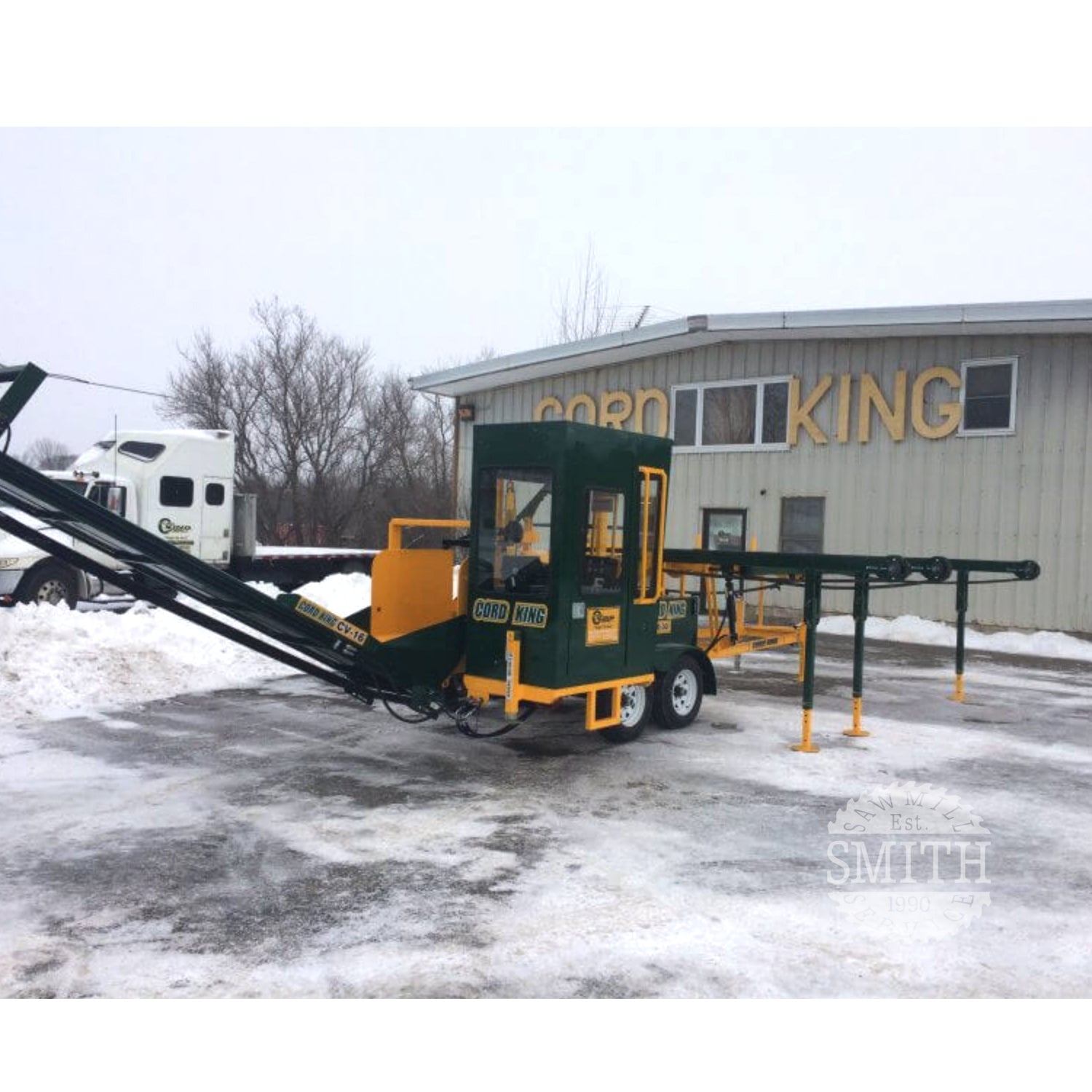

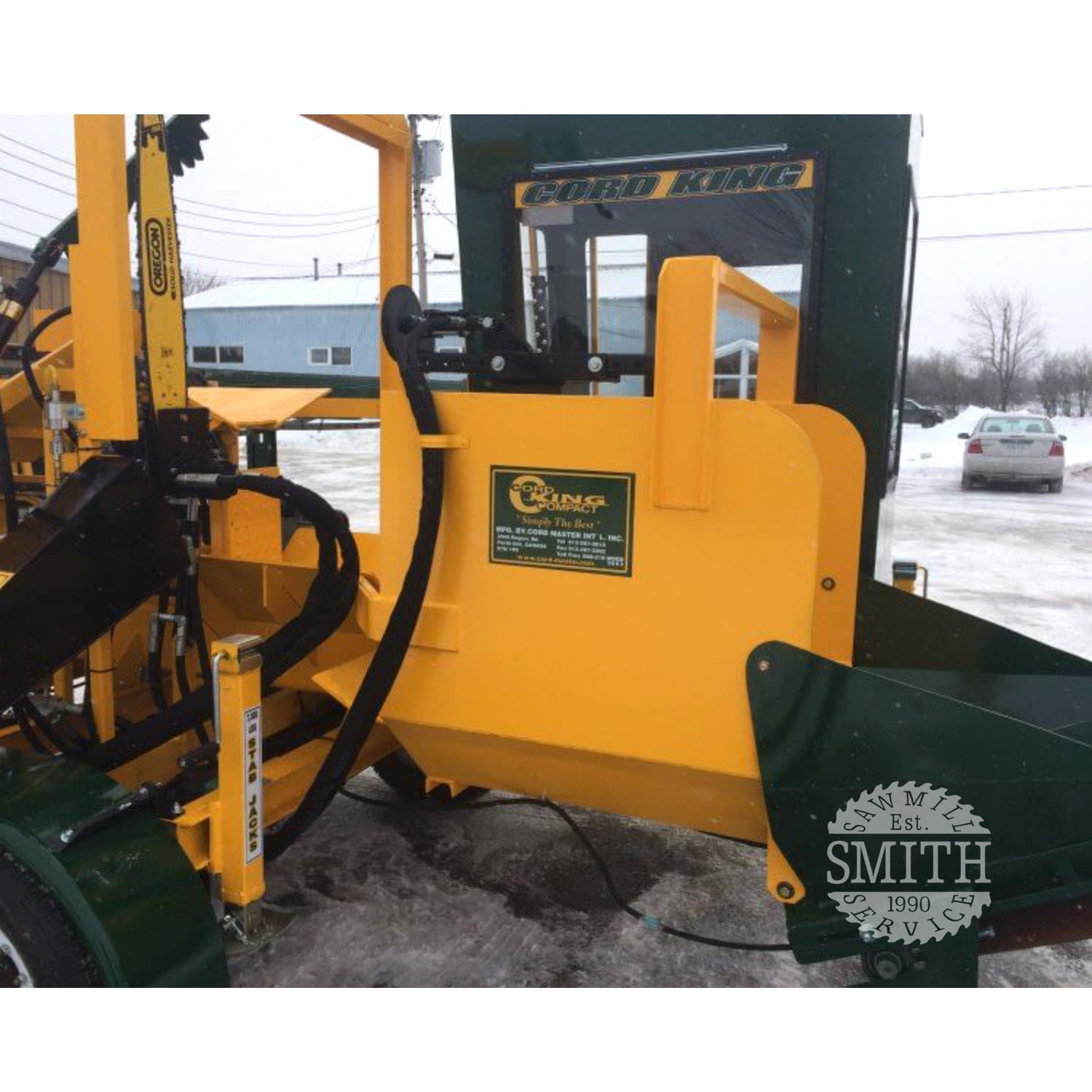

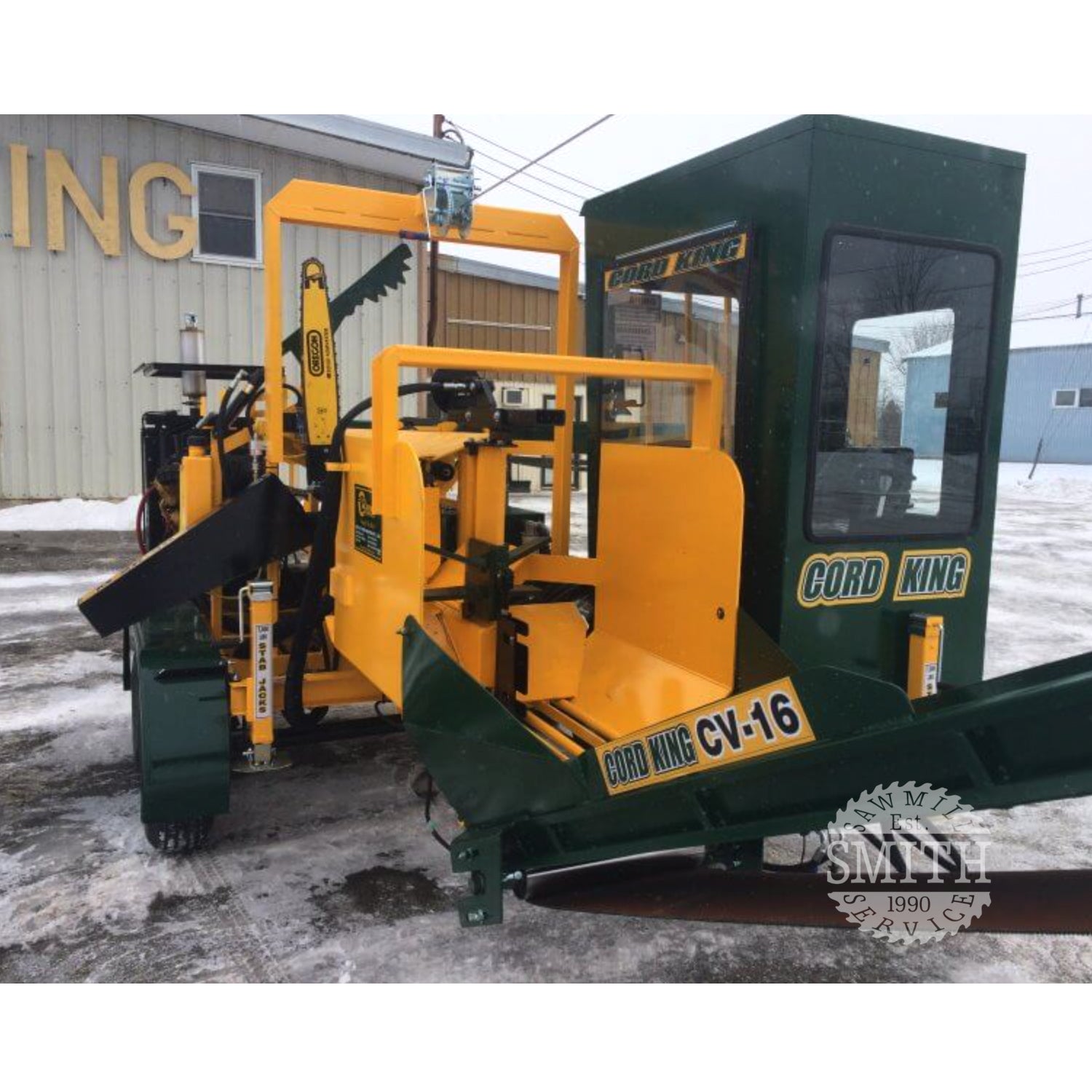

CORD KING M24-30 FIREWOOD PROCESSOR

  • CORD KING M24-30 FIREWOOD PROCESSOR

    SPECIFICATIONS

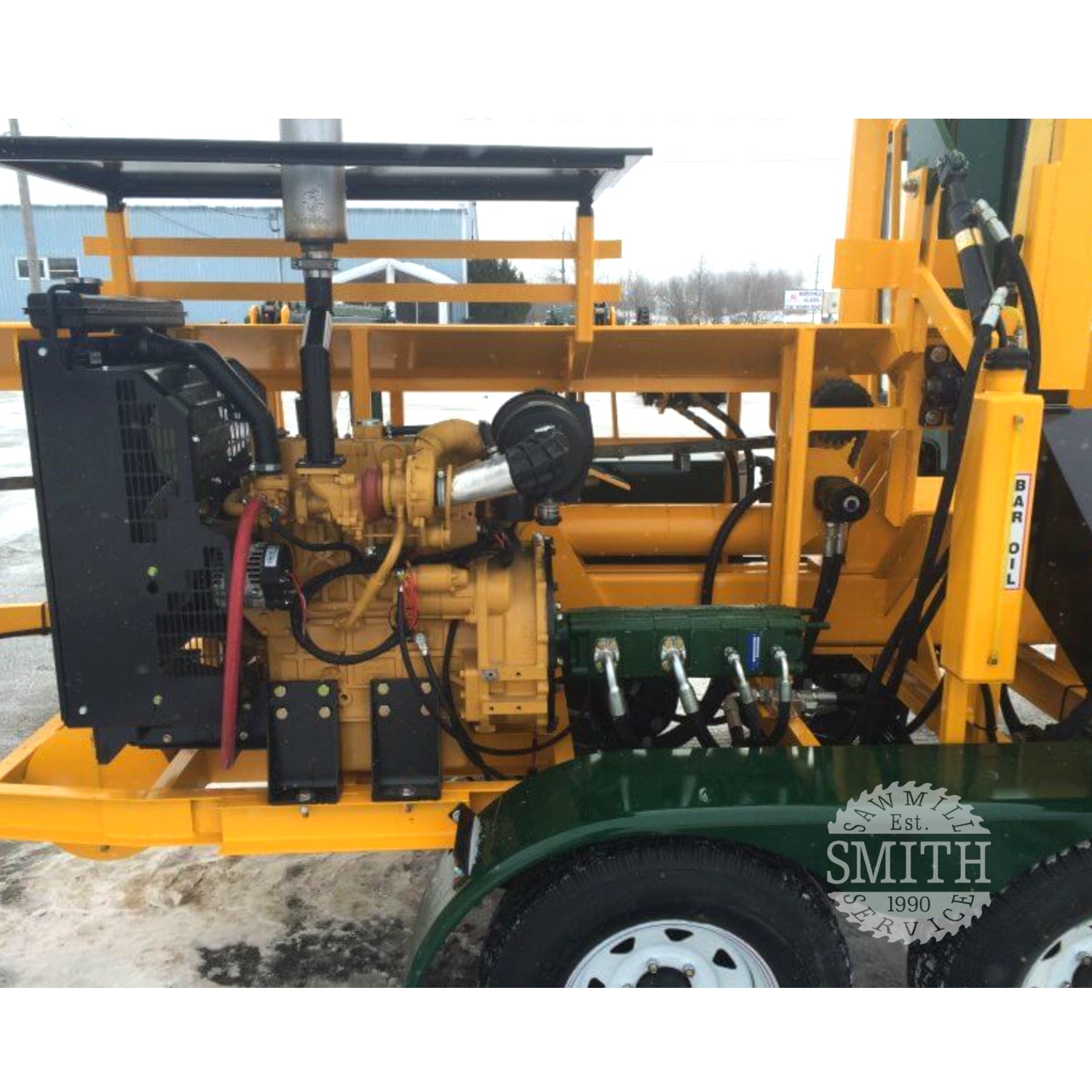

    • 60 HP Turbo Diesel Engine of your choice

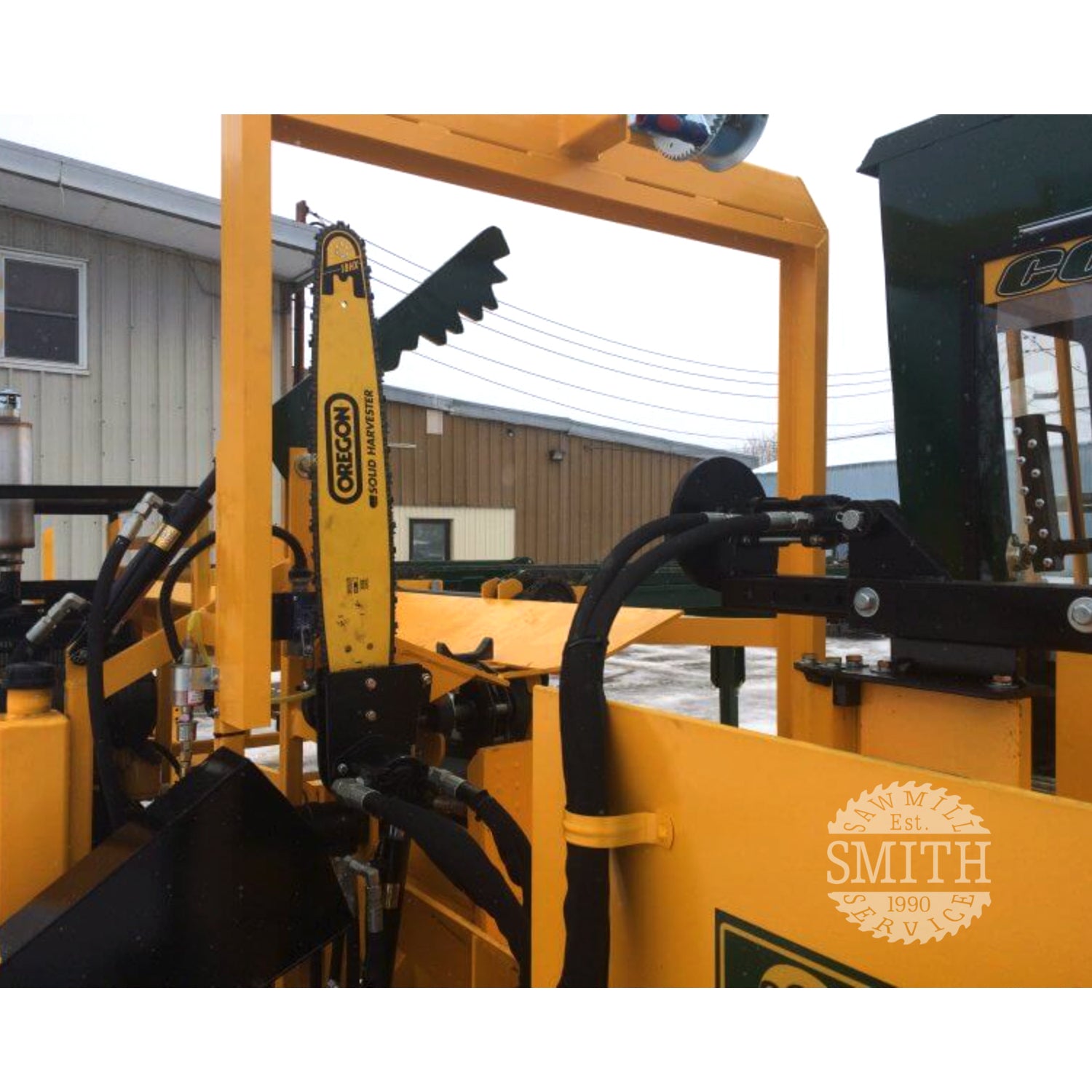

    • Hydraulic-driven 404 harvester bar and chain with pressure relief

    • system

    • Gravity feed bar oiler system with large 1 ½ gallon capacity

    • 34-ton splitter force

    • 6- or 8-way fixed splitting wedge

    • Adjustable log length gauge

    • 16' long infeed Conveyor with continuous chain drive feeding

    • 3-leg manual-folding live deck

    • Operator platform with a deluxe seat

    • Lexan safety screen for excellent visibility

    • Firewood Clean out Grate

    • Fuel Capacity: 20-gallon fuel tank

    • Hydraulic Reservoir Capacity: 65 gallons

    • Hydraulic Oil Cooler Standard: 35,000 BTU/hr

    • 10k lbs. tandem axles with electric brakes and running lights

    2 5/16″ Ball Hitch
  • PERFORMANCE

    • Production Rate: up to 4 full cords/hr

    • Cycle Time (cut and split): every 4 seconds

    • Maximum Log Diameter: 24”

    • Maximum Log Length: 30’ (butt on the deck)

    • Estimated Fuel Consumption: 1.5 - 2 GPH

    • Weight: 7,280 lbs

    • Transport Dimensions: 8’-0” wide, 23'-0" long, 12'-0" high

  • OPTIONAL EQUIPMENT

    • Hydraulic Folding Log Deck

    • Extended live deck (8') with bearing upgrade

    • 6- or 8-way hydraulically adjustable wedge

    • Hydraulic log stop adjustable 12-24" length

    • Automatic clamping

    • Extended infeed conveyor to 20'

    • Extra live deck legs, dual drive available

    • Operator safety cage or operator canopy (roof)

    • Heated operators cab

    • Air conditioning hydraulically driven or 120V plugin

    • 24' to 40' stand-alone offloading conveyor (radial stacking)

    • 12' or 16' integrated offloading conveyor

    • Overhead log grapple assist (crooked wood)

    • Available Log lifting system with double 2” Hydraulic Cylinders available

  • CORD KING M24-30 FIREWOOD PROCESSOR BROCHURE

    Download Brochure
