CORD KING CS 27-40 (MODEL 60)
-
CORD KING CS 27-40 (MODEL 60) SPECS
• 125 HP John Deere or CAT Turbo Diesel Engine – Interim Tier 4

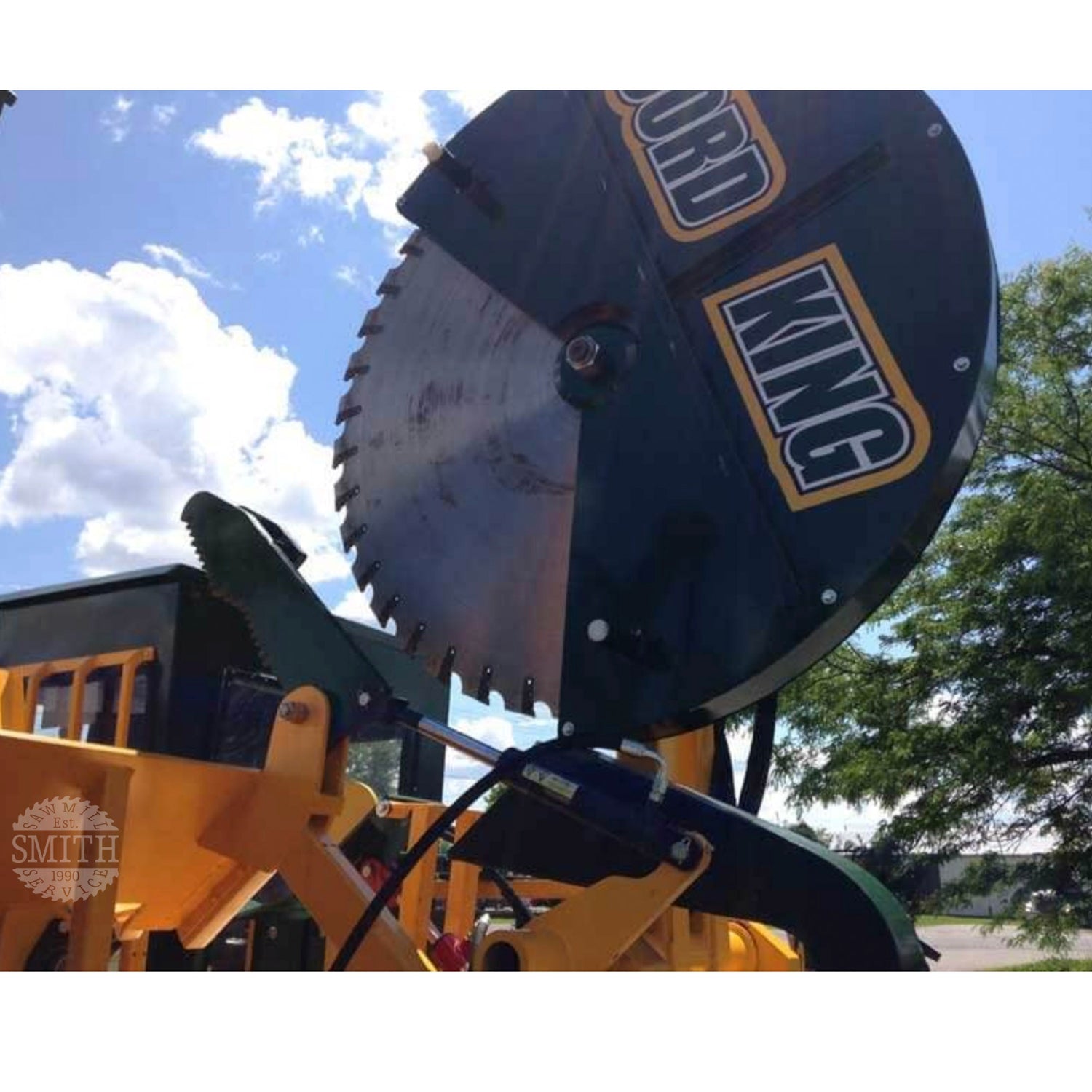

• 60" Carbide Tooth Slasher Saw
• Splitter Force 42 ton

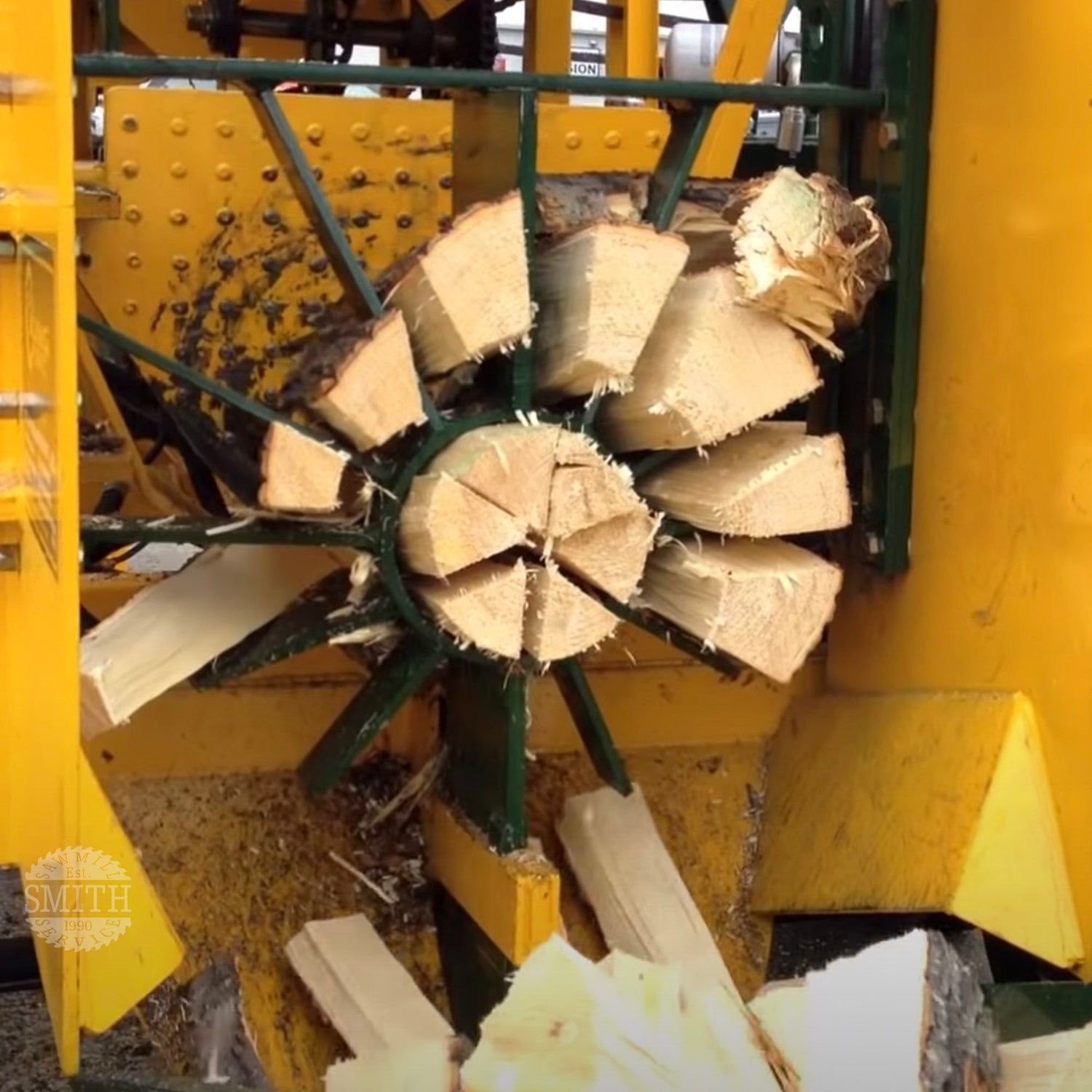

• 10- or 12-way fixed splitting wedge
• 20' in-feed with 4-leg live deck
• Hydraulic log stop (adjustable 12-24" length)

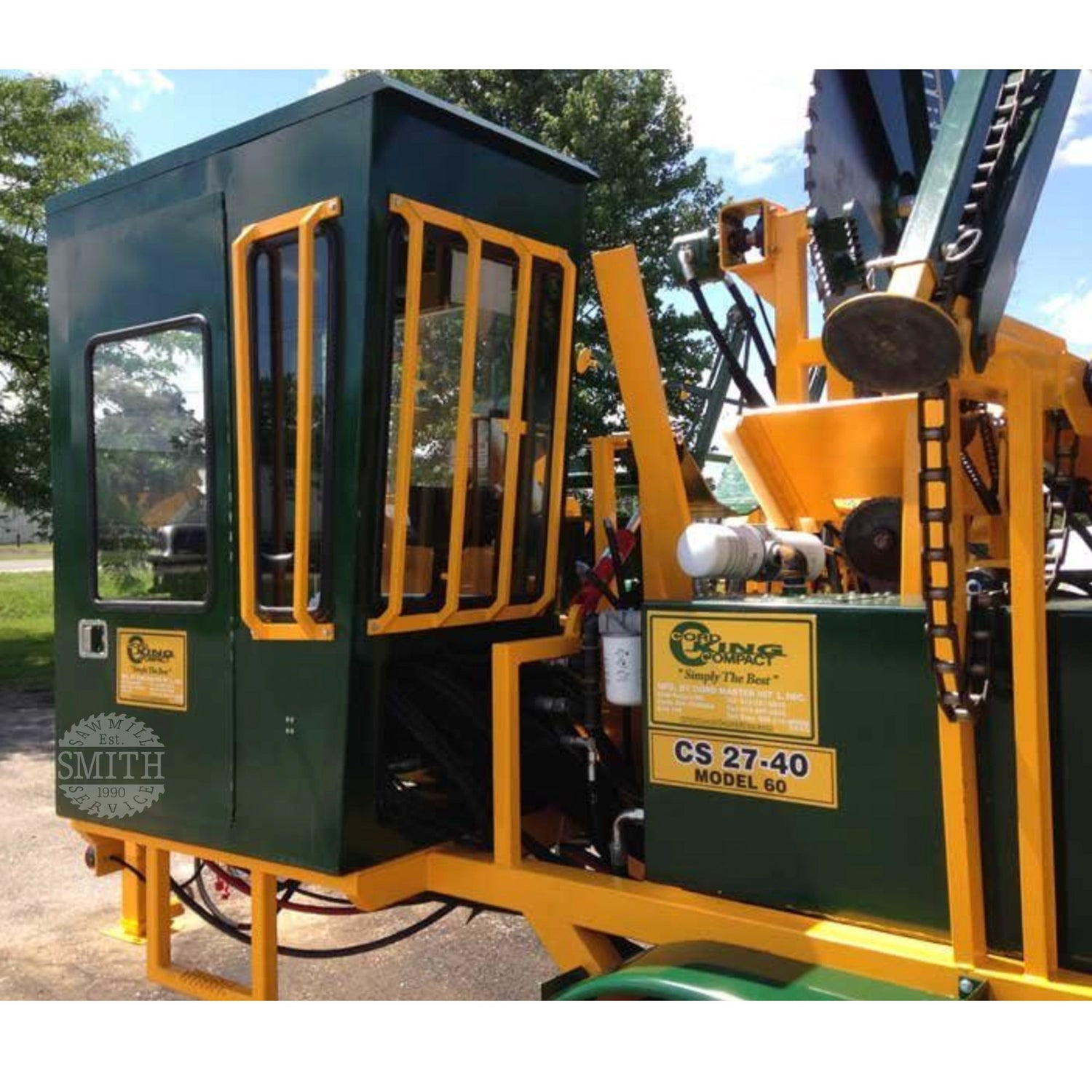

• Operator safety cage with roof and deluxe seat
• Automatic clamping
• Fuel capacity: 50-gallon fuel tank
• Hydraulic Reservoir Capacity: 140 US gallons
• Hydraulic Oil Cooler standard: 2 x 48,000 BTU/hr
• 14k lbs. tandem axles with electric brakes and running lights

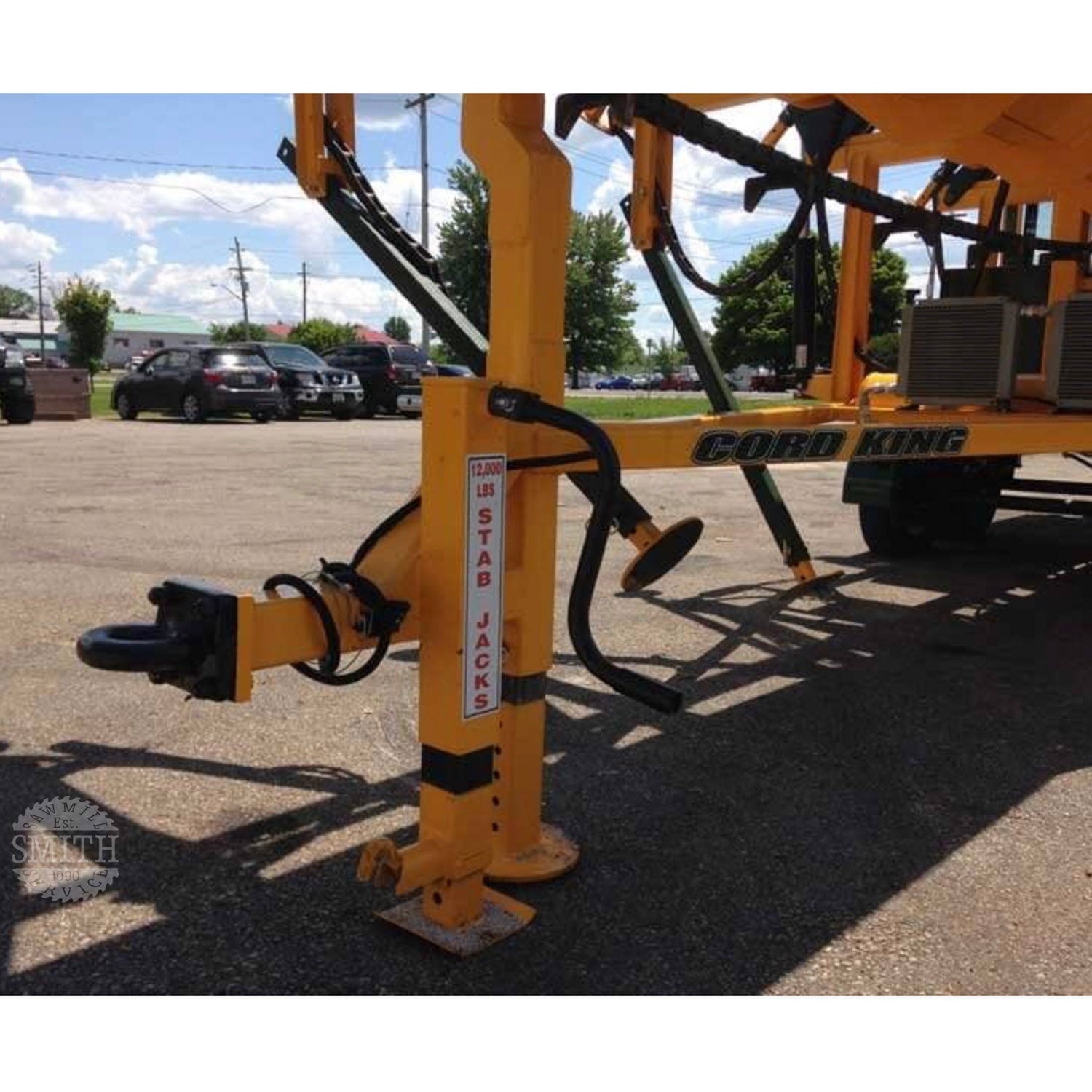

• Pintle Hitch
-
CORD KING CS 27-40 (MODEL 60) PERFORMANCE
• Production Rate: 8 to 9 full cords/hr
• Cycle Time (cut & split): every 3.5 seconds
• Max Log Diameter: 27”
• Max Log Length: 40’ (butt on the deck)
• Estimated Fuel Consumption: 3 GPH
• Weight: 16,000 lbs
• Transport Dimensions: 8’-6” wide, 12'-0" high
-
CORD KING CS 27-40 (MODEL 60) OPTIONAL EQUIPMENT
• 58-ton splitter (required for 16- to 28-way wedge)
• Hydraulically adjustable wedge
• 10- to 28-way box wedge (28-way to split wood small enough for packaging)
• Hydraulic Folding Log Deck
• Extra live deck legs, dual drive available
• Heated operators cab
• Air conditioning (hydraulically driven or 120V plug in)
• 24' to 40' stand alone off loading conveyor (radial stacking)
• 12' or 16' integrated offloading conveyor
• Overhead log grapple assist (crooked wood)
• Trap doors for last piece assist (easy end-of-log cutting)
• Saw log deck for cutting saw logs and firewood
-
