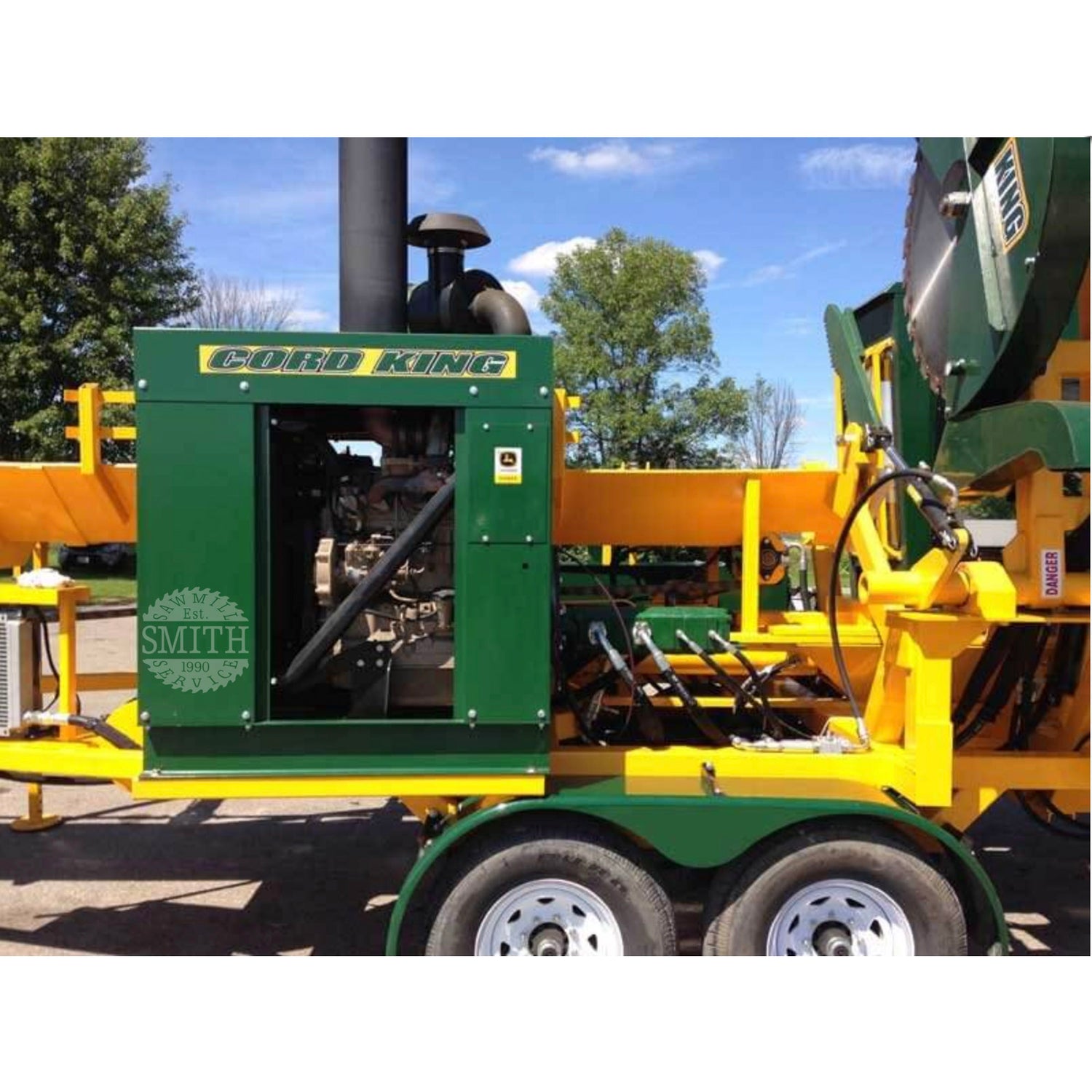

CORD KING CS 20-40 (model 48)

CORD KING CS 20-40 (MODEL 48)

• SPECIFICATIONS
• PERFORMANCE
• OPTIONAL EQUIPMENT
• VIDEO
• BROCHURE

• CORD KING CS 20-40 (MODEL 48) SPECS

  • 99 HP John Deere or CAT Turbo Diesel Engine – Interim Tier 4

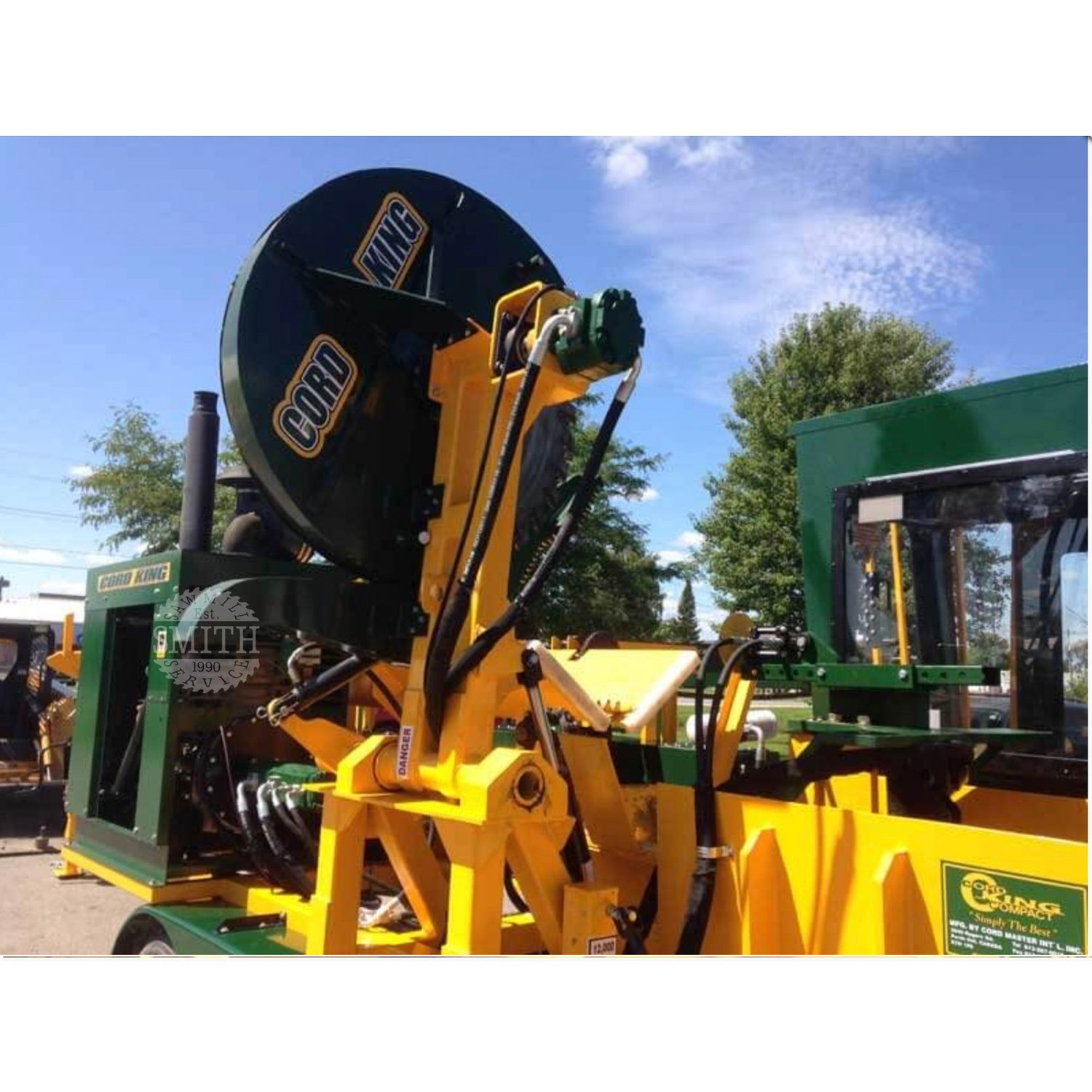

  • 48” carbide tooth slasher saw

  • 34 ton splitter force

  • 6- or 8-way fixed splitting wedge

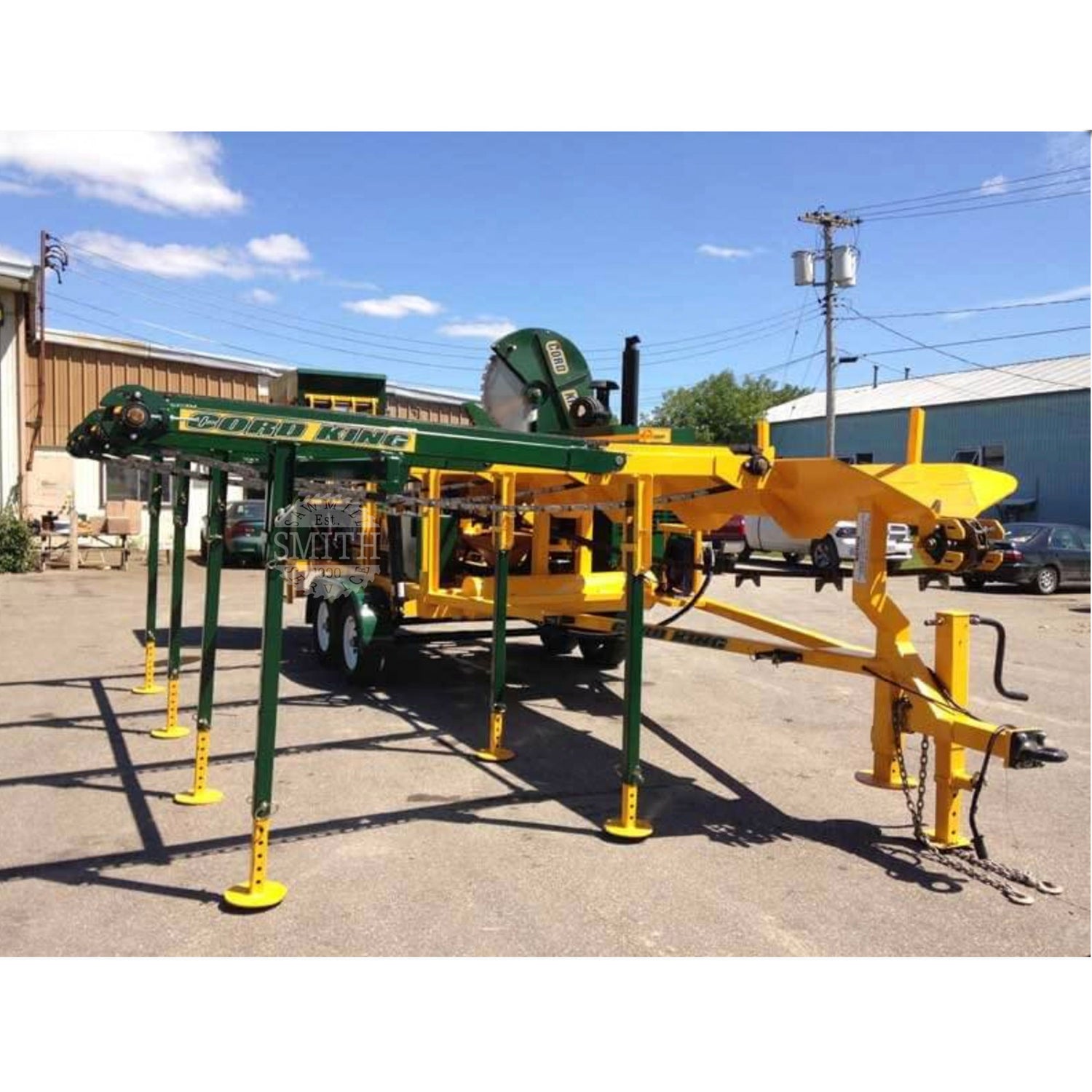

  • 20' infeed with 4-leg live deck

  • Hydraulic log stop (adjustable 12-24" length)

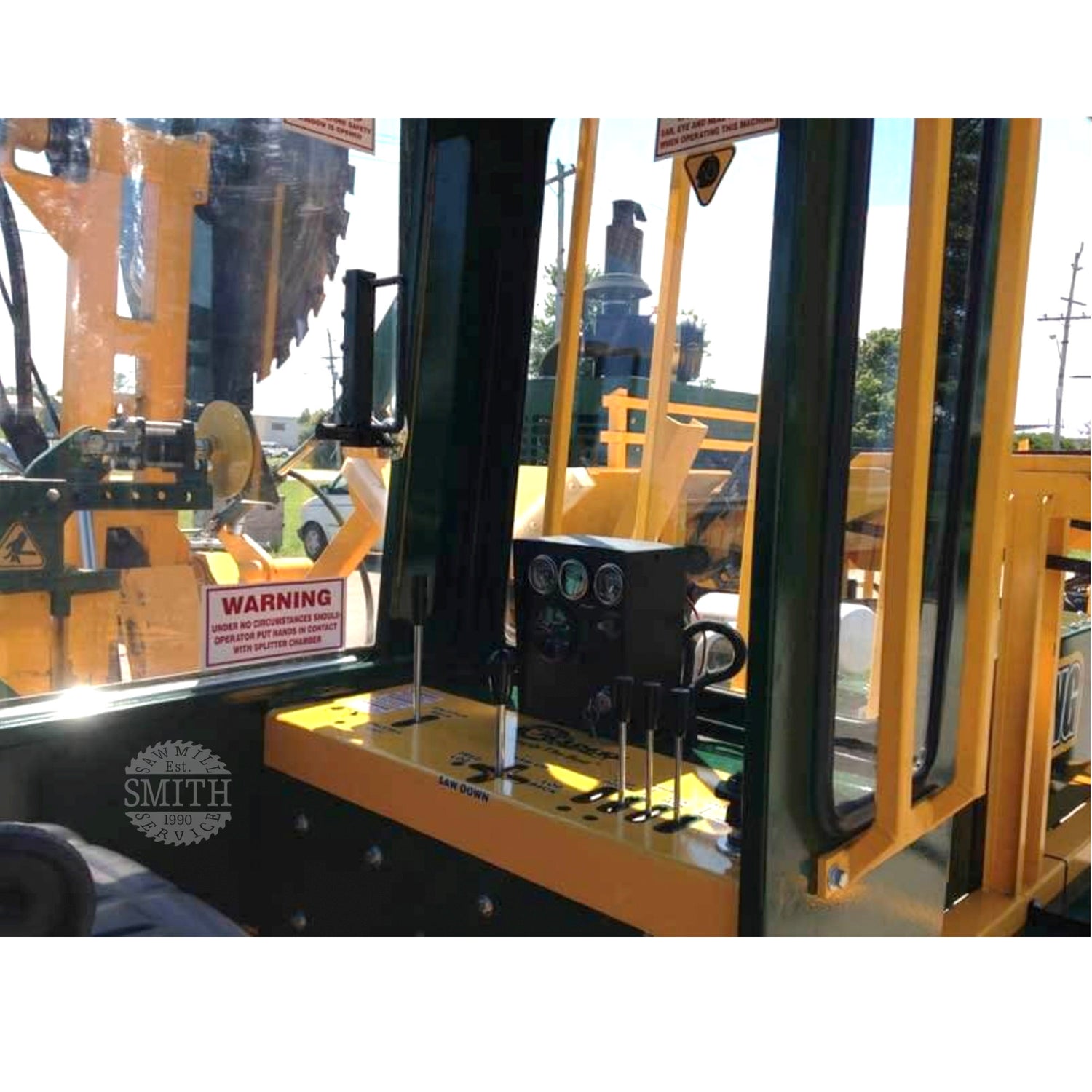

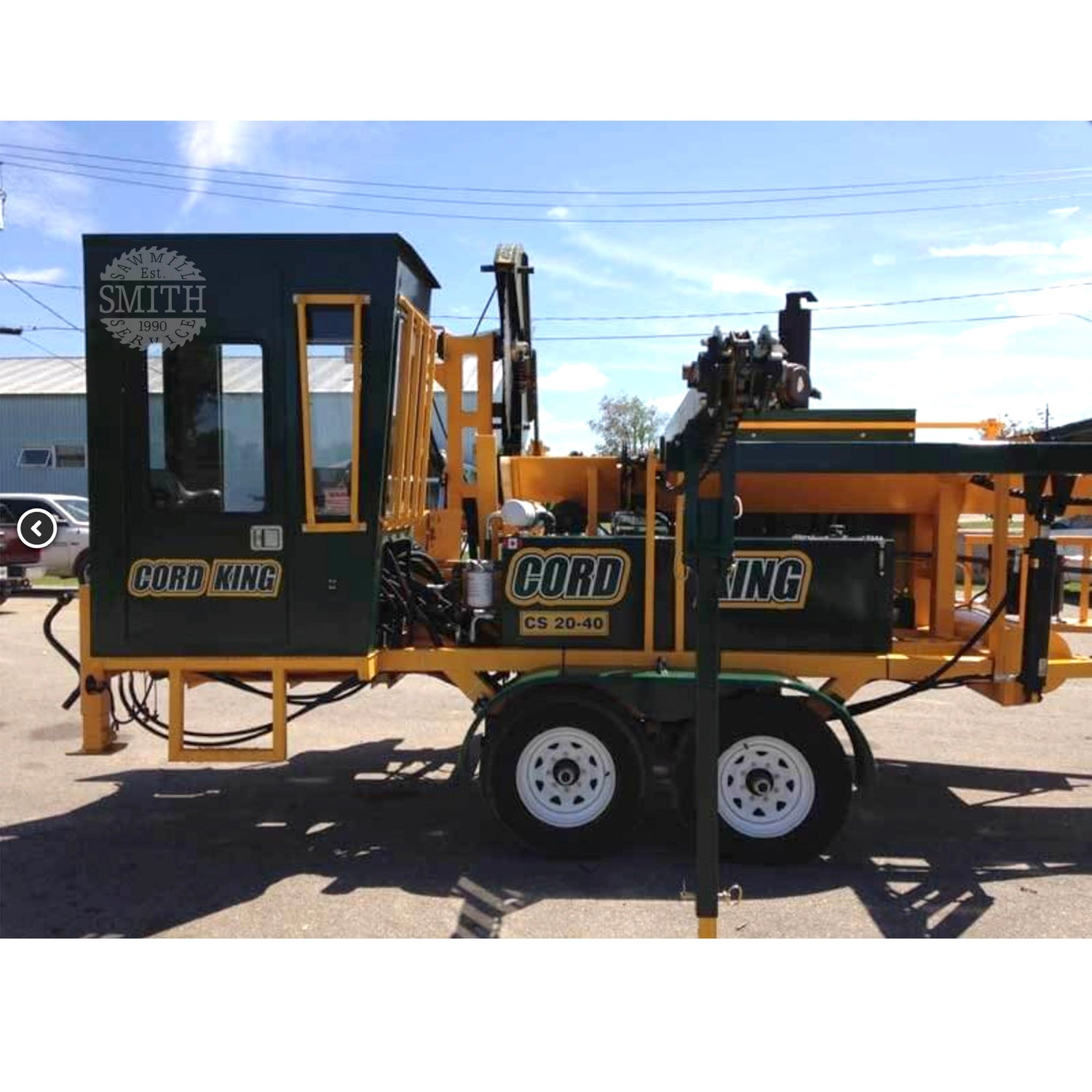

  • Operator safety cage with roof and deluxe seat

  • Automatic clamping

  • Fuel capacity: 40-gallon fuel tank

  • Hydraulic Reservoir Capacity: 120 US gallons

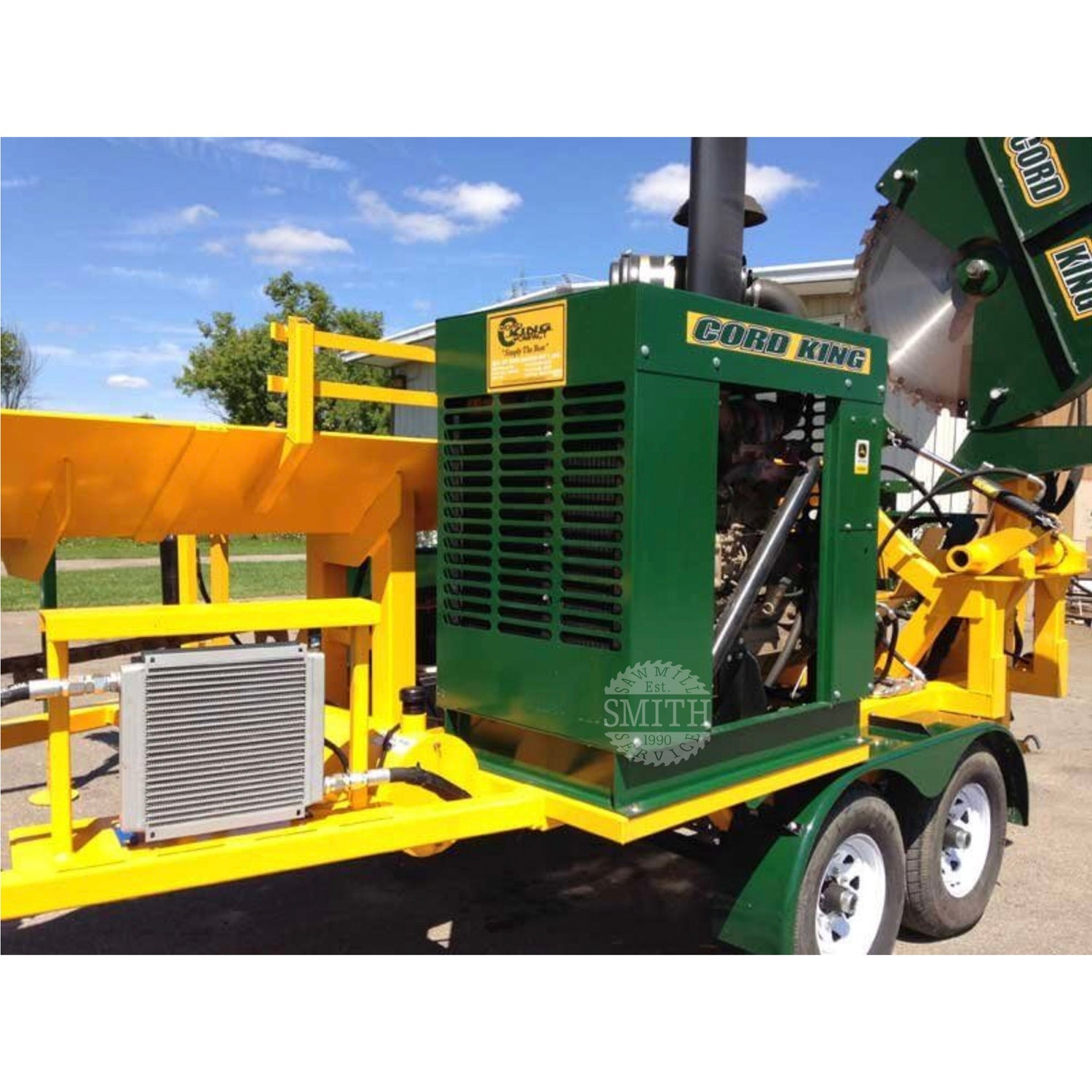

  • Hydraulic Oil Cooler standard: 48,000 BTU/hr

  • 14k lbs tandem axles with electric brakes and running lights

• CORD KING CS 20-40 (MODEL 48) PERFORMANCE

  • Production Rate: 6 to 8 full cords/hr

  • Cycle Time (cut & split): every 3 seconds

  • Max Log Diameter: 20”

  • Max Log Length: 40’ (butt on the deck)

  • Estimated Fuel Consumption: 2.5 GPH

  • Weight: 14,000 lbs

  • Transport Dimensions: 8’-6” wide, 12'-0" high

• CORD KING CS 20-40 (MODEL 48) OPTIONAL EQUIPMENT

  • 42-ton splitter (required for 10- or 12-way wedge)

  • 58-ton splitter (required for 16- to 28-way wedge)

  • Hydraulically adjustable wedge

  • Quick-change hydraulically adjustable box wedge, 10 to 28-way split (28-way to split wood small enough for packaging)

  • Hydraulic Folding Log Deck

  • Extra live deck legs, dual drive available

  • Heated operators cab

  • Air conditioning (hydraulically driven or 120V plug in)

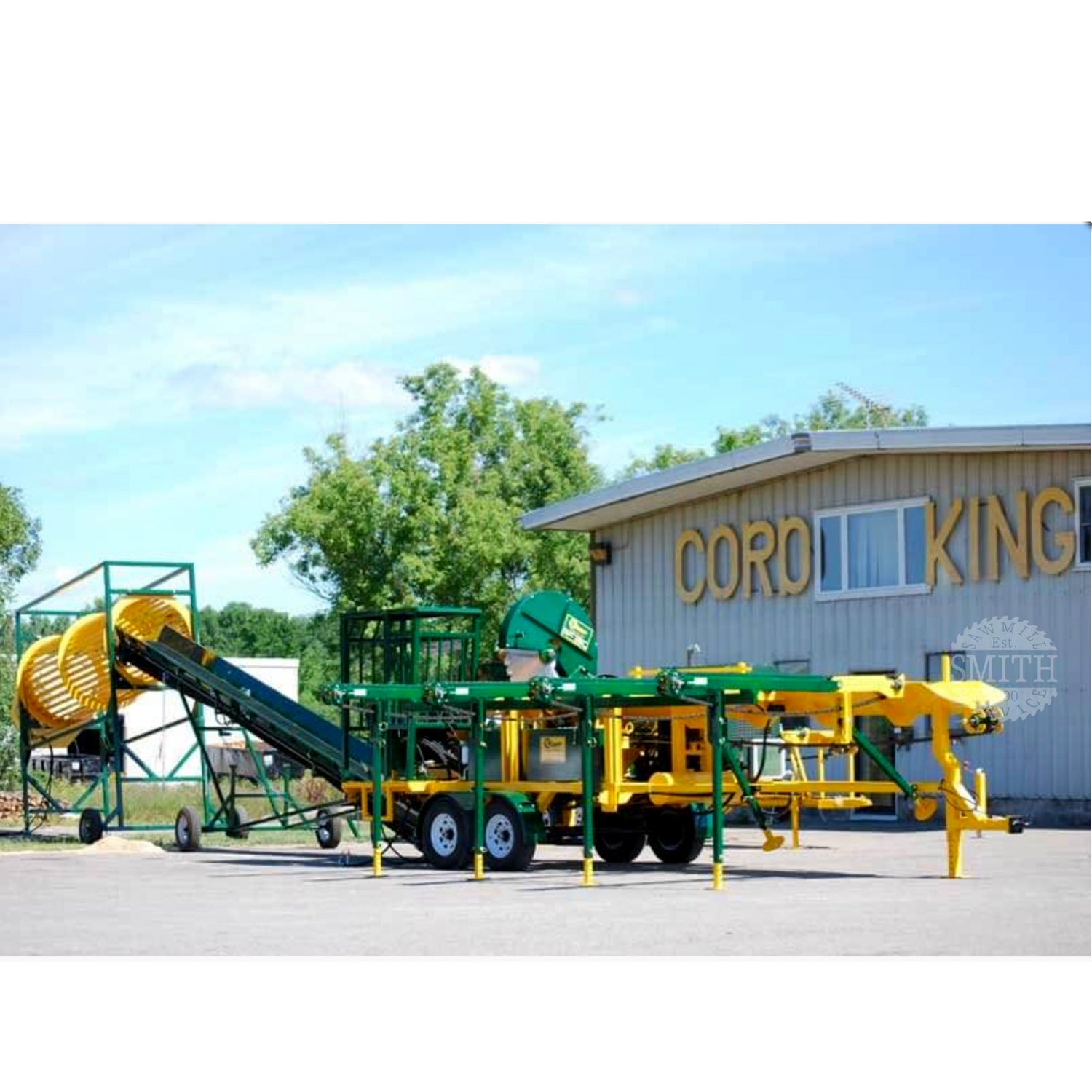

  • 24' to 40' stand alone off loading conveyor (radial stacking)

  • 12' or 16' integrated offloading conveyor

  • Overhead log grapple assist (crooked wood)

  • Trap doors for last piece assist (easy end-of-log cutting)

  • Saw log deck for cutting saw logs and firewood
