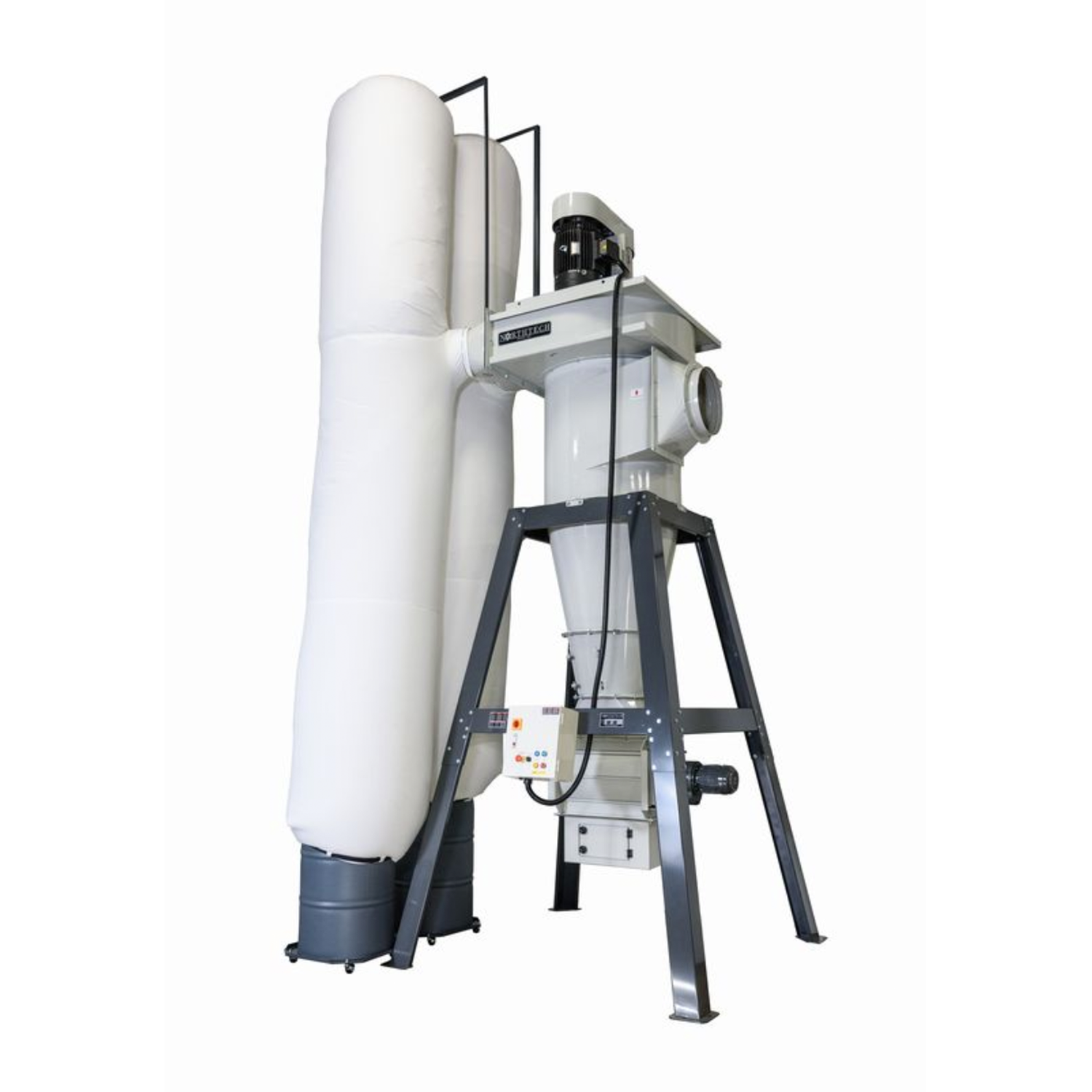

NorthTech Dust Collector NT 2ST-20XL-RAL-2034

SKU NORTHTECH-NT-2ST-20XL-RAL-2034

MODEL NT 2ST-20XL-RAL-2034

FEATURES

  • 2 Stage Filtering Industrial Series Dust Collector

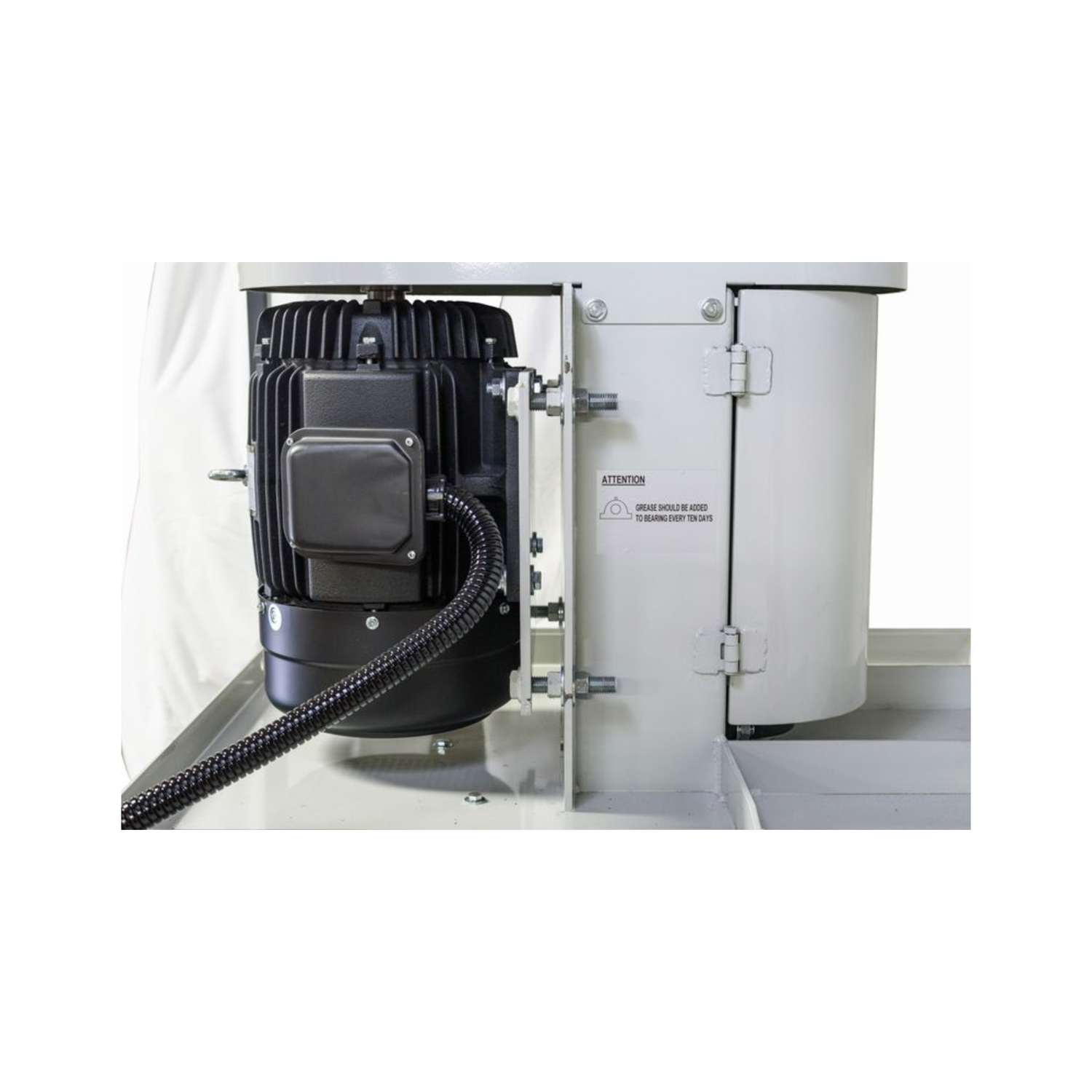

  • 20 HP. motor with magnetic starter
  • 8,200 CFM at 4.9” Static pressure 5730
  • Dust port inlet: (1) 16"
  • 26" fan
  • Air velocity: 6,000 FPM
  • (2) 12 x 31-1/2'' x 224-1/2'' 5-micron filter bags
  • Dust port outlet: (2) 12"

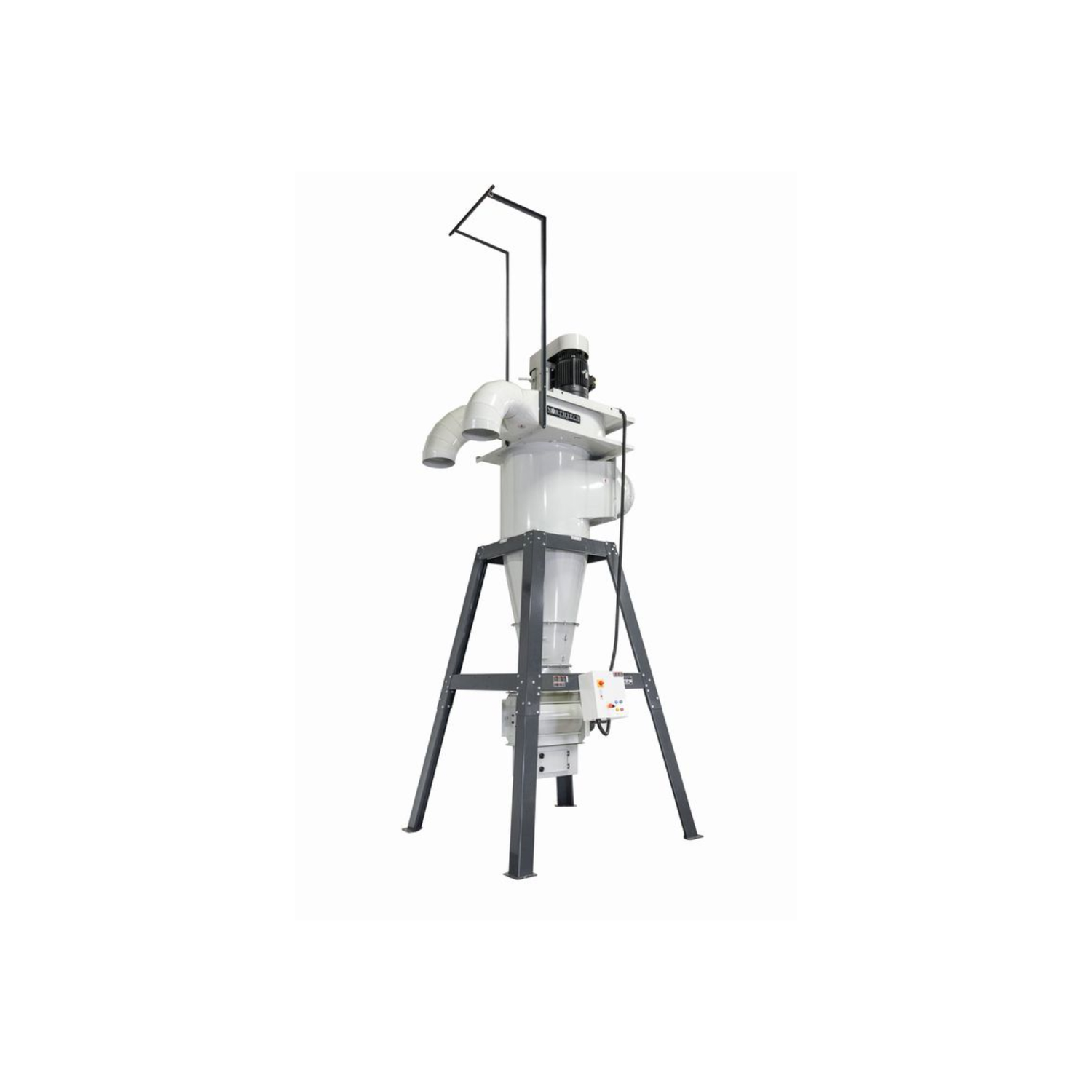

  • Cyclone system provides high efficiency removal of dust particles
  • (2) 55 gallon drum dollies (Drums not Included)
  • 1 HP Rotary Air Lock (Included)
  • 18'5" Tall with 82" base
  • Clearance below RAL: 33-1/4"
  • Net weight: 2,180 lbs.
  • Gross weight: Collector 1,950 lbs. / Air Lock 420 lbs.
  • Machine dimensions: (L) 102" x (W) 82 " x (H) 222"
  • Packing dimensions: (L) 91" x (W) 48" x (H) 76" / (L) 50" x (W) 24" x (H) 25"
  • Warranty is one year parts
  • All machines are tested stateside prior to shipment providing trouble free start up.

SPECS

  • Main Motor Hp. = 20 hp.
  • Machine Hp. = 21 hp.
  • Voltage/ Freq. = 460 Volt 60Hz
  • Phase = 3 Phase
  • Amp Requirement = 25 Amps
  • Electronics = CE Approved Components
  • Dual Voltage = 230/460 Volt
  • Control Voltage = 220V Control Voltage
  • Assisted Start = Wye Delta
  • Dust Port In = 16'' Inlet
  • Dust Port Out = (2) 12'' Top Outlets
  • Free Air CFM = 8200 CFM
  • R.A.L. Hp. = 1 Hp. Direct Drive
  • R.A.L. Size = 10'' x 24''
  • Impeller = 26'' Steel Impeller
  • Frame Const. = 1/8'' Steel Construction
  • Upper Bags = 12'' x 31-1/2'' x 224-1/2''
  • Cyclone Diam. = 35'' I.D.
  • No. of Barrels = 2 Barrels (Not Included)
  • No. of Dollies = 2 Dollies
  • Decibel Rating = 90 dB
  • Net Weight = 2180 Lbs. W/ RAL
  • Gross Weight = 2370 Lbs.
  • Machine Dims. = 102'' x 82'' x 222''
  • Packaging Dims = 91'' x 48'' x 76''

Item ID: 3521
