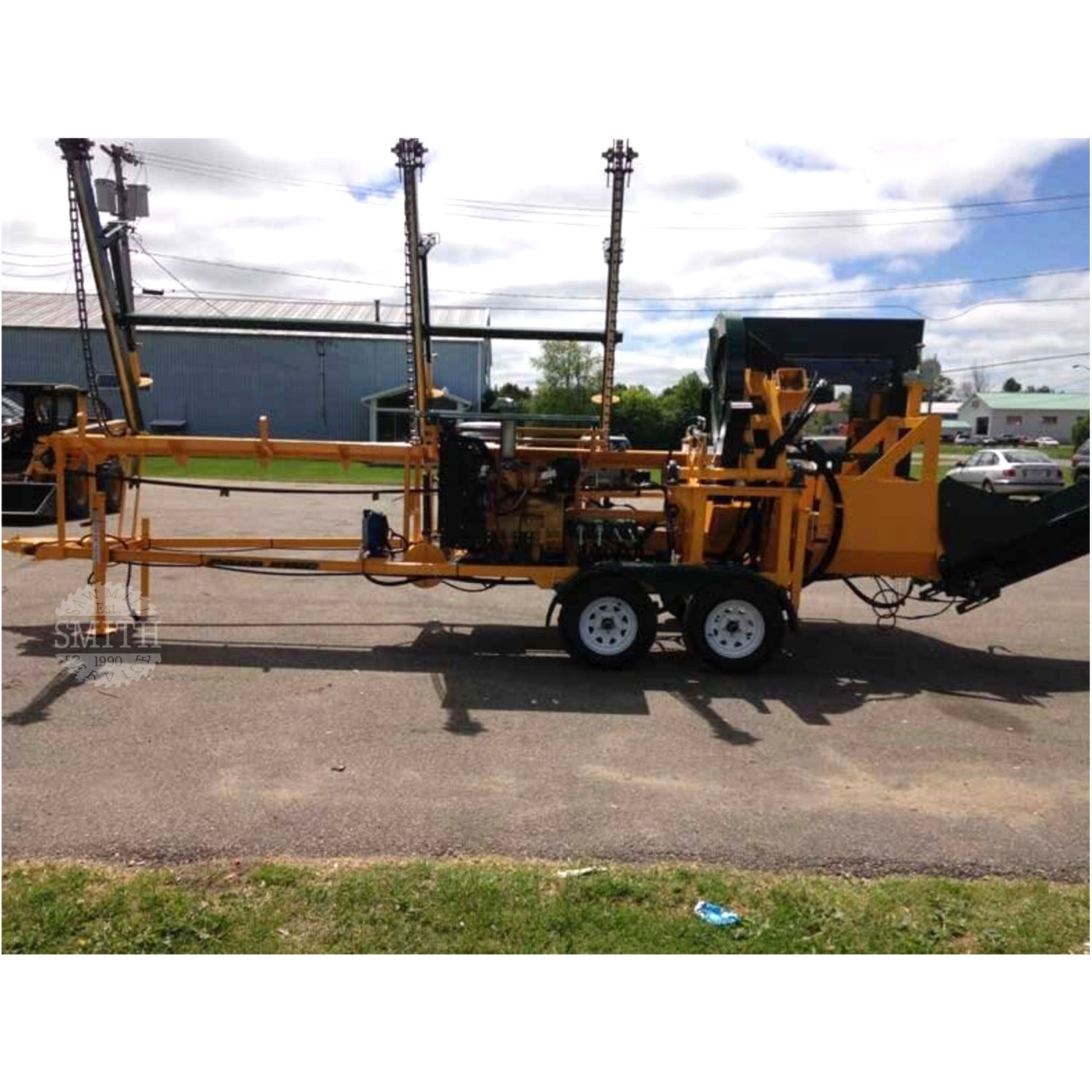

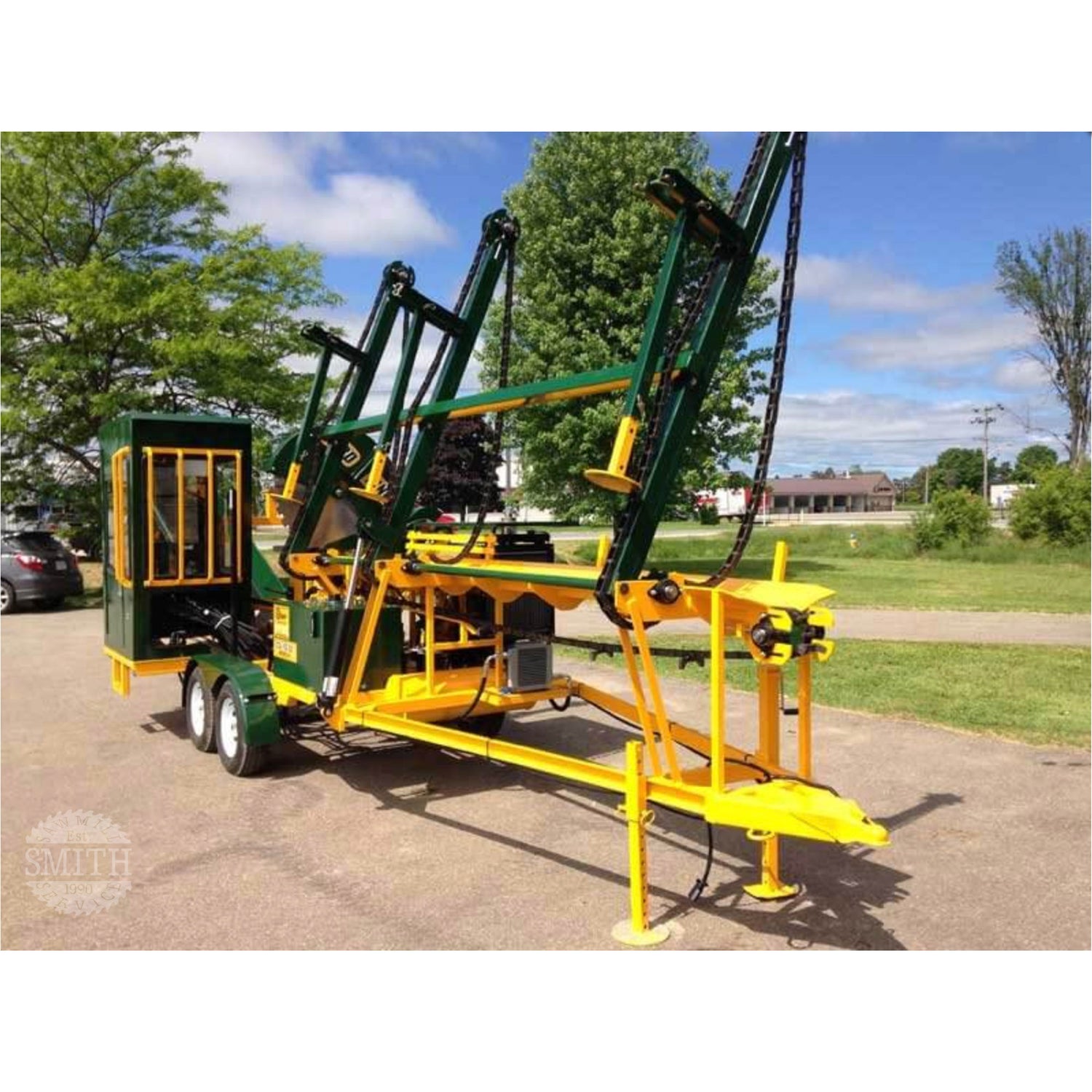

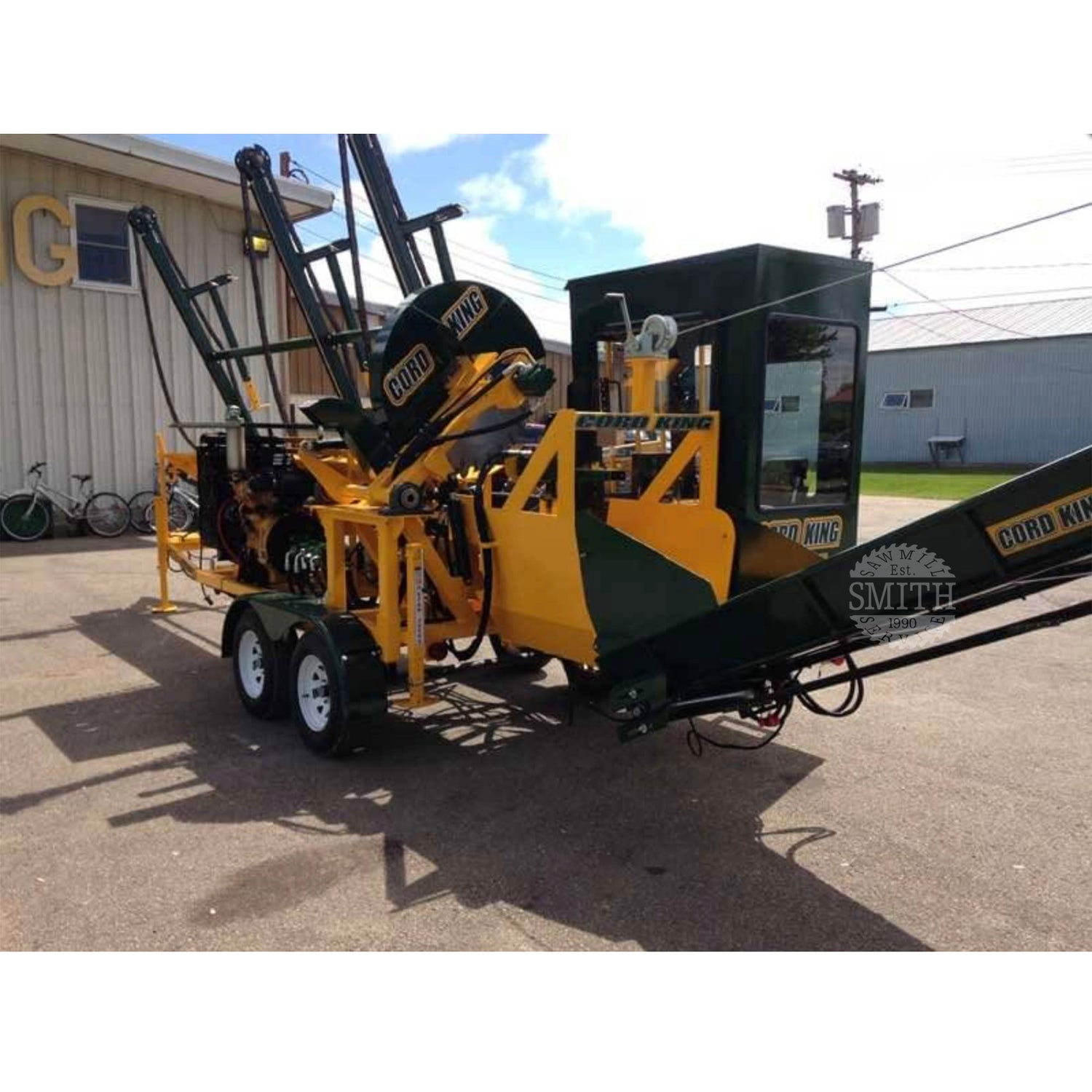

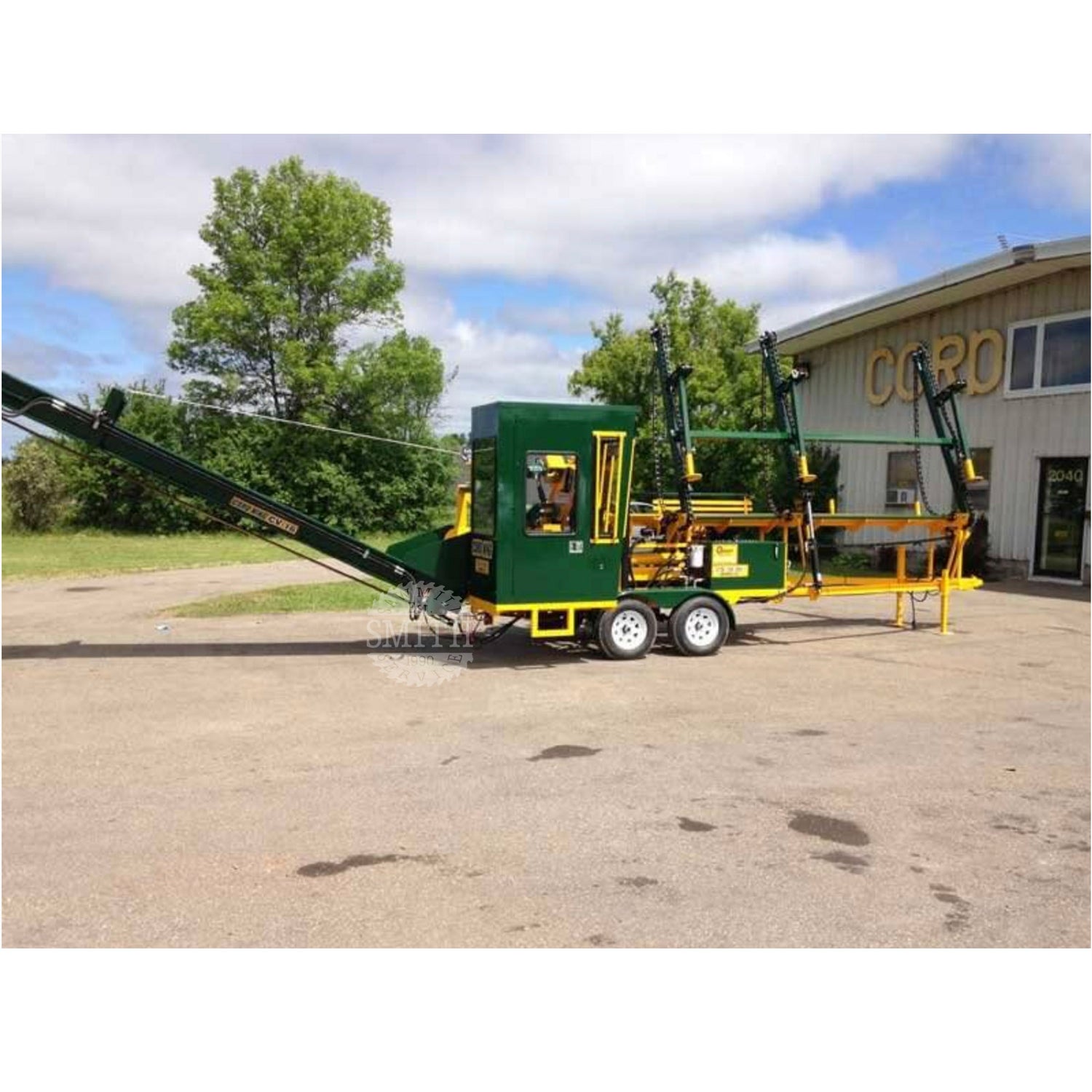

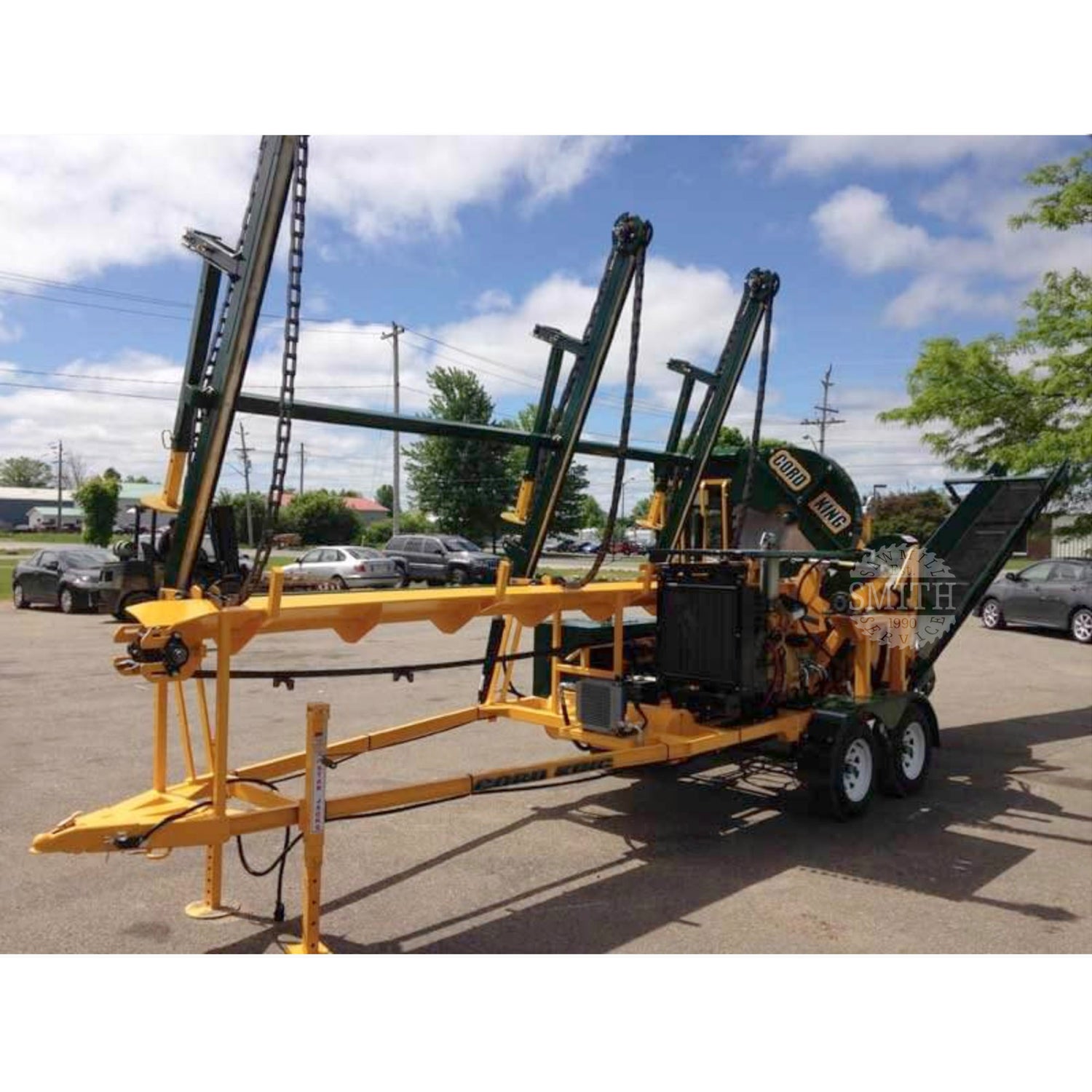

CORD KING CS 18-30 (model 40)

SKU CK-CS-MODEL-40

CORD KING CS 18-30 (MODEL 40)

  • CORD KING CS 18-30 (MODEL 40) SPECS

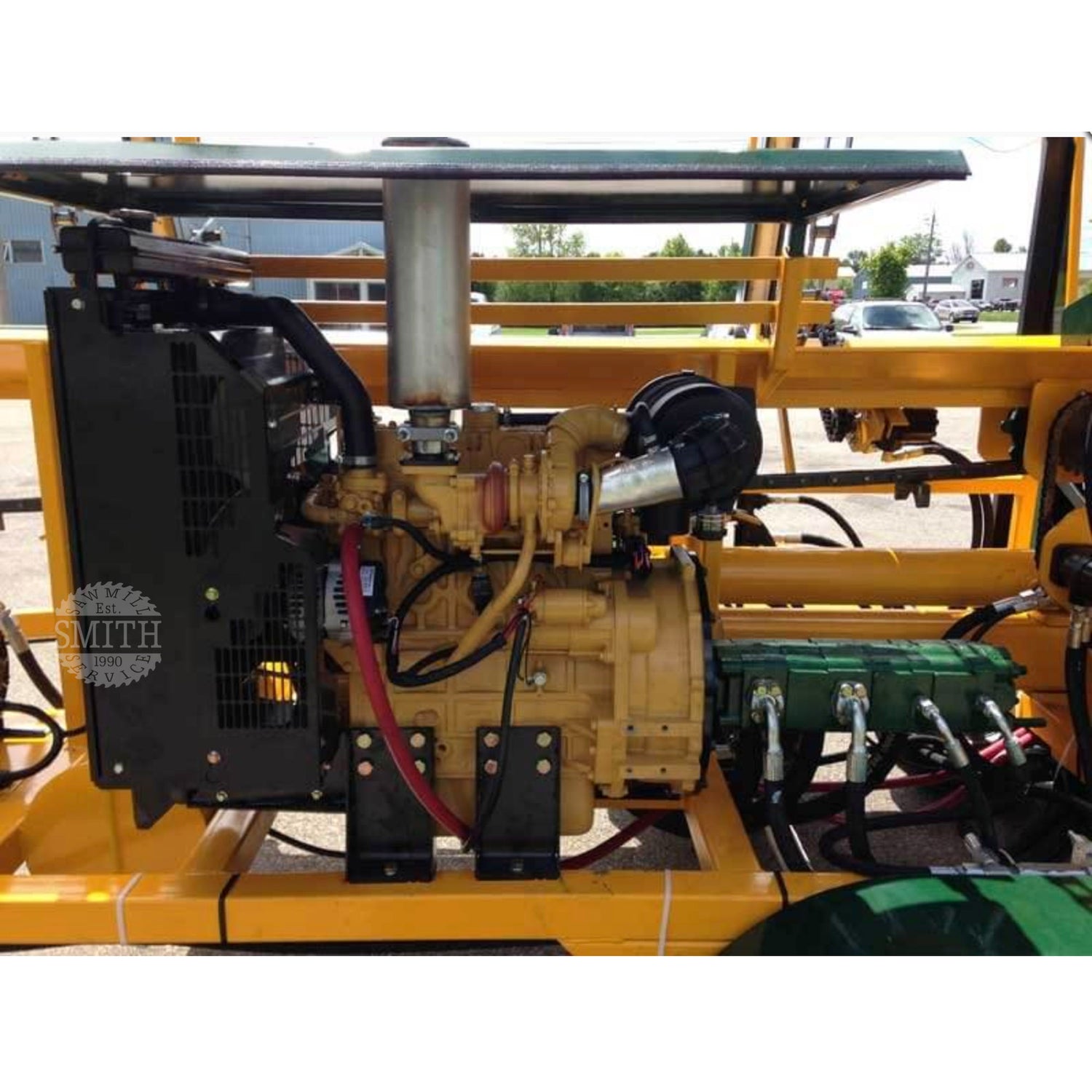

    • 60 HP Turbo Diesel Engine - Interim Tier 4

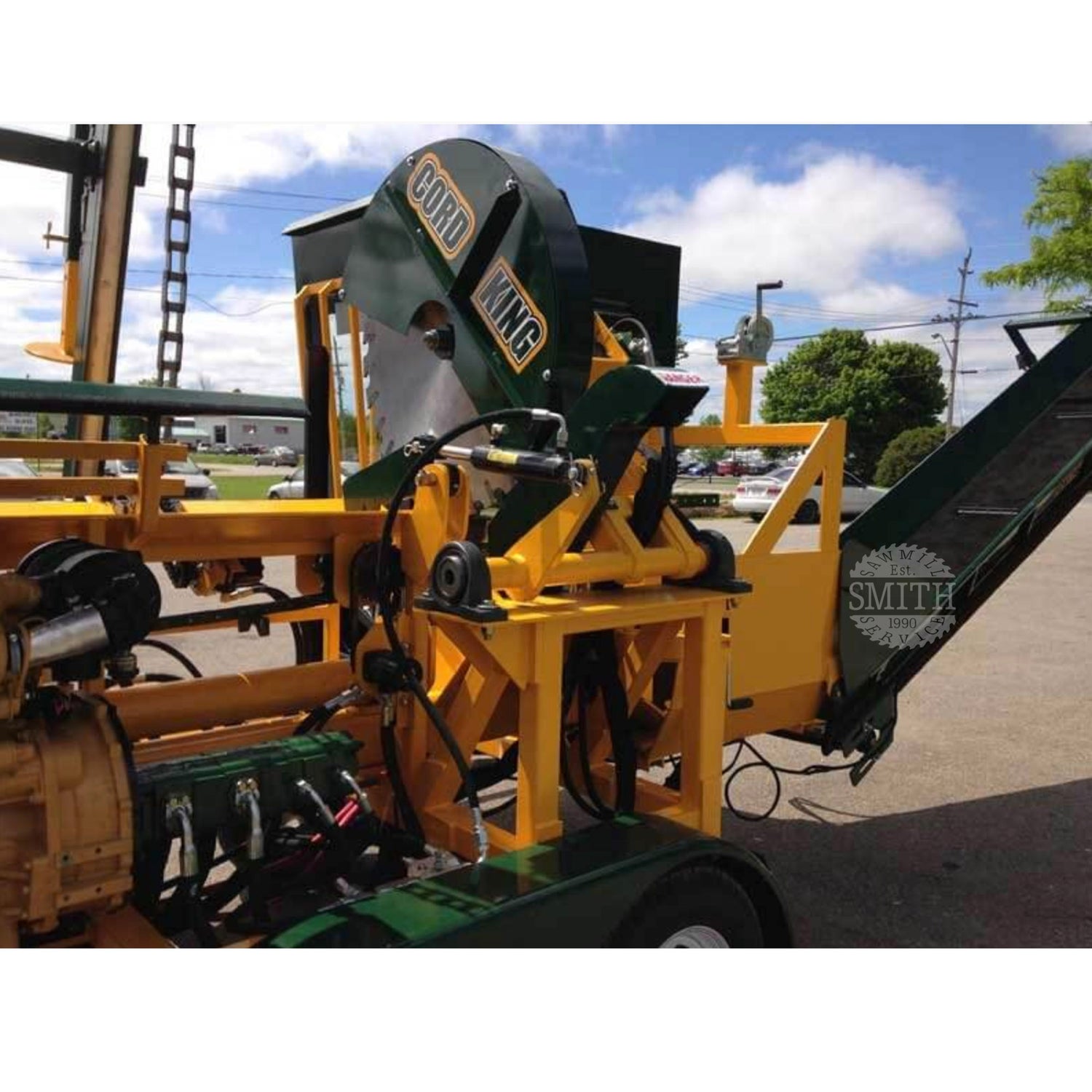

    • 40” carbide tooth slasher saw

    • Splitter Force 29 ton

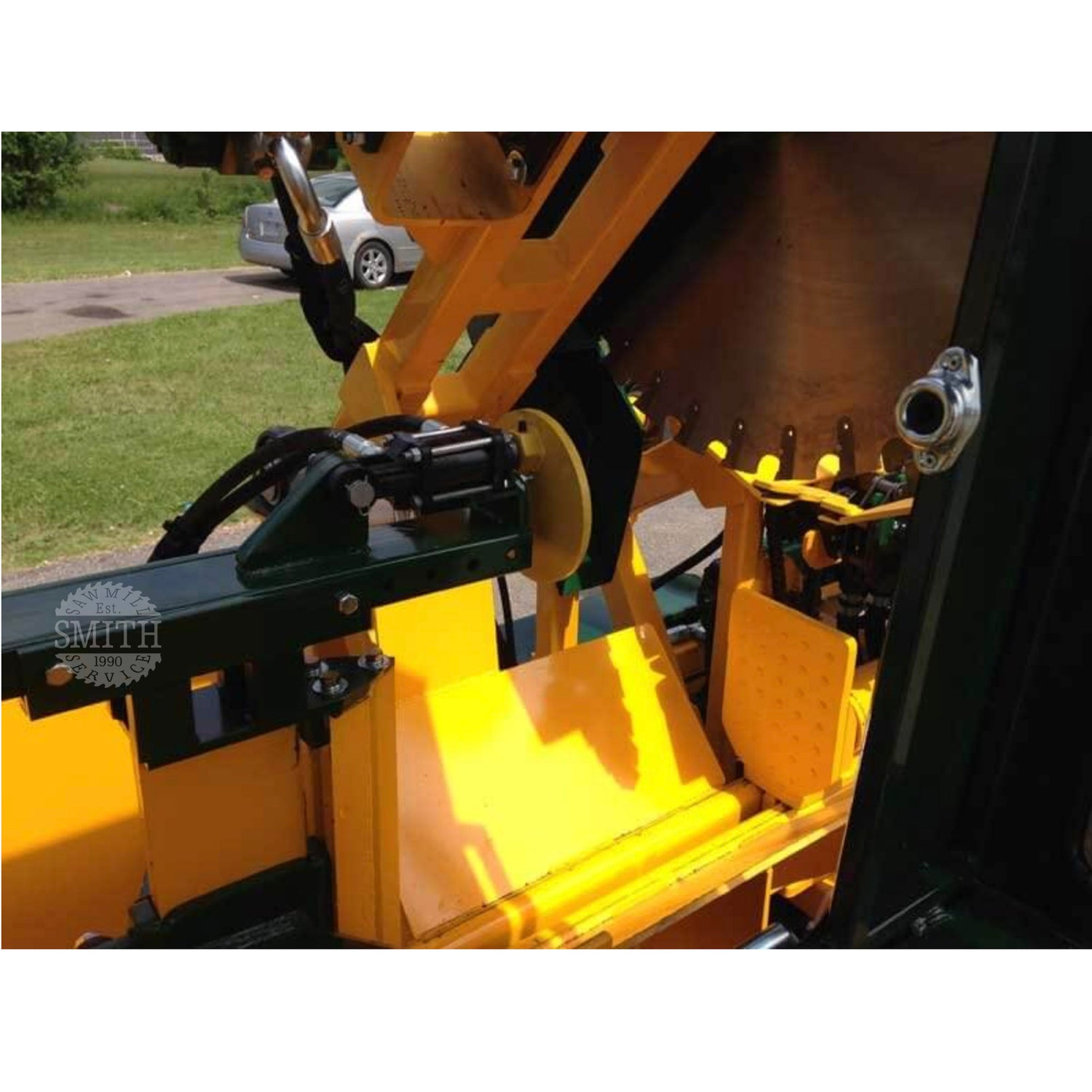

    • 6- or 8-way fixed splitting wedge

    • 16' in feed with 3-leg live deck

    • Hydraulic log stop adjustable 12-24" length

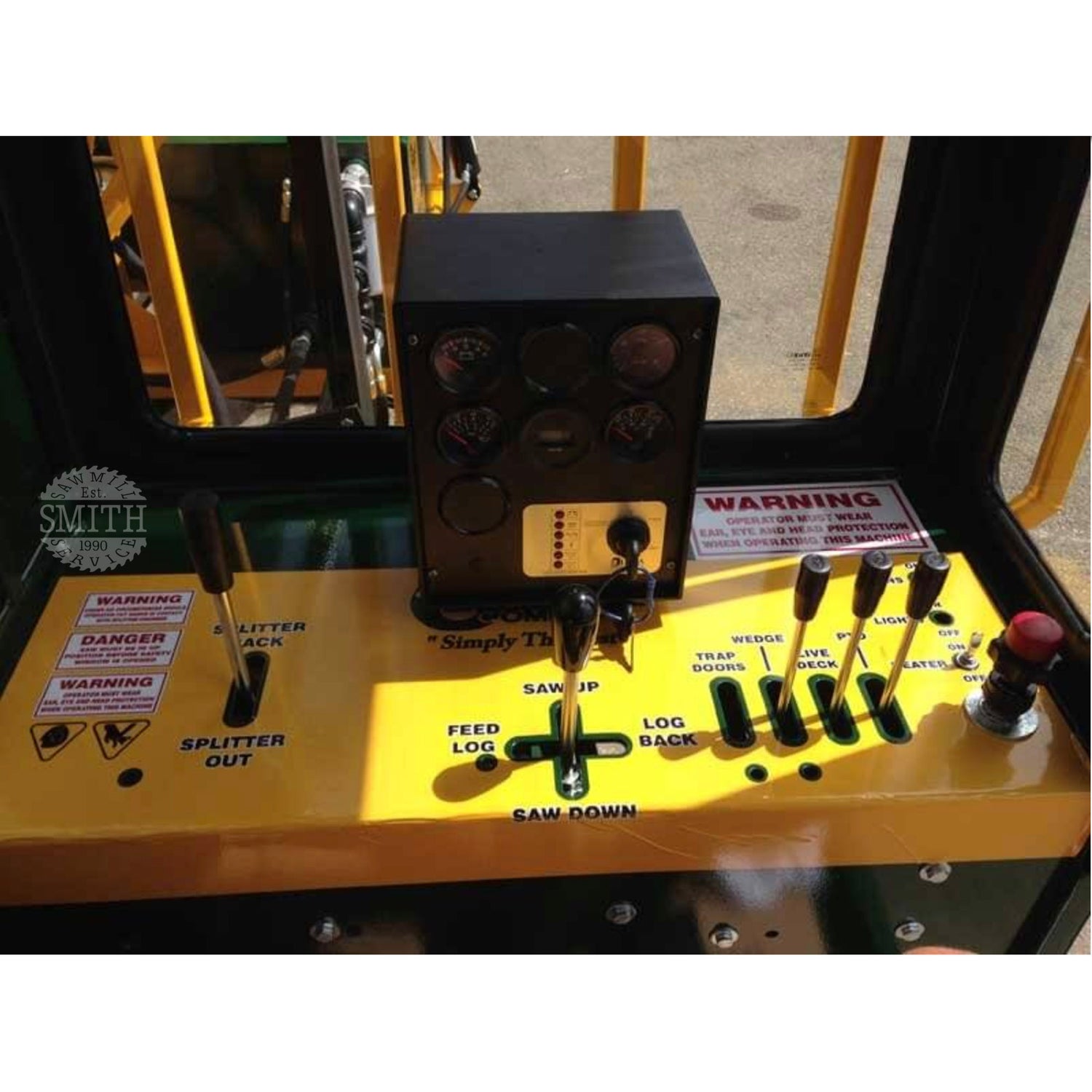

    • Operator platform with deluxe seat

    • Automatic clamping

    • Fuel Capacity: 20-gallon fuel tank

    • Hydraulic Reservoir Capacity: 55 US gallons

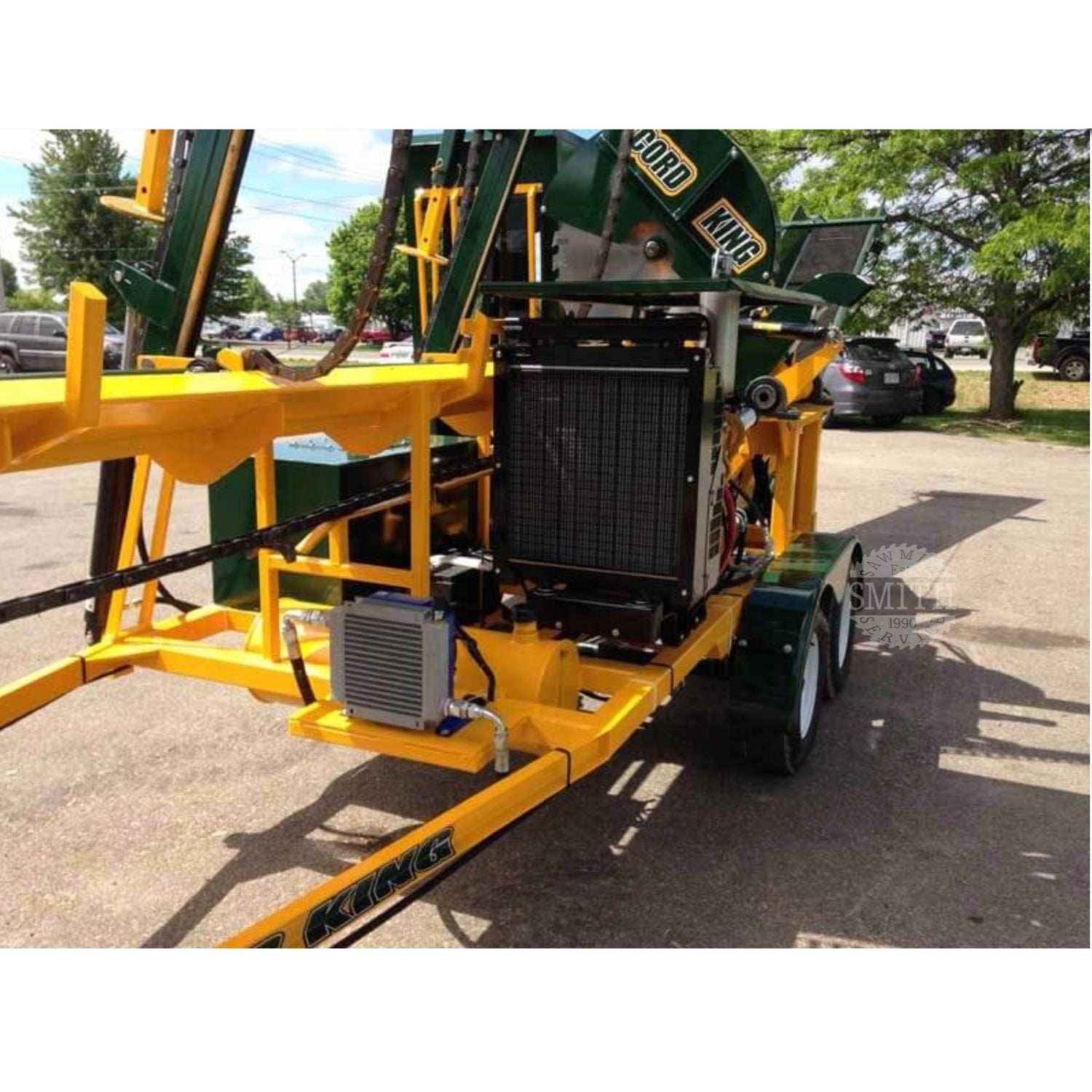

    • Hydraulic Oil Cooler Standard: 35,000 BTU/hr

    • 10k lbs tandem axles with electric brakes and running lights

    • 2 5/16″ Ball Hitch

  • CORD KING CS 18-30 (MODEL 40) PERFORMANCE

    • Production Rate: up to 5 full cords/hr

    • Cycle Time (Cut and Split): every 3 seconds

    • Maximum Log Diameter: 18"

    • Maximum Log Length: 30' (butt on the deck)

    • Estimated Fuel Consumption: 1.5 - 2 GPH

    • Weight: 9,200 lbs

    • Transport Dimensions: 8'-0" wide, 12'-0" high

  • CORD KING CS 18-30 (MODEL 40) OPTIONAL EQUIPMENT

    • 34-ton splitter (required for 8-way wedge)

    • 42-ton splitter (required for 10- or 12-way wedge)

    • Hydraulically adjustable wedge

    • Quick change hydraulically adjustable box wedge (10 to 12-way split)

    • Hydraulic Folding Log Deck

    • Extended in feed conveyor to 20′

    • Extra live deck legs, dual drive available

    • Trap doors for last piece assist (easy end-of-log cutting)

    • Operator safety cage

    • Heated operators cab

    • Air conditioning (hydraulically driven or 120V plug in)

    • 24' to 40' stand alone off loading conveyor (radial stacking)

    • 12' or 16' integrated offloading conveyor

    • Overhead log grapple assist (crooked wood)

  • CORD KING CS 18-30 (MODEL 40) VIDEO

  • CORD KING CS 18-30 (MODEL 40) BROCHURE

    Download Brochure
