CORD KING M18-20 Firewood Processor

SKU CORDKING-M18-20

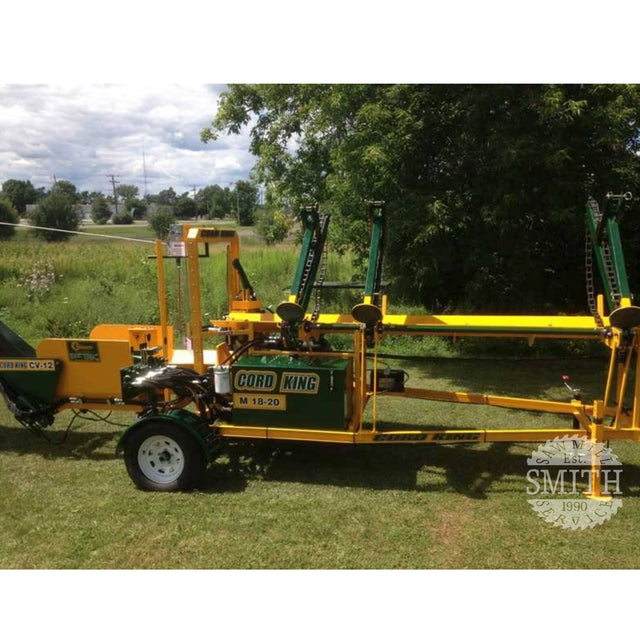

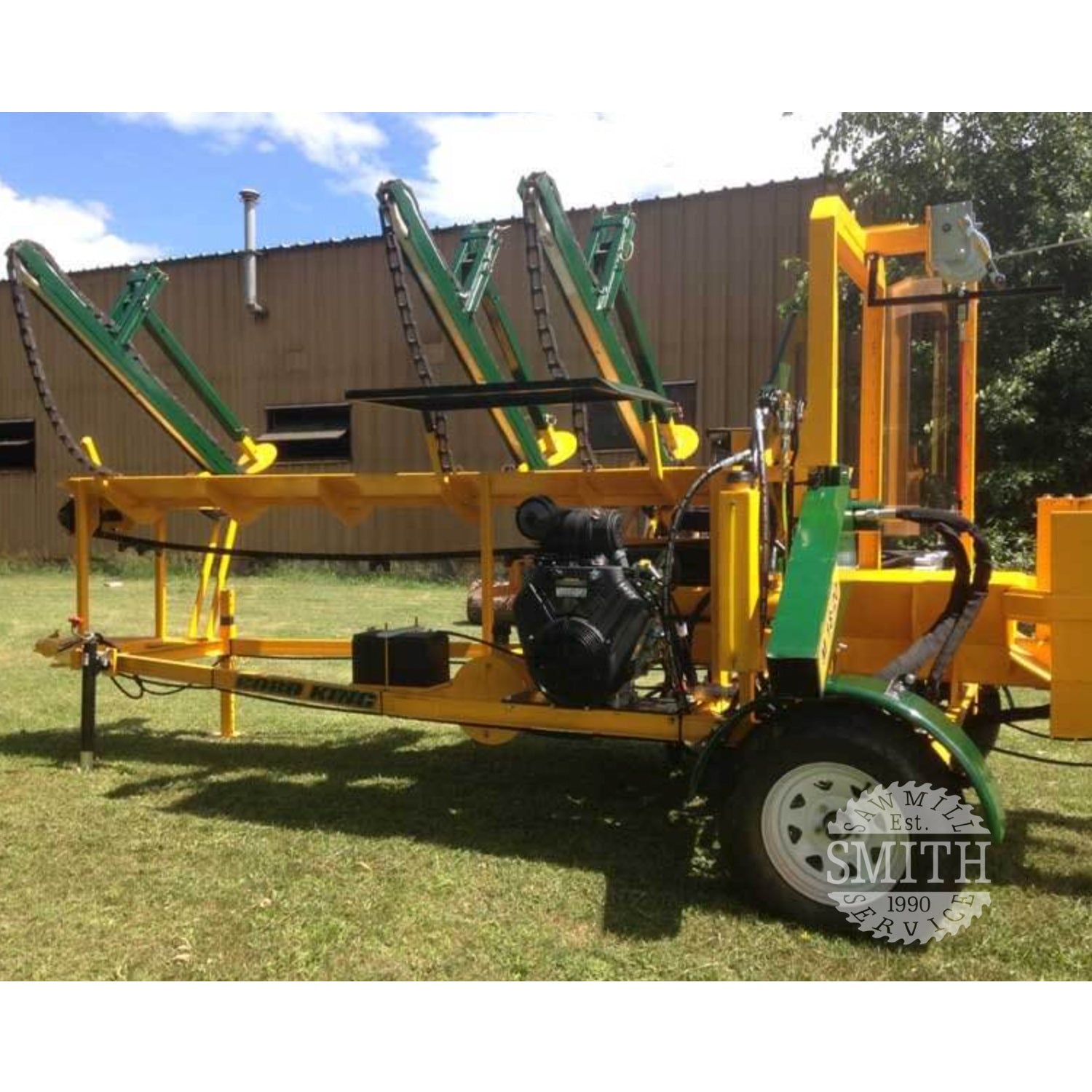

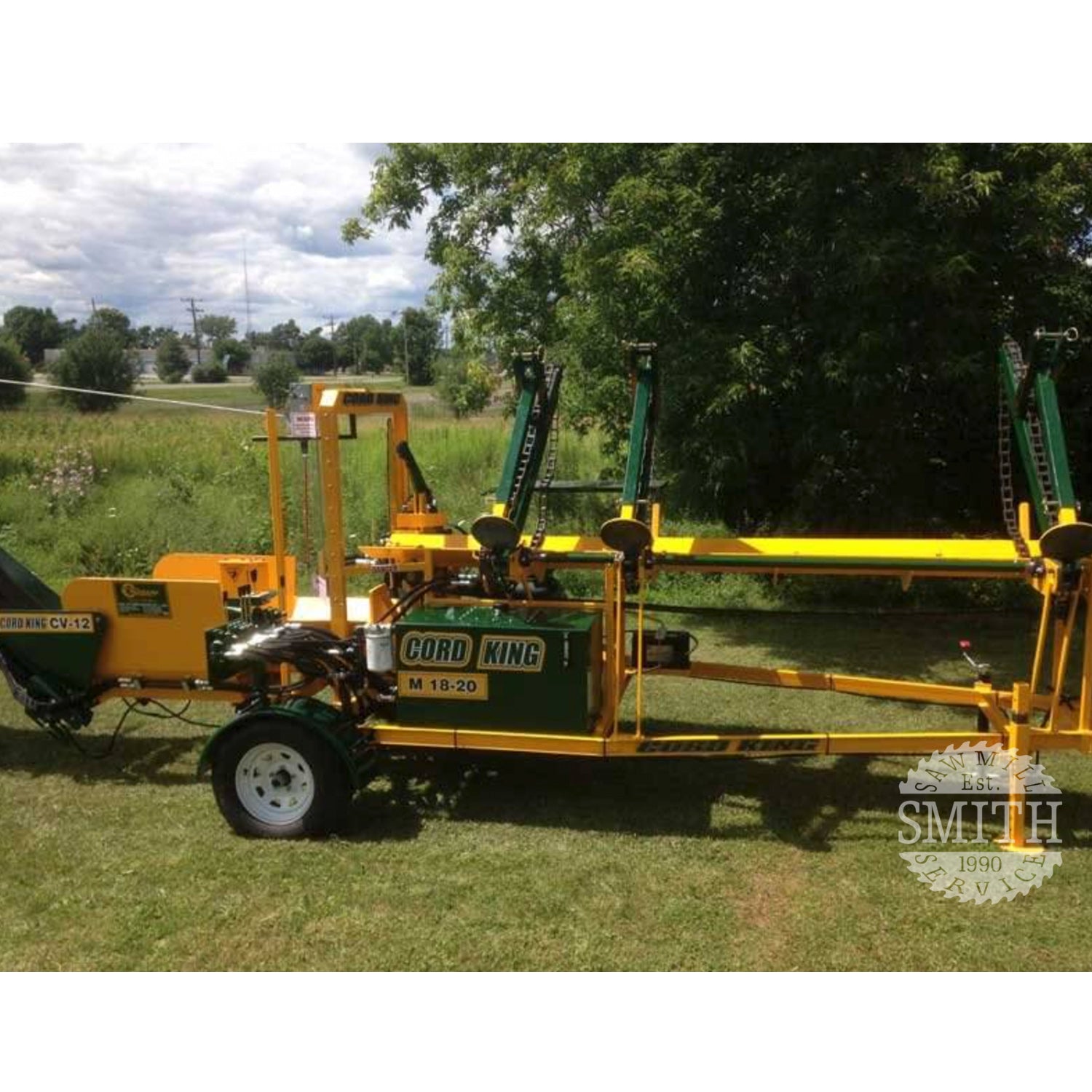

CORD KING M18-20 FIREWOOD PROCESSOR

  • CORD KING M8-20 FIREWOOD PROCESSOR

    SPECIFICATIONS

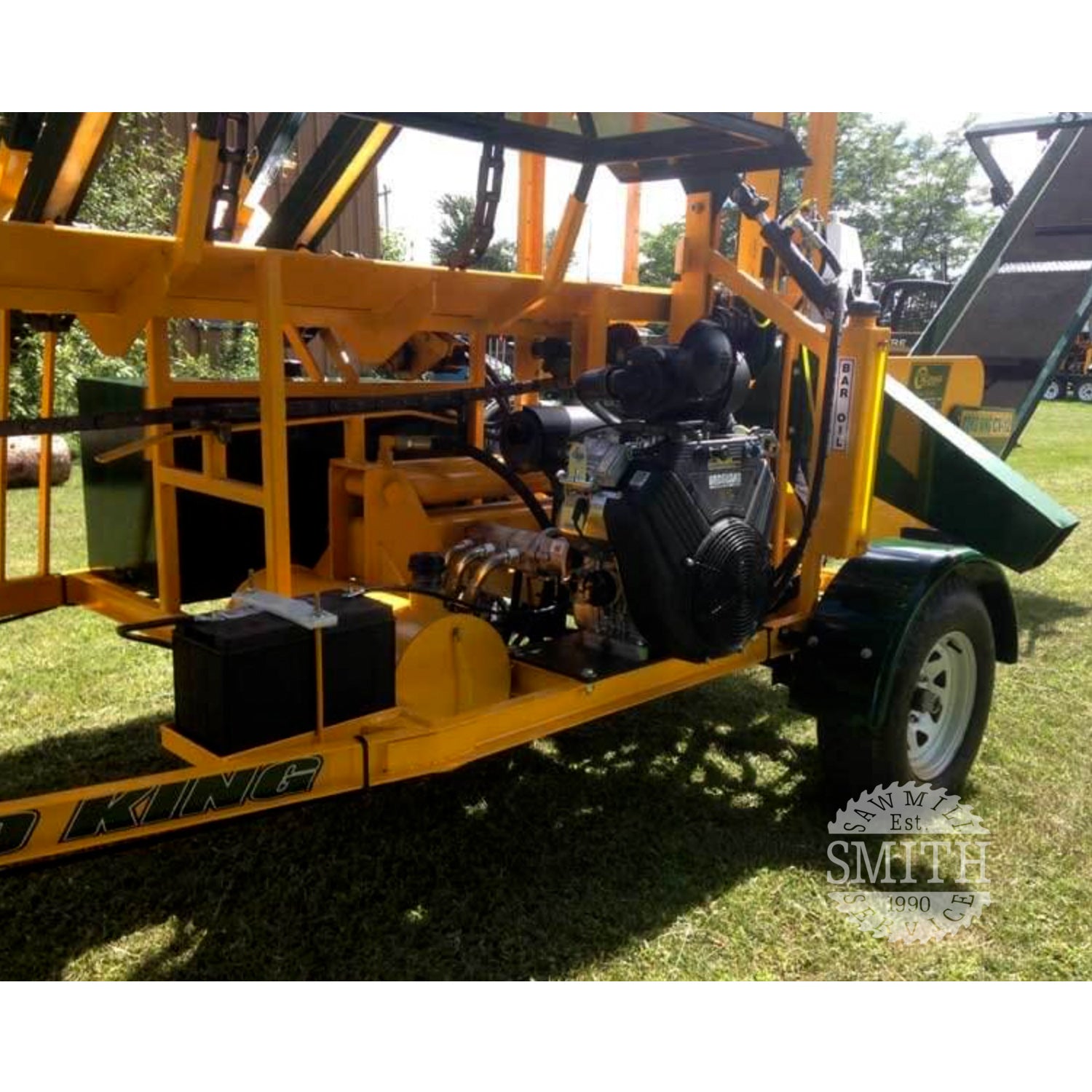

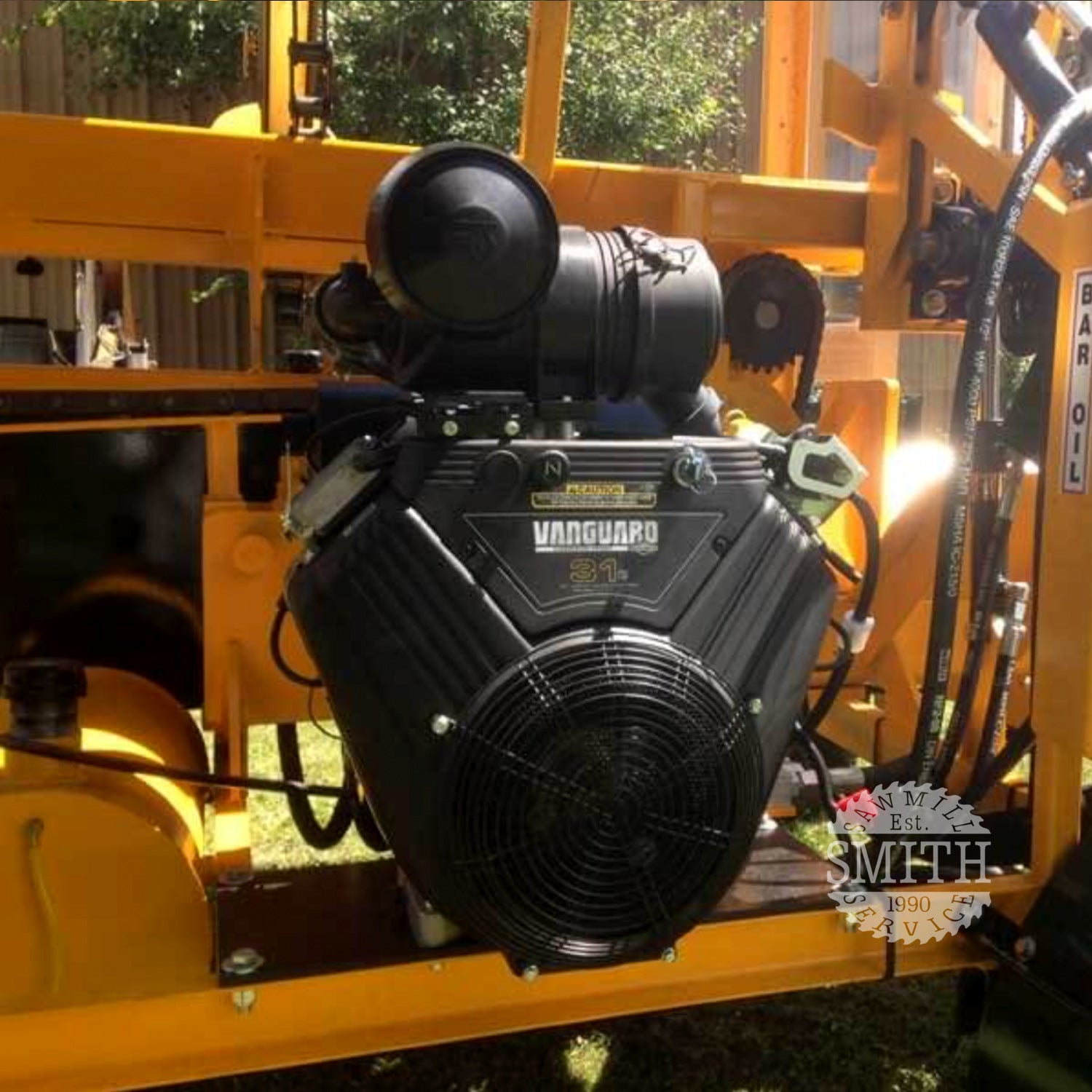

    • 35 HP Briggs and Stratton Vanguard Twin Gas Powered (with 3-year warranty)

    • Hydraulic-driven 404 harvester bar and chain with pressure relief system

    • Gravity feed bar oiler system with large 1 ½ gallon capacity

    • Electric start with low oil pressure shut-down

    • Splitter Force 24 ton

    • 4- or 6-way fixed splitting wedge

    • Adjustable log length gauge

    • 12' long Infeed Conveyor with continuous chain drive feeding

    • Available with standard 2-leg manual folding live deck (6') or 2-leg log lifting system with double 2" hydraulic cylinders

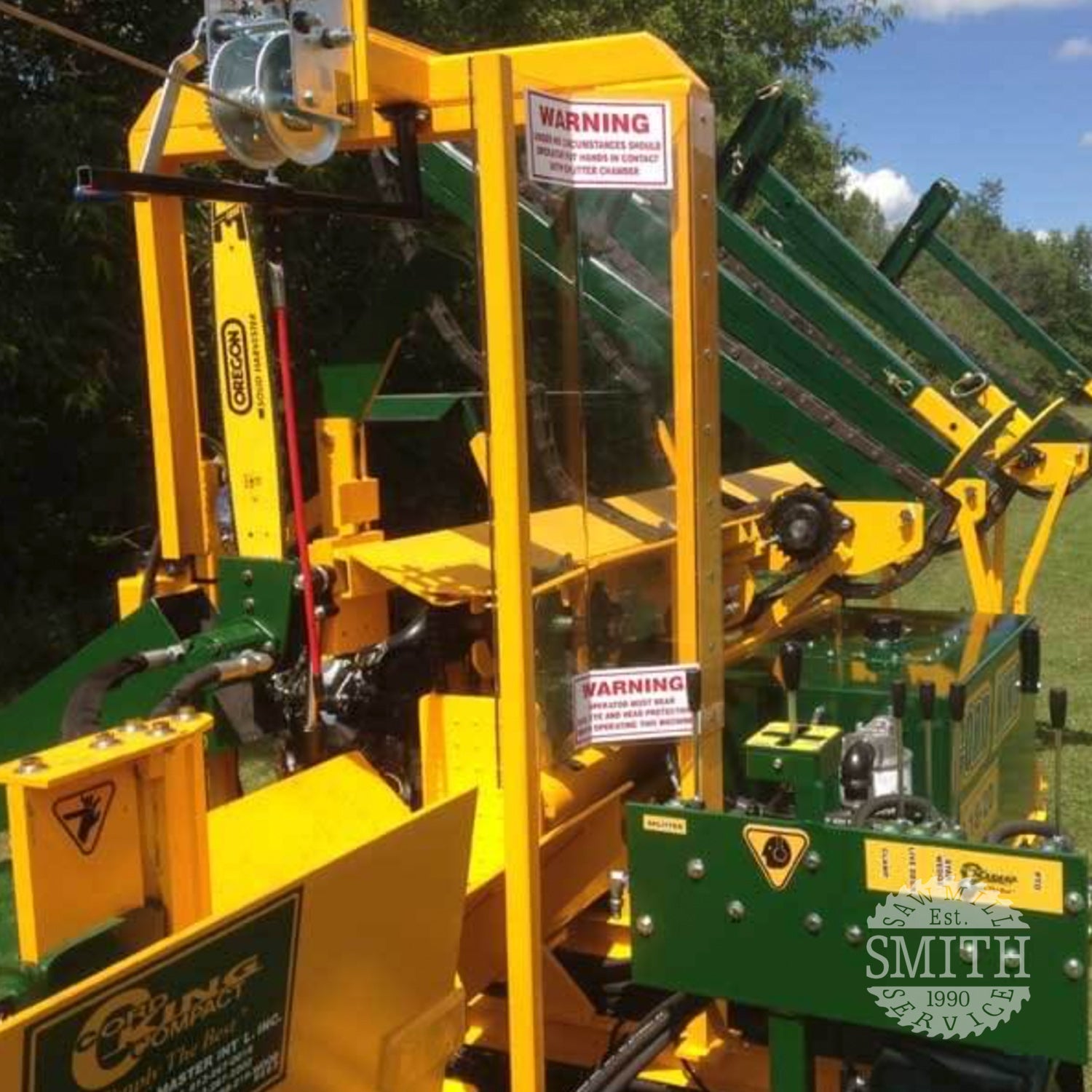

    • Lexan safety screen for excellent visibility

    • Firewood Cleanout Grate

    • Fuel Capacity: 10-gallon fuel tank

    • Hydraulic Reservoir Capacity: 40 gallons

    • 5k lbs axel with electric brakes and running lights

    • 2 5/16″ Ball Hitch

  • PERFORMANCE

    • Production Rate: up to 1.5-2 full cords/hr

    • Cycle Time (cut and split): every 7 seconds

    • Maximum Log Diameter: 20”

    • Maximum Log Length: 20’ (butt on the deck)

    • Estimated Fuel Consumption: 1 - 1.5 GPH

    • Weight: 4,800 lbs

    • Transport Dimensions: 7’-0” wide, 19'-0" long, 12'-0" high

  • OPTIONAL EQUIPMENT

    • 29-ton splitter

    • 34-ton splitter (required for 8-way H wedge)

    • Hydraulic Folding Log Deck

    • Extended live deck (8') with bearing upgrade

    • 4-, 6-, or 8-way hydraulically adjustable wedge

    • Hydraulic log stop (adjustable 12-24" length)

    • Automatic clamping

    • Extended infeed conveyor (to 16′) with tandem axle

    • Extra live deck legs, dual drive available

    • Operator platform with a deluxe seat

    • Operator safety cage or operator canopy (roof)

    • 16' to 40' standalone offloading conveyor (radial stacking)

    • 12' integrated offloading conveyor
