NorthTech | SKU:
NORTHTECH-H-BANDSAW-NT-PHR-400Z-4434
NorthTech Horizontal Band Re-Saw PHR-400Z-4434
Shipping calculated at checkout.
NorthTech Horizontal Band Re-Saw PHR-400Z-4434 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours. Weekend orders are processed the next business day. Products that are backlog or custom orders will be processed as soon as possible. Equipment deliveries vary based on current backlog and will be confirmed at time of order. Please call 800-598-6344 for an estimate for equipment and shipping questions.
NorthTech Horizontal Band Re-Saw PHR-400Z-4434
$0.00
Unit price
/
Unavailable
Description
Description

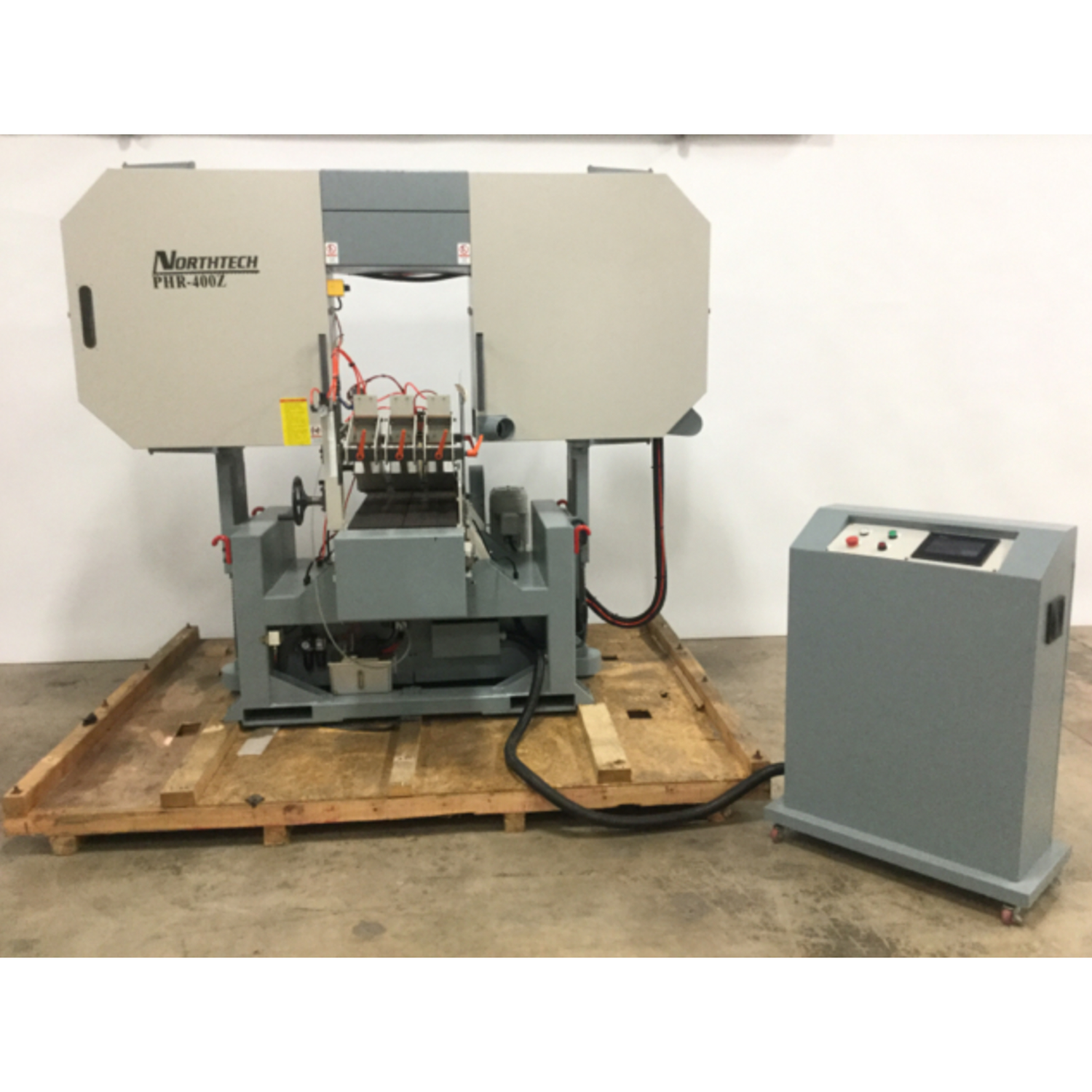

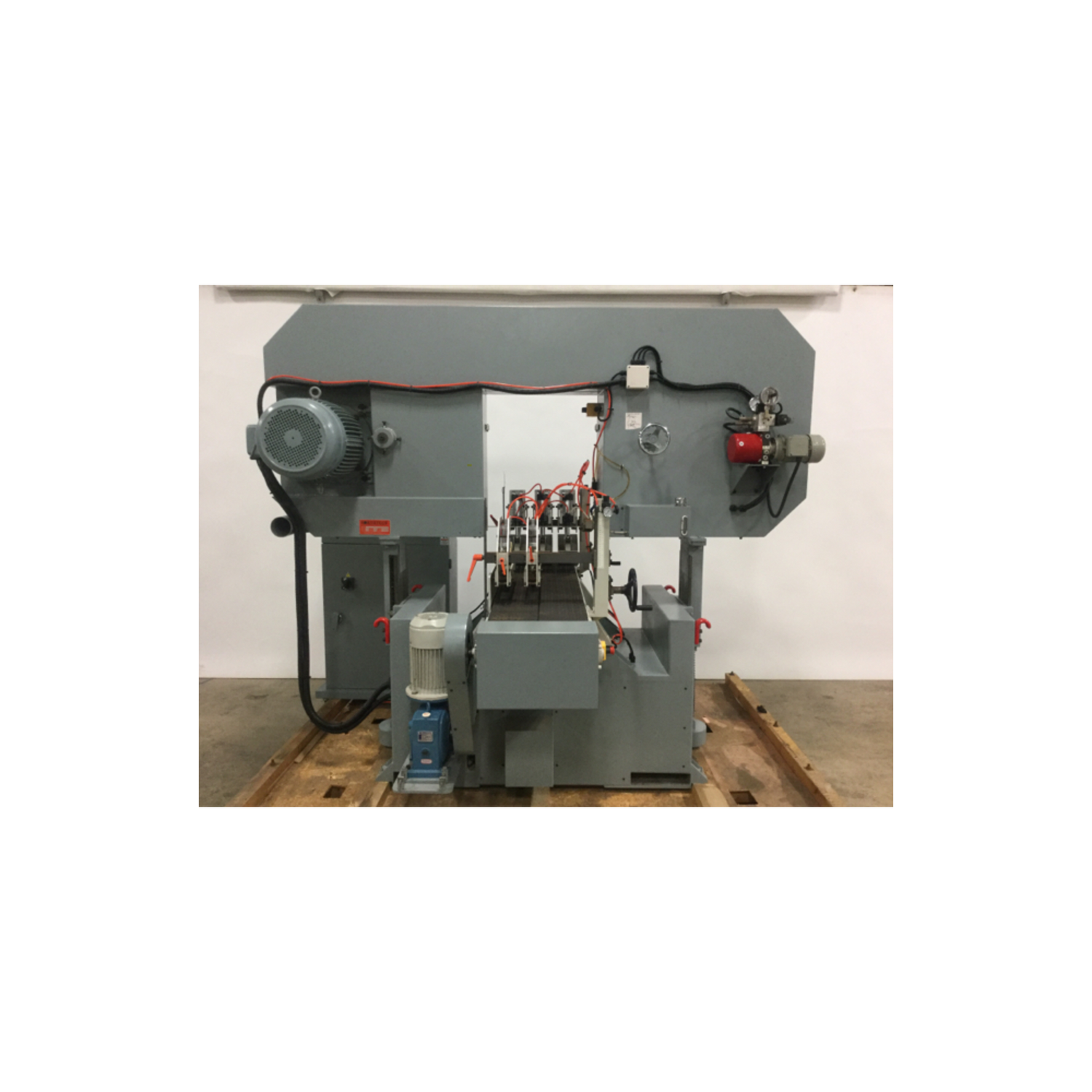

NorthTech Industrial Horizontal Band Re-Saw NT PHR-400Z-4434
NT PHR-400Z-4434 16" Horizontal band Re-Saw Precision Chain Feed Features
- Maximum cutting capacity: W 16" x H 10.75"
- Minimum thickness: 2mm (.07")
- Saw wheel diameter: W 2" x H 36"
- Saw blade length: 6060mm (238 ½")
- Saw blade width: 75mm (3"), (2" is optional)
- Steel chain conveyor belt: 400mm (16")
- Conveyor height (from floor): 926mm (36 ½")
- Feed speed: 5-55 FPM
- Feed inverter motor: 3HP with 5HP variable frequency drive

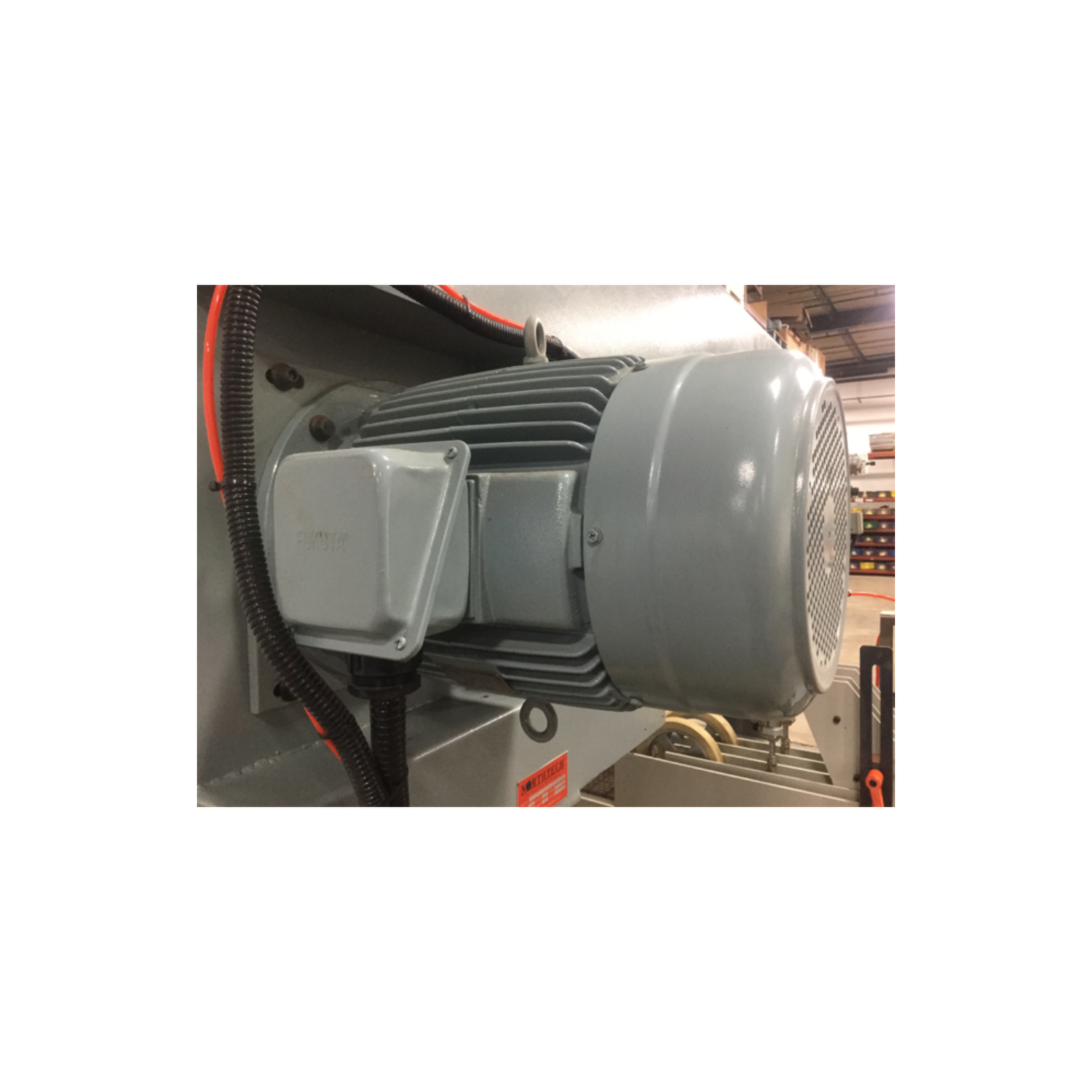

- Saw wheel motor: 40HP with 50HP variable frequency drive
- Blade lift motor: ¾ HP on precision ball screw lifting system
- 1HP pump for hydraulic blade tensioning system
- Dust ports: (2) 4"
- Dust collection requirements: 450 CFM @ points of extraction
- Touch screen control panel
- Precision blade guides from tungsten carbide
- Power return conveyor (Optional)
- All machines are tested stateside prior to shipment providing trouble free start up.
SPECS
- Main Motor Hp. = 40 hp.
- Voltage/ Freq. = 460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 56.67 Amps
- Feed Hp. = 3 Hp.
- Feed System = 16'' Chain Feed
- Drive System = Chain Drive
- Feed Speed = 5 - 55 FPM
- Variable Speed = Inverter Controlled
- Elevation Hp. = 3/4 Hp.
- Elevation Style = Auto Touch Screen Control
- Elevation Sys. = (2) Post Jack Screw
- Total Hp. = 44.5 Hp.
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 230 Volt
- Programmable = Feed Speed / Blade Speed
- Touch Screen = 7'' Digital Touch Screen
- Operator Panel = Mobile Cabinet
- Min. Length = 14''
- Min. Width = 2"
- Max. Width = 16''
- Min. Thickness = .07''
- Max. Thickness = 10-3/4''
- Blade Size = 238-1/2''
- Tooth Spacing = 1''
- Blade Kerf = .086 In.
- Blade Speed = 3850 - 7150 FPM
- Tracking Style = Manual Adjustment
- Tension Style = Hydraulic Tension
- Vertical Travel = .07'' - 10-3/4''
- Dust Collection = (2) 4'' @ 900 CFM
- Dust Port Out = 2 4'' Top
- Conveyor = 16'' Chain Conveyor
- Chain Adj. = Manual
- Hold Down Style = 3 Front 2 Rear Pneumatic
- FLR Included = Filter, Lubricator, Regulator
- Recommended CFM = 872 Total CFM
- Emergency Stop = Push Button
- Rear E Stop = Push Button
- Guarding = Full Cabinet Enclosure
- Oiler = Auto Oiler
- Blade Guide = Precision Tungsten Carbide
- Wheel Dims. = 2'' x 36''
- Wheel Construction = Steel Construction
- Frame Construction = 1/4'' Steel Construction
- Worktable Dims. = 16'' x 85-1/2''
- Decible Rating = 76 dB
- Net Weight = 4321 Lbs.
- Gross Weight = 4762 Lbs.
- Machine Dims. = 107'' x 87'' x 91''
- Packaging Dims = 109'' x 90'' x 100''
ITEM ID: 1179
