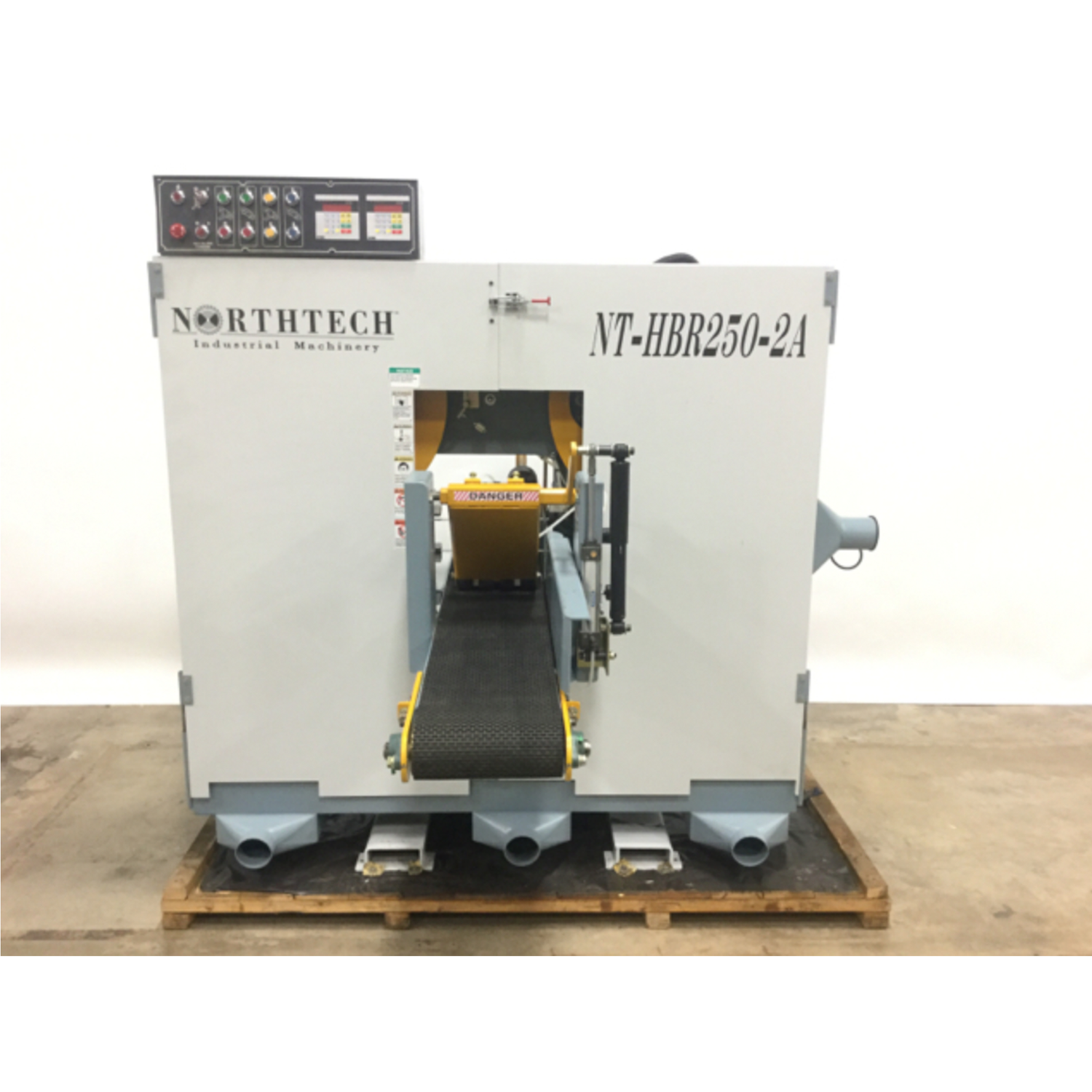

NorthTech Horizontal Bandsaw HBR250-2A Twin Head

NorthTech Industrial Horizontal Bandsaw Twin Head NT HBR250-2A

• FEATURES
• SPECS

• ADVANCED FEATURES HBR-250A-2 RE-SAW

  • Main Motor: (2) 20HP, 3PH, 460V

  • 30 Amp

  • Max. Workpiece Size: 11-3/4" x=""

  • Saw Wheels: 1" x 28"

  • Saw Blade Size: 1" x 168" Carbide Tipped Blade

  • Distance from upper blade to conveyor table: .35” - 6.7” (9mm - 170mm)

  • Distance from lower blade to conveyor table: 3/16” - 4” (4.5mm - 125mm)

  • Distance between two blades: Minimum 3/16” (4.5mm)

  • Saw wheel width: Accepts 1” or 1 ¼” blades

  • Conveyor belt size: 11.8” W x 215 ¾” L (300mm x 5480mm)

  • Min. cutting Thickness: 0.35"

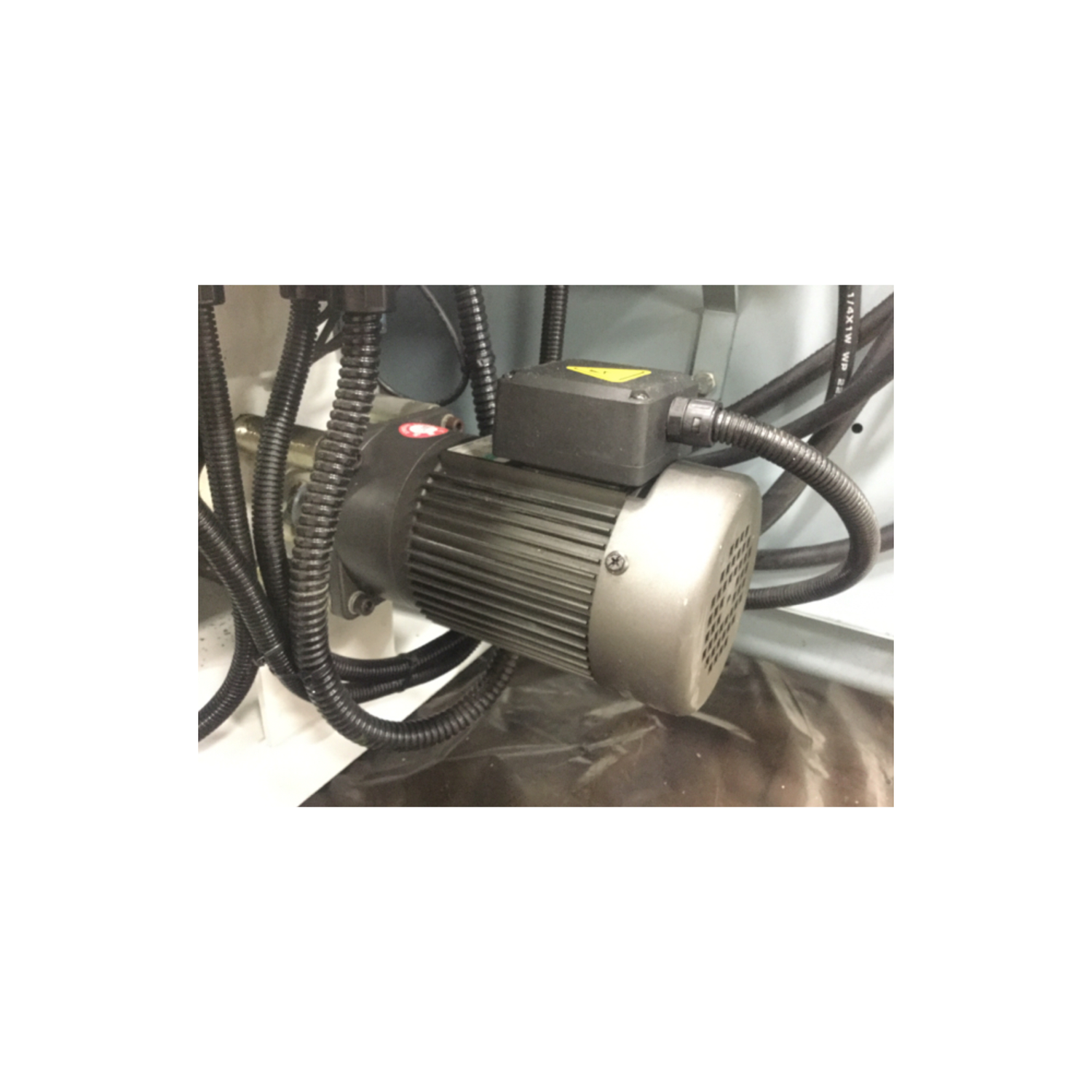

  • 3HP Inverter Controlled Variable Hydraulic Feed of 5-80 FPM

  • Controlling Blade Tension: Hydraulic Tensioning System

  • Elevation: (2) 1/4 HP motors with 525 digital set position controls

  • Dust Ports: (4) 4" ports requiring 436 CFM at each point of extraction

  • Machine Dimensions: 109"(L) x 82"(W) x 85"(H)

  • Machine Weight: 3,080 lbs.

  • Packing Dimensions: 115" x 85" x 79"

  • Packing Weight: 3,400 lbs.

  • (1) Tool box

  • Warranty is one year parts

  • All machines are tested stateside prior to shipment providing trouble free start up.

• SPECS

  • Top Head Hp. = 20 Hp.

  • Bottom Head Hp. = 20 Hp.

  • Voltage/ Freq. = 460 Volt 60Hz

  • Phase = 3 Phase<

  • Amp Requirement = 29 Amps

  • Feed Hp. = 3 Hp.

  • Feed System = 11'' x 218'' Hydraulic Drive Belt

  • Drive System = 3 Hp. Hydraulic Pump<

  • Feed Speed = 15 - 80 FPM

  • Variable Speed = Hydraulic Adjustment Knob

  • Elevation Hp. = 1/4 Hp.<

  • Elevation Style = (2) CH-525 Elevation Control

  • Elevation Sys. = (4) Post Jack Screw

  • Total Hp. = 43.5 Hp.

  • Electronics = CE Approved Components

  • Control Voltage = 230 Volt<

  • Assisted Start = Wye Delta<

  • Programmable = Elevation<

  • Operator Panel = Fixed

  • Throat Capacity = 11-3/4'' x 8''

  • Min. Length = 18''

  • Max. Length = Infinite

  • Min. Width = 1"

  • Max. Width = 11-3/4''

  • Min. Thickness = 3/16"

  • Max. Thickness = 8''

  • Blade Size = 1'' x 168''

  • Tooth Spacing = 5/8 In.

  • Blade Kerf = .063 In.

  • Blade Speed = 6300 RPM

  • Tracking Style = Manual Adjustment

  • Tension Style = Hydraulic Tension

  • Dust Collection = (4) 4'' @ 1744 CFM

  • Dust Port Out = (4) 4'' Ports

  • Arbor Diameter = 2" Arbor

  • Digital Display = Elevation

  • Conveyor = 15-1/4'' x 215-3/8''

  • Hold Down Style = Pneumatic / Gravity

  • FLR Included = Filter, Lubricator, Regulator

  • Recommended CFM = 1744 Total CFM

  • Emergency Stop = Push Button

  • Rear E Stop = Push Button

  • Guarding = Full Cabinet Enclosure

  • Oiler = Blade Oil Mister

  • Fence Type = Steel

  • Fence Dims. = 6-1/2'' Tall

  • Blade Guide = Steel Blade Guides

  • Wheel Dims. = 1'' x 28''

  • Wheel Construction = Steel Construction

  • Frame Construction = 3/16'' Steel Construction

  • Table Construction = Steel

  • Infeed Table = 11-1/4'' x 109''

  • Decible Rating = 79 dB

  • Net Weight = 3080 lbs.

  • Gross Weight = 3400 lbs

  • Machine Dims. = 109'' x 82'' x 85''

  • Packaging Dims = 115'' x 85'' x 79''

ITEM ID: 1263
