NorthTech Horizontal Bandsaw HBR-400XL

• DESCRIPTION
• SPECS

• ADVANCED FEATURES IN PRECISION RE-SAWING

  • Increased HP to 40 to meet higher production needs.

  • 32" diameter x 1-7/8" wide saw wheel (approximately 450lbs) for high centrifugal cutting force and vibration-free performance (6150 FPM).

  • 16 ¾’’ maximum part capacity.

  • Production feed speed of up to 130' / minute. Note: with VFD, re-saw can run as slow as 4 - 5' / minute if required.

  • Inverter feed allows fast feed setting to accommodate material type and width (with LED readout).

  • Digital set works (PLC) for fast and precise settings (accurate to .002" automatic position).

  • Precision German spring tensioning of the blade for constant tension to band at 22,000 PSI.

  • Auto oil misting system improves blade life by up to 40 - 50% on many materials. (Only activated when material is present by sensor.)

  • Pneumatic raise & lower of top feed rollers is automatic. When material is presented, a sensor lifts and lowers onto the material on both sides of the blade. * Prevents material from slamming into the rollers and requires no adjustment within a 4" ± thickness range. * i.e. random thickness material requires no adjustment.

  • Remote and dust proof controls panel allows random placement, conveniently making the material placement and operator position a flexible option.

• SPECS

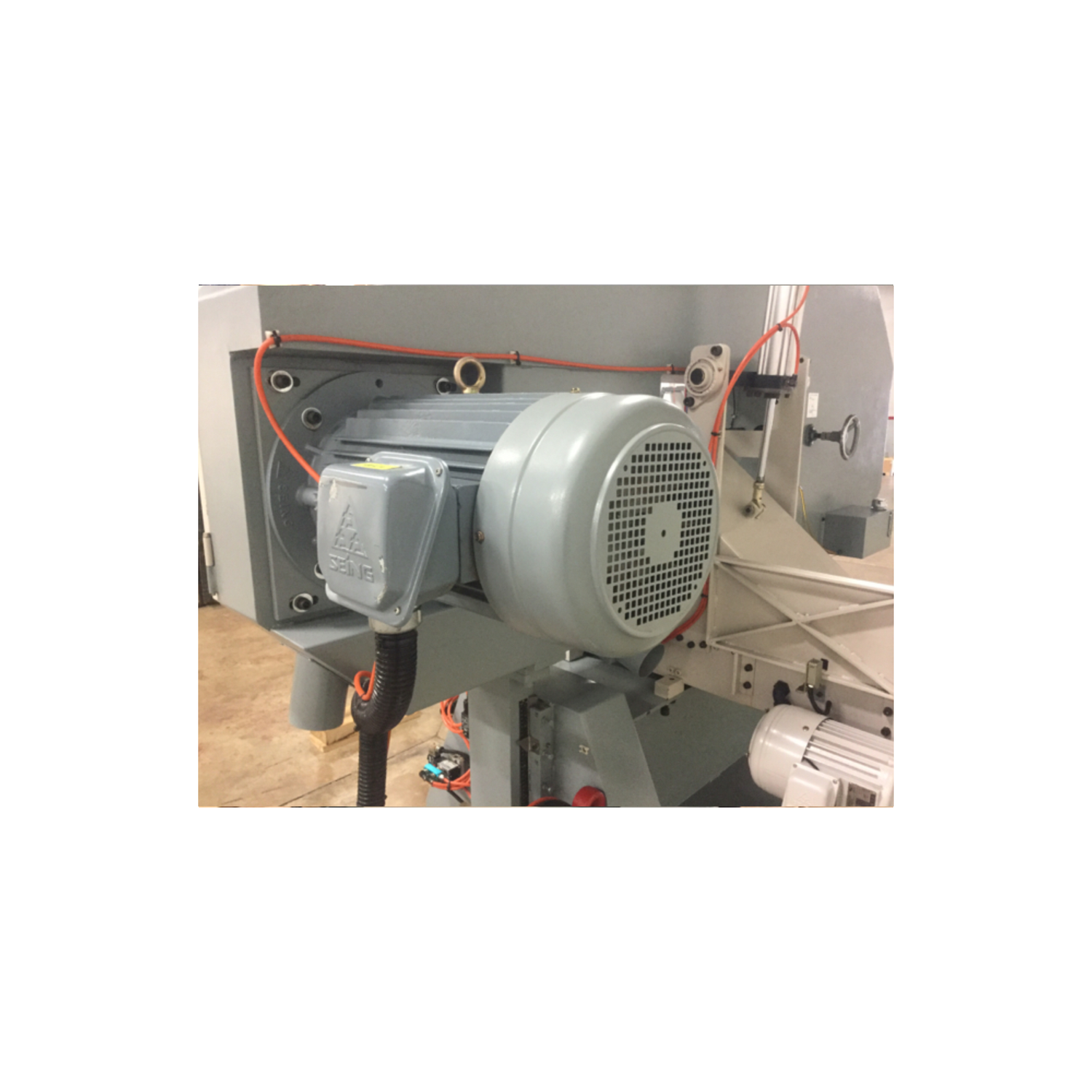

  • Main Motor Hp. = 40 hp.

  • Voltage/ Freq. = 460 Volt 60Hz

  • Phase = 3 Phase

  • Amp Requirement = 52.2 Amps

  • Feed Hp. = 1.5 Hp.

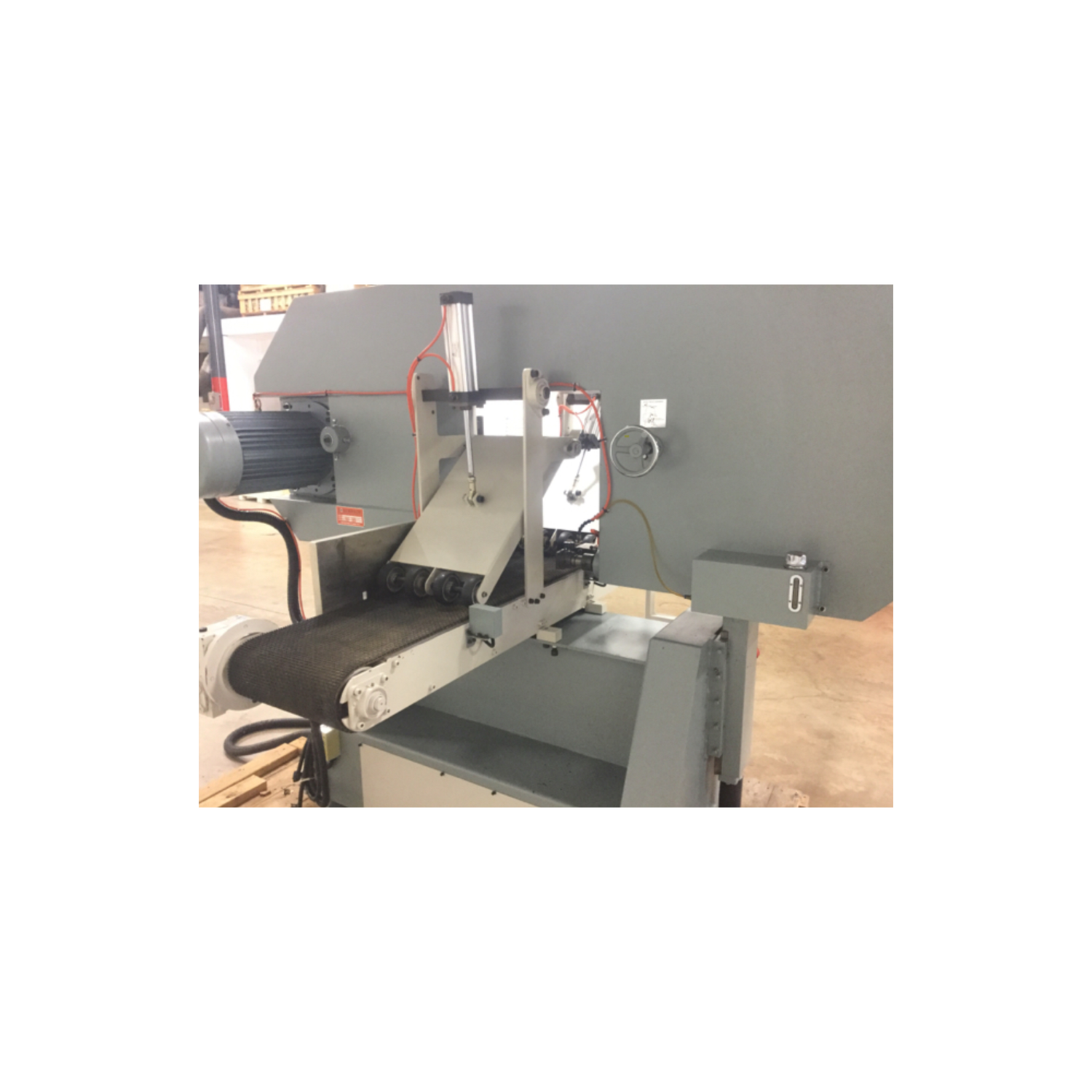

  • Feed System = 15-3/4'' Feed Belt

  • Drive System = Motor Mated to Gear Box

  • Variable Speed = Inverter Controlled

  • Elevation Hp. = 1.5 Hp.

  • Elevation Style = CH-525 Elevation Control

  • Elevation Sys. = (2) Post Jack Screw

  • Total Hp. = 43.5 Hp.

  • Electronics = CE Approved Components

  • Control Voltage = 220V Control Voltage

  • Assisted Start = Wye Delta

  • Programmable = Elevation

  • Operator Panel = Mobile Cabinet

  • Pass-Line = 40-3/8''

  • Throat Capacity = 11-3/4'' x 8''

  • Min. Length = 30'' Between Hold Downs

  • Min. Width = 1-1/2''

  • Max. Width = 16-3/4''

  • Min. Thickness = 1/4''

  • Max. Thickness = 17''

  • Blade Speed = 6150 FPM

  • Tracking Style = Manual Adjustment

  • Tension Style = Manual Adjustment

  • Vertical Travel = 10-3/8''

  • Dust Collection = (2) 4'' @ 900 CFM

  • Digital Display = Elevation

  • Hold Down Style = (1) Infeed (1) Outfeed Pneumat

  • FLR Included = Filter, Lubricator, Regulator

  • Recommended CFM = 3/8'' Supply Line @ 90 Psi

  • Emergency Stop = Push Button

  • Oiler = Blade Oil Mister

  • Fence Type = Fixed Fence

  • Fence Dims. = 8-1/2'' x 18''

  • Blade Guide = Steel Blade Guides

  • Wheel Dims. = 1-7/8'' x 31-1/2''

  • Wheel Construction = Steel Construction

  • Frame Construction = 1/2'' Steel Construction

  • Infeed Table = 17'' x 42-1/2''

  • Net Weight = 4321 lbs.

  • Gross Weight = 4761 lbs.

  • Machine Dims. = 104'' x 125'' x 90''

  • Packaging Dims = 89'' x 68'' x 84''

ITEM ID: 1960
