NorthTech | SKU:
NORTHTECH-H-BANDSAW-NT-HBR-300S

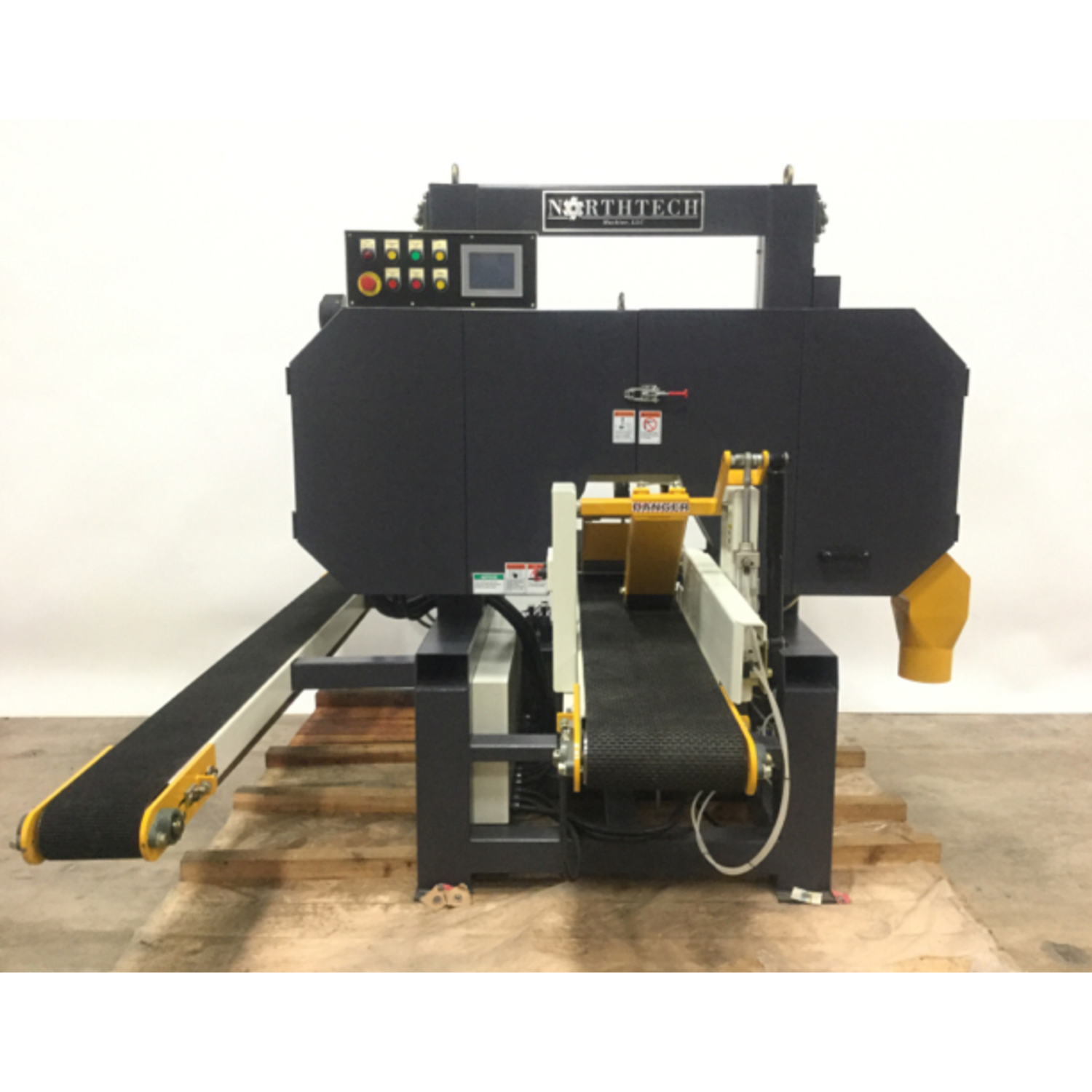

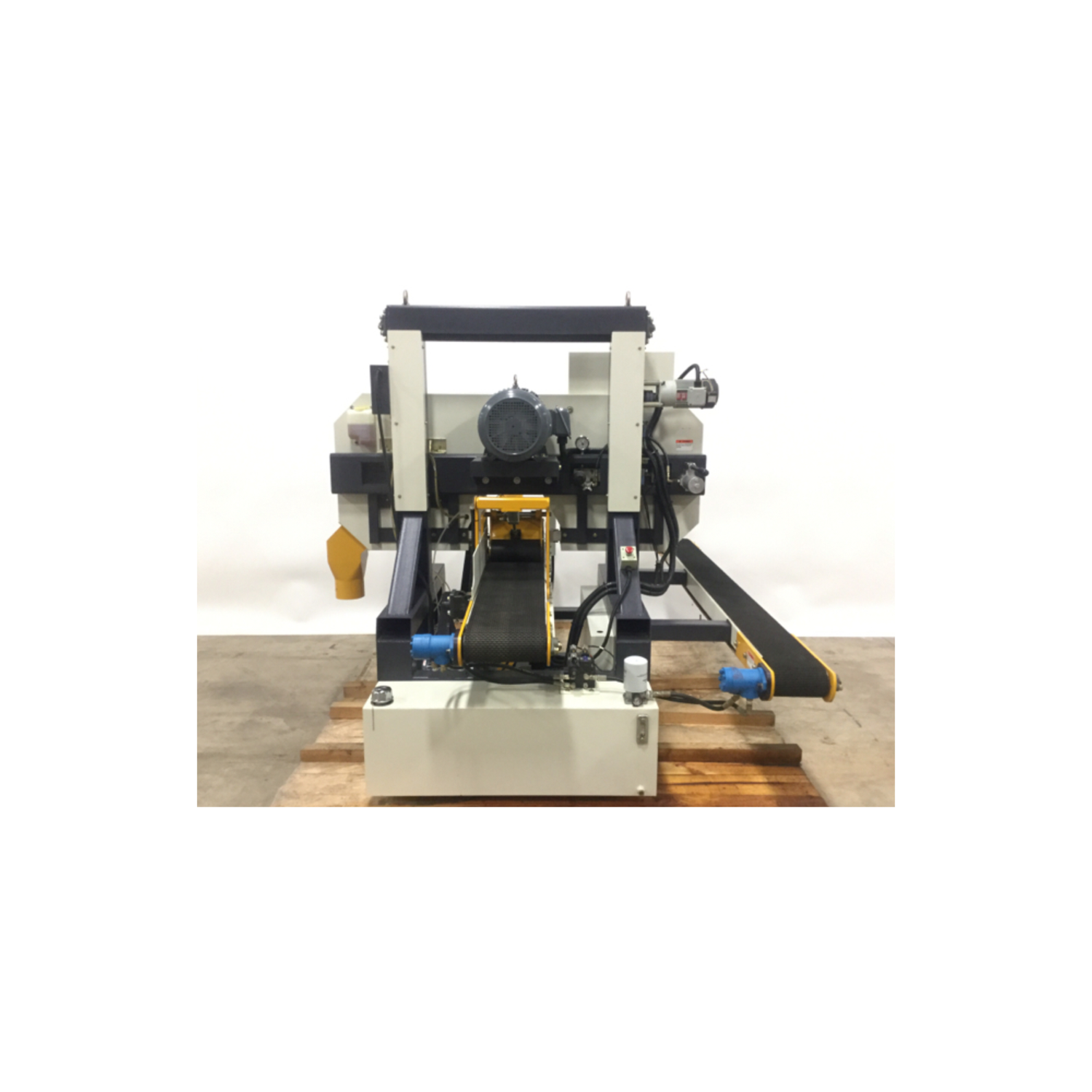

NorthTech Horizontal Bandsaw HBR-300S
Shipping calculated at checkout.
NorthTech Horizontal Bandsaw HBR-300S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Smith Sawmill Service ships to the Contiguous United States for orders from the website and typically ships products the same day during business hours. Weekend orders are processed the next business day. Products that are backlog or custom orders will be processed as soon as possible. Equipment deliveries vary based on current backlog and will be confirmed at time of order. Please call 800-598-6344 for an estimate for equipment and shipping questions.
NorthTech Horizontal Bandsaw HBR-300S
$0.00
Unit price
/
Unavailable
Description
Description
NorthTech Horizontal Bandsaw NT HBR-300S
SPECS

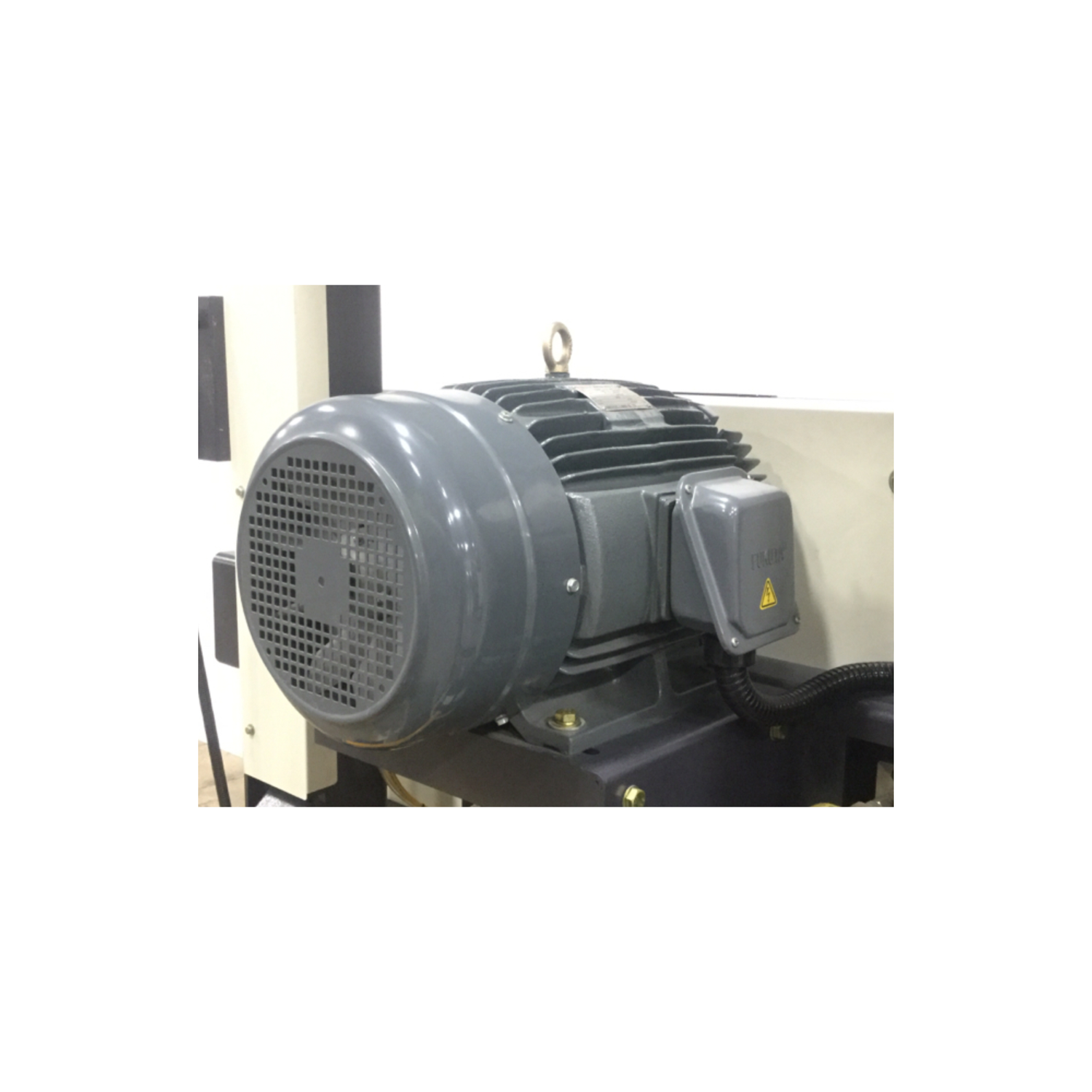

- Main Motor Hp. = 20 hp.
- Voltage/ Freq. = 460 Volt 60Hz
- Phase = 3 Phase
- Amp Requirement = 45 Amps
- Feed Hp. = 5 Hp.
- Feed System = 11'' x 218'' Hydraulic Drive Belt
- Drive System = 5 Hp. Hydraulic Pump
- Feed Speed = 0 - 95 FPM
- Variable Speed = Hydraulic Adjustment Knob
- Reverse Feed = Yes
- Elevation Hp. = 1/4 Hp.
- Elevation Style = Auto Touch Screen Control
- Elevation Sys. = (2) Post Jack Screw
- Total Hp. = 30-1/4 Hp.
- Electronics = CE Approved Components
- Control Voltage = 230 Volt / 24 Volt
- Assisted Start = Wye Delta
- Programmable = Elevation
- Touch Screen = 6'' Digital Touch Screen
- Operator Panel = Fixed
- Cut Envelope = 6-3/4'' x 11-3/4''
- Min. Length = 16''
- Max. Length = Infinite
- Min. Width = 1.5''
- Max. Width = 11-3/4''
- Min. Thickness = 1/4''
- Max. Thickness = 11-1/2''
- Blade Size = 1'' x 170'' Bandsaw Blade
- No. of Teeth = 4 TPI
- Tooth Spacing = 5/16''
- Blade Kerf = .063 In.
- Blade Speed = 6200 FPM
- Cleaning System = Weighted Wheel Scrapers
- Tracking Style = Manual Adjustment
- Tension Style = Hydraulic Tension
- Vertical Travel = 1/4'' - 6-3/4''
- Dust Collection = (1) 6'' @ 981 CFM
- Dust Port Out = 6'' Bottom
- Arbor Diameter = 2''
- Digital Display = 6'' Digital Display
- Conveyor = Rubber Belt
- Hold Down Style = (1) Infeed (1) Outfeed Pneumat
- FLR Included = Filter, Lubricator, Regulator
- Recommended CFM = 981 CFM
- Emergency Stop = Push Button
- Rear E Stop = Push Button
- Guarding = Full Cabinet Enclosure
- Oiler = Blade Oil Mister
- Fence Type = Steel
- Fence Dims. = 6-1/2'' Tall
- Tiltable = 30 Degree Tilt
- Blade Guide = Steel Blade Guides
- Wheel Dims. = 1'' x 28''
- Wheel Construction = Steel Construction
- Frame Const. = 3/16'' Steel Construction
- Infeed Table = 11-1/4'' x 109''
- Return Conveyor = 7-1/4'' x 109''
- Measure Meth. = Precision Encoder
- Decible Rating = 72 dB
- Machine Dims. = 109'' x 85-1/2'' x 80''
- Packaging Dims = 111'' x 89'' x 85''
